Электическая Бетономешалка
US $109.12
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2261.54 $* | 2374.26 $* |
| Aug-19-2025 | 2242.42 $* | 2354.22 $* |
| Jul-19-2025 | 1881.93 $* | 1975.95 $* |
| Jun-19-2025 | 2204.94 $* | 2314.96 $* |
| May-19-2025 | 1919.55 $* | 2015.66 $* |
| Apr-19-2025 | 2166.69 $* | 2274.80 $* |
| Mar-19-2025 | 2147.26 $* | 2254.21 $* |
| Feb-19-2025 | 2128.20 $* | 2234.89 $* |
| Jan-19-2025 | 2109.46 $* | 2214.34 $* |
Характеристики
Product Description
product manual

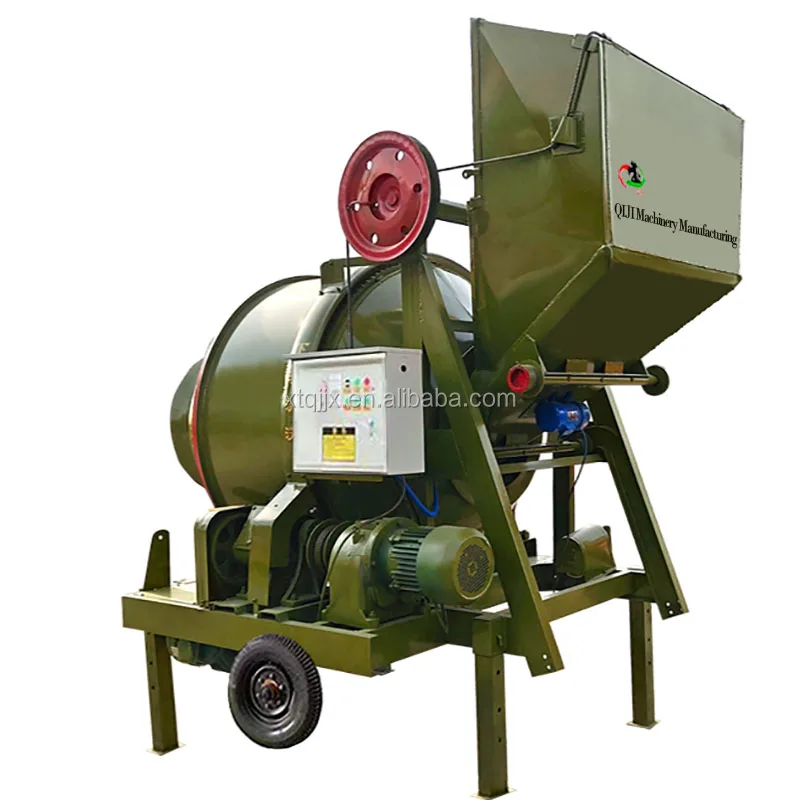

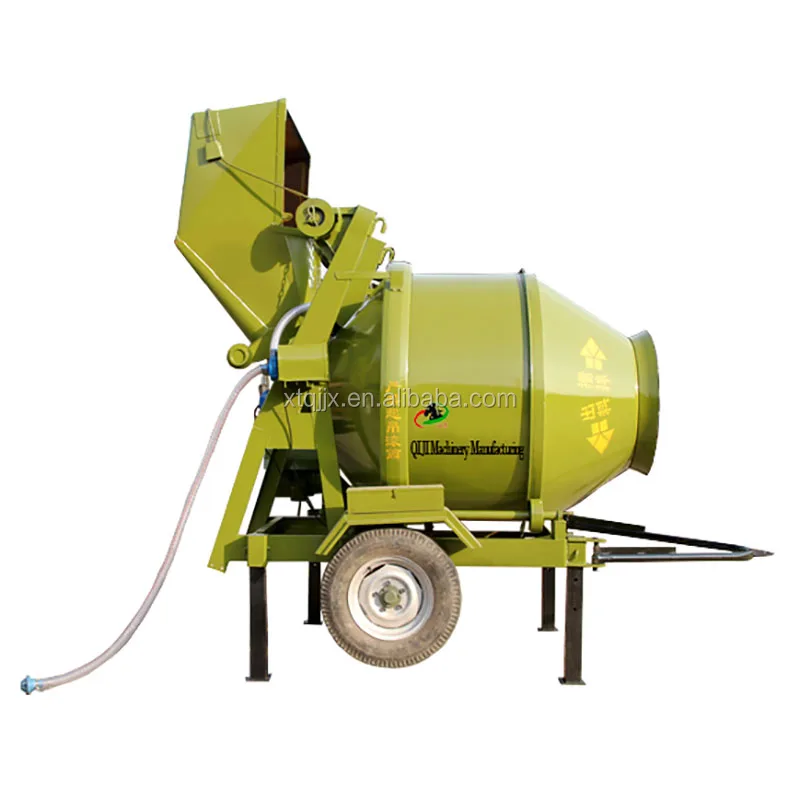

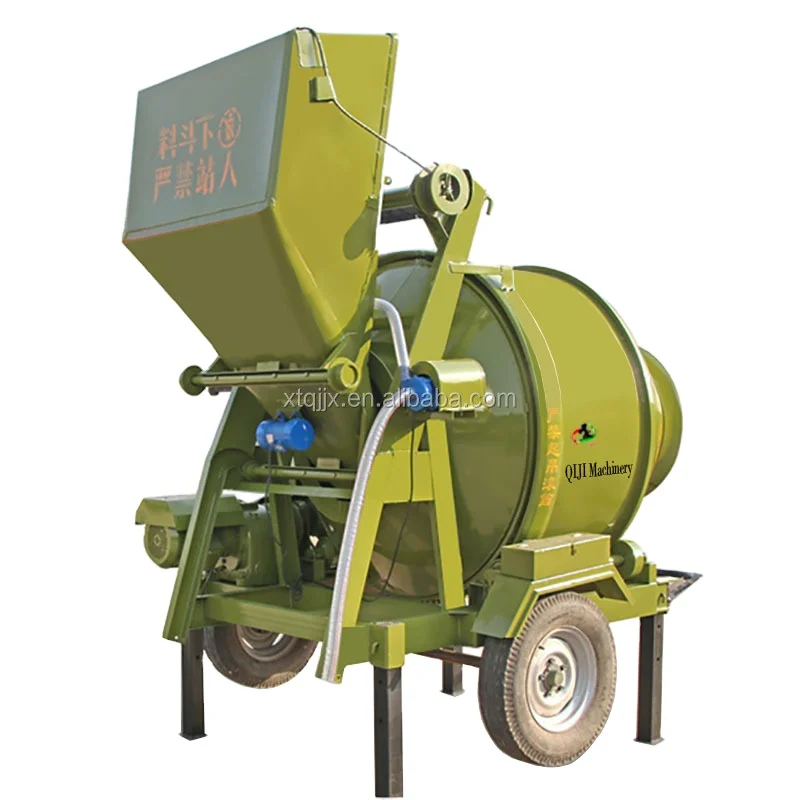

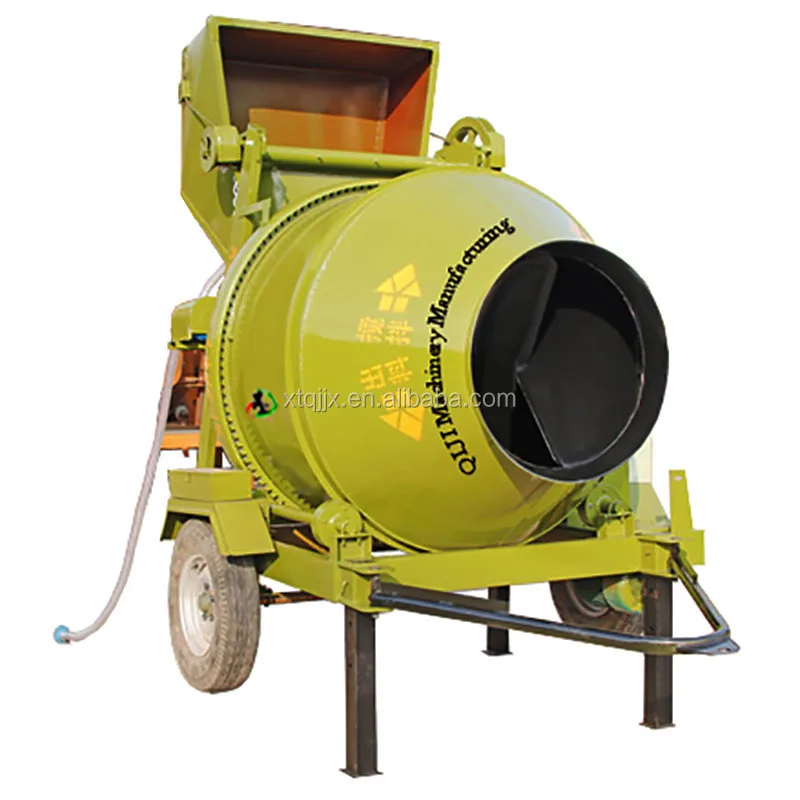

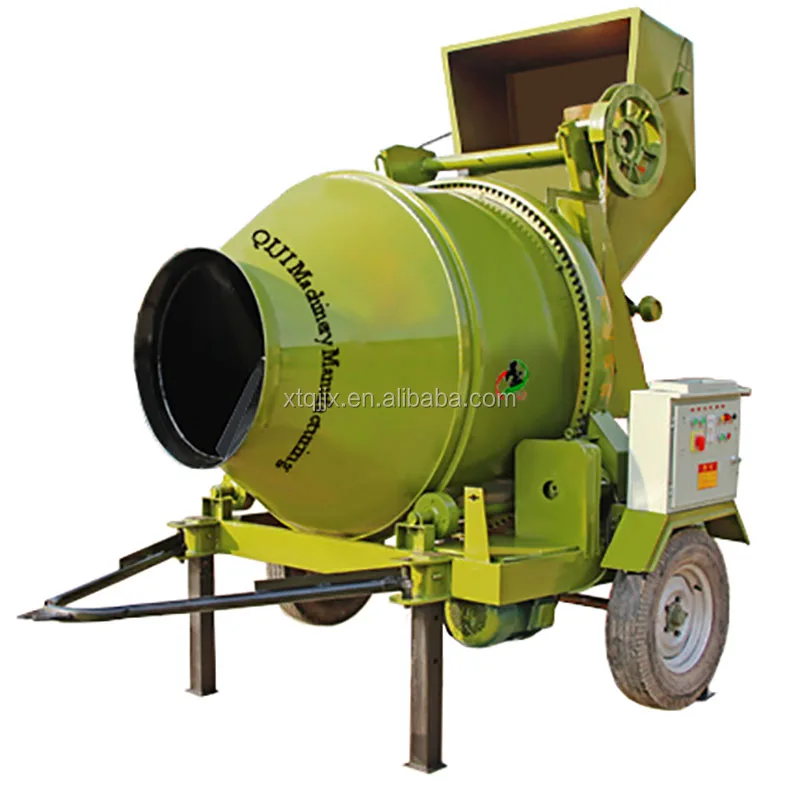

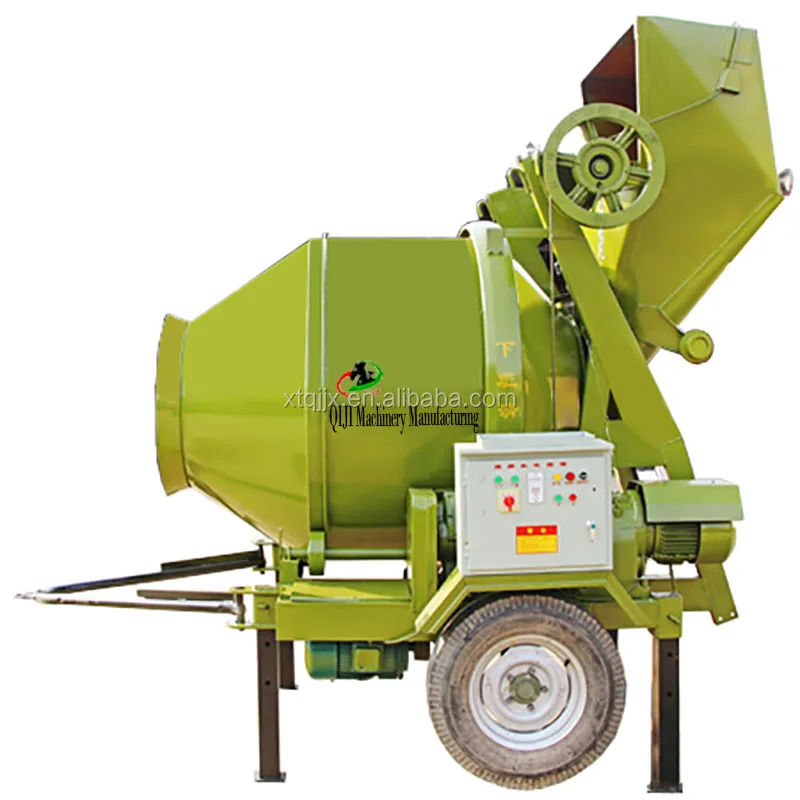

JZC series 350 concrete mixer is a kind of ring gear drive concrete mixing equipment. The JZC350 mixer produced by our factory is easy to operate, convenient and fast, low energy consumption, low noise, stable operation, and compact structure. At present, most of the domestic construction concrete mixing facilities are based on it, which is very common.
The JZC350 mixer is designed and manufactured according to GB/T9142-2000 <>, with reasonable structure, high productivity, good mixing quality, beautiful appearance, convenient movement, etc.It is a popular model.
Specification
Instructions for use:
1. The mixer should be set in a flat position, and the front and rear axles should be cushioned with square wood, so that the tires should be elevated to avoid movement when starting.
2. The mixer should be implemented with secondary leakage protection. After the power is turned on before going to work, it must be carefully inspected, and it can be used only after the empty vehicle is deemed qualified. During the trial run, check whether the mixing drum speed is appropriate. Generally, the empty car speed is slightly faster than the heavy car (after loading) by 2 to 3 revolutions. If there is a large difference, the ratio of the driving wheel and the driving wheel should be adjusted.
3. The rotation direction of the mixing drum should be in accordance with the direction indicated by the arrow. If it is not true, the motor wiring should be corrected.
4. Check whether the transmission clutch and brake are flexible and reliable, whether the steel wire rope is damaged, whether the track pulley is in good condition, whether there are obstacles around and the lubrication of various parts, etc.
5. After starting up, always pay attention to the normal operation of the various parts of the mixer. When shutting down, always check whether the blades of the mixer are bent and whether the screws are knocked off or loose.
6. When the concrete is mixed or is expected to stop for more than 1 hour, in addition to draining the remaining material, pour stones and water into the shaking drum, turn on the machine, and rinse the mortar sticking to the drum and discharge it. There should be no water in the barrel to avoid rusting of the barrel and blades. At the same time, the dust accumulation outside the mixing drum should be cleaned up to keep the machinery clean and intact.
7. After get off work and when the machine is not in use, turn off the power and lock the switch box to ensure safety.
2. The mixer should be implemented with secondary leakage protection. After the power is turned on before going to work, it must be carefully inspected, and it can be used only after the empty vehicle is deemed qualified. During the trial run, check whether the mixing drum speed is appropriate. Generally, the empty car speed is slightly faster than the heavy car (after loading) by 2 to 3 revolutions. If there is a large difference, the ratio of the driving wheel and the driving wheel should be adjusted.
3. The rotation direction of the mixing drum should be in accordance with the direction indicated by the arrow. If it is not true, the motor wiring should be corrected.
4. Check whether the transmission clutch and brake are flexible and reliable, whether the steel wire rope is damaged, whether the track pulley is in good condition, whether there are obstacles around and the lubrication of various parts, etc.
5. After starting up, always pay attention to the normal operation of the various parts of the mixer. When shutting down, always check whether the blades of the mixer are bent and whether the screws are knocked off or loose.
6. When the concrete is mixed or is expected to stop for more than 1 hour, in addition to draining the remaining material, pour stones and water into the shaking drum, turn on the machine, and rinse the mortar sticking to the drum and discharge it. There should be no water in the barrel to avoid rusting of the barrel and blades. At the same time, the dust accumulation outside the mixing drum should be cleaned up to keep the machinery clean and intact.
7. After get off work and when the machine is not in use, turn off the power and lock the switch box to ensure safety.
Mixer maintenance and maintenance：
1 Maintain the cleanliness of the body and remove dirt and obstacles on the body.
2 Check the oil and circuit and control equipment of each lubrication place, and add lubricating oil as required.
3 Before each shift, add water to the mixing drum and run it for 1 to 2 minutes. At the same time, check the reliability of the clutch and brake device.
4 During the operation of the concrete mixer, check whether the noise of the motor, reducer, and transmission gear is normal, and whether the temperature rise is too high.
5 After each shift, the concrete mixer should be cleaned carefully.
6 In order to ensure its technical performance, it is necessary to pay attention to not shoddy, and high-quality bearings must be selected during maintenance and reconstruction.
2 Check the oil and circuit and control equipment of each lubrication place, and add lubricating oil as required.
3 Before each shift, add water to the mixing drum and run it for 1 to 2 minutes. At the same time, check the reliability of the clutch and brake device.
4 During the operation of the concrete mixer, check whether the noise of the motor, reducer, and transmission gear is normal, and whether the temperature rise is too high.
5 After each shift, the concrete mixer should be cleaned carefully.
6 In order to ensure its technical performance, it is necessary to pay attention to not shoddy, and high-quality bearings must be selected during maintenance and reconstruction.
Packing & Delivery
Packaging | ||
Size | 2766(L)*2140(W)*3000(D) | |
Weight | 1950kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Xingtai Qi Ji Machinery Manufacturing Co., Ltd., established in 2016, is a professional manufacturer engaged in the
research,development, production, sale and service of mortar spraying machine. Concrete pump. Steel bar straightening and bending machine.... We are located in Renxian Industrial Zone, Xingtai, Hebei Province, China. with convenient transportation access.Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including a variety of CNC machine tools. Test equipment such as dynamic balance testing machine. In addition, we have obtained certificates. EU CE certification. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as United States. Canada. Russia. Brazil. Belgium. Finland. South Africa. Indonesia.India. Thailand, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements .
FAQ
1、How long is the warranty good for? The whole machine is guaranteed for 1 year and the key parts are guaranteed for 2 years from the date of spontaneous shipment.
2、What payment methods do we accept？
We support bank cards, credit cards, T/T, etc.
3、What is our delivery time?
Normal delivery within 3 working days, special models can contact customer service consultation
4、After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
2、What payment methods do we accept？
We support bank cards, credit cards, T/T, etc.
3、What is our delivery time?
Normal delivery within 3 working days, special models can contact customer service consultation
4、After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
