1000V 50A IP68 PV солнечный H ответвительный соединитель UL94VO T Солнечный 2/3/4/5/6 к 1 ветви
- Категория: Solar Applications >>>
- Поставщик: Dongguan,Maywah,Electronics,Co.,Ltd.Dongguan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.30 $* | 0.32 $* |
| Aug-17-2025 | 0.70 $* | 0.82 $* |
| Jul-17-2025 | 0.45 $* | 0.39 $* |
| Jun-17-2025 | 0.74 $* | 0.92 $* |
| May-17-2025 | 0.44 $* | 0.89 $* |
| Apr-17-2025 | 0.49 $* | 0.1 $* |
| Mar-17-2025 | 0.88 $* | 0.3 $* |
| Feb-17-2025 | 0.16 $* | 0.33 $* |
| Jan-17-2025 | 0.12 $* | 0.33 $* |
Характеристики
Products Description

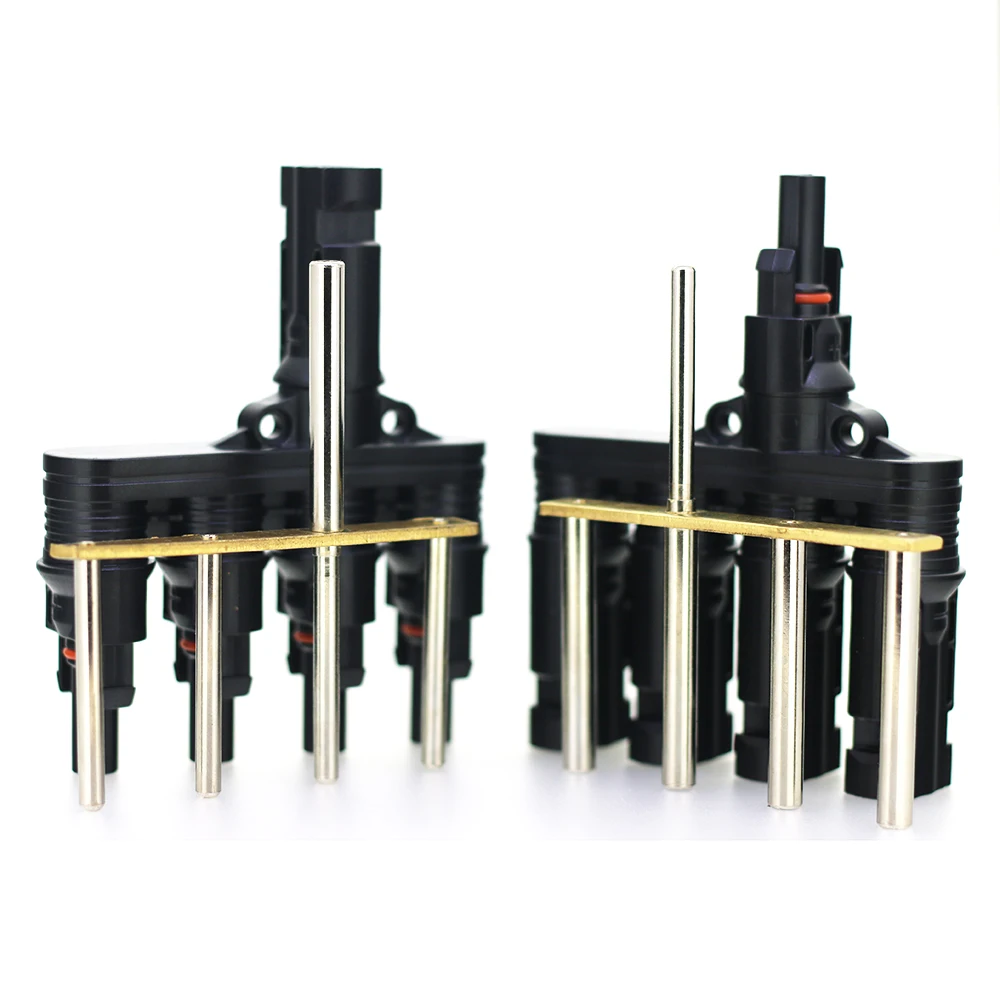

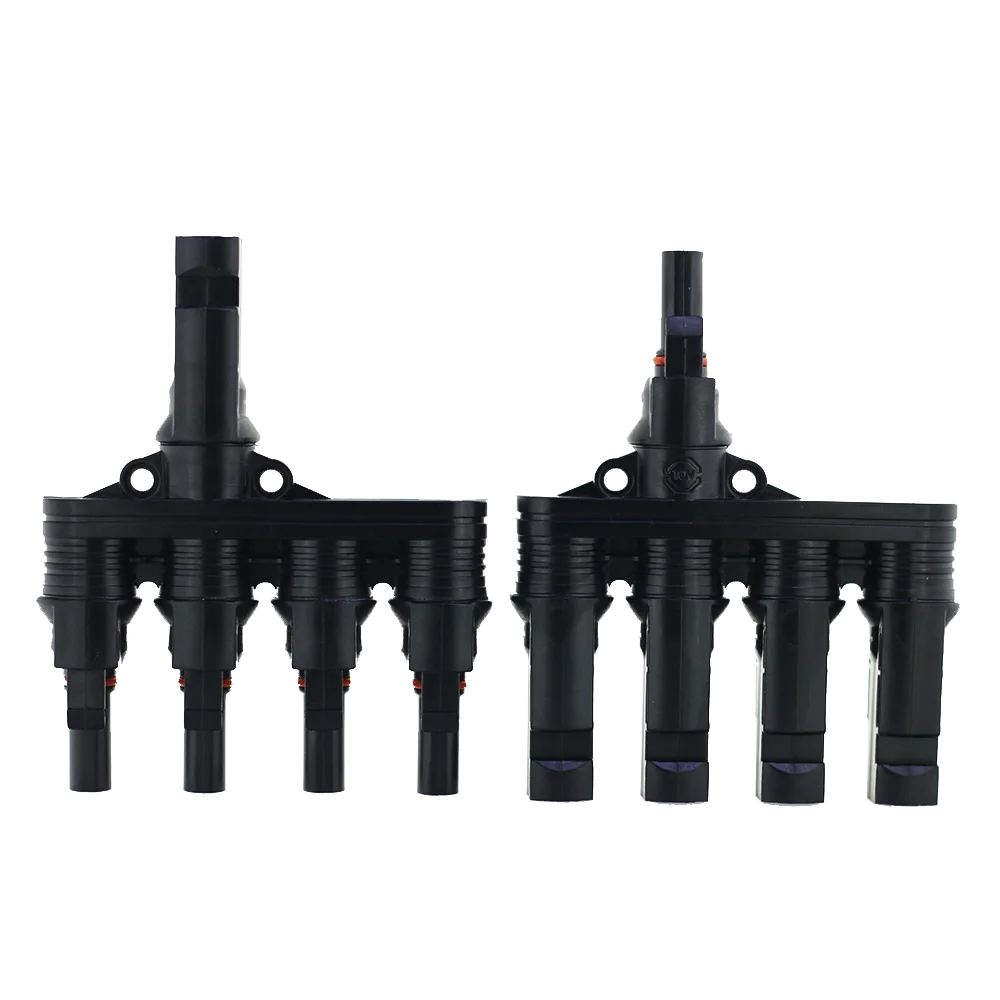

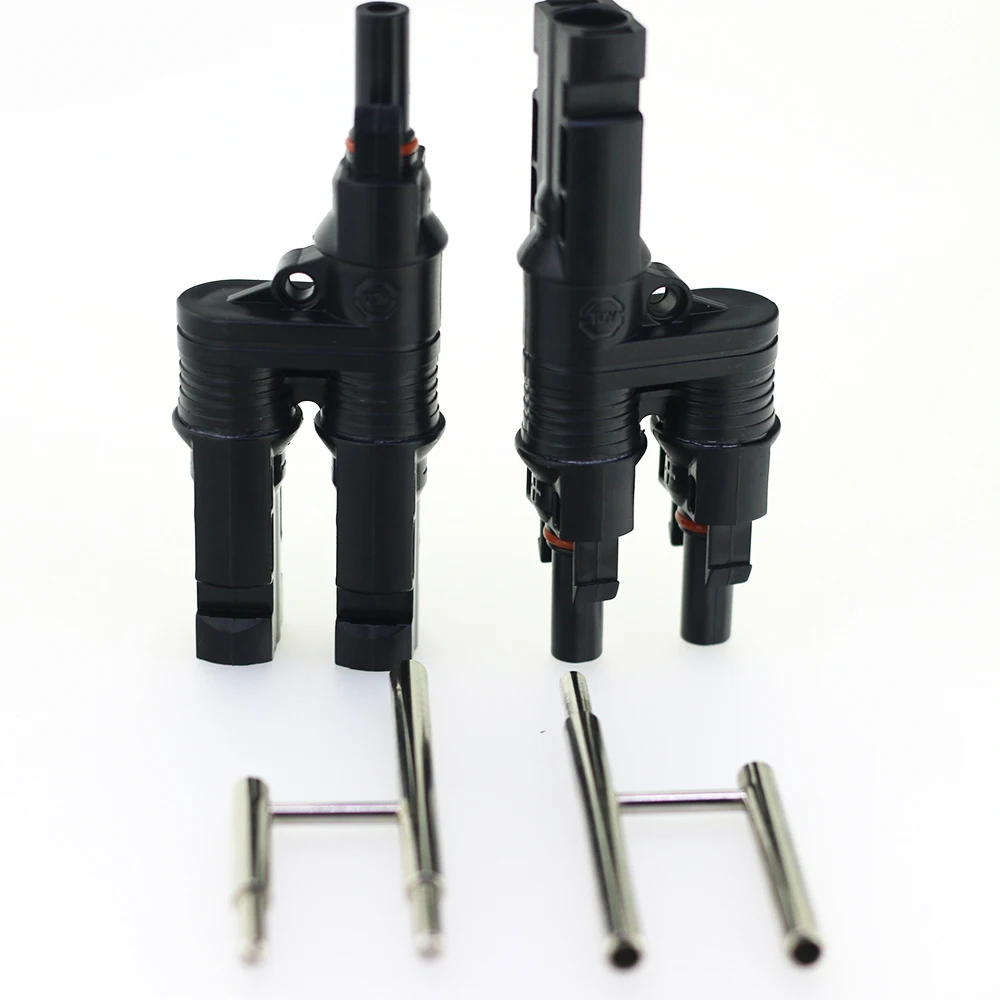

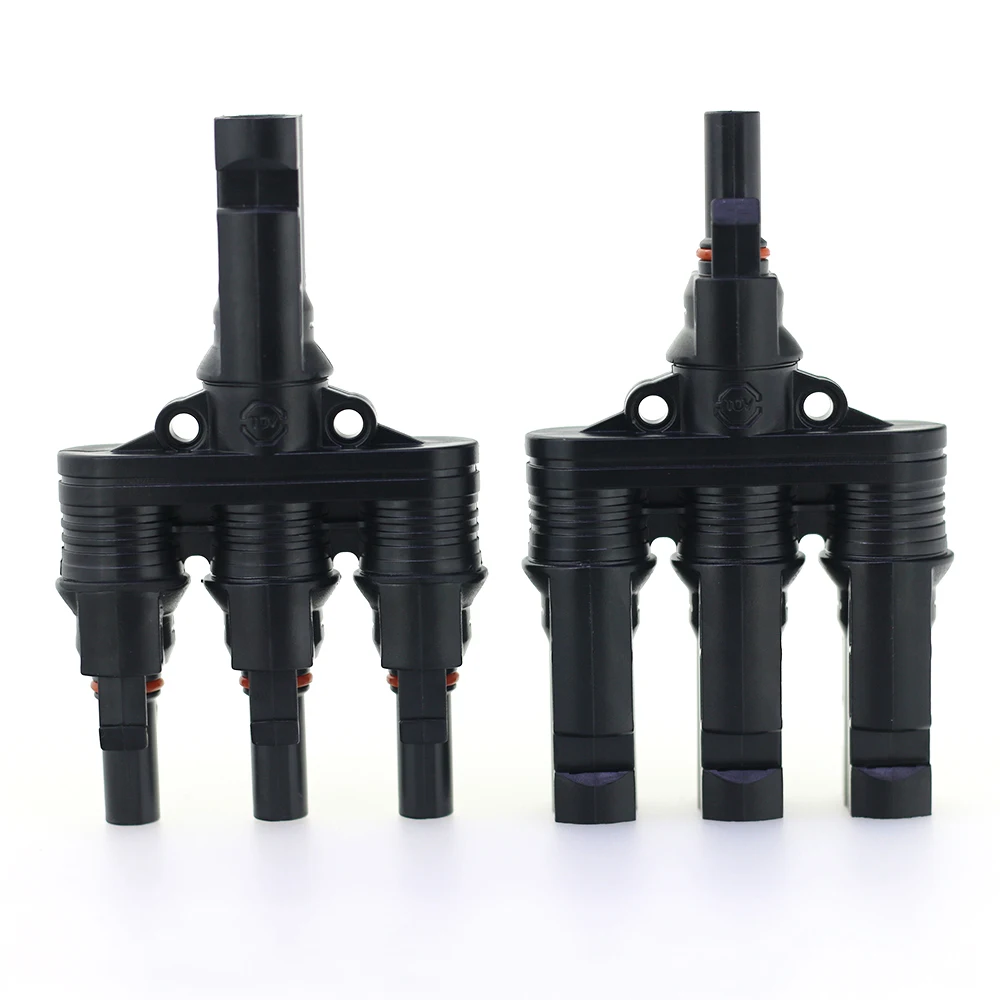

2/3/4/5/6 TO 1 H TYPE CONNECTOR
This is our Solar H branch connector integrating R&D, production and sales. It has IP68 protection level, UL94-VO flame resistance level, strong anti-aging, radiation resistance, high temperature resistance, low temperature resistance, excellent electrical conductivity, easy installation, and can be used for a long time. For outdoor use, it also has TUV, CE, RoHS, REACH, UKCA certification.
1. High quality PPO Material
2. T2 Copper Conductor
3. High-Strength Waterproof Ring
4. Stable Self-Locking Structure
5. Protection Class IP68
6. Strong Adaptability To The Environment
Key Features
High Quality PPO Material
High-quality materials, high temperature resistance, low temperature resistance, high temperature resistance, high strength, impact resistance, flame retardant.
T2 Copper Conductor
Open-type inner core (O-shaped inner core is optional), tinned/silver-plated copper, wear-resistant, corrosion-resistant, prevent oxidation, low resistance and strong conductivity.
High Strength Waterproof Ring
The product adopts high-strength waterproof ring, insulating silicone, waterproof and dustproof, and the protection level is IP68.
Stable Self-locking Structure
The connection is connected by compression, and the male and female heads have a self-locking structure, which can be opened and closed freely.
Protection Class IP68
The water depth is 1 meter, lasts for 1 hour, works normally (TUV laboratory test).
Adapt To The Environment
-40℃~+90℃ can be used, suitable for most working environments.
Specification
Model Number | MCH201/301/401/501/601 |
Voltage | DC 1000V |
Rated current | 50A |
Insulation material | PP0 |
Contact material | copper tin-plated |
Waterproof | IP68 |
Ambient Temperature | -40℃~+95℃ |
Product Temperature | -40℃~+135℃ |
Contact resistance | ≤0.35mΩ |
Incineration level | UL94-VO |

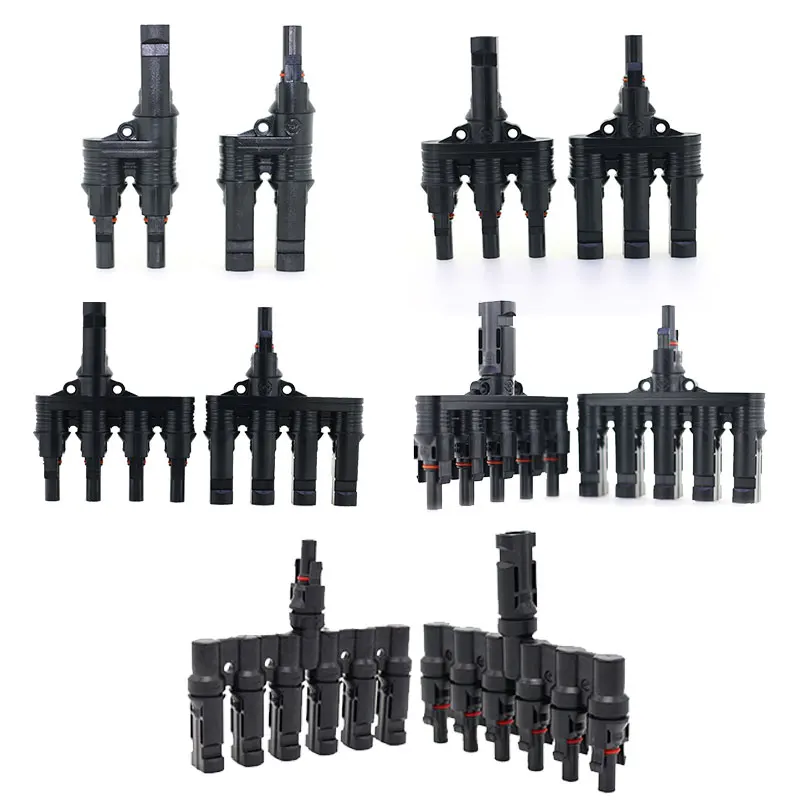

Product List
Package Content
MCH201
125 sets per carton
Box weight: 11.5KG
Box size: 35*35*18CM
MCH301
100 sets per carton
Box weight: 13KG
Box size: 35*35*22CM
MCH401
84 sets per carton
Box weight: 14KG
Box size: 35*35*22CM
MCH501
66 sets per box
Box weight: 13KG
Box size: 35*35*22CM
MCH601
48 sets per carton
Box weight: 13KG
Box size: 35*35*22CM
