Регулируемый 0 ~ 60V переменного тока 5A DC скамья переключатель питания постоянного переменной с 4-знака после запятой отображения и
- Категория: Power Supplies >>>
- Поставщик: Shenzhen,Chenzhoudao,Intelligent,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 62.23 $* | 63.52 $* |
| Jul-19-2025 | 50.40 $* | 51.52 $* |
| Jun-19-2025 | 61.48 $* | 62.74 $* |
| May-19-2025 | 61.33 $* | 62.17 $* |
| Apr-19-2025 | 49.86 $* | 50.66 $* |
| Mar-19-2025 | 60.4 $* | 61.33 $* |
| Feb-19-2025 | 59.63 $* | 60.36 $* |
| Jan-19-2025 | 59.99 $* | 60.85 $* |
Характеристики
SPS605 DC Power Supply
·4-digits with power value display. Its screen is covered with a protective film to prevent scratches;
·The usb interface can charge the phone;
·Input Voltage:AC 230V±10%/50Hz or 115V±10%/60Hz;
·Output Voltage:0~60V;Output Current:0~5A.
·Voltage Resolution:0.01V;
·Current Resolution:0.001A ;
·Power Effect:CV≤1%+10mV;
·Effect of Load:CV≤1%+10mV;Ripple and ·Noise:Vp-p≤1%;
·Voltage Display Precision:±1% reading + 1 digits;
·Current Display ·Precision:±1% reading + 2 digits;
·Operating Environment:(-10~45)Rh<90%;
·Multiple Protection: Over voltage protection, Over current protection, Overheating protection, Over power protection, Short circuit
protection, Leakage protection;
·Multiple Protection: Over voltage protection, Over current protection, Overheating protection, Over power protection, Short circuit
protection, Leakage protection;
·Intelligent Cooling Fan: Low noise; low consumption;
·When the temperature reaches 50°C the fan
will automatically turn on. ·5V/2A USB Port: The DC power supply is equipped with a 5V/2A USB port, you can charge your mobile
phone, tablet or other devices.
will automatically turn on. ·5V/2A USB Port: The DC power supply is equipped with a 5V/2A USB port, you can charge your mobile
phone, tablet or other devices.

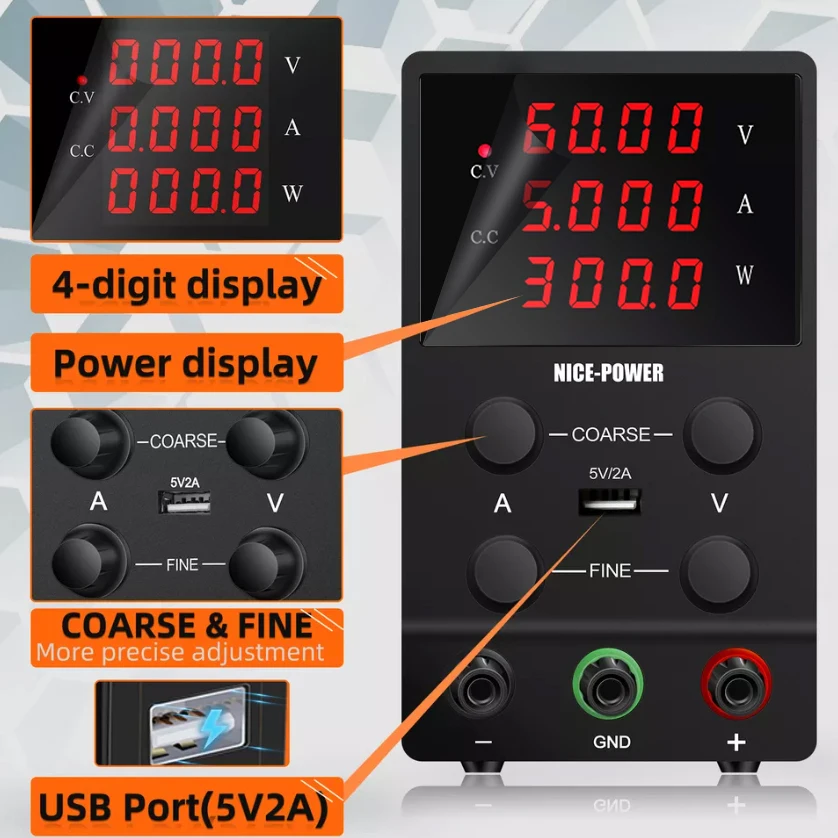

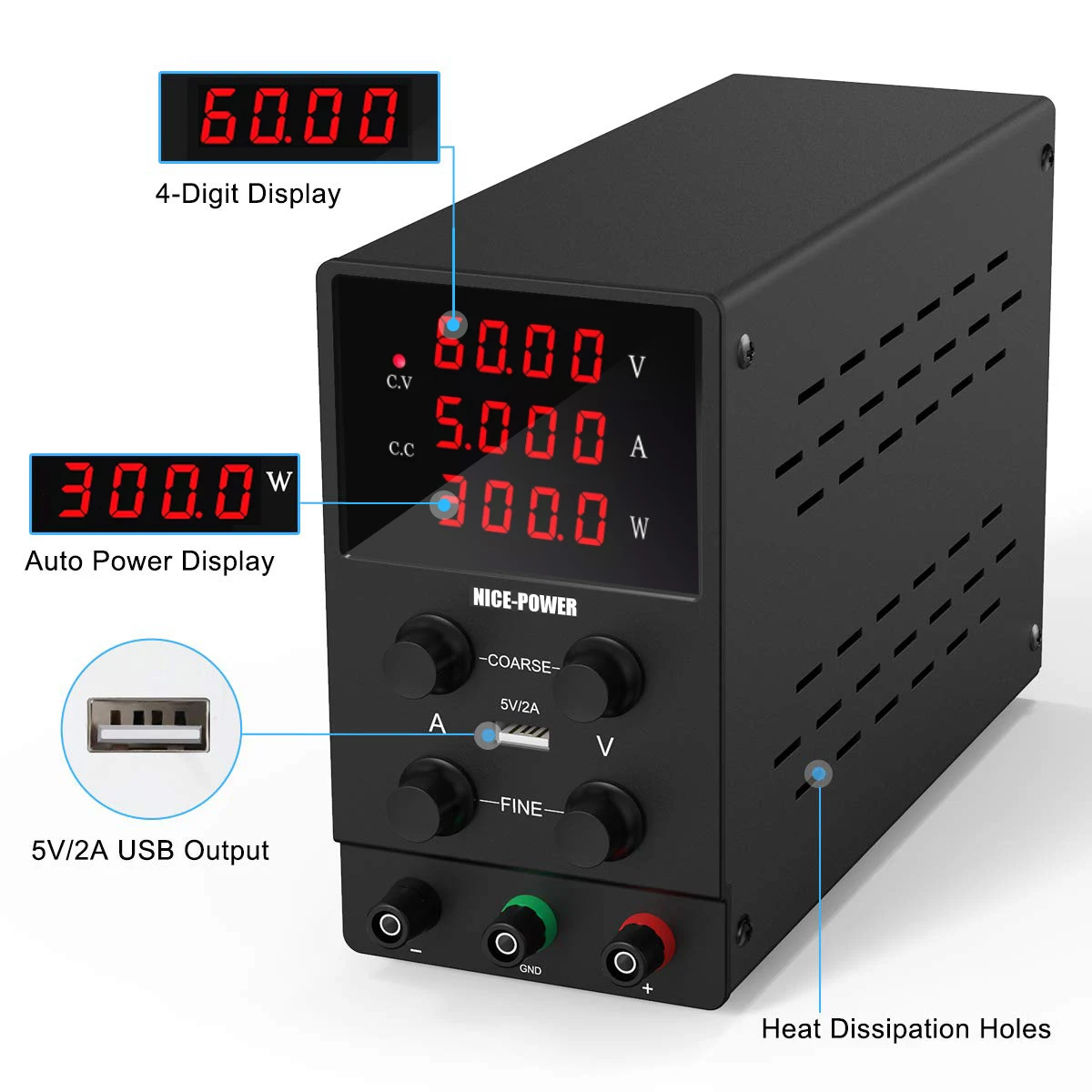

·High Precision with 4-Digits and Power Display
The SPS605 60V/5A lab DC bench top power supply is a professional laboratory power supply regulation device that has a high resolution of 0.01V and 0.01A. You can easily tune it within 0~60V and 0~5A. The backlight 4-digit LED display provides a more accurate readout for the voltage and current value, visible easily even in the low-light conditions.
·Constant Voltage (C.V.) & Current (C.C.) Mode Automatic Conversion

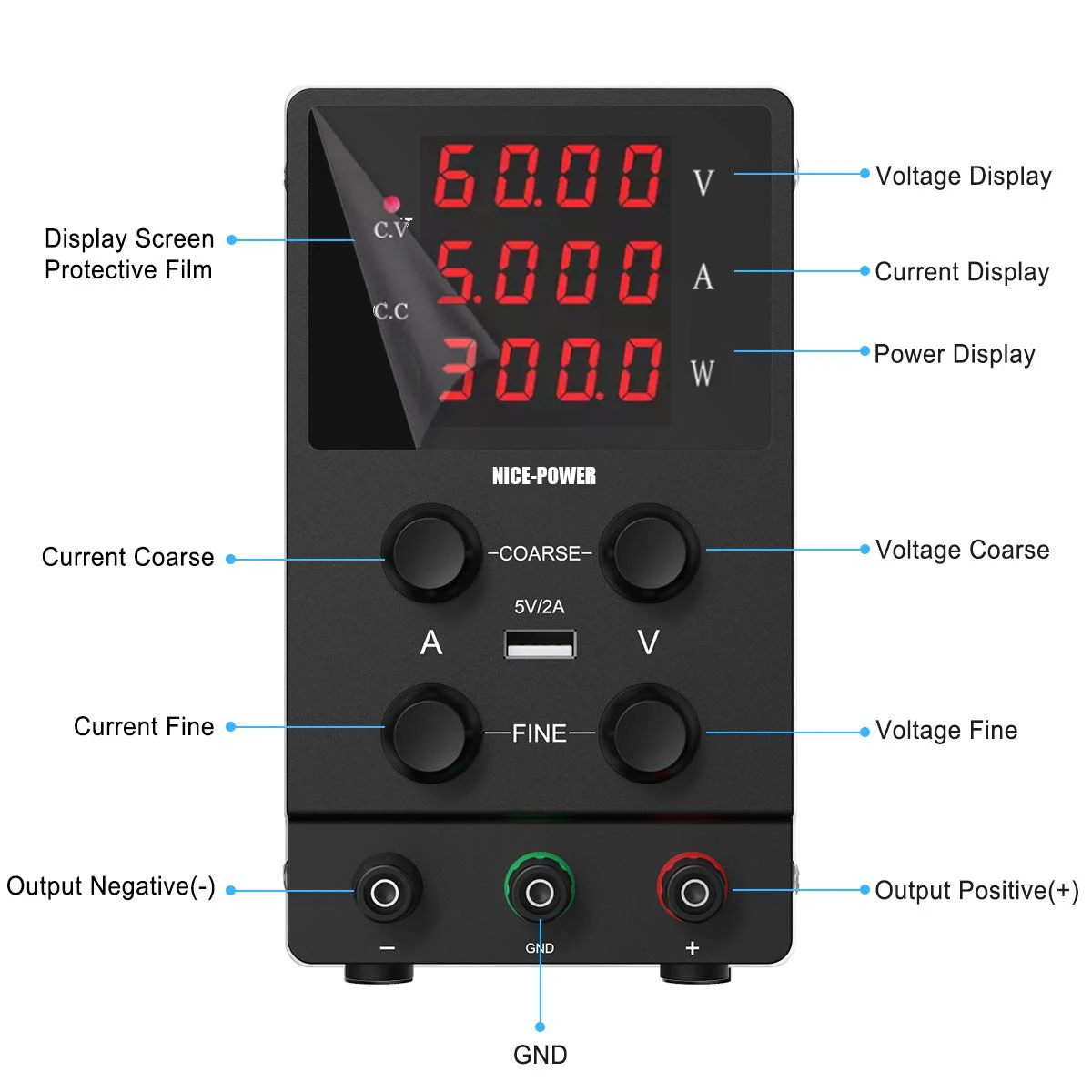

Easy to dial in the desired voltage and current with the coarse and fine adjustment knob. The constant voltage/current mode can automatically switch with load changes.The conversion of constant voltage and constant current is indicated by the LED display on the front panel.
·Compact and Various Application
This lab DC power supply is less than 3 lbs and measures only 9.5 x 3.4 x 6.1 inches, applies for laboratory, school,repair, electrolyzation, electroplate, brush plating, lamp test, aging testing, battery charge, home DIY and other requirements.5V/2A USB Interface could charge your cellphone and provide power for the device which you want to repair, no worry about running out of power.
·Reliable and Safety
Many safety measures are adopt in this lab DC power supply - Grounding wire, Leakage protection,Thermal protection, Voltage overload protection, Power overload protection and Short-circuit protection. it use premium electronic components, provide reliable working status and prolong the life of product effectively. When the working temperature is more than 122℉/50℃,the intelligent thermal protection will active the cooling fan to lower the temperature.
Advantages:
·USB port charge 5V/2A
Small industrial design, convenient charging USB interface.Convenient size design, lighter than the old DC stabilized power supply.
·Screen protection film
If you find scratches on the screen, don't worry, there is a protective film on the screen. You may need to take a closer look to find this protective film. It may not be obvious.
·By connecting the load
By connecting the load, the current can be adjusted. If you just power on and don't turn on the load, then you
can only adjust the voltage.
can only adjust the voltage.
·Internal structure diagram
More than 10,000 experiments, the circuit board design meets the standard

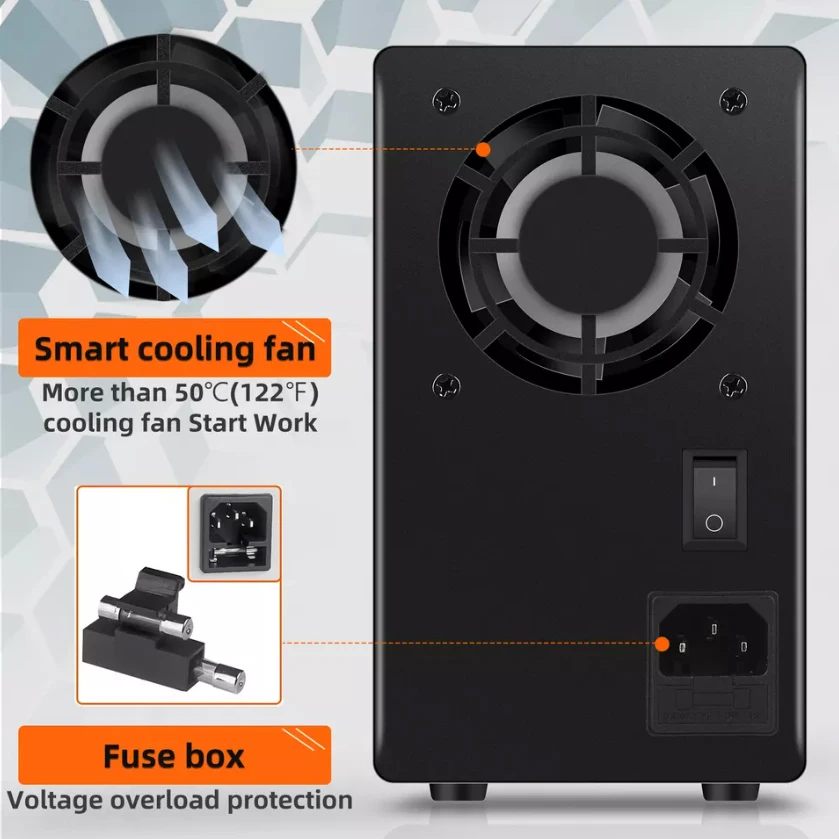

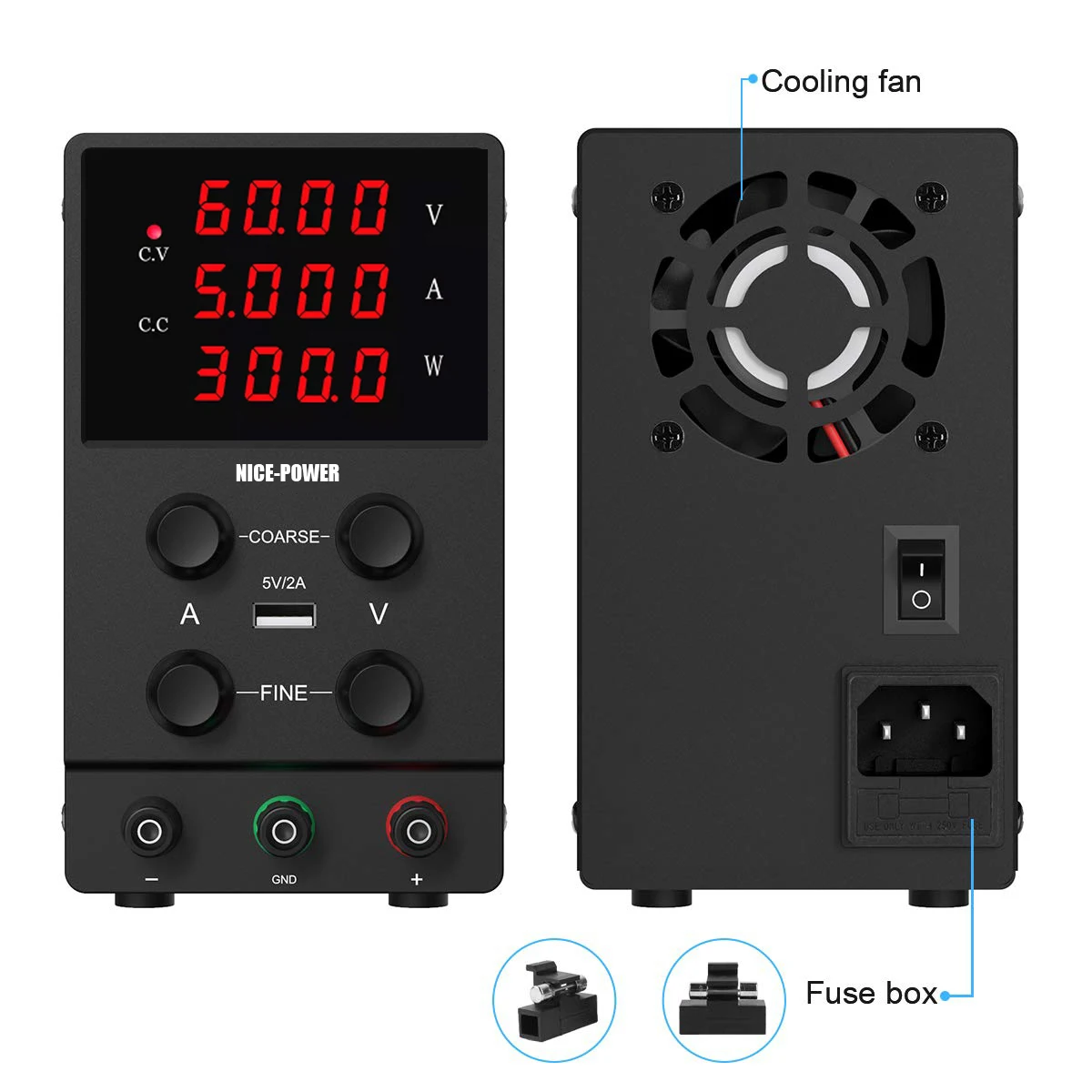

·Smart fan
When the temperature reaches 50 ℃, the fan starts automatically. This is different from the old power supply.
·Simple to use
If it is found that the current cannot be adjusted, you can test it first to eliminate the fault.
Technical Parameters | ||
Input Voltage | AC 230V±10%/50Hz or AC 115V±10%/60Hz | |
Constant Voltage State | Voltage stability:≤0.1%+3mV | |
Low Voltage:0.2~0.3%+3mV | ||
Load stability:≤0.5%+3mV | ||
Ripple noise:≤30mVrms | ||
Constant Current State | Current stability:≤0.2%+3mA | |
Load stability:≤0.2%+3mV | ||
Ripple noise:≤20mArms | ||
Display Accuracy | 0.5% reading ± 2 digits | |
Display Resolution | Voltage: 000.1V | |
Current: 0.001A | ||
Product Dimension | 9.5 inches x 3.4 inches x 6.1 inches/240mm x 85mm x 155mm | |
Product Weight | 2.75lb/1.25kg | |
Fuse Standard | 5A | |
Working Temperature | 0 ℃~40℃; Relative Humidity:＜80%RH | |
Storage Temperature | -10 ℃~70℃; Relative Humidity:＜70%RH | |
