Gemaa OptiSelect Pro GM04 ручной пистолет-распылитель/пистолет для покрытия

Gemaa OptiSelect Pro GM04 ручной пистолет-распылитель/пистолет для покрытия

Категория: Power Spray Guns >>>
Поставщик: Weifang,Galin,Powder,Coating,Equipment,Co.,Ltd.

Цена:99,00 $ - 180,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	126.58 $*	129.86 $*
Jul-18-2025	102.1 $*	104.6 $*
Jun-18-2025	124.29 $*	126.7 $*
May-18-2025	123.29 $*	125.33 $*
Apr-18-2025	98.95 $*	100.0 $*
Mar-18-2025	121.30 $*	123.28 $*
Feb-18-2025	120.61 $*	122.44 $*
Jan-18-2025	119.89 $*	121.50 $*

Характеристики

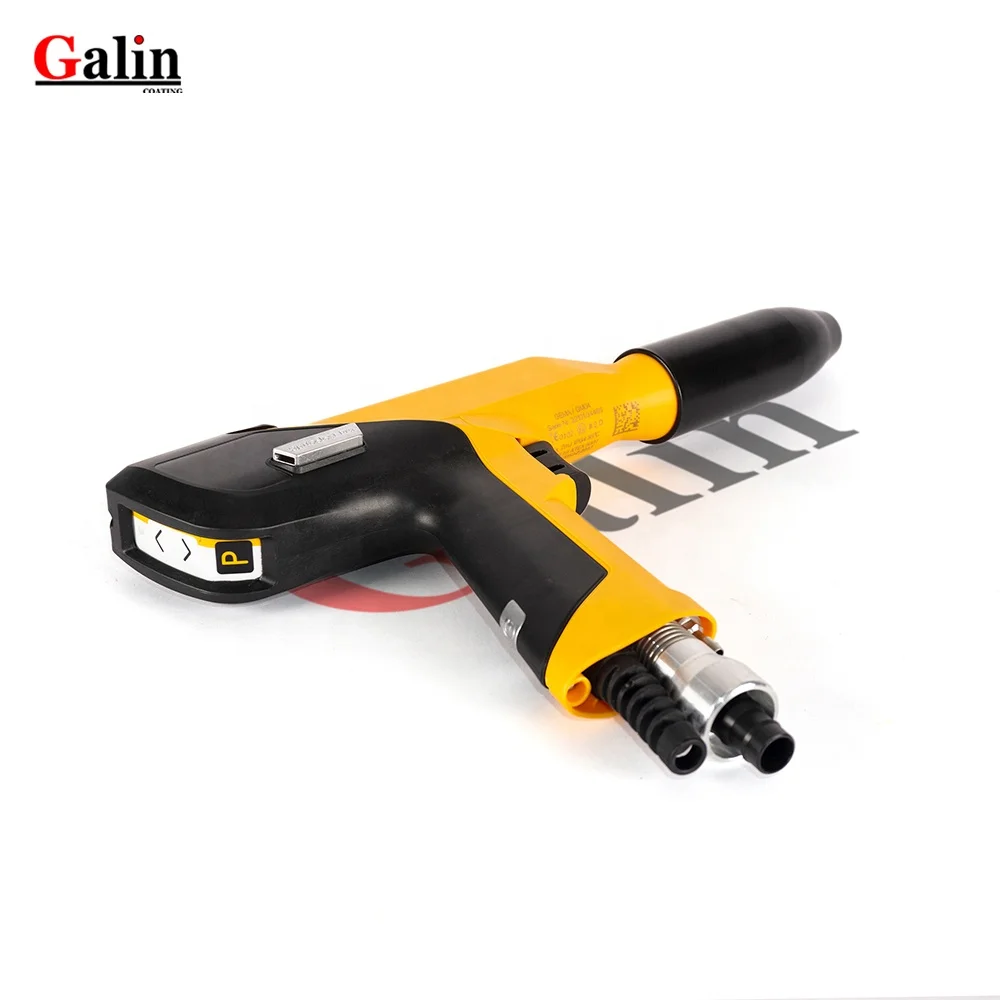

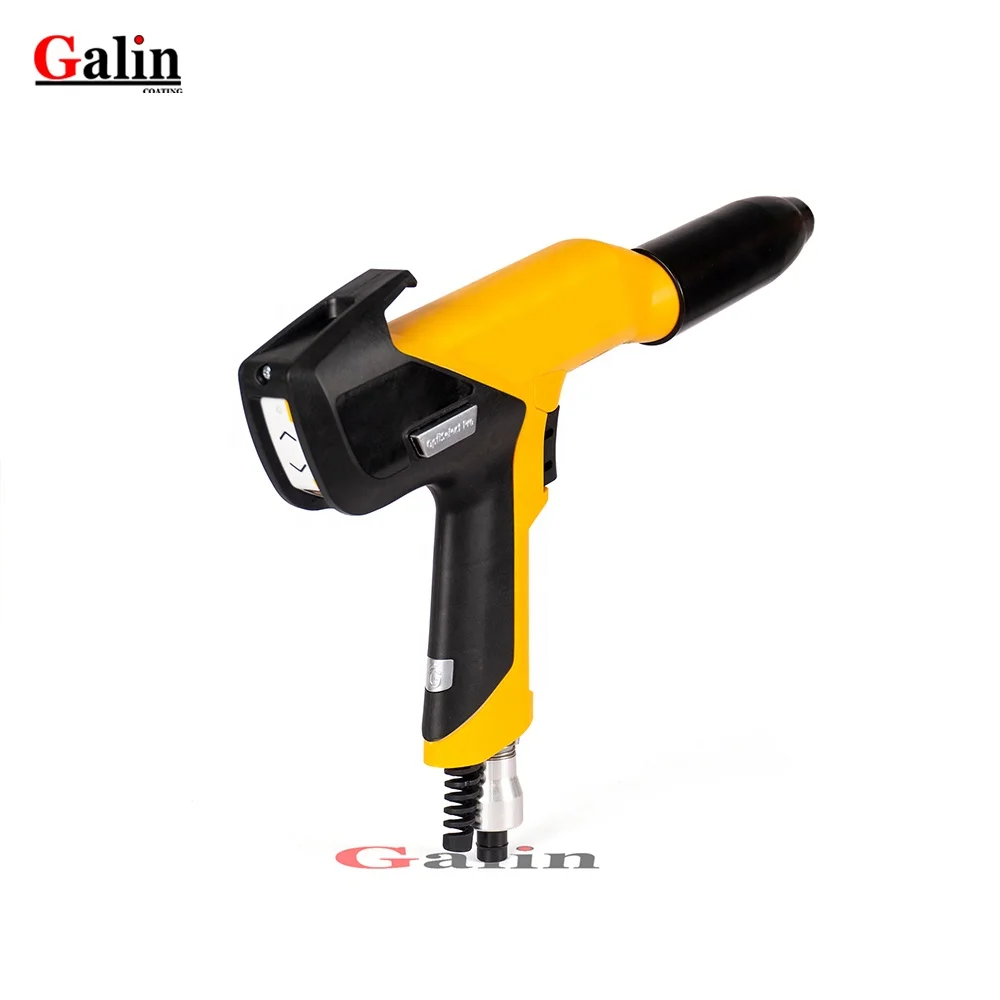

Gemaa OptiSelect Pro GM04 manual powder spray / coating gun with 6m cable

1016 971

Product Description

Product Name	GM04 manual powder coating gun
Code	1016 971
Characteristic	uses special materials to make gun shell and gun nut, in order to protect the high voltage from running away, output voltage of cascade can reach up to 110kV and output stability
Matched control unit	CG21 in default, compatible with the following versions - CG07/09/13

Details Images

Electrical data - OptiSelect Pro GM04
Nominal input voltage	eff. 10 V
Frequency	18 kHz (average)
Nominal output voltage	110 kV
Polarity	negative in default (optional positive)
Max. output current	110 µA
High voltage display	with LED
Ignition protection	Ex 2 mJ T6
Temperature range	5 °C - +40 °C (+41 °F - +104 °F)
Max. surface temperature	85 °C (+185 °F)

Processible powders - OptiSelect Pro GM04
Plastic powder	√
Metallic powder	√
Enamel powder	×

Product Usage

For the surface treatment with less daily output and rich monochrome, prefer manual spraying, which can complete more delicate
treatment GM04 manual gun has stable high voltage and matching current make the dead corner processing more smooth

For spraying situation with a daily output of more than 200pcs under a single color, auto spraying is more recommended, which can
complete the daily work more quickly can adapt to auto spraying. For relatively simple workpieces, there is no need to manually supplement the spraying position

Packing&Shipping

Within 10 pcs, which can be sent in 5 workdays

More than 10 sets, which can be sent in 7 workdays

we will recommend using express delivery and other transportation methods, such as FedEx, UPS, DHL, Aramex, EMS,DPEX, etc.

Company Introduction

WEIFANG GALIN POWDER COATING EQUIPMENT CO., LTD

which located in Shandong district, specializes in manufacturing the coating equipment.We are a typical Chinese supplier and specialized in the research, development and production of the powder coating system and liquid painting system.

Main products: booth, hopper, powder coating machine/unit, electrostatic spray gun, panel control unit, cascade, PCB board,injector pump, powder hose, filter and other parts and so on. In addition, we can make all kinds of high voltage cascade, provide perfect substitutes for well-known brand spare parts.

We not only supply the high-quality coating equipment, but also the best service. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
