V8 с двумя 10-дюймовый 3 way линейного массива профессиональное аудио видео

V8 с двумя 10-дюймовый 3 way линейного массива профессиональное аудио видео

Категория: >>>
Поставщик: Guangzhou,Bolan,Sound,Equipment,Firm

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.4 $*	0.49 $*
Aug-20-2025	0.26 $*	0.74 $*
Jul-20-2025	0.45 $*	0.25 $*
Jun-20-2025	0.26 $*	0.81 $*
May-20-2025	0.83 $*	0.46 $*
Apr-20-2025	0.13 $*	0.0 $*
Mar-20-2025	0.76 $*	0.64 $*
Feb-20-2025	0.30 $*	0.12 $*
Jan-20-2025	0.89 $*	0.61 $*

Характеристики

Recommend Products

Products Description

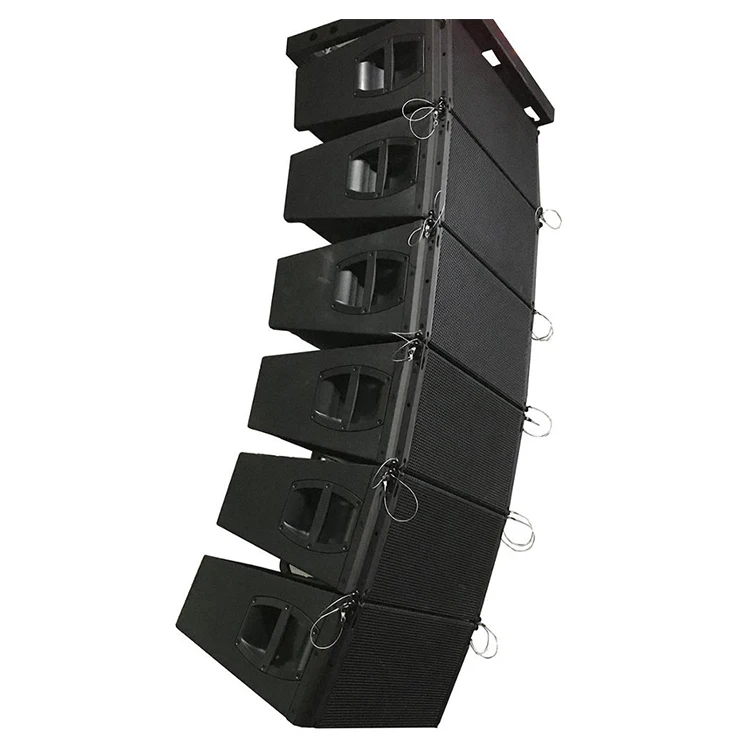

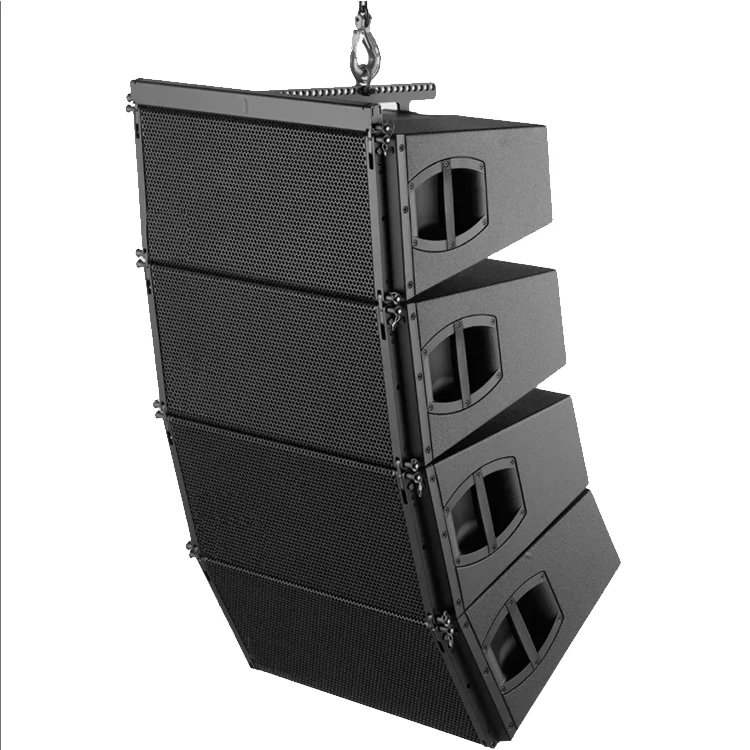

PLAM Pro audio V8 line array dual 10 inch 3 way sound system dj equipment professional line array

High performance 3-way passive line array loudspeaker

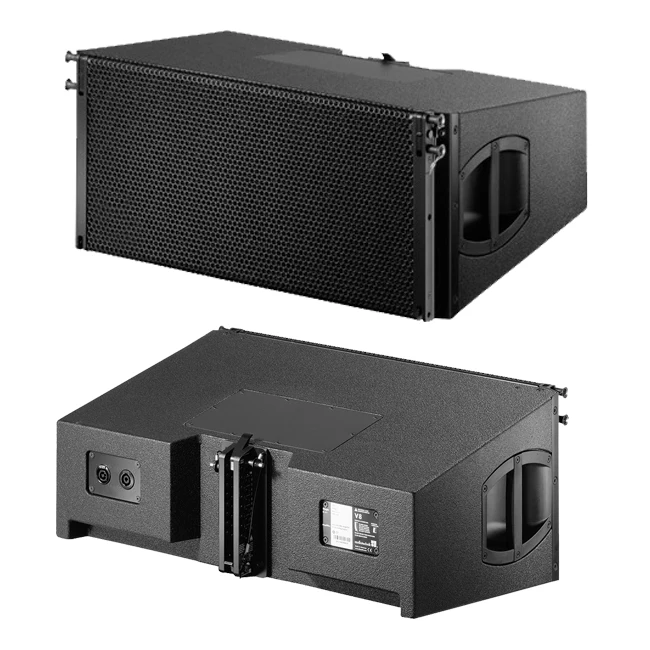

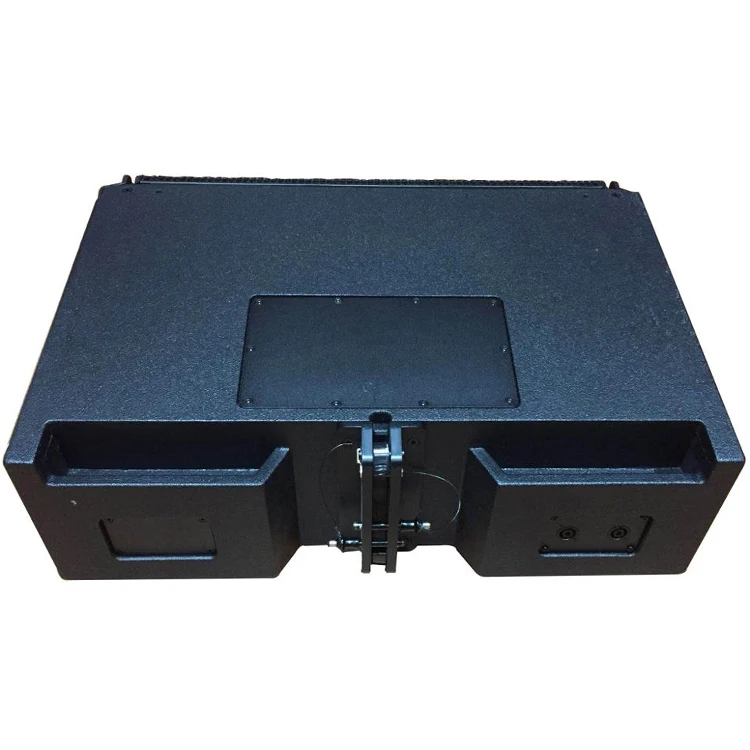

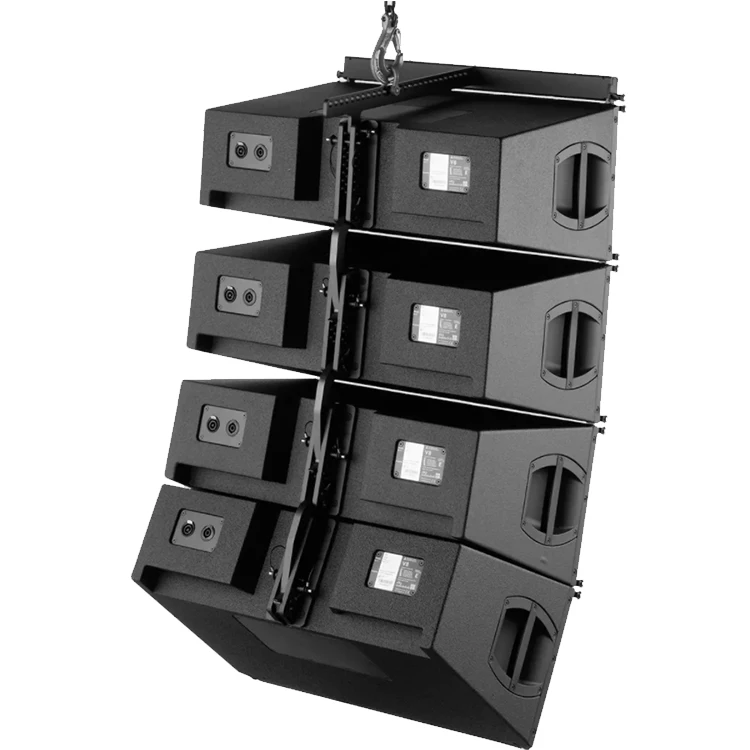

The V8 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 80° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in
columns of purely V8 loudspeakers or combined with V12s and / or with V-SUBs. The V8 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.

Application:

-Touring/living show
-Stadium
-Church
-Hall
-Theater
-Bars
-other middle/large scale installation

Model no.:	V8	VSUB

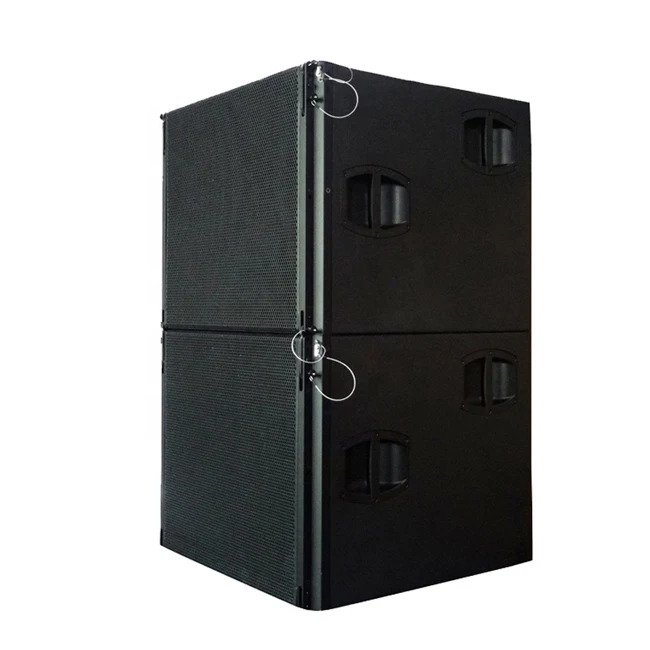

Product name:	Dual 10 inch line array	Single 18/12 inch subwoofer
Rated power:	600W	1200W
Peak power:	2000W	2400W
Components:	LF210"/MF18”/HF2*1.5" vc	LF:18"1+12"1
Sensitivity:	139dB	129 dB
Max SPL:	142 dB	142 dB
Impedance:	8 ohm	8 ohm
Frequency range:	67Hz-18KHz	60Hz-200Hz
Connection：	2*NL4	2*NL4
Cabinet material:	Plywood	Plywood
Dimension:	310700460mm	700×W830×H606mmmm
Color:	Black	Black

The normal package is yellow strong carton.

If you prefer more proteciton,you can choose the flight case,too.

PLAM--Transfer music by heart!

Persistent in seeking the perfect music! Guangzhou Paklam Audio Equipment Factory was established in 2009 and has been devoting itself to manufacture and sale the audio sound facilities for over 13 years.The products include:professional speaker、KTV speaker、amplifier、PA system and the accessories covering in hotel、auditorium、meeting room、gymnasium、gallery、KTV room、bar、art museum and other public place.
Over the years,we made full use of the community resources,unleased our advantage for forming our own unique product architecture.We do believe that not only can be satisfied with your auditory sense but coming into the world for your trust、delight and taste for every product.“Developing PLAM into the global well-known audio sound brand”is all the PLAM personnels’s final aim!Make arduous efforts and composing a spirit sound shows that Chinese consumer electronics brand will cover all the world indeed!
