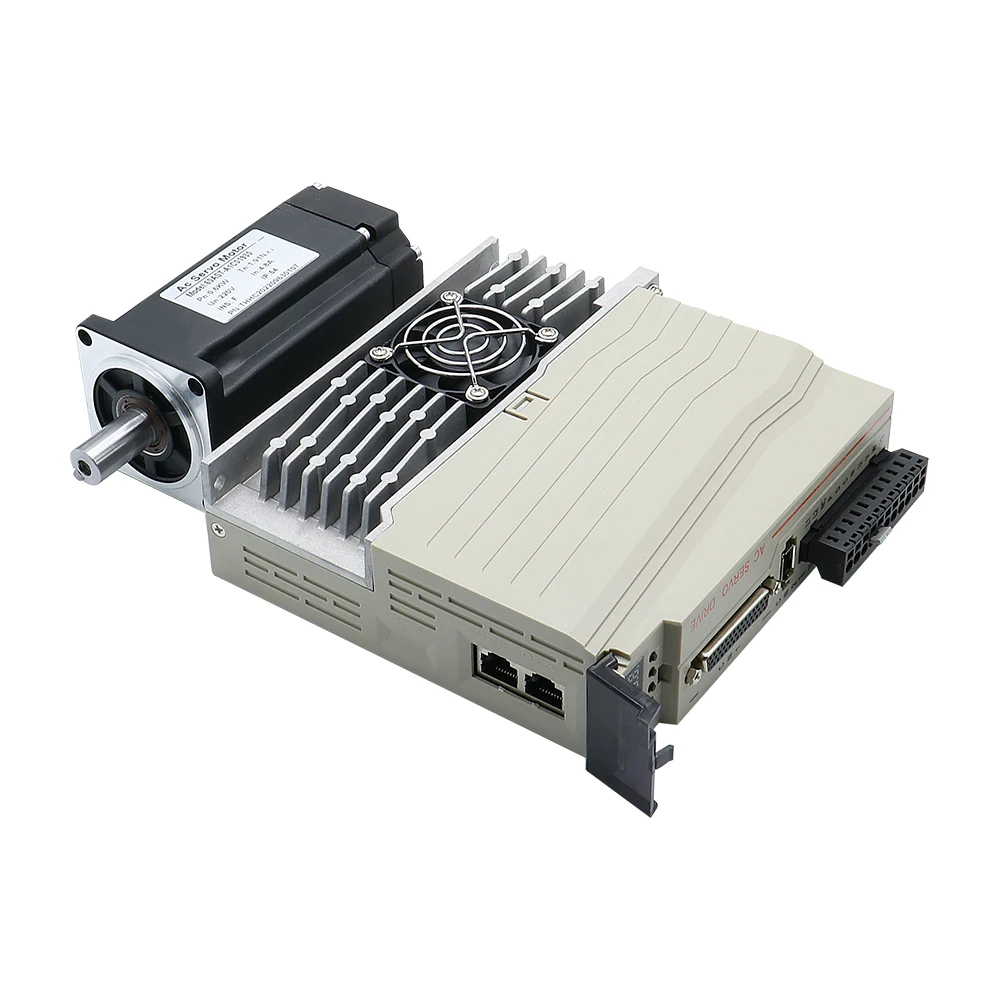

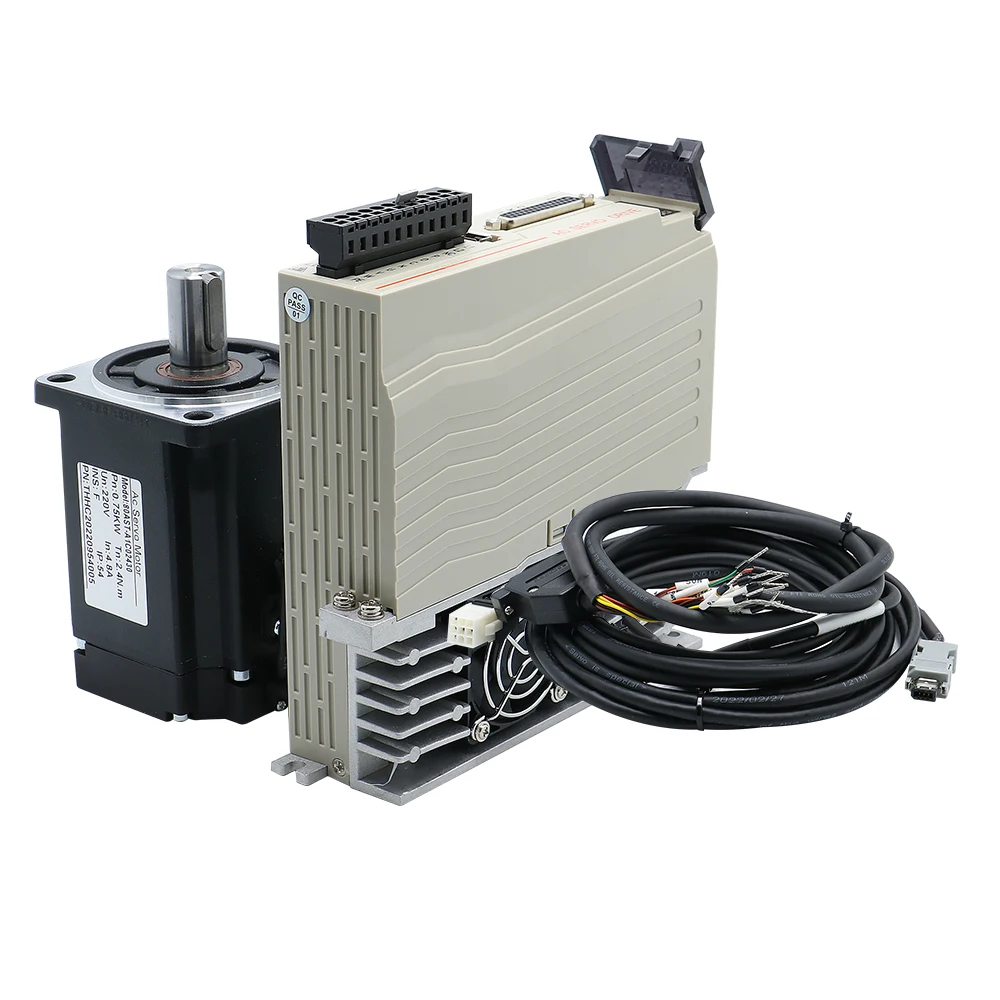

T3D-L15A-RABN Servo 1.3Nm 0.4kw серводвигатель переменного тока и абсолютной величиной 60AST-A1C01330 привод с постоянным магнитом подобранный
- Категория: >>>
- Поставщик: Lishui,Hengli,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.33 $* | 0.82 $* |
| Aug-18-2025 | 0.0 $* | 0.37 $* |
| Jul-18-2025 | 0.41 $* | 0.6 $* |
| Jun-18-2025 | 0.67 $* | 0.59 $* |
| May-18-2025 | 0.60 $* | 0.19 $* |
| Apr-18-2025 | 0.36 $* | 0.35 $* |
| Mar-18-2025 | 0.76 $* | 0.95 $* |
| Feb-18-2025 | 0.6 $* | 0.17 $* |
| Jan-18-2025 | 0.24 $* | 0.67 $* |
Характеристики
Product Description
1* 60AST-A1C01330
1* T3D-L15A-RABN
Common parameters: P-036 is changed to 1 (reverse direction) 0 (positive direction) motor direction conversion parameter. The default is 1 reverse direction P-029 (electronic gear ratio numerator) is 1 by default, the higher the value, the faster the speed (The above parameters are general setting parameters. If you need to modify other parameters, please refer to the manual or contact the technical/sales personnel) The following parameters are rigid adjustment parameters. No adjustment is needed if the equipment is OK P-005 (Speed ring rigidity) P-009 (Position ring rigidity) P-006 (generally, the maximum setting is about 100) P-019 (generally, the maximum setting is about 300) The specific adjustment of rigid parameters depends on the transmission structure and load of the equipment. Contact the after-sales service personnel for specific questions. | ||||||||

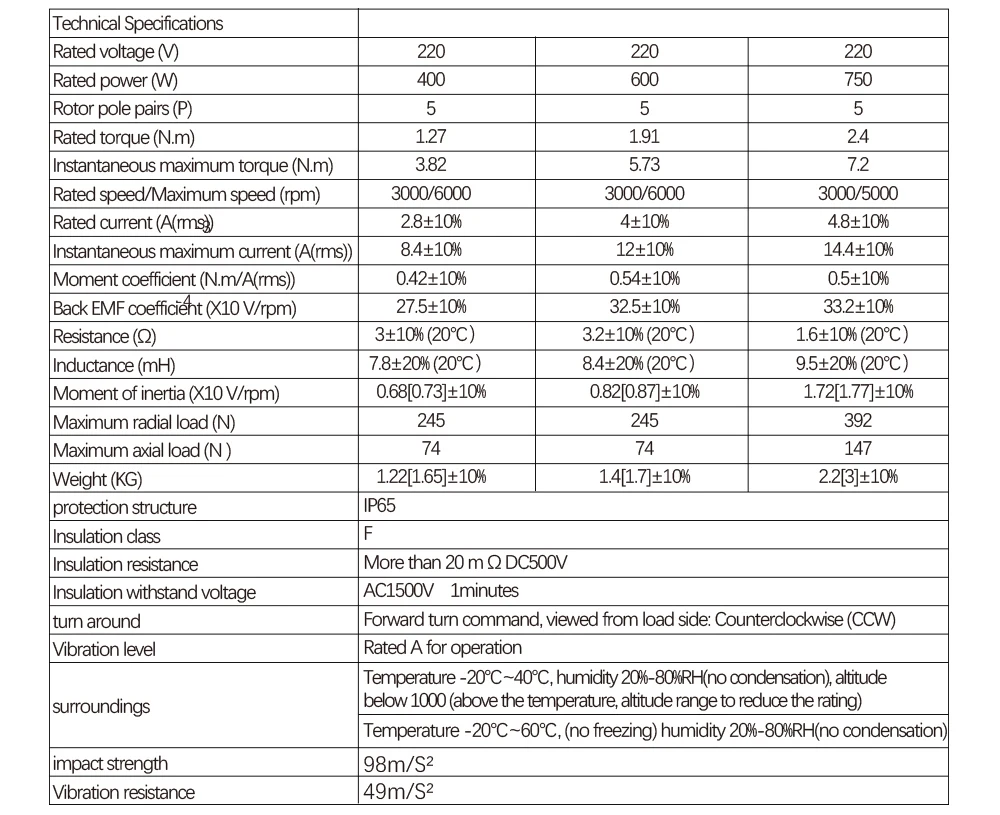

Specification
If you have any questions and needs, please feel free to contact us. : )
