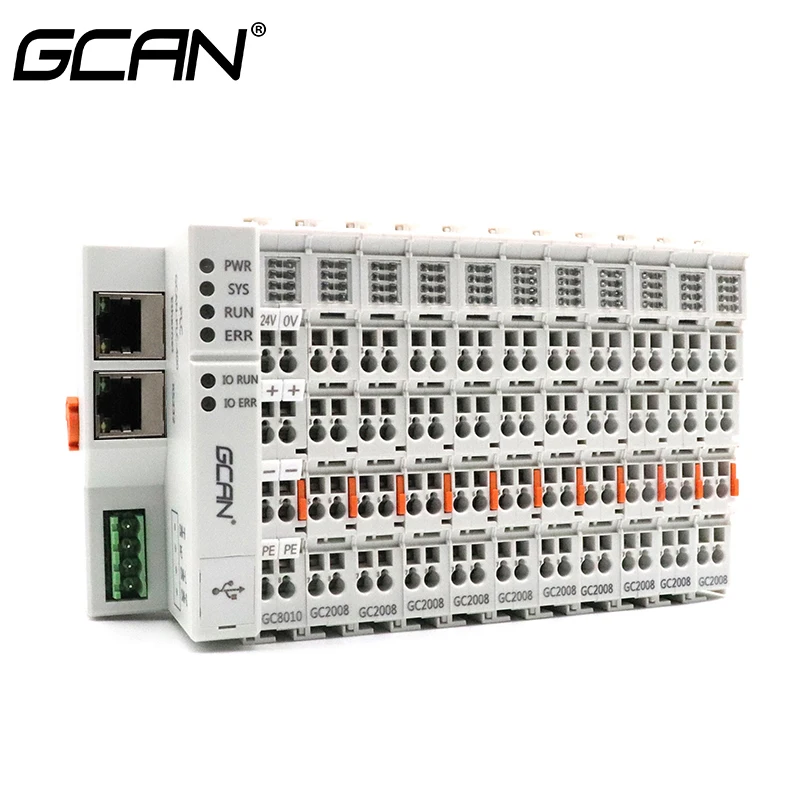

Стандартный модуль расширения PLC открытая ведомая станция ввода-вывода Модуль блока

I/O

Type

Characteristic

Signal

Channel

Digital

GC-1008

Digital input(PNP)

24V DC

8-channel

GC-1018

Digital input(NPN)

24V DC

8-channel

GC-1502

Counter(200kHz max)

-

2-channel

Digital

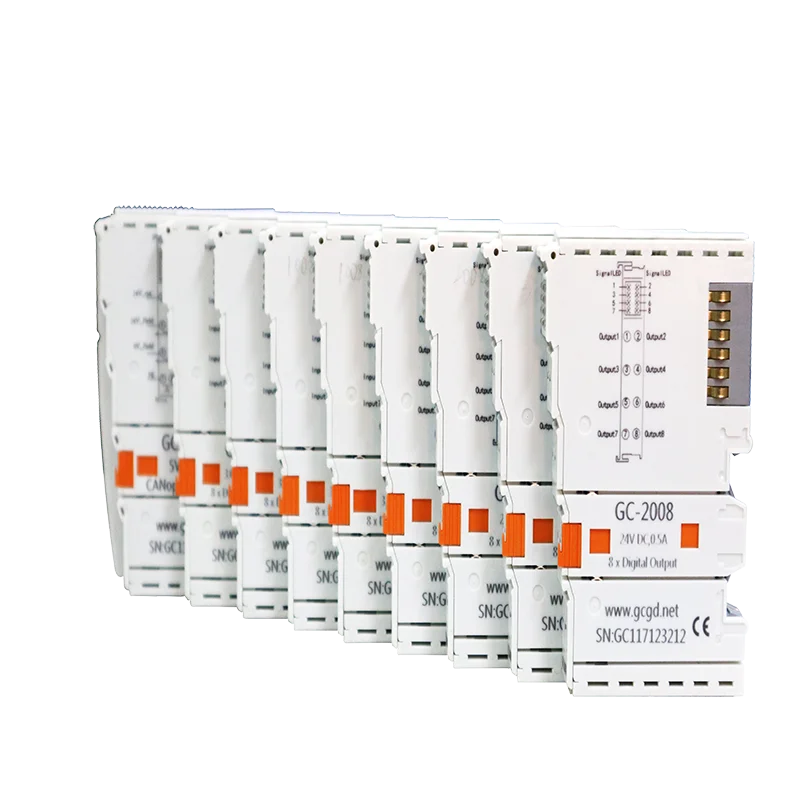

GC-2008

Digital output(PNP)

24V DC

8-channel

GC-2018

Digital output(NPN)

24V DC

8-channel

GC-2204

Relay output

-

4-channel

GC-2302

PWM(20Hz~200kHz)

-

2-channel

Analog input

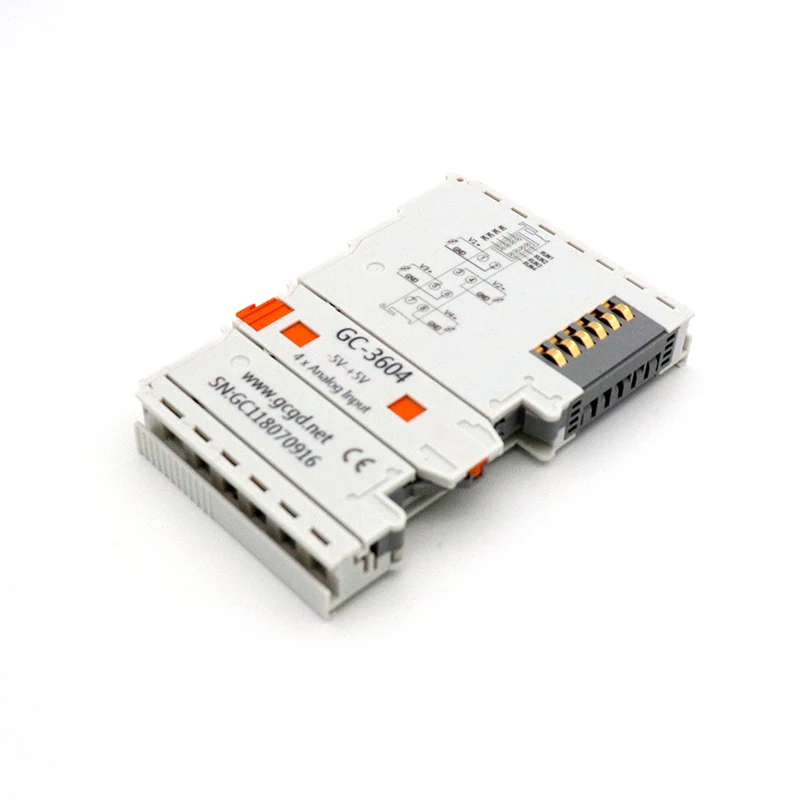

GC-3604

Voltage input, 16 bits

-5~+5V

4-channel

GC-3624

Voltage input, 16 bits

10V~+10V

4-channel

GC-3644

Current input, 16 bits

0-20mA

4-channel

GC-3654

Current input, 16 bits

4-20mA

4-channel

GC-3664

Voltage inptu, 16 bits

0~+5V

4-channel

GC-3674

Voltage input, 16 bits

0~+10V

4-channel

GC-3804

2-wire PT100, 16 bits

Thermal resistance

4-channel

GC-3814

2-wire PT1000, 16 bits

Thermal resistance

4-channel

GC-3822

3-wire PT100,16 bits

Thermal resistance

2-channel

GC-3832

3-wire PT1000,16 bits

Thermal resistance

2-channel

GC-3844

K type thermocouple

Thermocouple

4-channel

GC-3854

S type tyhermocouple

Thermocouple

4-channel

GC-3864

T type thermocouple

Thermocouple

4-channel

GC-3874

J type thermocouple

Thermocouple

4-channel

Analog output

GC-4602

Voltage output, 16 bits

-5V~+5V

2-channel

GC-4622

Voltage output, 16 bits

-10V~+10V

2-channel

GC-4642

Current output, 16 bits

0-20mA

2-channel

GC-4652

Current output, 16 bits

4-20mA

2-channel

GC-4662

Voltage output, 16 bits

0-5V

2-channel

GC-4672

Voltage output, 16 bits

0-10V

2-channel

GC-4674

Voltage output, 12 bits

0-10V

4-channel

Special module

GC-6101

RS232/RS485 extension

-

-

GC-6201

GPRS extension

-

-

GC-6501

WIFI extension

-

-

GC-8012

Power extension

-

-

Model

Characteristic

Communication bus

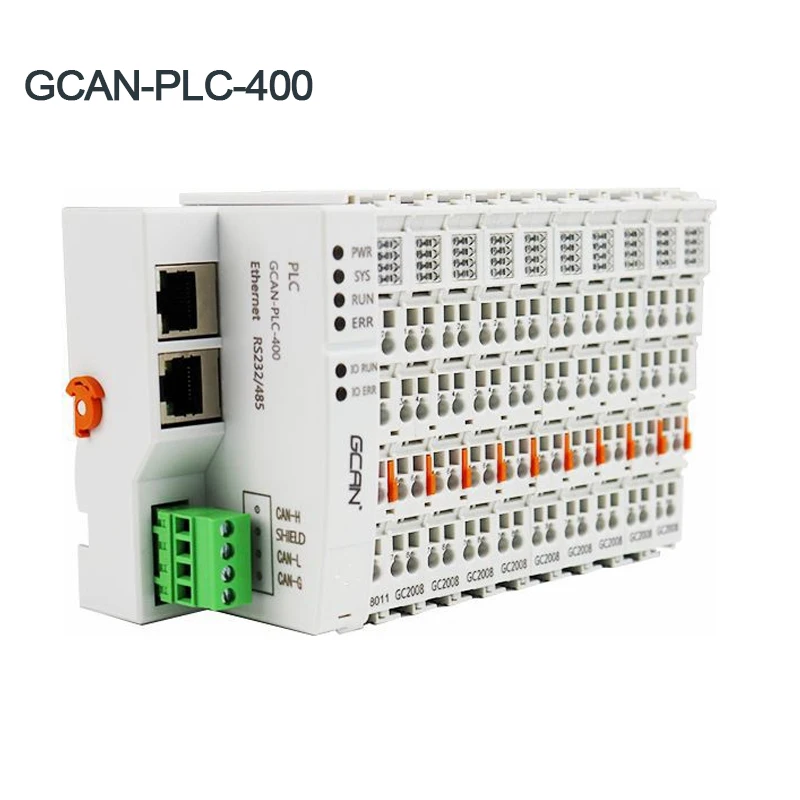

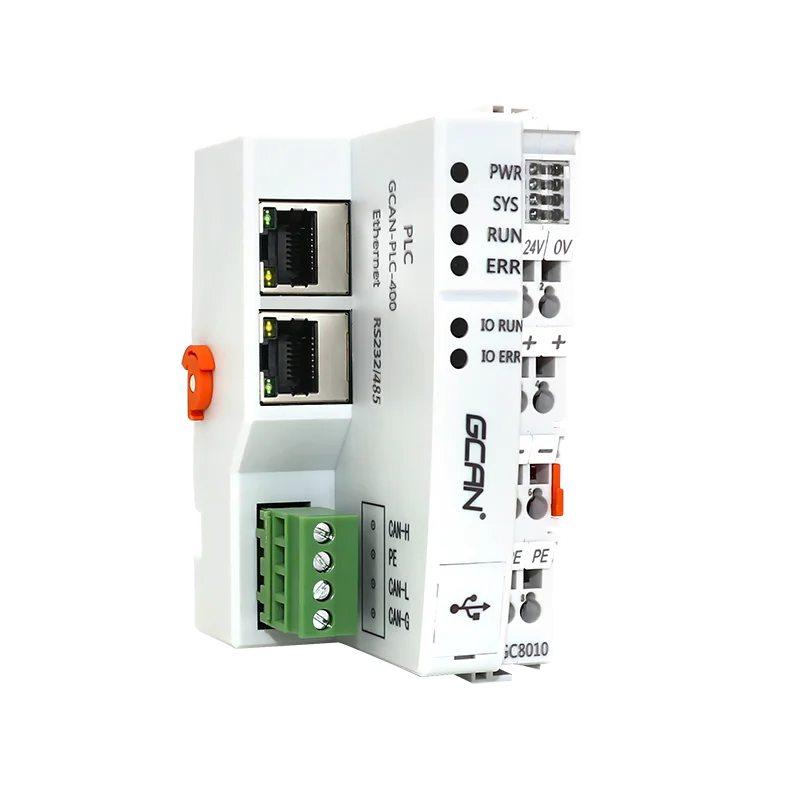

GCAN-PLC-400

CPU frenquency 168M

1*CAN+1*Ethernet+
1*RS232(or RS485)

Program storage:16M byte

Data storage:512K byte

GCAN-PLC-510

CPU frenquency 400M

1*CAN+1*Ethernet+
1*RS232(or RS485)

Program storage:32M byte

Data storage:16M byte

GCNA-PLC-511

CPU frenquency 400M

1*CAN+1*Ethernet+
1*RS232+1*RS485

Program storage:32M byte

Data storage:16M byte

Performance

CANopen adapter (GCAN-IO-8000)

Modbus adapter (GCAN-IO-8100)

Node number

1~127

1~247

Baud rate

10Kbps~1000Kbps

600bps~115200bps

Power input

24V DC (18~36V)

Insert I/O module number

32 pieces (at most 32*8 IO point)

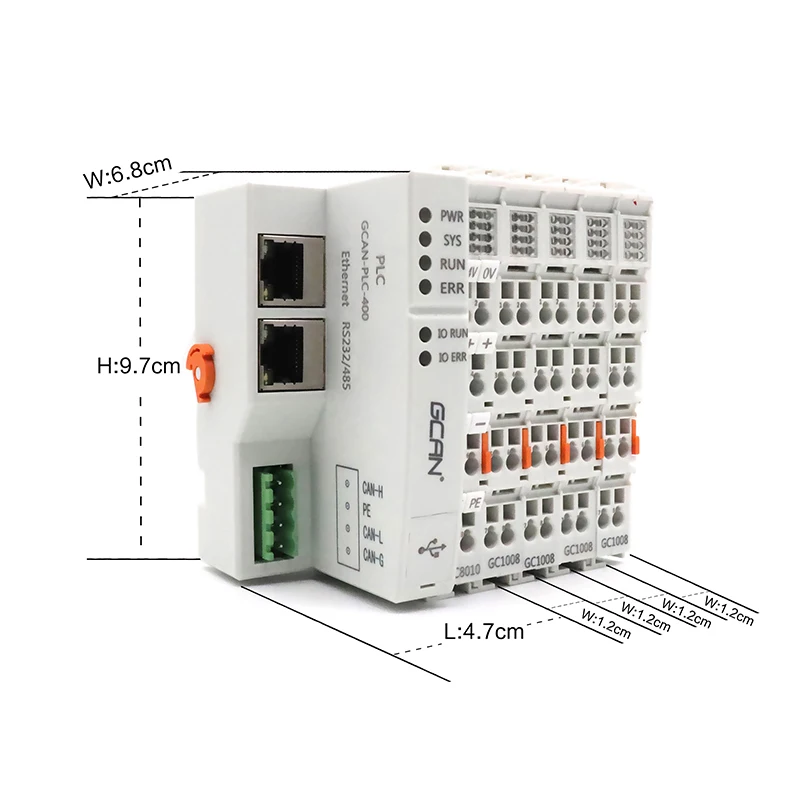

Dimension

100mm*69mm*48mm

Working temperature, humdidness

-40℃~+85℃， 0~90%RH， without condensation

IP grade

IP20

Module feature

• Standard CANopen slave station

• Support 4 TPDO, 4 RPDO

• Support 1 SDO, 1 emergency object, 1
node error control object

• Start to perdefine connection, suppor
parameters store

• PDO mode supports synchronization,
looping, event-driven, polling

• Configuration mode is automatic configuration

• CAN interface: one open 4 terminal

• Input current, 70mA+ (total GC-bus current), maximum 2.5A

• Starting current: about 2.5 times continuous current

• Power contacts: maximum 24V
DC/maximum 10A

• Electrical isolation: 1500 Vrms

• Support standard Modbus protocol, a standard Modus slave station

• Support Modbus function code:01, 02, 03, 04, 05, 06, 15, 16

• Support CRC validation

• Support Modbus TCP, Modbus RTU communication (corresponding to two kinds
of style)

• RS485 interface adopts standard two-wires system

• Serial interface baud rate supports 600bps~115200bps, configured by serial
interface

• The maximum number of bus terminals module is 64

• Configuration mode is automatic configuration, expandedfreely

• Ethernet interface supports static or dynamic IP acquisition

• Ethernet interface supports heartbeat and timeout disconnection

• Ethernetwork interface is fixed, target IP and target interface can be set

• Automatic restoration of connection resources after the Ethernet interface is
disconnected,and reliable establishment of TCP connections

• Ethernet interface is compatible with the SOCKET working mode (TCP Server, TCP
Client,UDP, etc.). The upper computer communication software complies with the
standard SOCKET rules.

• Input current, 70mA+ (total GC-bus current), maximum 4500mA

• Starting current: about 2.5 times continuous current

• Power contacts: maximum 24V DC/maximum 10A

• Electrical isolation: 1000 Vrms (power contact/bus coupled powervoltage)

• Standard DIN rail,designed for industrial design
