Высокопрочное прозрачное светоотражающее стекло Vidrio Templado ламинированное закаленное цена для строительства стеклянных стен


Поделиться:


Цена:6,90 $ - 69,90 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 7.87 $* 7.80 $*
Aug-16-2025 7.23 $* 7.50 $*
Jul-16-2025 6.44 $* 6.61 $*
Jun-16-2025 7.20 $* 7.42 $*
May-16-2025 6.95 $* 6.85 $*
Apr-16-2025 7.80 $* 7.48 $*
Mar-16-2025 7.41 $* 7.71 $*
Feb-16-2025 7.99 $* 7.24 $*
Jan-16-2025 7.84 $* 7.31 $*

Характеристики





Product Description


Toughened (or tempered) glass is made from standard Float Glass to create an impact resistant, safety glass. The process of toughening the glass introduces tensions into the internal and surfaces of a glass panel to increase its strength and also to ensure in the case of breakages the glass shatters into small, harmless pieces of glass.

Glass has to be cut to size and shape accordingly before the toughening process, if the glass is cut afterwards it will crack and shatter. The cut float glass panels are put into a toughening furnace. Here the glass panels are heated to upward of 600 degrees C and then the surfaces are cooled rapidly with cold air. This produces tensile stresses on the surface of the glass with the warmer internal glass particles. As the top thickness of the glass cools it contracts and forces the corresponding glass elements to contract to introduce stresses into the glass panel and increasing strength.

Sun Global Glass Customize Different Kinds of Tempered Glass


Application
Glass windows and doors, balcony railings, partition walls, shower doors, awnings, greenhouses, skylight roofs, etc.
Thickness
4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm
1/6'', 1/4'', 3/8'', 1/2'', etc.
Size
Custom cut size, max 3300x8000mm
Color
Clear, bronze, blue, grey, green, black, other custom design colors
Shape
Flat/ Curved
Processing
Tempering, polishing, drilling, etching, cutting, printing, etc.
Type
Clear tempered glass, ultra clear low iron tempered glass, frosted tempered glass, digital printed tempered glass, silk printed/ceramic fritted tempered glass, fluted tempered glass, engraved tempered glass, color tempered glass, solar reflective tempered glass, etc.
Quality
Meet European CE EN12150 and American SGCC ANSI Z97.1 Standard




SZG Tempered Glass Holes and Notches Processing


Holes and notches in tempered glass, should be located within specified areas per this image.

Glass Edge to Hole Rim: The minimum distance from the rim of a hole to the nearest edge of the glass must be ¼” or 2 x glass thickness, whichever is greater. Tolerance for location of hole from specified edge is ±1/16”.

Minimum Distance Between Holes: The minimum distance between the rims of adjacent holes must be 3/8” or 2 x glass thickness, whichever is greater. Tolerance for dimension between hole centers is ± 1/16”.


Glass Corners to Nearest Rim of Hole: Holes in the vicinity of a corner must be positioned so that the nearest edge of the hole is a minimum distance from the corner of 6.5 x the glass thickness.

Hole Dimensions:
The minimum dimension of a hole should be at least 1/16″ larger than the thickness of the glass. The maximum dimension of the hole should not be more than 1/3 the narrowest dimension of the piece.

Notches and Cutouts:
All must have a fillet with radius equal to, or greater than the thickness of the glass.


Glass Thickness
1⁄4″
3⁄8″
1⁄2″
3⁄4″
The minimum diameter of holes
5⁄16″
7⁄16″
9⁄16″
1-3⁄16″
Distance from edge of the hole to the edge of the glass
1⁄2″
3⁄4″
1″
1-1⁄2″
The distance between rims of holes
1⁄2″
3⁄4″
1″
1-1⁄2″
Distance from corner to the rim of holes
1-5⁄8″
2-7⁄16″
3-1⁄4″
4-7⁄8″
Minimum fillet radius
1⁄4″
3⁄8″
1⁄2″
3⁄4″


All fabrication that penetrates the glass surface (i.e., holes, notches, cutting) must take place prior to tempering or heat strengthening. Attempting fabrication on tempered glass will cause it to shatter.




Advantages of Tempered Glass

Toughened glass is extremely tough and hard. These glass reduce the risk of injury and damage in care of disaster or calamity

It is a very lightweight glass which reduces the load of building

Ravishing variations of toughened glass provide a very rich and elegant look to the buildings

It facilitates natural light into the homes and buildings while providing a soothing sensation

Toughened glasses are UR resistant, prevent heat absorption and are highly energy efficient

So the tempered glass is widely used on buildings, such as for bathroom screens, windows, partitions, doors, railings, canopies, greenhouses, etc.




Related Products





Except glass, we can also provide you stainless steel and aluminum fitting to convent for your purchase.




Packing & Shipping

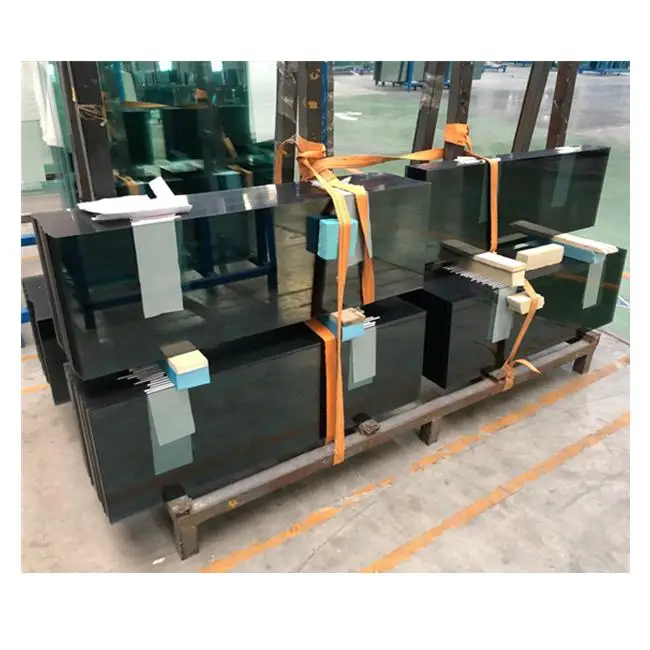

All the glass from Sun Global Glass is packed in strong export plywood crates and load safety into container with metal belt, to avoid any breakage during long distance transportation.




Company Profile


Sun Global Glass

Our company is founded since 1993. We specialize in producing and exporting different kinds of building glass, with very high quality, reasonable price, fast delivery and professional one-stop service. Feel free to contact us if you have any interest.




Our Advantages

1. We have professional production department, sales department, operating department and after-sales service department, for sure smoothly business for all customers.

2. We have long time professional cooperated forwarder agent, who can help for booking the containers in most suitable shipping cost and shipping time in advance.

3. No matter FOB term or CIF term or CFR term, all we can do it with you.

4. Payment way: L/C, T/T, Western Union, etc. If you are the sincerity importer, cooperated with us, you will know how sincerity we are.

5. Packaging: customized strongest export plywood crates with metal belts for safety transportation.

6. Our factory have certificates like CCC, ISO, SGS, etc. Our glass passed CE, BS6206, etc.

7. After-sale service: we much care long term business with customers, that’s why we also much care after –sale service, if there is any problems for glass, we have the professional after-sale team for help together solve the problem in time.




High quality is our pursue, we won't leave quality problem to annoy our customers. We have a strong team of quality control and test to make sure our high quality when deliver to our dear customers.
