Характеристики
Product Overview
Factory sale custom made Chemical dosing system Chlorine dosing system pH adjust system for water treatment
The chemical dosing system is a complete set of equipment integrating function of dosing, mixing, liquid transportation and automatic control.
It is widely used in the raw water, boiler feed water, oilfield surface gathering and transportation dehydration treatment systems of power plants, various petrochemical dosing systems and wastewater treatment systems. Such as adding coagulant, phosphate, ammonia, lime water, corrosion inhibitor, scale inhibitor, bactericidal and algal killing agent, etc.
Application
* PH dosing regulation
* Flocculant dosing
* PAC/PAM dosing
* Disinfectant dosing
* Dosing of scale inhibitor
* Slow release agent dosing
* Boiler water dosing
Function of Chemical Dosing:
* Acids for alkalinity reduction and scale prevention
* Polyelctrolytes for coagulation of suspended solids and an improved subsequent filtration
* Scale inhibitors to avoid scale deposits on reverse osmosis membranes
* Disinfectants for shock treatment in order to avoid bacterial growth
* Chlorine to avoid biological growth in pipes and storage tanks
* Hydrated lime or caustic soda for pH adjustment to neutralize dissolved free carbon dioxide.
* Polyelctrolytes for coagulation of suspended solids and an improved subsequent filtration
* Scale inhibitors to avoid scale deposits on reverse osmosis membranes
* Disinfectants for shock treatment in order to avoid bacterial growth
* Chlorine to avoid biological growth in pipes and storage tanks
* Hydrated lime or caustic soda for pH adjustment to neutralize dissolved free carbon dioxide.
Products Structure
The combined dosing device main component: dosing tank, dosing pump.
Optional: mixture, filter, safety valve, check valve, pressure gauge, buffer tank, level gauge, control cabinet, etc., which are integrated and installed on a base.
Products Advantage
The user only needs to place the combined dosing device in the dosing room, connect the water inlet and outlet and connect the power supply to start and put it into operation. This factory integrated device can greatly reduce the workload of design and on-site construction, and provide a reliable guarantee for the quality, safety and on-site operation of the entire system.
Products photo
Electromagnetic dosing pump
Dosing range: From 1L/hour 0.7Mpa pressure
to 50L/hour 0.2Mpa pressure
Mechanical diaphragm dosing pump
Dosing range: From 6L/hour 1.0Mpa pressure
to 2000L/hour 0.3Mpa pressure
to 2000L/hour 0.3Mpa pressure
APS 5L/hour dosing tank + 40L dosing tank
APS 5L/hour dosing tank + 40L dosing tank
APS 9L/hour dosing pump + 500L tank + 0.75kw mixture
APS 9L/hour dosing pump + 500L tank + 0.75kw mixture

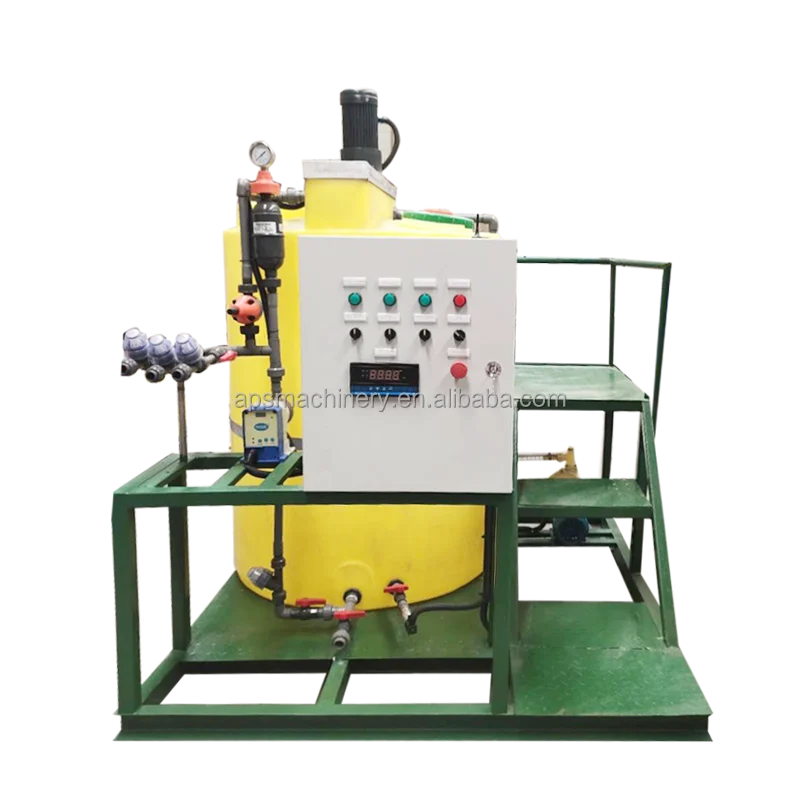

APS 40L/hour dosing pump + 300L tank + control cabinet
APS 9L/hour dosing pump + 500L tank + 0.75kw mixture

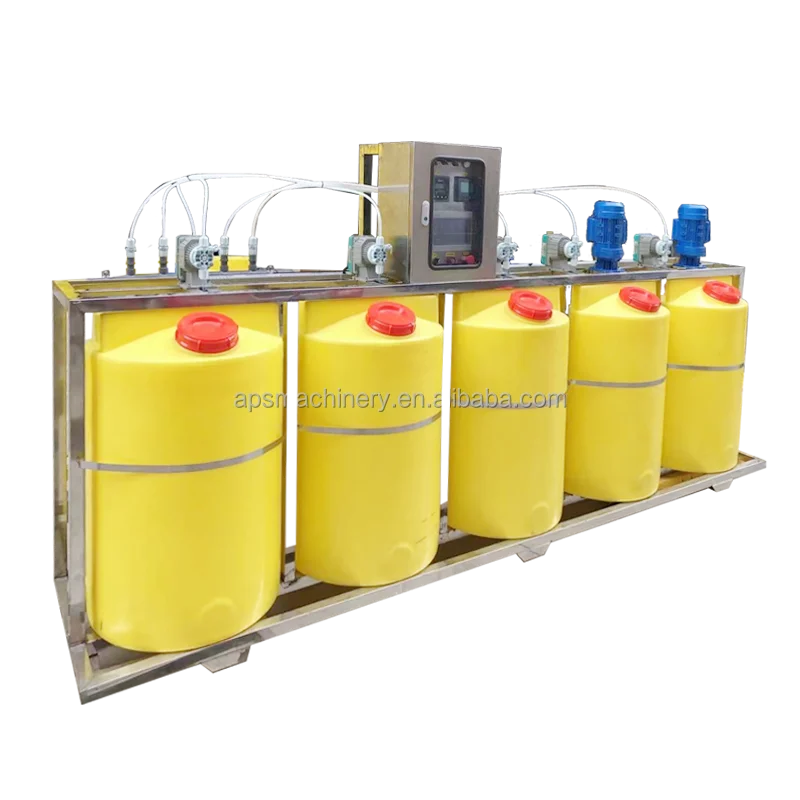

APS 5 sets of 9L/hour dosing pump + 200L dosing tank
Front view
APS 5 sets of 9L/hour dosing pump + 200L dosing tank
Back view

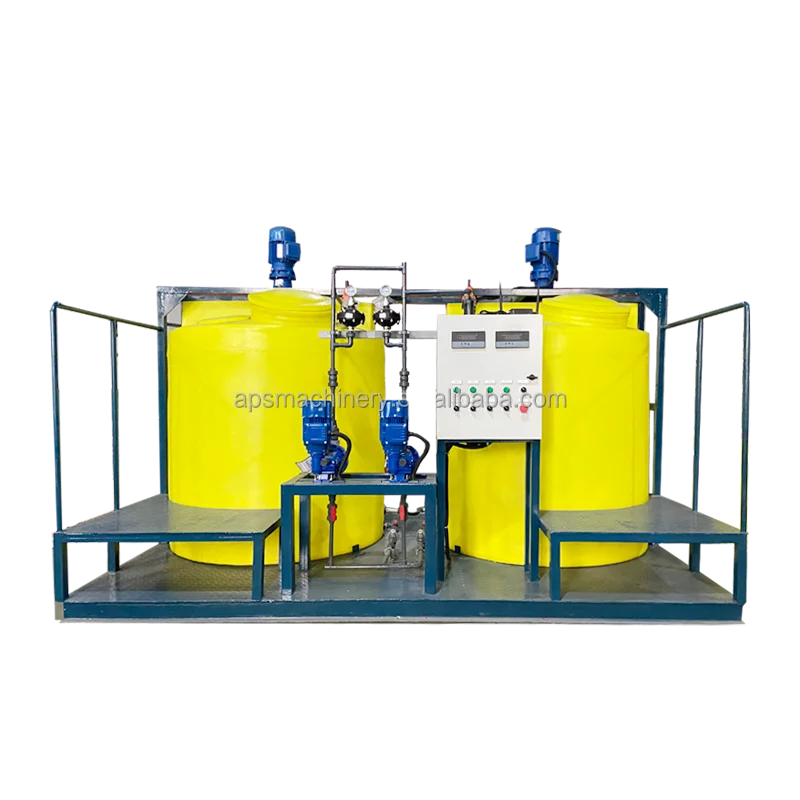

APS 2 sets of 40L/hour dosing pump + 1000L dosing tank
+ 0.75kw mixture + automatic control cabinet
APS 6 sets of 20L/hour dosing pump + 200L dosing tank
+ 0.55kw mixture + automatic control cabinet
APS 20L/hour dosing pump + 1000L dosing tank
+ 0.75kw mixture + filter + remote control
Front view
APS 20L/hour dosing pump + 1000L dosing tank
+ 0.75kw mixture + filter + remote control
Back view
APS 2 sets of 200L/hour dosing pump + 1500L dosing tank
+ 1.5kw mixture + remote control
Side view
APS 2 sets of 200L/hour dosing pump + 1500L dosing tank
+ 1.5kw mixture + remote control
Front view

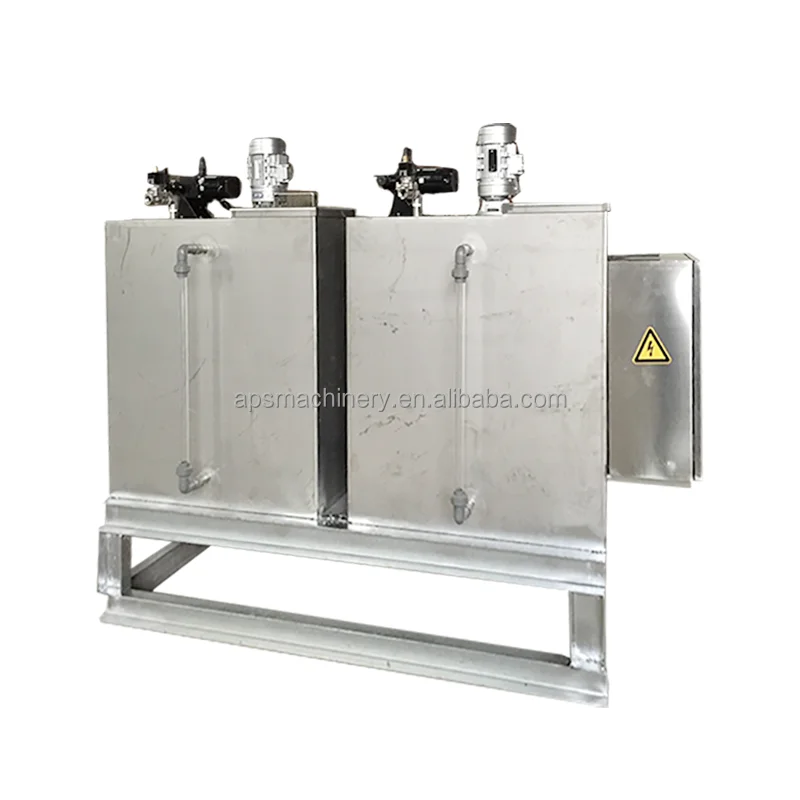

APS stainless steel chemical dosing system
Side view
APS stainless steel chemical dosing system
Front view
APS Containerlized chemical dosing system
with control cabinet, pipeline, light, fan
Front view
APS Containerlized chemical dosing system
with control cabinet, pipeline, light, fan
Side view
APS Chemical dosing system container
with door & window
Front view
APS Chemical dosing system container
with door & window
Side view
Products Package
Equipment & Spare parts Package
Delivery & Container loading
Company Profile
FAQ
Q: How to choose an equipment?
A: The selection of equipment is usually based on your raw water quality and your water production requirements.
Q: How to get an accurate quotation?
A: 1. Tell us what chemical you want dosing.
2. Tell us dosing quantity you need (such as 9liter/hour, 20 liter/hour, 200L/hour, etc.)
3. Other request if any.
Q: What is the material of the product?
A: The dosing tank usually uses PE.
Frame is made of stainless steel or carbon steel.
UPVC is usually used for pipeline.
We can choose according to your special requirements.
UPVC is usually used for pipeline.
We can choose according to your special requirements.
Q: Control mode of equipment?
A: Manual or automatic control can be selected. Generally, more users choose automatic control.
Q: How long is the warranty?
A: One year warranty. According to experience, no repair is needed within 5 years.
Q: Is the equipment easy to install?
A: The installation of the equipment is not difficult, because the equipment is assembled before delivery.
Users only need to install according to our English manual instructions or video guidance for on-site installation.
Q: Do you provide OEM / ODM?
A: Provide. We are a professional manufacturer and can design or provide equipment according to your requirements.
