Станок цепной мост танк цепь пластиковый нейлоновый кабельный лоток

Станок цепной мост танк цепь пластиковый нейлоновый кабельный лоток

Категория: Drag Chain >>>
Поставщик: Jinan,Hongyang,Cnc,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.70 $*	0.13 $*
Aug-17-2025	0.59 $*	0.35 $*
Jul-17-2025	0.69 $*	0.16 $*
Jun-17-2025	0.63 $*	0.81 $*
May-17-2025	0.8 $*	0.79 $*
Apr-17-2025	0.78 $*	0.12 $*
Mar-17-2025	0.5 $*	0.10 $*
Feb-17-2025	0.18 $*	0.55 $*
Jan-17-2025	0.56 $*	0.57 $*

Характеристики

Product Description

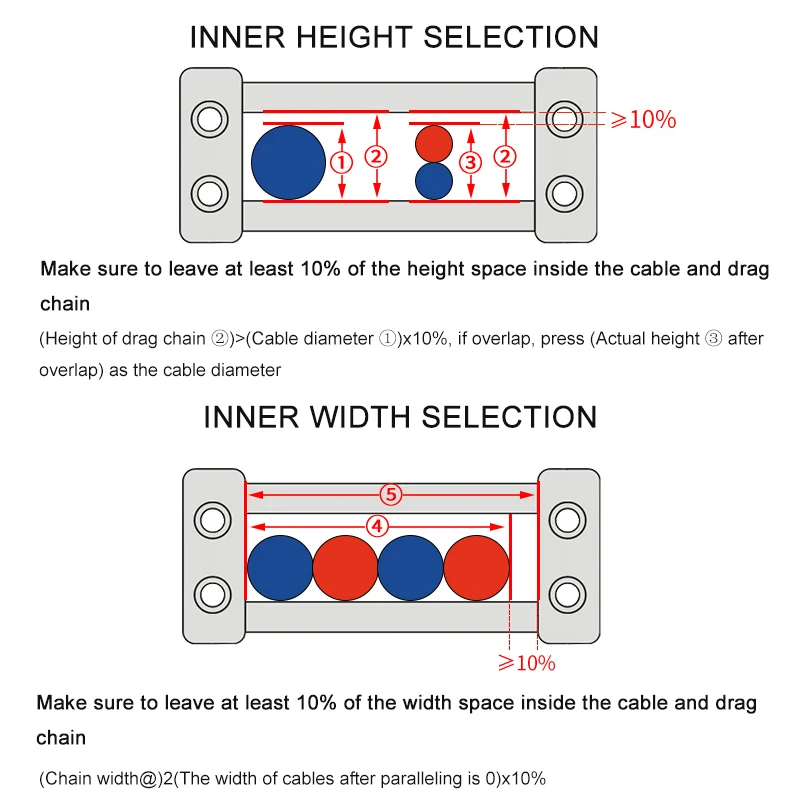

Make sure that at least 10% of the height is left in the indoor cable and towing chain.

(Drag chain height ②) > (cable diameter ①)x10%. If it overlaps, please press (actual height ③ after overlapping) as the cable diameter.

Make sure to leave at least 10% cable and drag chain width.

(width④ chain) ≥ parallel cable width ⑤)x10%

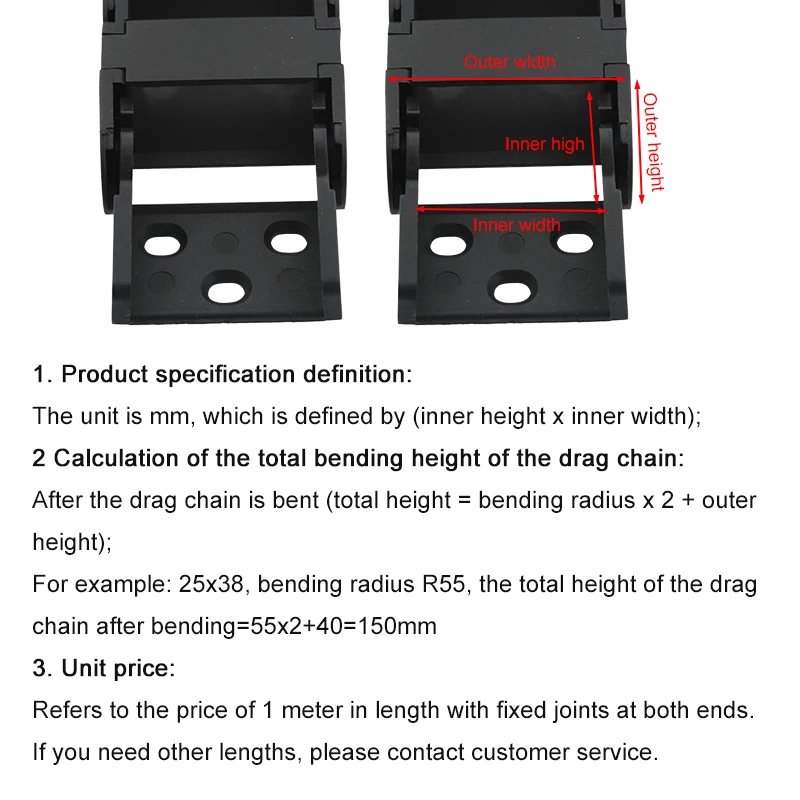

1. Product specification definition: The unit is mm, defined by (internal height x internal width);

2 Calculation of overall

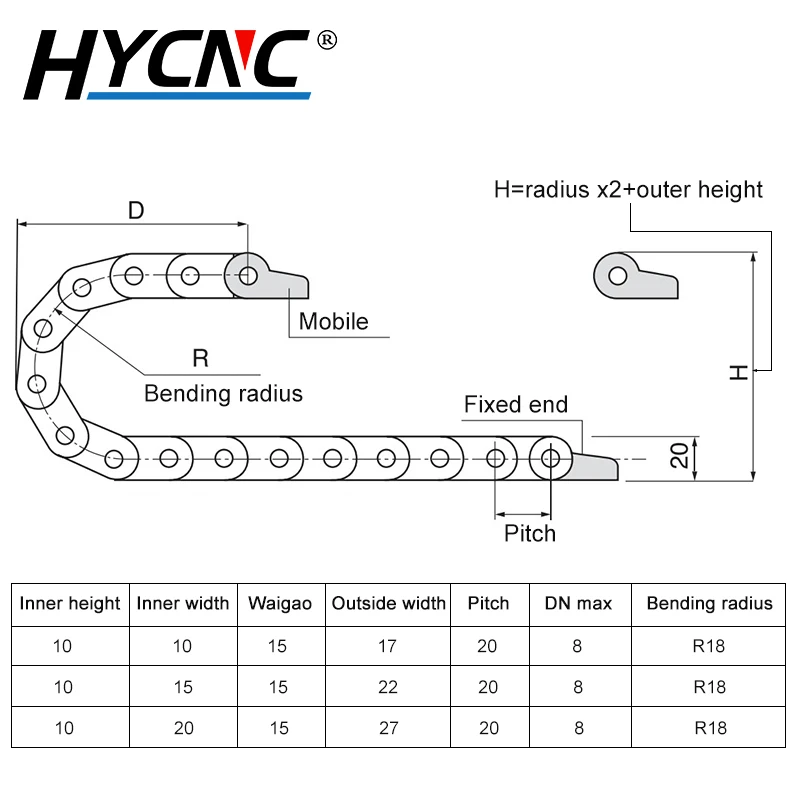

bending height of towing chain: Drag the chain and bend it (total height = bending radius x 2+external height); For example,
25x38, bending radius R55, the total height of the drag chain after bending = 55x2+40 = 150mm.

3. Unit price:Refers to the price of 1m in length with fixed joints at both ends. If your length is different, please contact the customer service department.

Self-adjusting length is easy to install and disassemble.

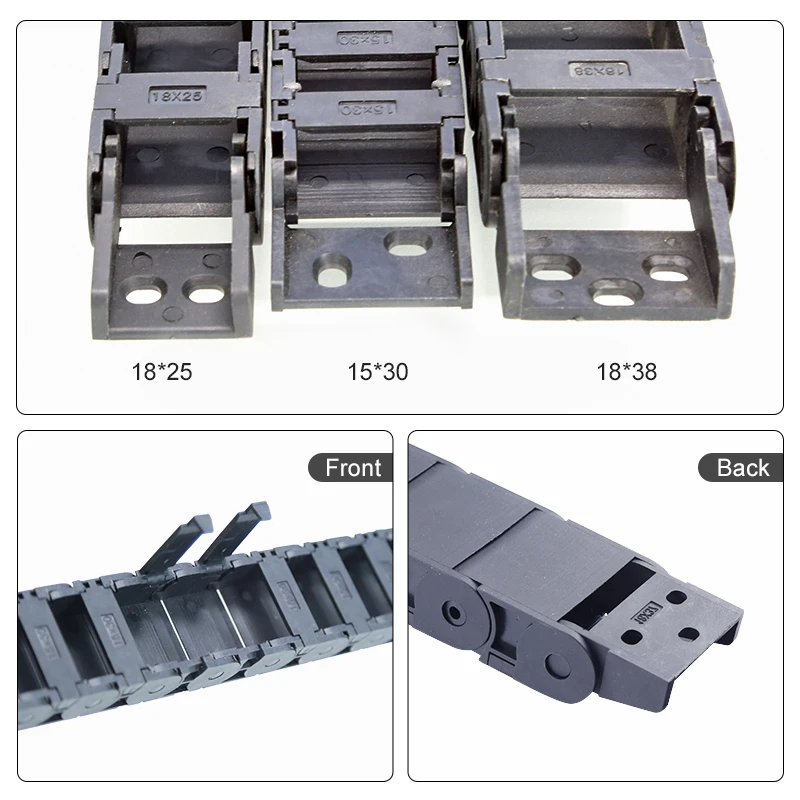

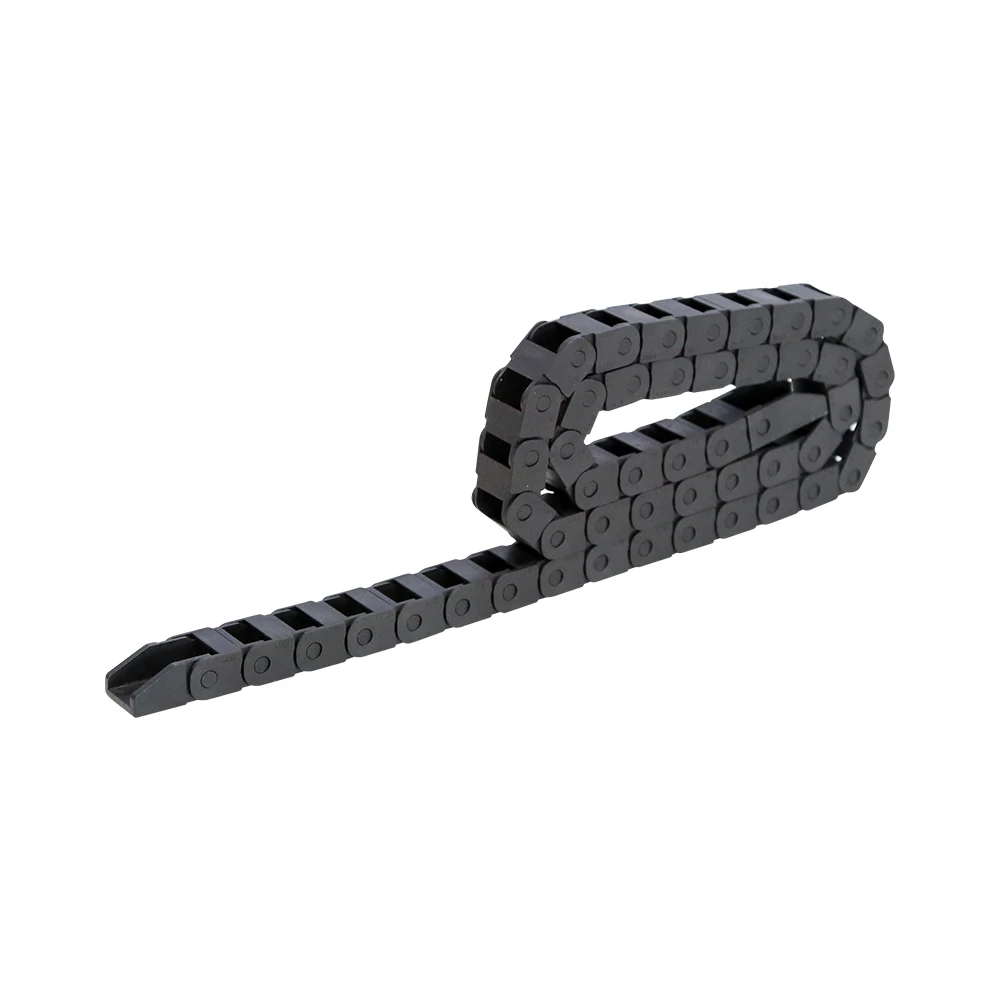

The tow chain looks like a tank chain. It consists of many units on the left side, and can rotate freely between the left sides of any part of the tow chain, so it is easy to install, disassemble and maintain without threads. After the cover is opened, cables, oil pipelines, air pipelines, water pipelines, etc. can be put into the drag chain. High strength nylon High strength load and bearing resistance, oil resistance, salt resistance and certain acid-base resistance.

Easy to install and disassemble Each link in the chain can be opened for easy installation and maintenance. Be quiet when
exercising; High-speed movement
