Характеристики
Products Description
Description
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-600s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-600s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A

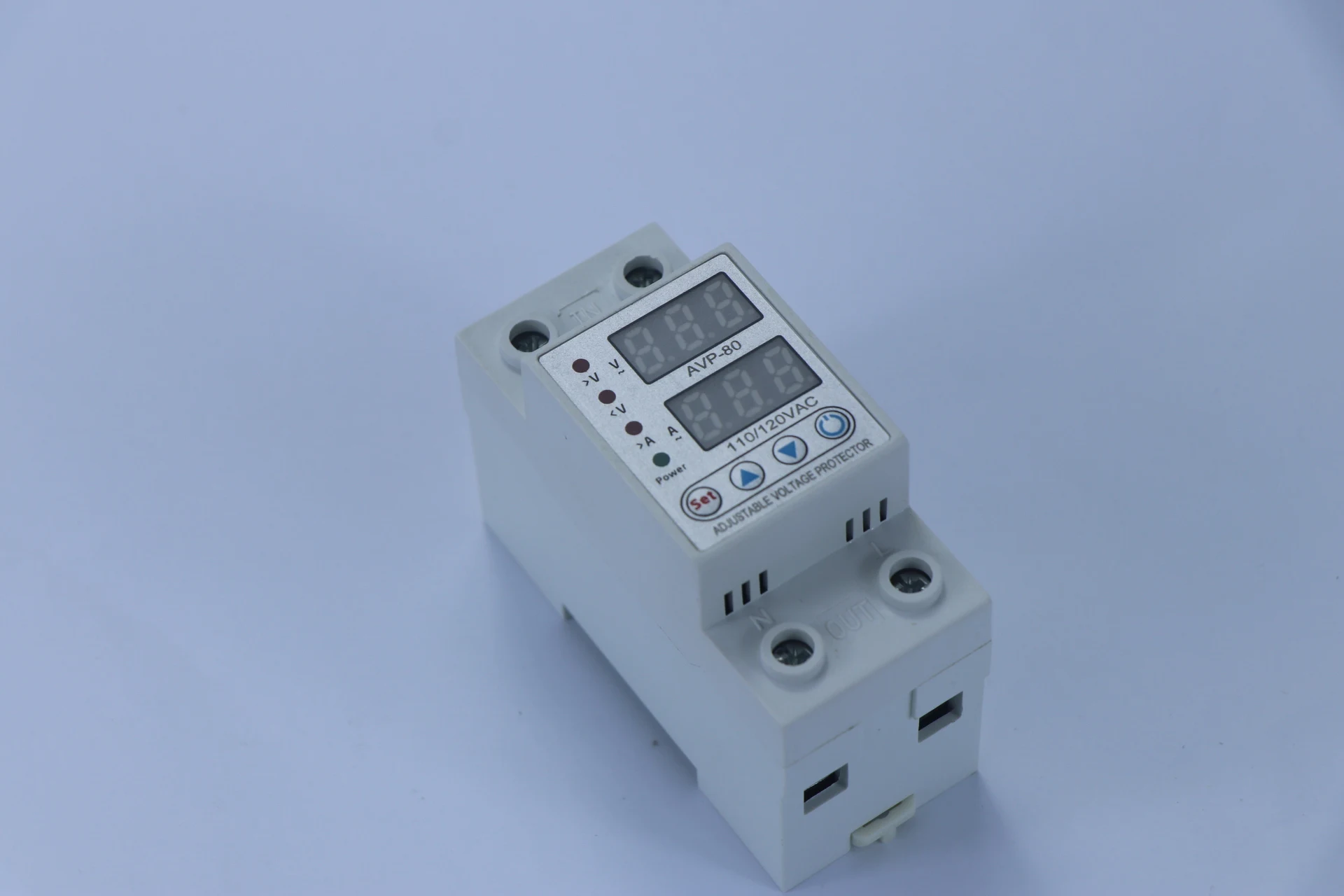

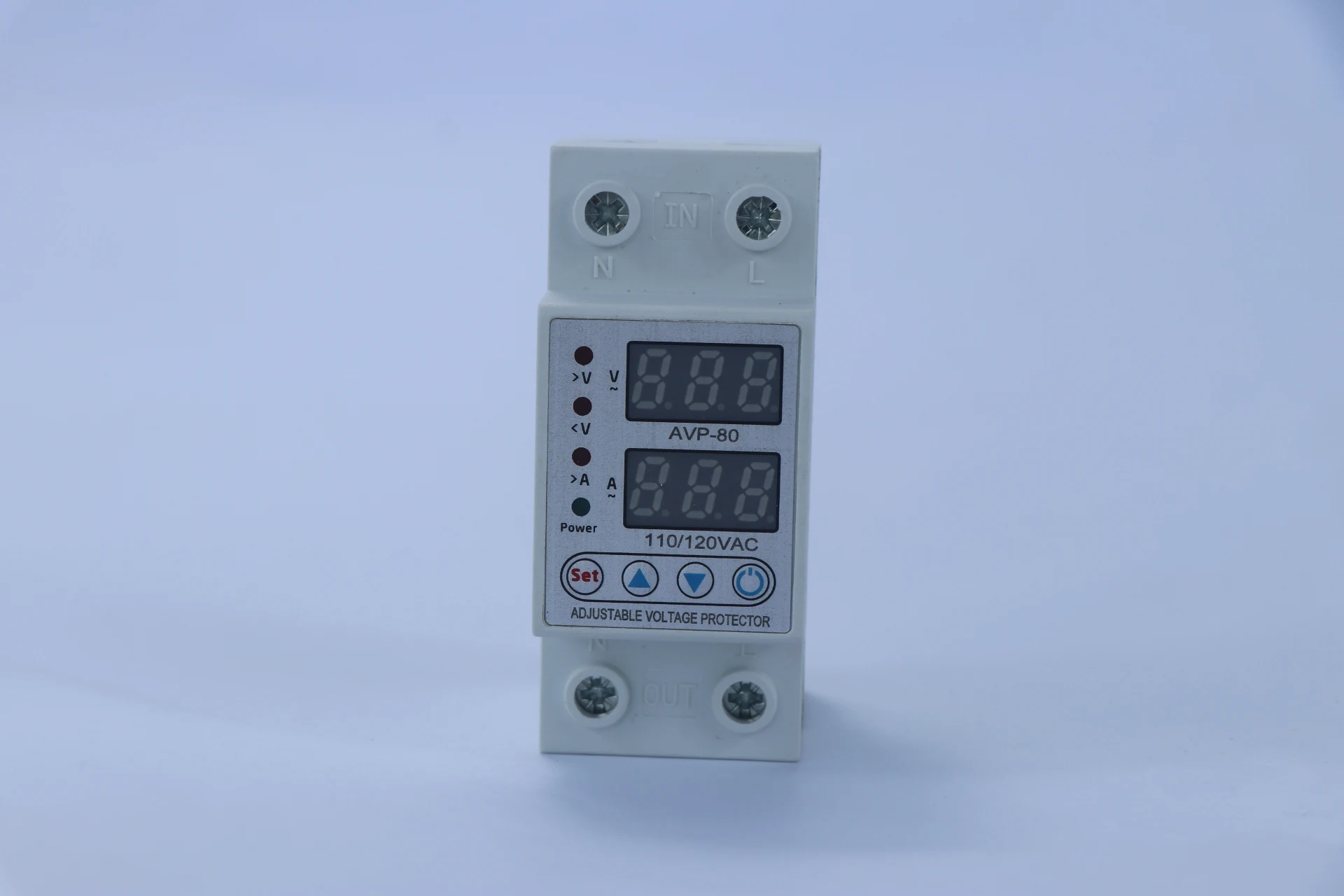

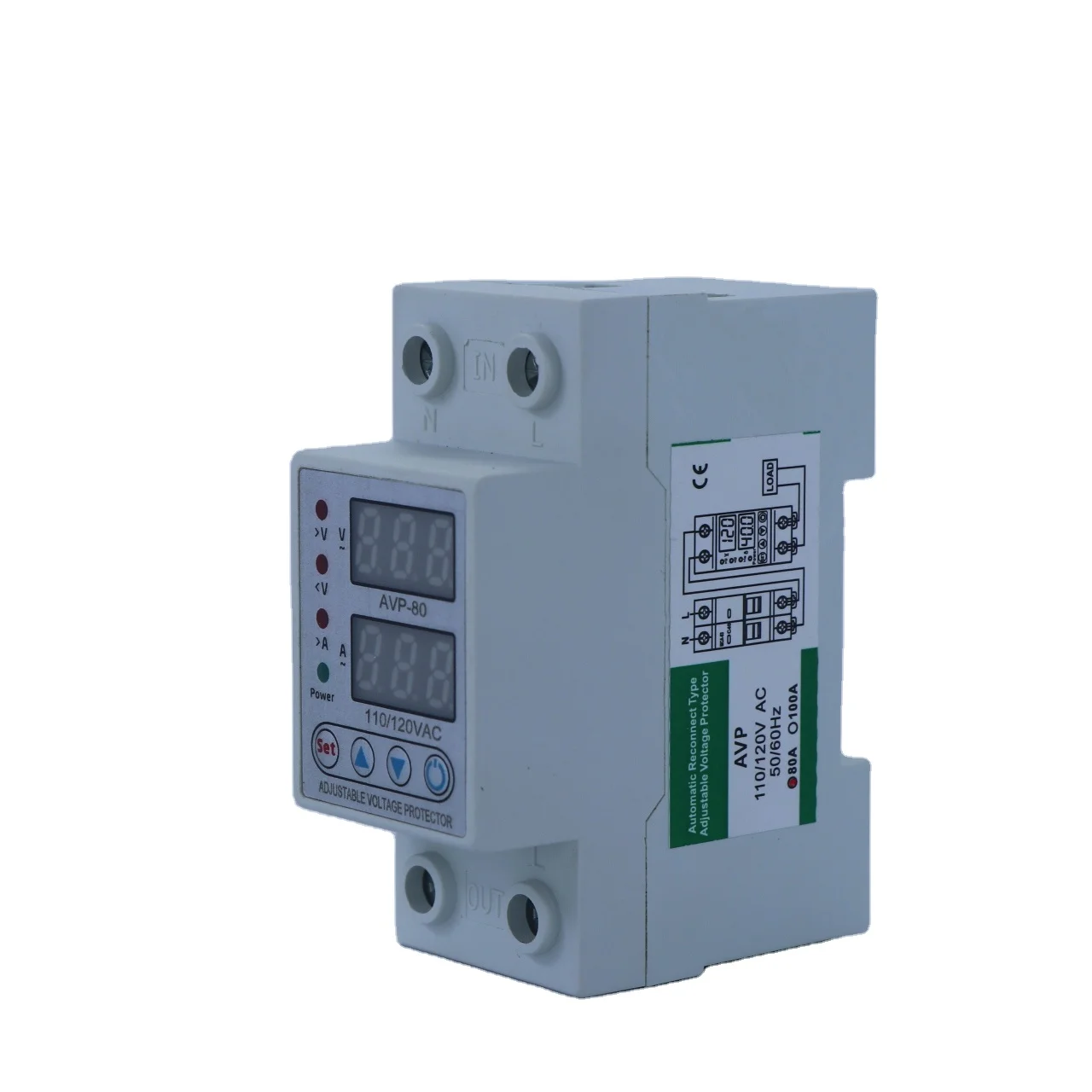

Model Number: | AVP-80 |
Display Type | Digital Only |
Measuring Range | 1~40A 1~63A 1-80A 1-100A |
Accuracy Class | Calss 1 |
Operating Temperature | -25~+50℃ |
Dimensions: | 82*35*65mm |
Rated Current | 40A 63A 80A 100A |
Rated voltage: | 110/120VAC |
