Product Description

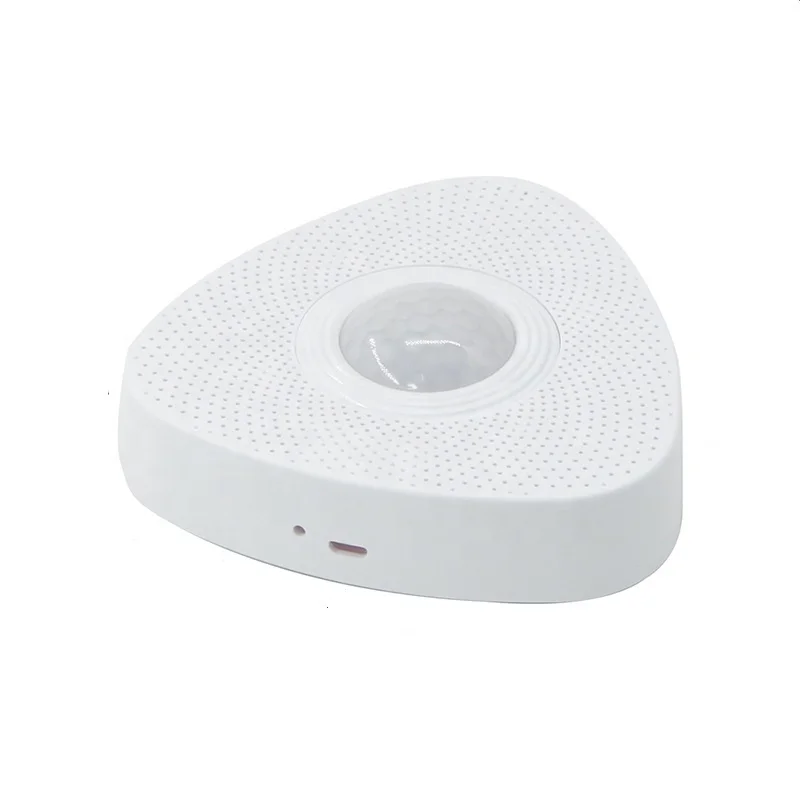

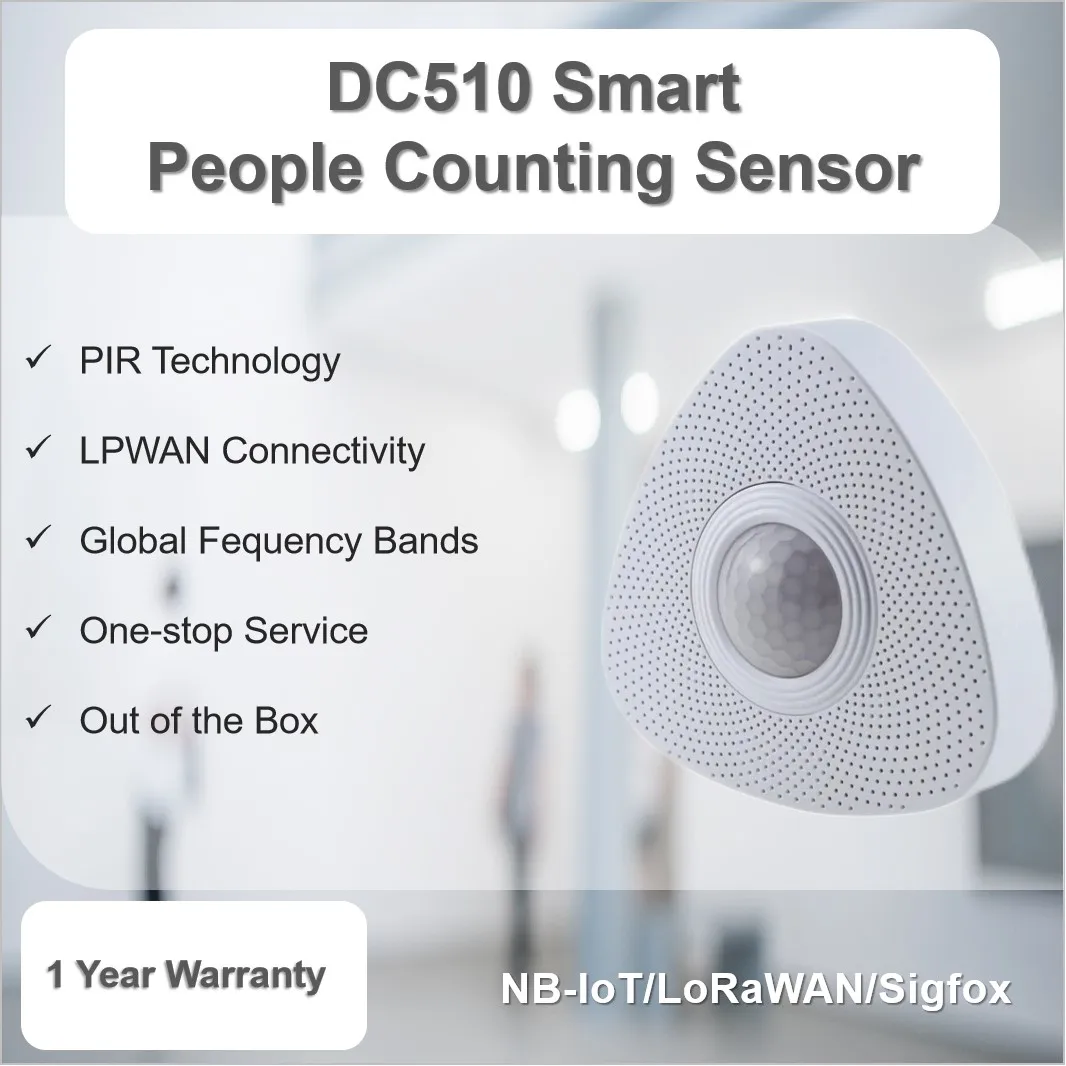

DC510 Wireless People Counting Sensor
DC510 is a Smart People Counting Sensor, which can be used to count the number of people entering and leaving a place; when the number of people exceeds the limit, it will immediately pass the information to the cloud server through the built-in NB-IoT/LoRaWAN/Sigfox module. Users can observe status information remotely
Suitable for people statistics, over limit alarm and other functions.
Suitable for people statistics, over limit alarm and other functions.
Features
PIR Technology
NB-IoT/LoRaWAN/Sigfox
Wireless Transmission
Remote Monitoring
Low power consumption
Battery powered or DC powered
Easy Installation
Specification
Overview | Dimension | 110*109*25mm |
Net Weight | 108g | |
Color | White | |
Shell Material | ABS | |
Detector | Principle | PIR |
Detection distance | 5m | |
Angle | 120° | |
Delay time | 2.5s | |
Wireless | Module | NB-IoT/ LoRaWAN/Sigfox |
Frequency | Lorawan | CN470, EU868, AS923, AU915, US915, KR920, IN865, RU868 |
NB-IoT | B3, B5, B8, B20, B28 | |
Sigfox | RCZ1, RCZ2, RCZ3, RCZ4 | |

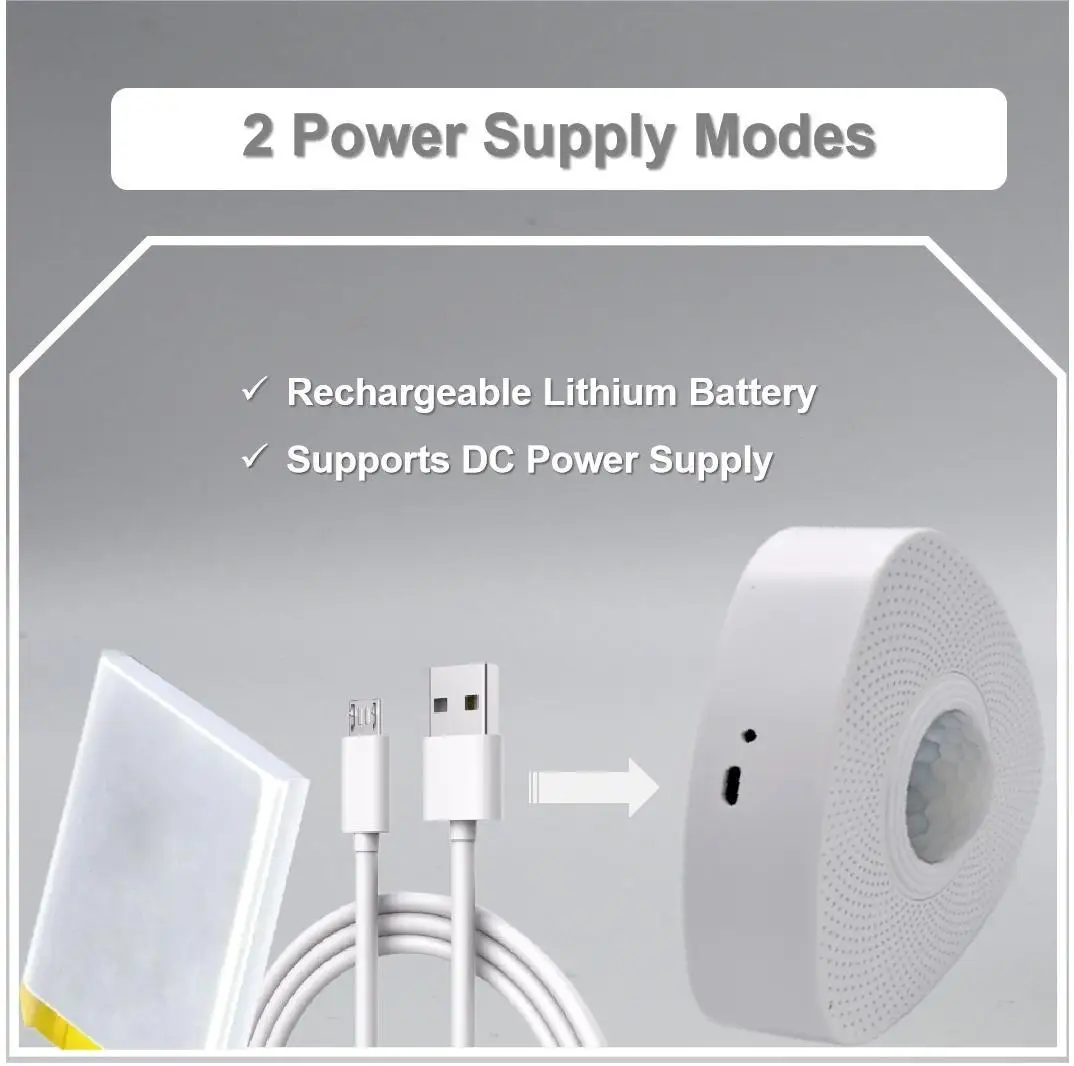

Power Supply | Inner Battery | Rechargeable Lithium Battery 1000mAh @ 3.7V |
Recharge Interface | Micro-USB 500mA@5V | |
Environment | Operating Temperature | -20 ~ +70℃ |
Storage Temperature | -40 ~ +85℃ |
Network
when the number of people exceeds the limit, it sends a frame to the base station, then base station forward to
cloud server, then to application. Finally user can monitor the status remotely.
cloud server, then to application. Finally user can monitor the status remotely.
SAAS

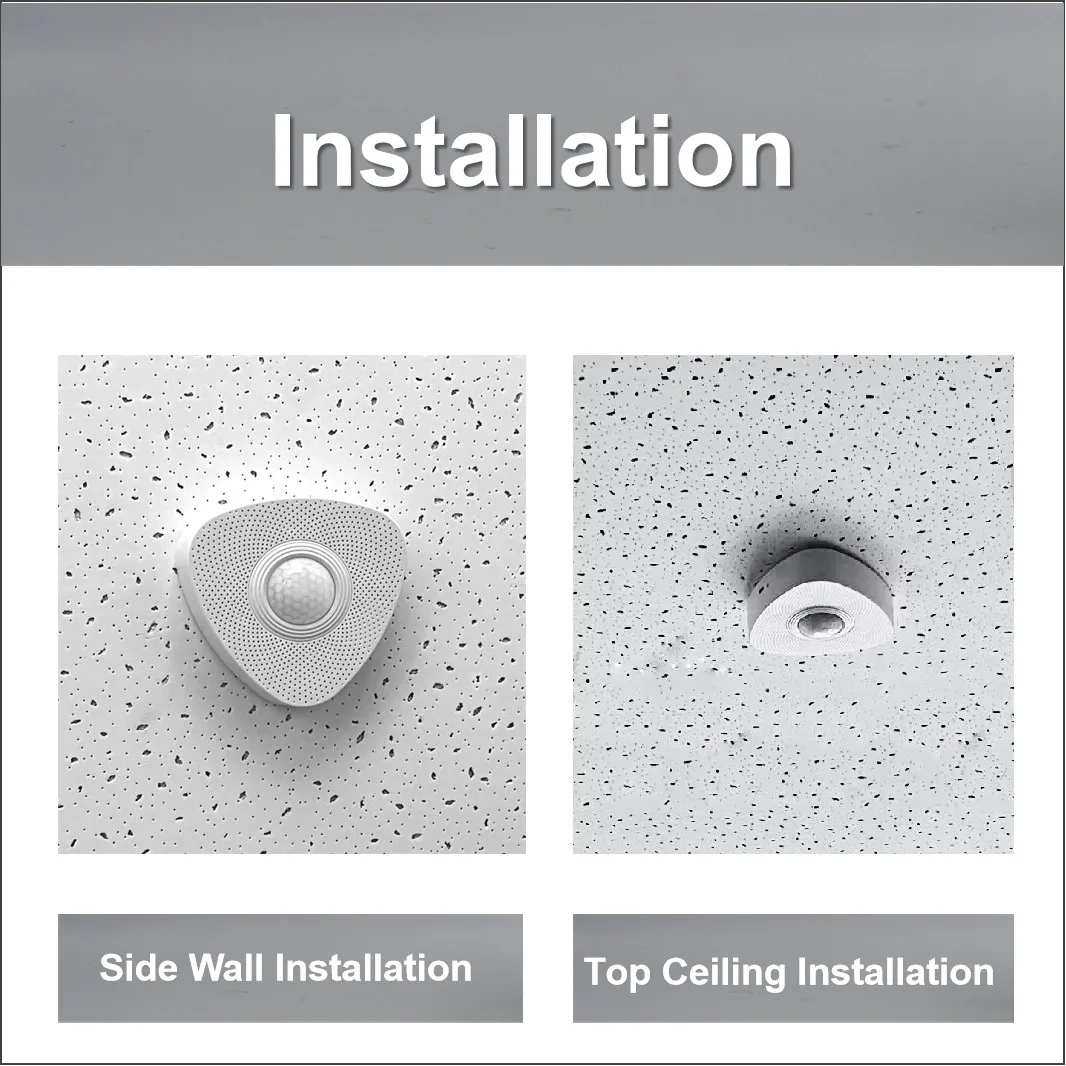

Installation Instructions
Installation Options
Installation Steps
Application Case
