Производство цельных пневматических молотков для ковки пневматический молоток кузнечный C41 25 кг 40
- Категория: Metal Forging Machinery >>>
- Поставщик: Henan,Wadley,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2499.28 $* | 2624.88 $* |
| Aug-16-2025 | 2478.28 $* | 2602.38 $* |
| Jul-16-2025 | 2079.8 $* | 2183.88 $* |
| Jun-16-2025 | 2436.0 $* | 2558.83 $* |
| May-16-2025 | 2121.58 $* | 2227.25 $* |
| Apr-16-2025 | 2394.11 $* | 2514.16 $* |
| Mar-16-2025 | 2373.88 $* | 2492.92 $* |
| Feb-16-2025 | 2352.56 $* | 2470.17 $* |
| Jan-16-2025 | 2331.54 $* | 2448.49 $* |
Характеристики
Production Description
This air pneumatic hammer machine is a very useful tool for general forging, it has many functions, such as: upsetting, extending,continuous upsetting, punching, heat cutting, weldforging, twisting and bending.the machine uses open pad moulds can undertake all kinds of die forging, and it is widely used in hardware tools, medical equipment, gold and silver processing, manufacturing, agricultural machinery and copper tube factory, etc.
Features of the forging power hammer.
the pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.

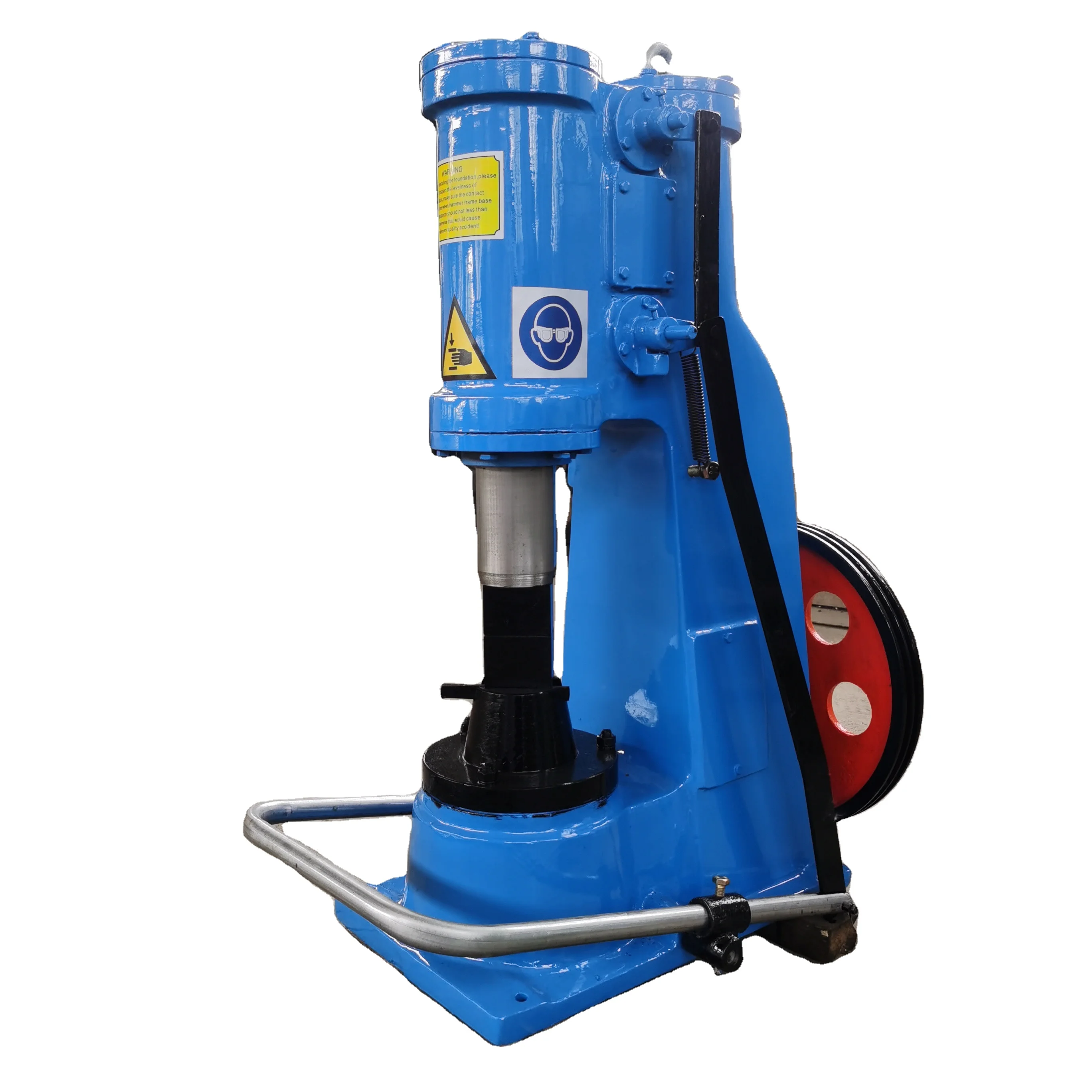

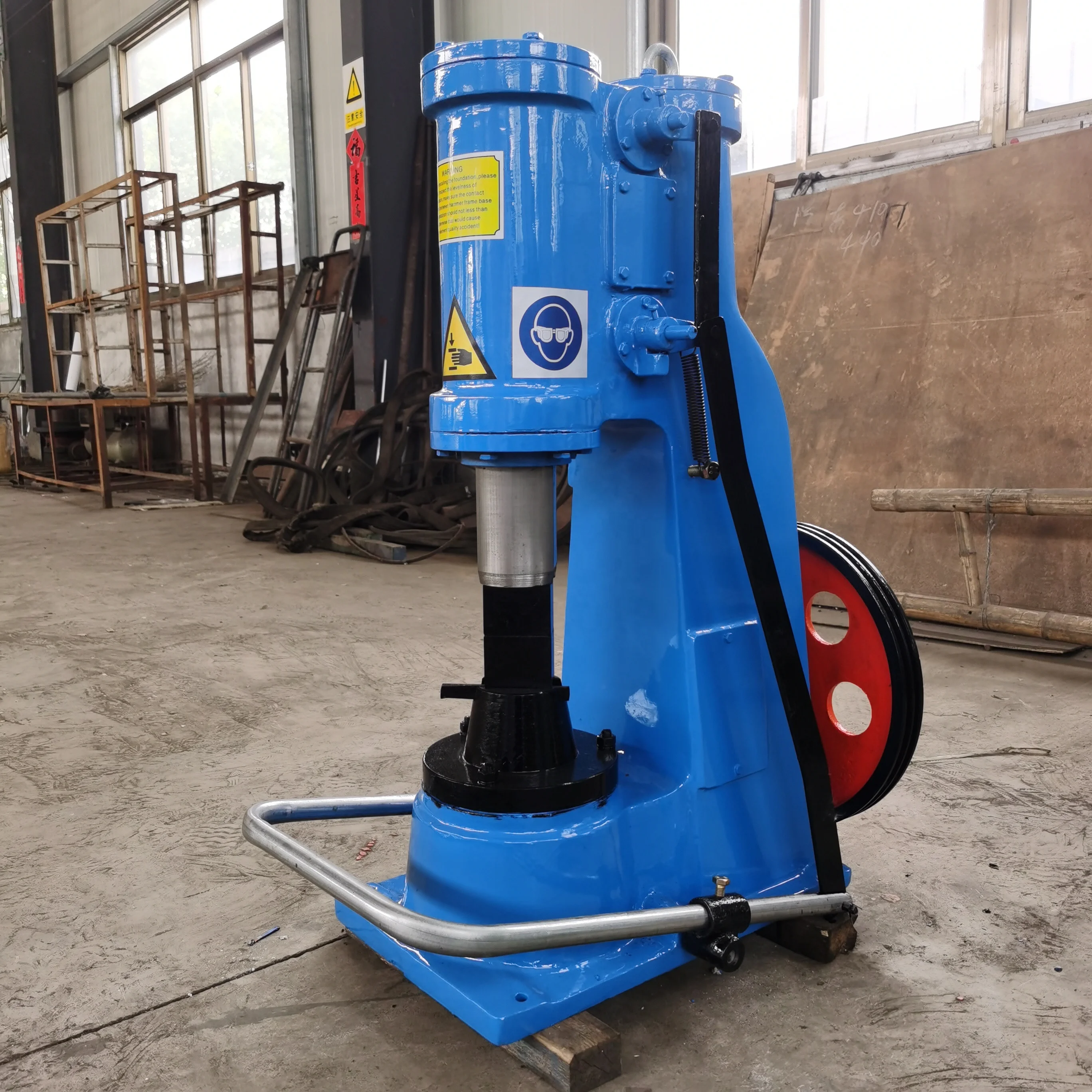

Integrated power hammer

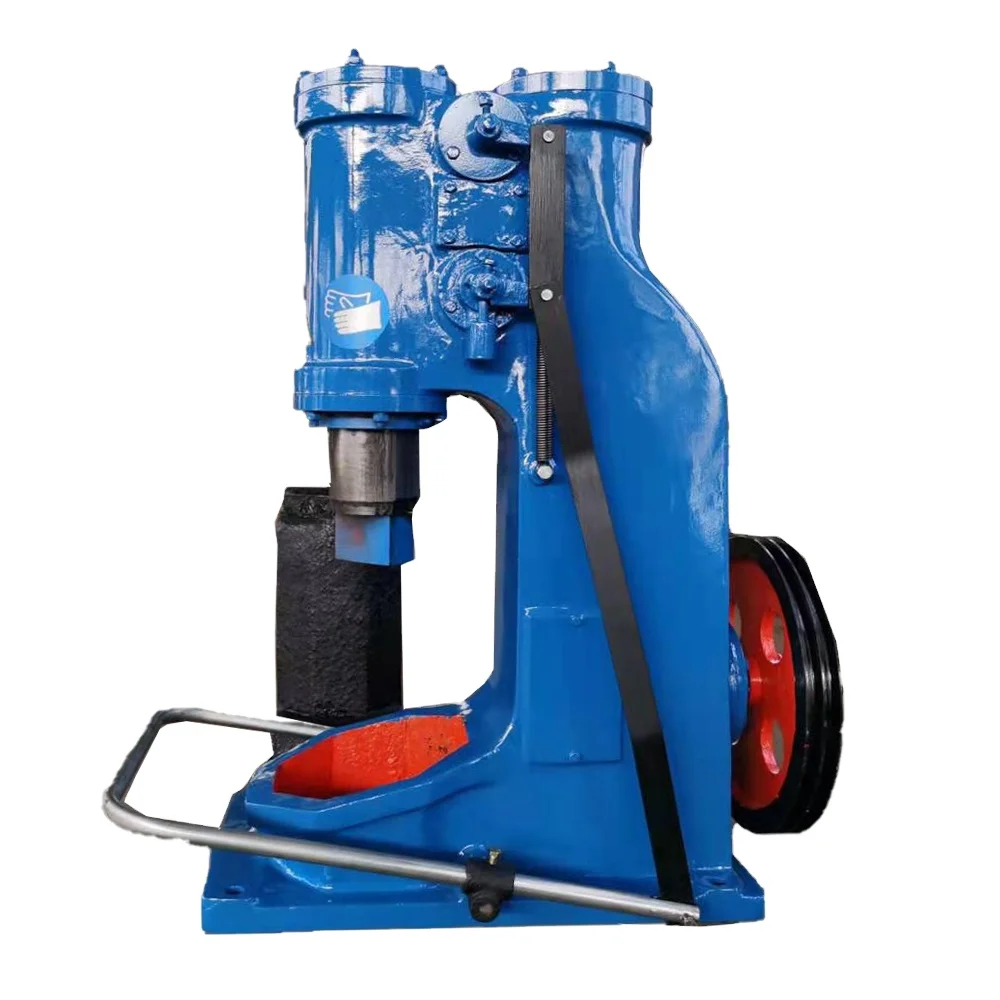

Split power hammer

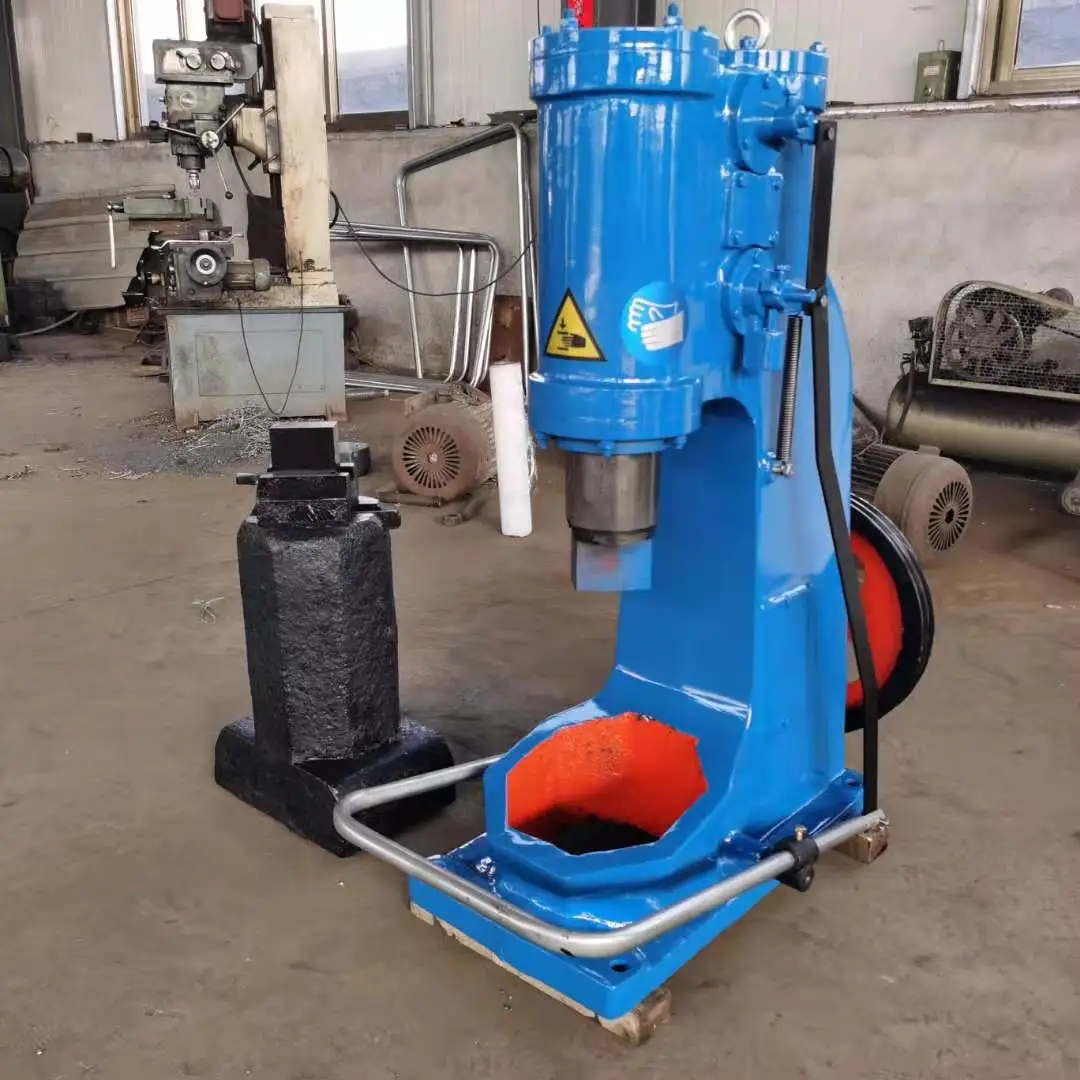

Customization anvil
Physical anvil
Product Specification
Model | C41-20 | C41-25 | C41-40 | C41-55 | C41-75 |
Max hit energy(KJ) | 0.22 | 0.27 | 0.52 | 0.7 | 1 |
Height of working area(mm) | 200 | 240 | 245 | 266 | 300 |
hit number(min) | 270 | 250 | 245 | 230 | 210 |
dimension of top and bottom die | 90*50 | 100*50 | 120*50 | 120*55 | 145*65 |
max round steel can be | 35 | 45 | 68 | 68 | 85 |
max square steel can be | 30*30 | 40*40 | 55*55 | 52*52 | 65*65 |
rate power(kw) | 2.2 | 3/2.2 | 4.5 | 5.5 | 7.5 |
speed of motor(r.p.m) | 1440 | 1440 | 1440 | 1400 | 1400 |
Product Details
The air hammer has a solid shell, which can well protect the internal components and is not easy to be damaged; At the same time, the smooth surface helps to clean and maintain the hygiene of the product The overall weight is light and easy to move.
Generate driving torque, as the power source of electrical appliances or various machinery, and provide sufficient power for the operation of the machine. The motor is represented by the letter G in the circuit. Its main function is to convert mechanical energy into electrical energy.
Dovetail type is easy to install and replace and customer can choose any shapes.Driven by compressed air, it is widely used in casting extension, punching, etc
Humanized design, light beat and heavy beat, arbitrary. The platform can increase the height and stability, and customers can choose to purchase according to their personal needs.

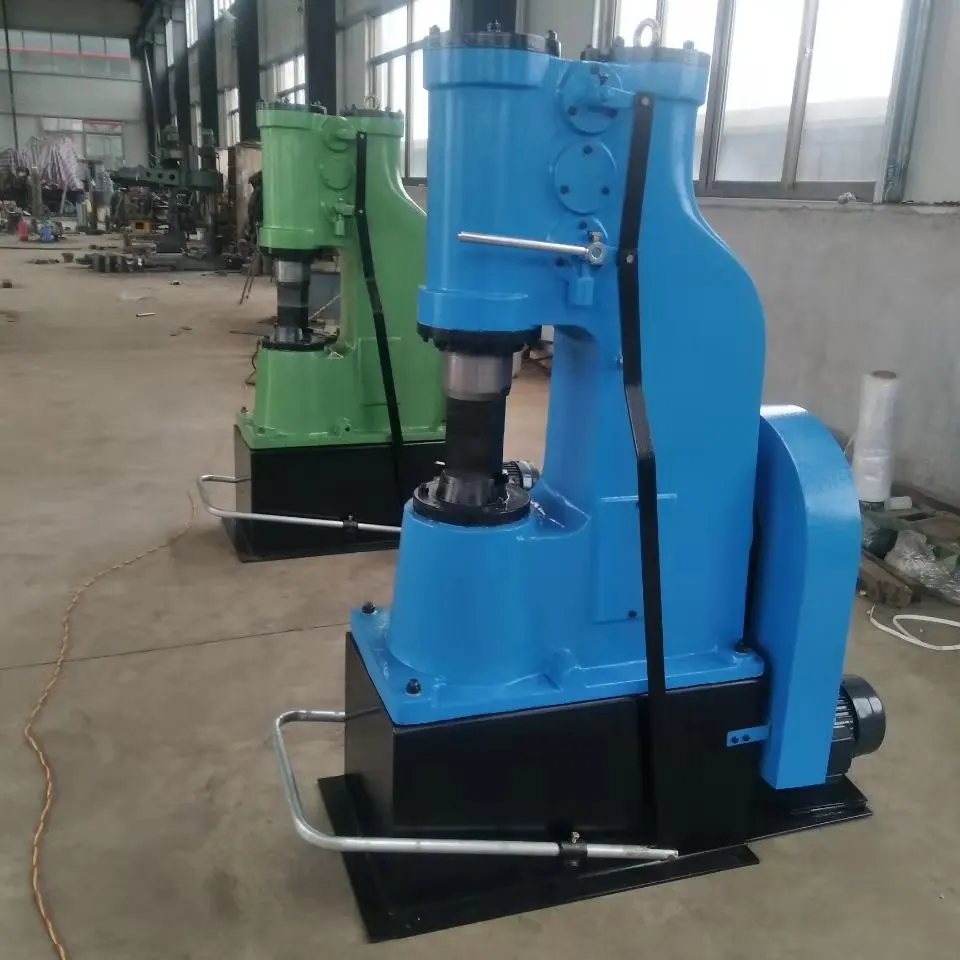

Upgraded forging hammer.
The high base design is added to increase the height of the machine, facilitate operation, increase the weight of the power hammer and make it more stable. As an optional accessory, the base can be purchased according to your own needs.
Customer Feedback
Company Profile
Henan Wadley CNC Machinery Co.,Ltd..
Henan Wadley CNC Machinery Co.,Ltd.is specialized in the production of CNC machine, lathe machine, machine tools and roll forming machine.Our company was established in 2017, it is located in the capital of Henan Province - Zhengzhou, which is the center of the business and economy. Our products have passed the international ISO9001: 2008 quality management system certification. We have established good relationship with our customers from more than 100 countries .
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to buy.
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to buy.
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
