Graphite Crucible
Чистый графитовый тигель плавильный Драгоценный

Чистый графитовый тигель плавильный Драгоценный

Категория: Graphite Crucible >>>
Поставщик: Zibo,Ouzheng,Carbon,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.50 $*	0.42 $*
Aug-18-2025	0.75 $*	0.9 $*
Jul-18-2025	0.75 $*	0.89 $*
Jun-18-2025	0.94 $*	0.98 $*
May-18-2025	0.53 $*	0.30 $*
Apr-18-2025	0.72 $*	0.60 $*
Mar-18-2025	0.18 $*	0.5 $*
Feb-18-2025	0.19 $*	0.37 $*
Jan-18-2025	0.67 $*	0.31 $*

Характеристики

Product Description :

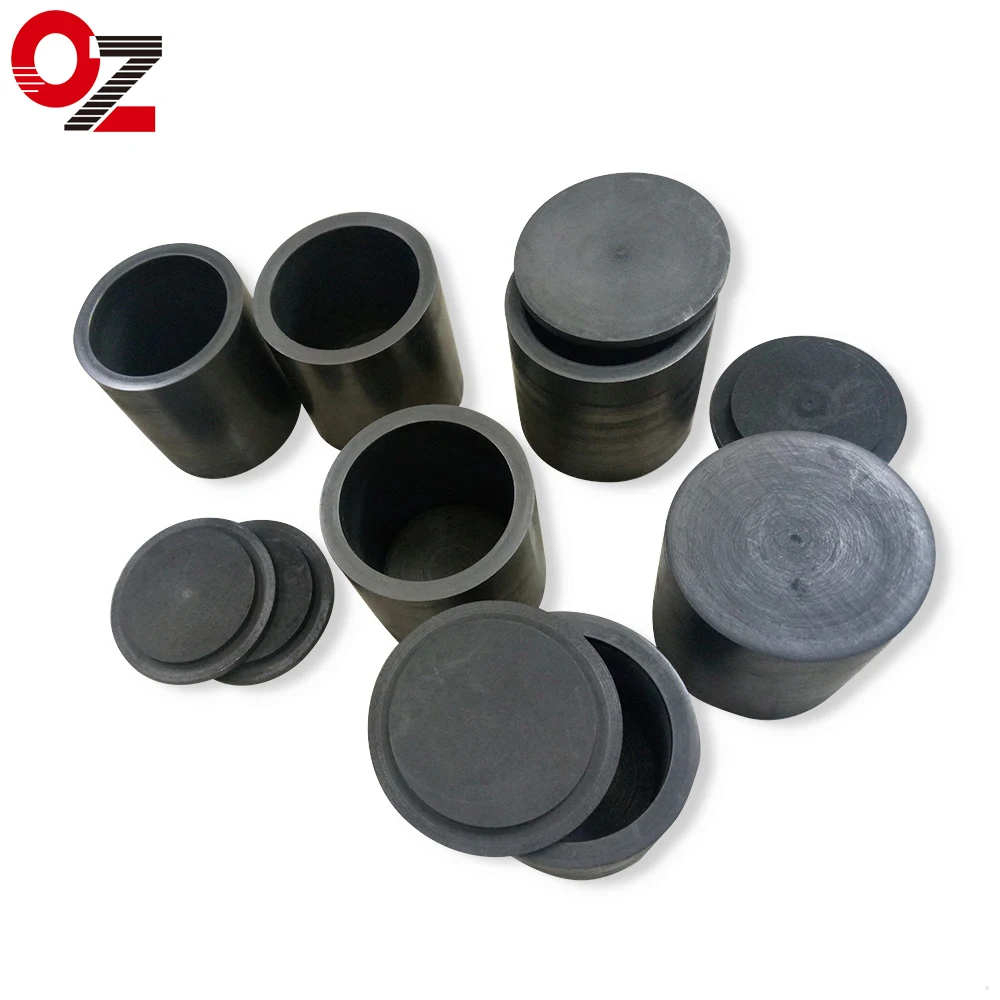

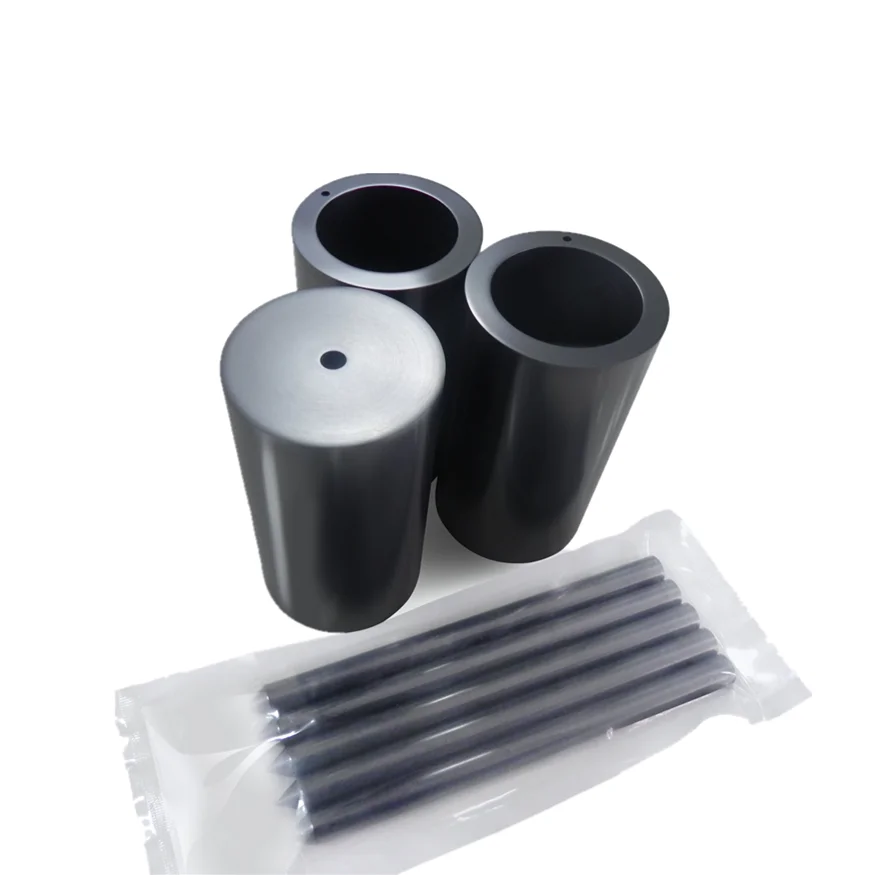

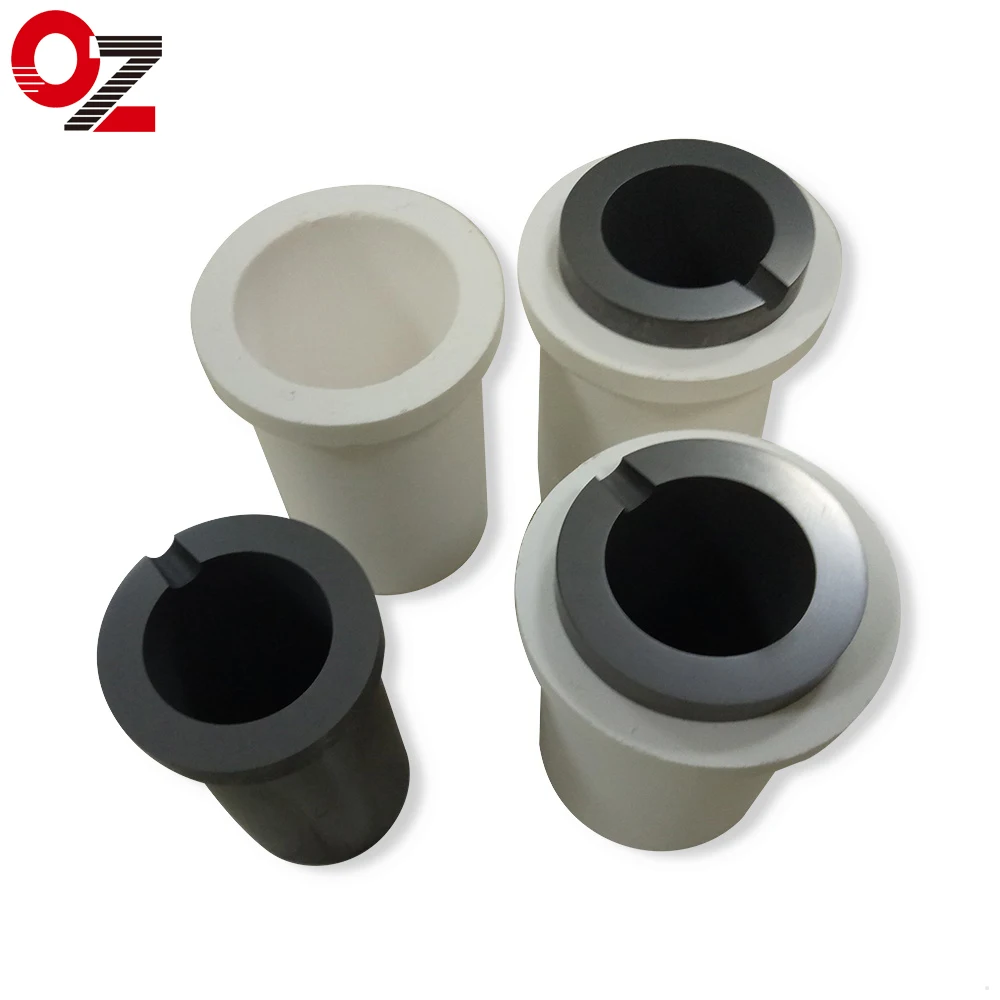

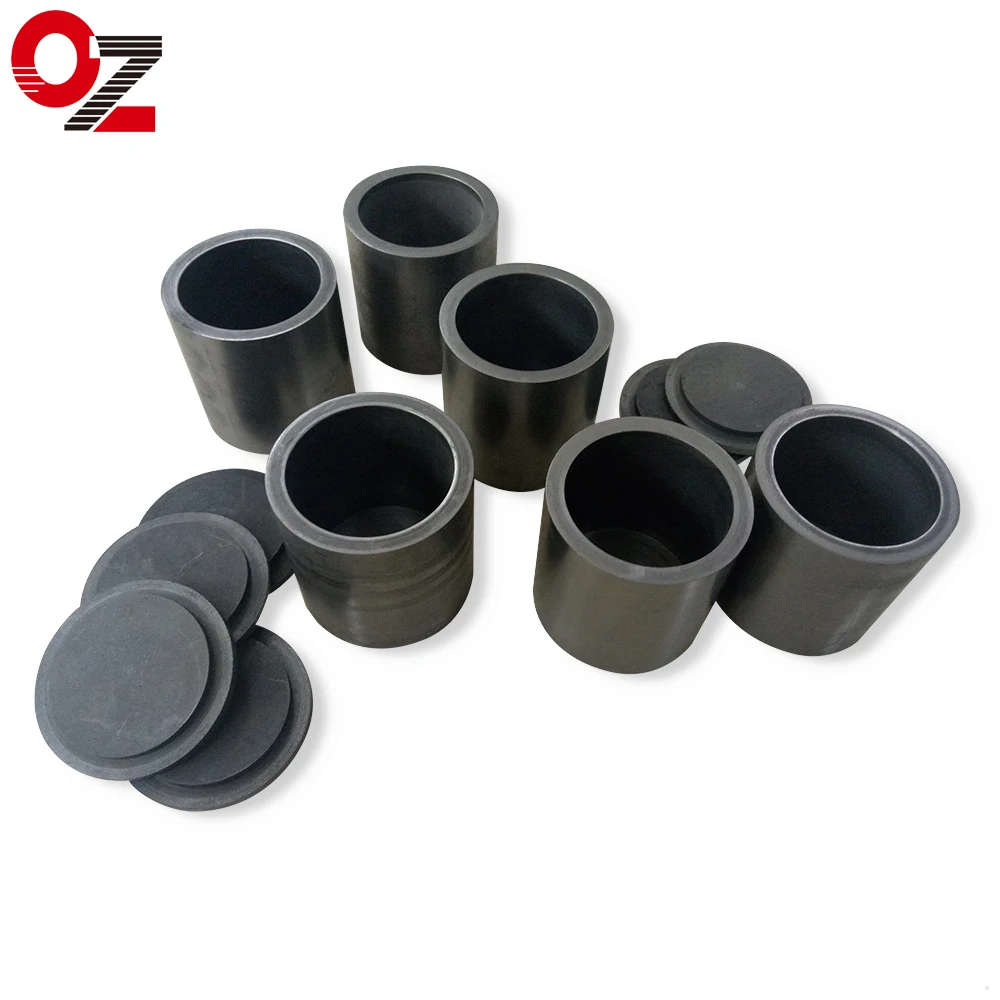

Graphite Crucible

Graphite crucibles are widely used in the smelting of precious metals and the smelting of non-ferrous metals and their alloys in
metallurgy, foundry, machinery, chemical and other industrial areas because of their superior properties. And has a good technical
and economic effects.

Graphite crucible has more sizes, and not restricted to the production scale, quantity and smelting materials, it can be produced to any size, any quantity, and can ensure the purity of the smelting materials.

Graphite materials has the following characteristics：

1. High temperature resistance.
2. Good thermal conductivity.
3. Good corrosion resistance, long service life.
4. Small coefficient of thermal expansion, and it has a certain strain resistance to quench and heat.
5. Stable chemical property and hard to react.
6. Smooth inner wall, molten metal is not easy to leak and adhere to the inner wall of the crucible.

Specification：

We can process and customize according to customers' requirements

Item	Unit	Guarantee value	Guarantee value
Max grain size	mm	0.8	0.8
Bulk density	g/cm3	≥1.70	≥1.73
Specific resistance	μΩ.m	≤8.5	≤8.0
Bending strength	MPa	≥10.0	≥12.0
Compressive strength	MPa	≥24.0	≥31.0
Thermal Condcutivity\t	W/(m.k)	≥120	≥130
C.T.E.(100-600) °C	10-6/°C	≤2.5	≤2.5
Ash content	%	≤0.3	≤0.3

		high pure graphite
Item	Unit	baked twice	baked three time	baked four time
Item	Unit			impregnated once	impregnated twice	Impregnated three times
grain size	mm	≤325mesh	≤325mesh	≤325mesh
Bulk density	g/cm3	≥1.68	≥1.78	≥1.85
Specific resistance	μΩ.m	≤14	≤14	≤13
Bending strength	MPa	≥25	≥40	≥45
Compressive strength	MPa	≥50	≥60	≥65
Ash content	%	≤0.15	≤0.1	≤0.05

Item	Unit	Isostatic graphite
grain size	μm	5-22
Bulk density	g/cm3	1.75-1.85
Specific resistance	μΩ.m	10-15
Bending strength	MPa	≥40
Compressive strength	MPa	≥70
Shore hardness		≥5
C.T.E.(100-600) °C	10-6/°C	3.2-5.2
Modulus of elasticity	GPa	9.5-12.5
