Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Высококачественная высокопроизводительная гидравлическая машина для обжима шлангов 10
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Tianjin,Henghua,Pipeline,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1269.18 $* | 1294.3 $* |
| Jul-16-2025 | 1029.5 $* | 1050.73 $* |
| Jun-16-2025 | 1249.24 $* | 1274.15 $* |
| May-16-2025 | 1239.15 $* | 1264.59 $* |
| Apr-16-2025 | 989.92 $* | 1009.44 $* |
| Mar-16-2025 | 1219.15 $* | 1243.16 $* |
| Feb-16-2025 | 1209.5 $* | 1233.58 $* |
| Jan-16-2025 | 1199.78 $* | 1223.53 $* |
Характеристики
Why Choose Us
1. We are the only "Verified Supplier" among the Top 10 supplier of rubber product making machinery, and factory certified by Alibaba authorized
2. We are eligible to participate in the "Million Dollar Club", have passed the audit, and are eligible to provide services to gold buyers who are expected to purchase more than one million U.S. dollars each year.
3. We are super strength factory, You will see the video of our factory on Alibaba's exclusive page.
4. We have 12 patented core technologies.
5. Our products are most popular in India, and sell well in more than 20 countries.
6. Similar products are cost-effective on quality and performance.
2. We are eligible to participate in the "Million Dollar Club", have passed the audit, and are eligible to provide services to gold buyers who are expected to purchase more than one million U.S. dollars each year.
3. We are super strength factory, You will see the video of our factory on Alibaba's exclusive page.
4. We have 12 patented core technologies.
5. Our products are most popular in India, and sell well in more than 20 countries.
6. Similar products are cost-effective on quality and performance.
Products Description
Model | DSG250 | DSG250A | DSG250-1 |
Crimping range(mm) | 6-51mm | 6-87mm | 6-51mm |
Qty of dies(set) | 10 | 13 | 10 |
Crimping precision(mm) | 0.01mm | 0.01mm | 0.01mm |
Displacement(L) | 5L | 19L | 5L |
System pressure(Mpa) | 31.5Mpa | 31.5Mpa | 31.5Mpa |
Power(Kw) | 4Kw | 4Kw | 3Kw |
Voltage(V) | 220V | 380V | 380V |
Rated Pressure | 31.5MPa | 50Mpa | 31.5Mpa |
Crimping pressure(T) | 640T | 536T | 500T |
Efficiency(pc/h) | 200pc/h | 1000pc/h | 200pc/h |
Power | 3KW/4KW | 4KW | 4KW/5.5KW/7.5KW |
Dimension(mm) | 700*900*1400 | 800*650*1320 | 800*640*1300 |
Weight(Kg) | 360KG | 320KG | 300KG |
DSG250
The cylinder piston adopts one-piece precision cast steel material to completely solve the deformation of the cylinder caused by
welding, and the problems such as product precision not enough.
The advance and retreat of the piston, the opening and contraction movement of the mold all depend on the power generated by the hydraulic power source.
Applicable to all kinds of mechanical high and low pressure oil pipes, gas pipes, water pipes, cables, automotive air conditioning pipes, gasoline fuel supply pipes, as well as the deduction of construction parts and daily water heater pipes, widely used in industries of vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment, etc.
welding, and the problems such as product precision not enough.
The advance and retreat of the piston, the opening and contraction movement of the mold all depend on the power generated by the hydraulic power source.
Applicable to all kinds of mechanical high and low pressure oil pipes, gas pipes, water pipes, cables, automotive air conditioning pipes, gasoline fuel supply pipes, as well as the deduction of construction parts and daily water heater pipes, widely used in industries of vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment, etc.
DSG250A(numerical control)
CNC automatic operation, convenient and fast.The processing speed is fast, the work efficiency is high, the precision is high, and
the strength is high.
The manual adjustment is converted into a fully automatic numerical control operation, which improves the quality, improves the
labor efficiency, reduces the labor cost, and greatly shortens the production cycle of the product.
the strength is high.
The manual adjustment is converted into a fully automatic numerical control operation, which improves the quality, improves the
labor efficiency, reduces the labor cost, and greatly shortens the production cycle of the product.
DSG250-1(side die holder)
The side of the machine is specially designed to add mold holders to facilitate the access and replacement of the molds, and the
machine operation is more convenient and efficient.
The mold opening speed is fast, the weight is light, and the cost is reduced, and is not easy to be damaged, and reduces maintenance costs.
The machine is equipped with a high box, which provides a wider space for the machine, making it easy to place machine parts and
other necessary tools.
machine operation is more convenient and efficient.
The mold opening speed is fast, the weight is light, and the cost is reduced, and is not easy to be damaged, and reduces maintenance costs.
The machine is equipped with a high box, which provides a wider space for the machine, making it easy to place machine parts and
other necessary tools.
Main Technical Feature:
1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation
>>Any color can be customized.
>>Machine parts can specify the brand requiryed by customers, such as Famous brand motors.
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation
>>Any color can be customized.
>>Machine parts can specify the brand requiryed by customers, such as Famous brand motors.
>>Can customize customer's own logo and machine OEM.
>>Molds can be customized in different models.
>>Molds can be customized in different models.
Promise
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

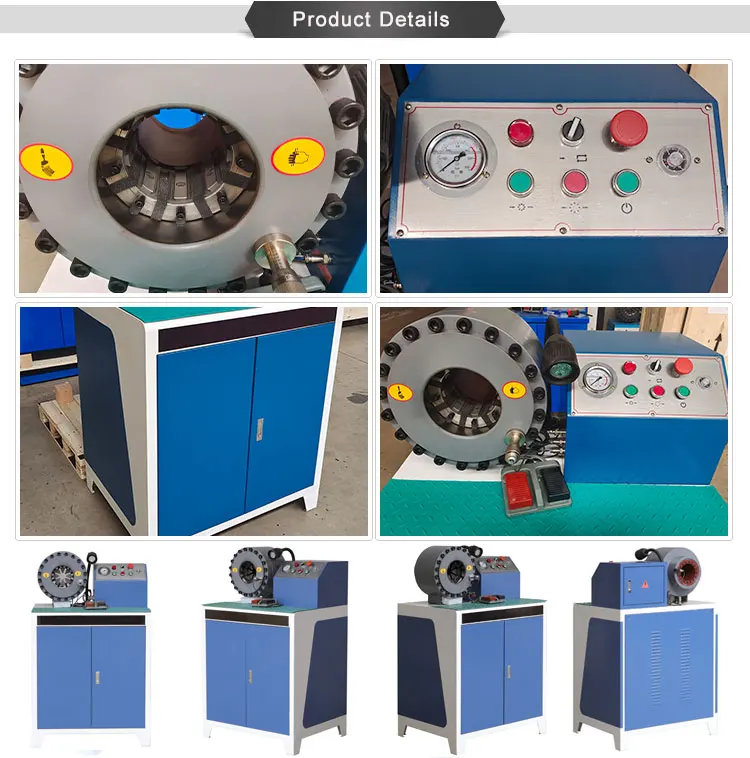

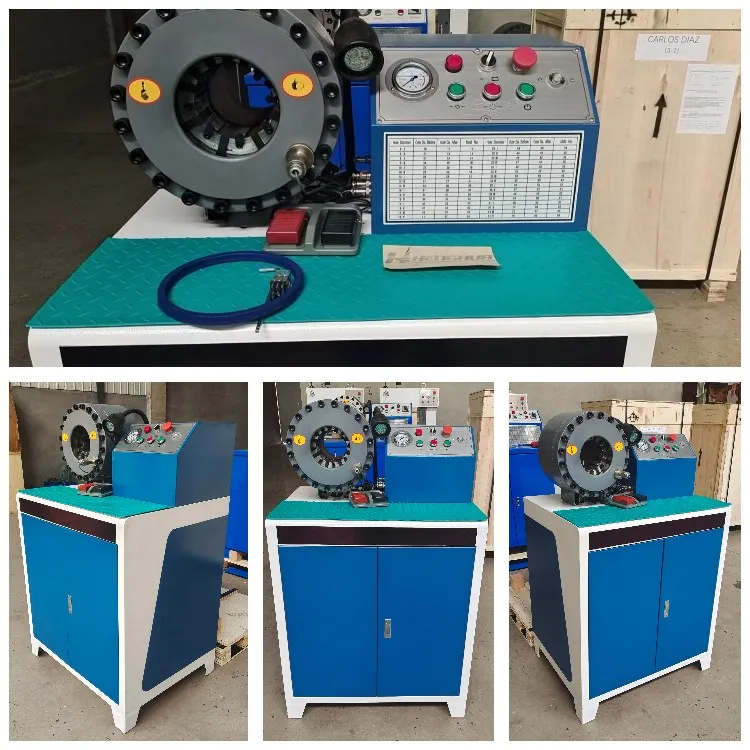

Details Images

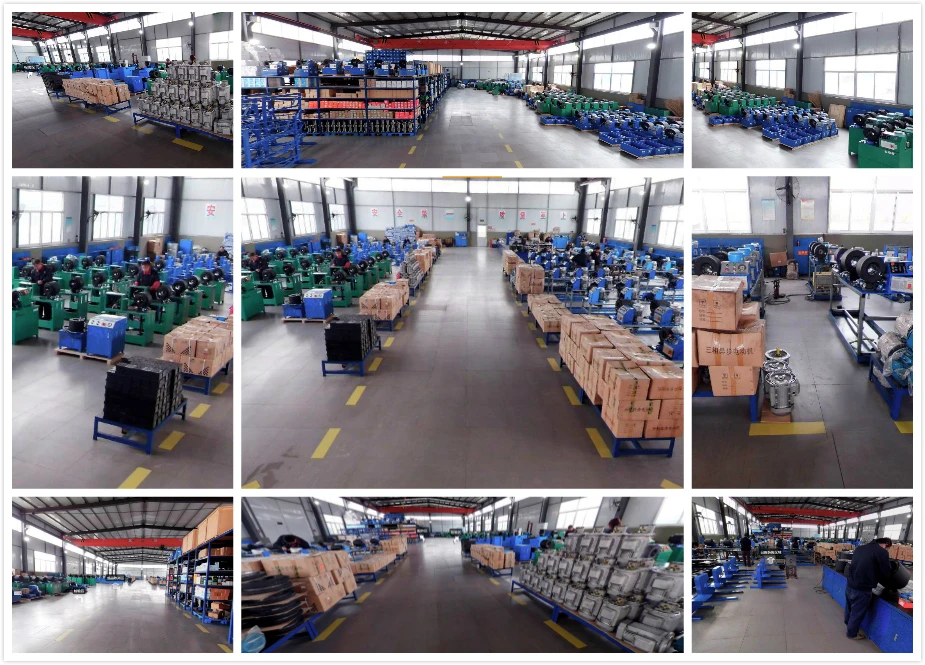

Company Profile
Product packaging
Relatived Rubber Hose Making Machinery Products
1.Hose Cutting Machine
2.Hose SKiving Machine
3.Rubber Hose,Hose assembly
4. Ferrule, Hose Fittings, Flange, Adapter,Clamp,etc
2.Hose SKiving Machine
3.Rubber Hose,Hose assembly
4. Ferrule, Hose Fittings, Flange, Adapter,Clamp,etc
FAQ
1. What level of service do you provide ?
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos .
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos .
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.
