Цифровой протектор напряжения Регулируемый Защита от перенапряжения
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Zhongshan,Ruikang,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4.38 $* | 4.87 $* |
| Jul-19-2025 | 3.18 $* | 3.4 $* |
| Jun-19-2025 | 4.36 $* | 4.39 $* |
| May-19-2025 | 4.92 $* | 4.2 $* |
| Apr-19-2025 | 3.40 $* | 3.23 $* |
| Mar-19-2025 | 4.36 $* | 4.1 $* |
| Feb-19-2025 | 4.60 $* | 4.10 $* |
| Jan-19-2025 | 4.65 $* | 4.6 $* |
Характеристики

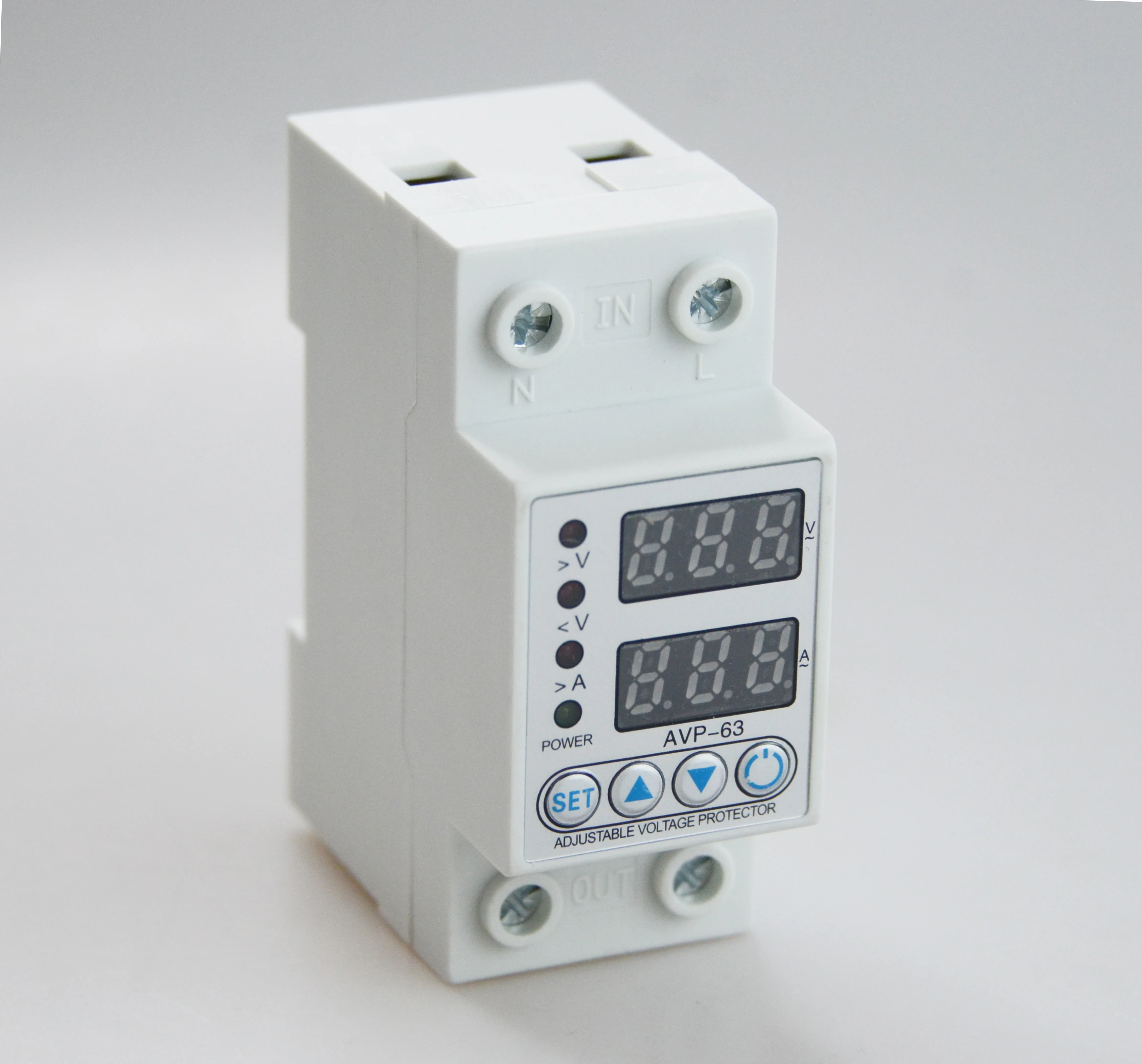

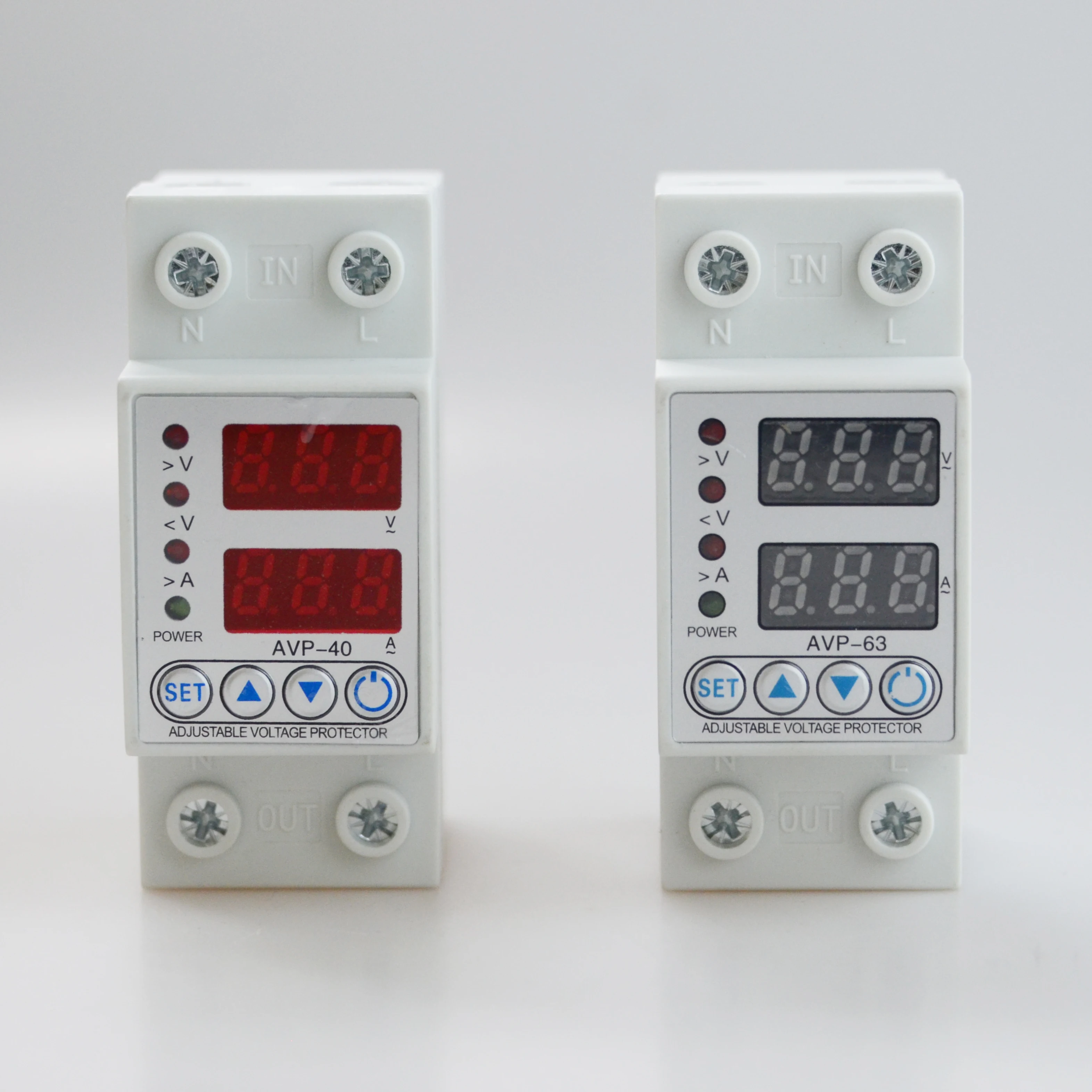

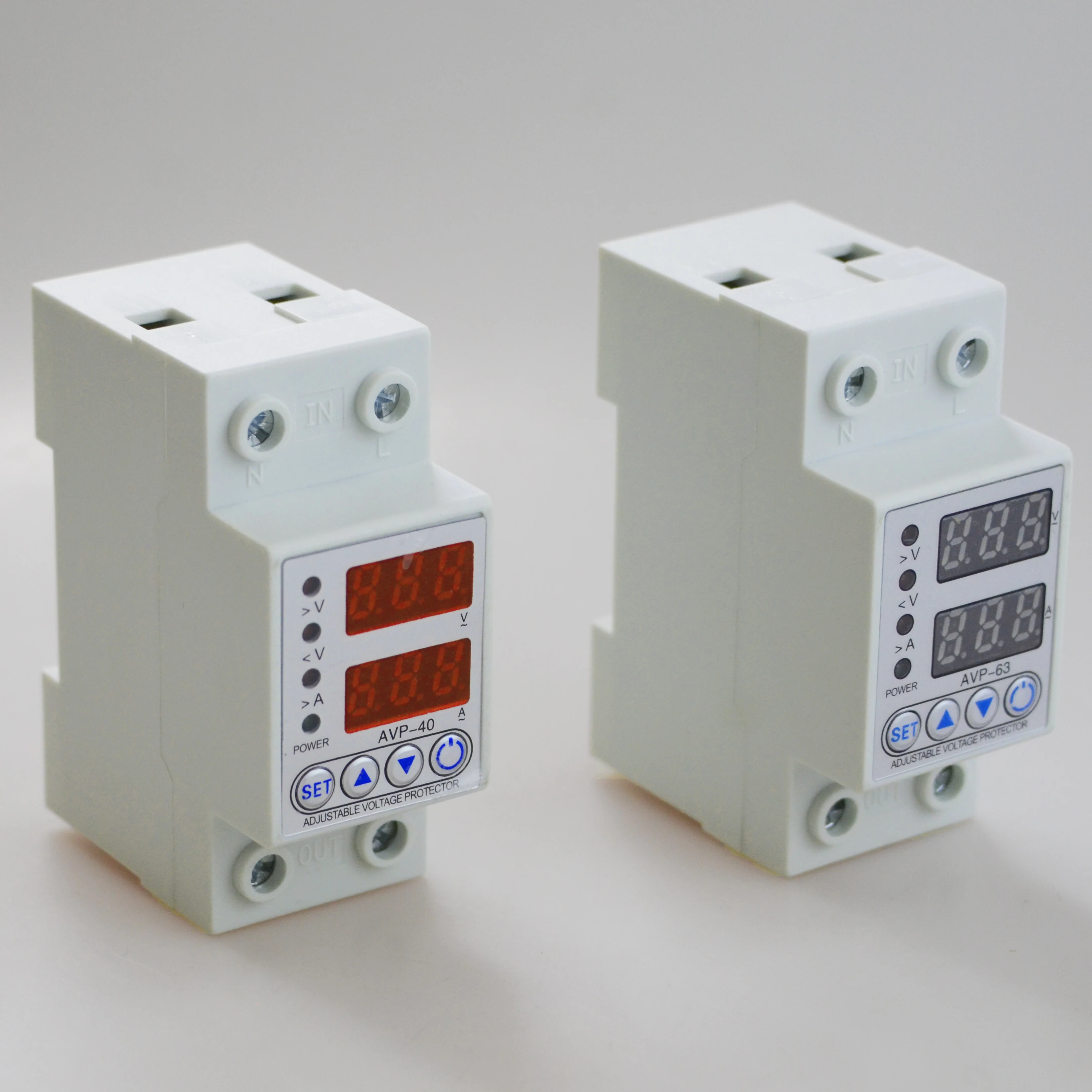

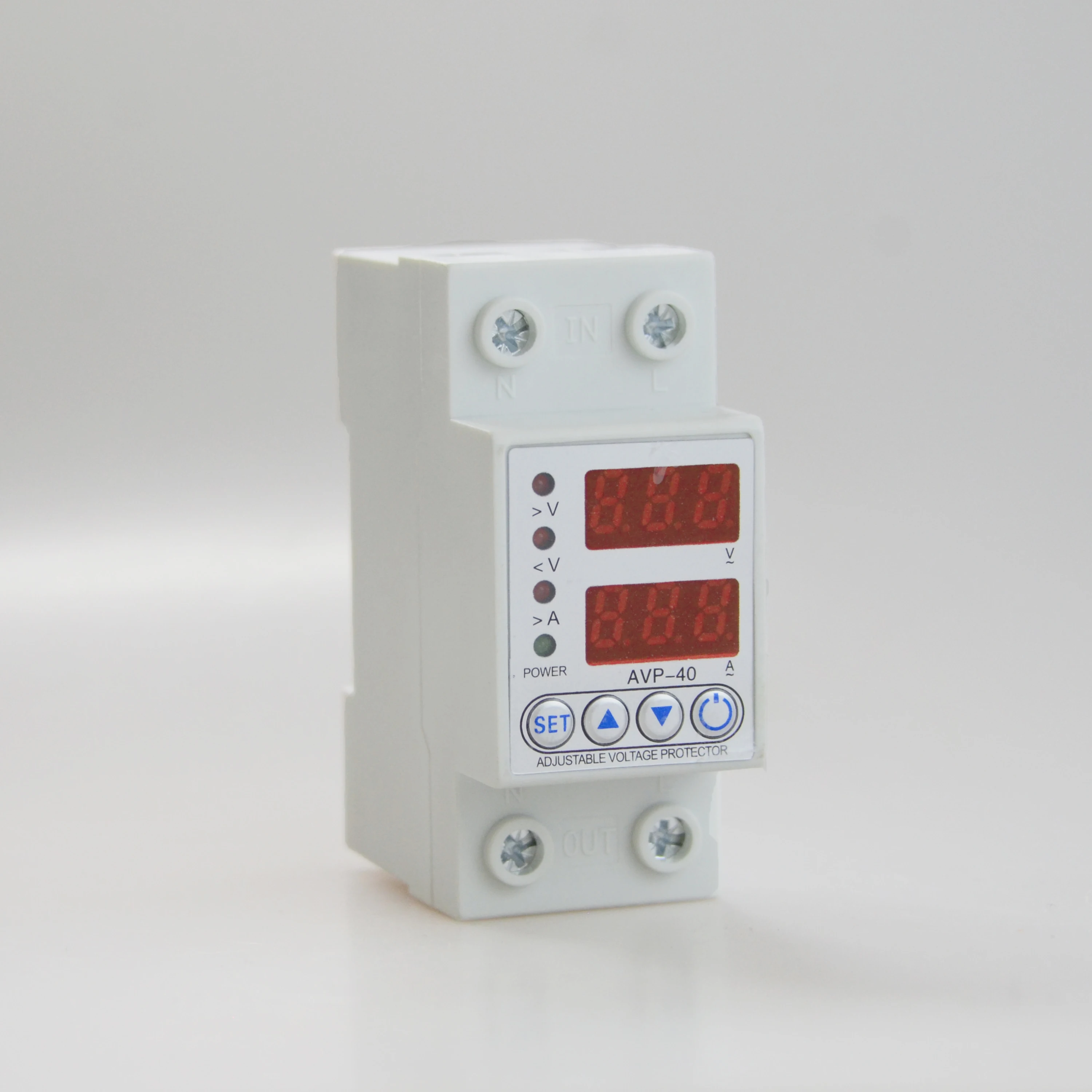

High quality Voltage Protector Adjustable Over Under Voltage Protector Electric Power Protector
Notice
* This product has two different current values, which can be selected according to your requirements.
* The line voltage should not be higher than 330vac to prevent the product itself from being damaged due to excessive voltage. Please contact us if a high power supply is required in a specific situation.
* If you have any questions, please contact our customer service.
* The line voltage should not be higher than 330vac to prevent the product itself from being damaged due to excessive voltage. Please contact us if a high power supply is required in a specific situation.
* If you have any questions, please contact our customer service.
Product Description
Usage
This product integrates over-voltage protection, under-voltage protection, over-current protection and integrated
intelligent protector. When there is over-voltage, under-voltage and over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding unnecessary damage to electrical equipment.
intelligent protector. When there is over-voltage, under-voltage and over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding unnecessary damage to electrical equipment.
Functions
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
Product parameters
1 Rated voltage: 220VAC 50Hz.
2 Rated current: 1A-63A adjustable (default 40A)
3 Over voltage action cut-off value: 240V-300VAC can be set (default 270VAC)
4 Unddr voltage action cut-off value: 140V-200VAC can be set (default 1 70VAC)
5 Over current action cut-off value: 63A: 1A-63A can be set (default 40A) / 40A: 1 A-40A can be set (default 40A)
6 Transmission delay time after power-on and power-off: 5-300S adjustable (default 5S)
7 Boot delay time: 1-300S adjustable (default 5S)
8 Reset delay time after overcurrent protection: 30-300s adjustable (default 30s)
9 Product overcurrent delay time 6s (overcurrent time greater than this time will be confirmed as overcurrent and provide
protection)
10 Own power consumption: less than or equal to 2W
11 Electrical machinery life: greater than or equal to 100,000 times
12 Dimensions: 51*35*60mm
3 Over voltage action cut-off value: 240V-300VAC can be set (default 270VAC)
4 Unddr voltage action cut-off value: 140V-200VAC can be set (default 1 70VAC)
5 Over current action cut-off value: 63A: 1A-63A can be set (default 40A) / 40A: 1 A-40A can be set (default 40A)
6 Transmission delay time after power-on and power-off: 5-300S adjustable (default 5S)
7 Boot delay time: 1-300S adjustable (default 5S)
8 Reset delay time after overcurrent protection: 30-300s adjustable (default 30s)
9 Product overcurrent delay time 6s (overcurrent time greater than this time will be confirmed as overcurrent and provide
protection)
10 Own power consumption: less than or equal to 2W
11 Electrical machinery life: greater than or equal to 100,000 times
12 Dimensions: 51*35*60mm
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | YOMIN |
Model Number | YOMIN-VP001 |
Usage | JIW |
Phase | Single Phase |
Current Type | DC |
Rated voltage | 220VAC 50Hz. |
Rated current | 1A-63A adjustable (default 40A) |
Dimensions | 51x35x60mm |
Color | As Pics |
Application | General-purpose |
Company Profile
Established in 2002, Zhejiang Yomin Electric Co.,Ltd. is specialized in designing and development and producing cold pressing wiring terminals & connectors,it is produced by reference to the technical standard of advanced industrial countries, such as U.S.A, Japan, German etc. Most of our products supplied by tender for domestic and overseas power companies in more than 30 countries.
Our well equipped Germany facilities and excellent quality control system throughout all stages of production enable us to guarantee total customers satisfaction. Besides, we are awarded with the certificates of ISO9001, CE, RoHS, CB, etc.
Our company continuously adhere the principle of "excellent quality, exceeding credit, user first"and we are looking forward to building successful business relationships with clients around the world in the future.
Our well equipped Germany facilities and excellent quality control system throughout all stages of production enable us to guarantee total customers satisfaction. Besides, we are awarded with the certificates of ISO9001, CE, RoHS, CB, etc.
Our company continuously adhere the principle of "excellent quality, exceeding credit, user first"and we are looking forward to building successful business relationships with clients around the world in the future.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2012,sell to Eastern Asia(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South Asia(2.00%),Southern Europe(2.00%),Domestic Market(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tile Leveling System,tile spacer,security seal,meter seal,cable gland
4. why should you buy from us not from other suppliers?
Established in 2002, Zhejiang Yomin Electric Co.,Ltd. is specialized in designing and development and producing cold pressing wiring terminals & connectors,it is produced by reference to the technical standard of advanced industrial countries, such as U.S.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2012,sell to Eastern Asia(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South Asia(2.00%),Southern Europe(2.00%),Domestic Market(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tile Leveling System,tile spacer,security seal,meter seal,cable gland
4. why should you buy from us not from other suppliers?
Established in 2002, Zhejiang Yomin Electric Co.,Ltd. is specialized in designing and development and producing cold pressing wiring terminals & connectors,it is produced by reference to the technical standard of advanced industrial countries, such as U.S.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Western Union,Escrow;
Language Spoken:English,Chinese
