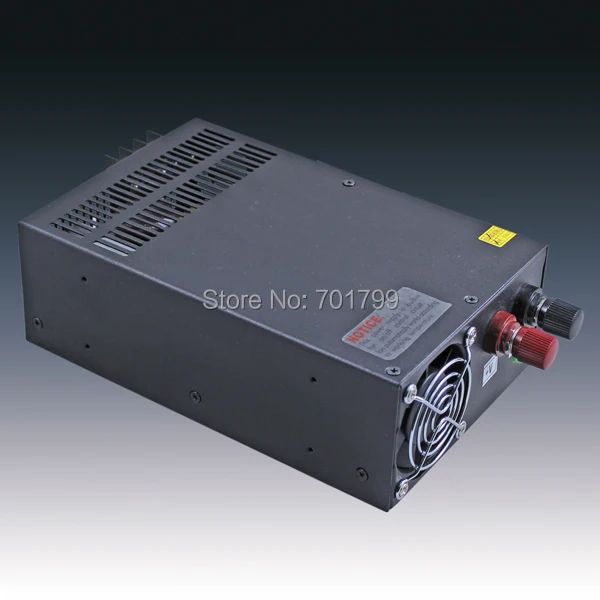

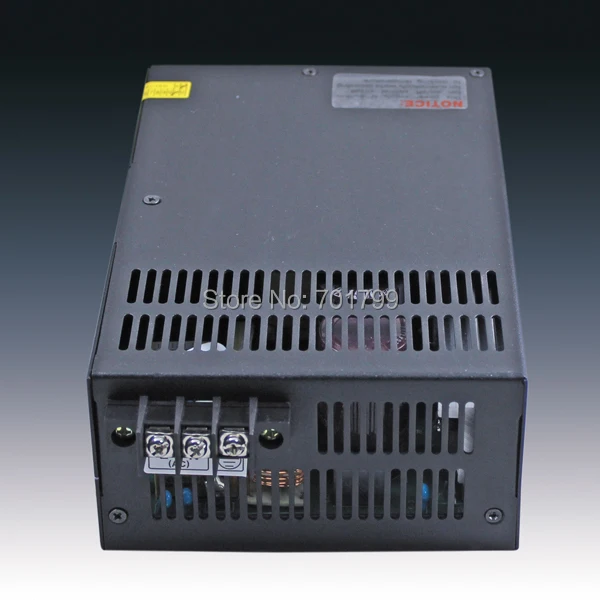

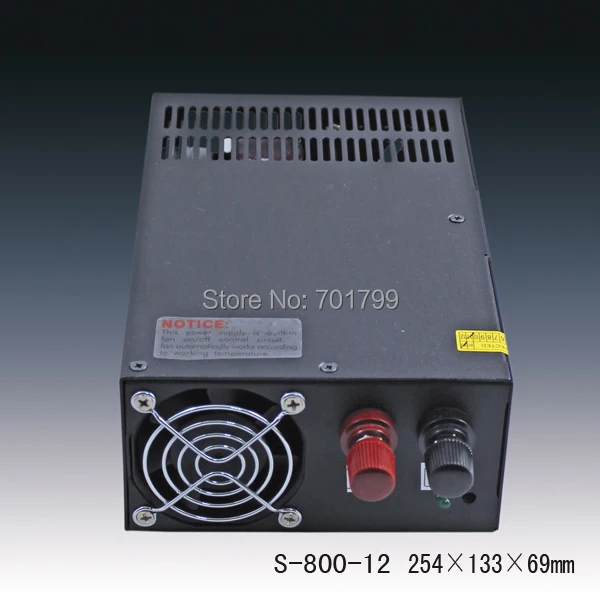

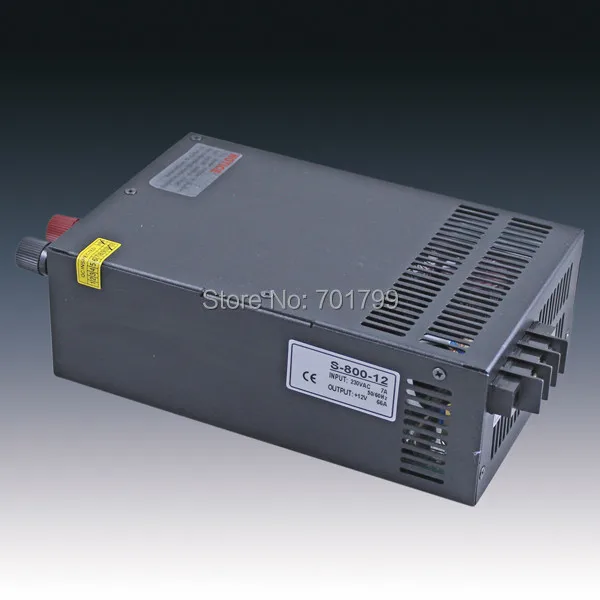

800 Вт 12 В 66 А небольшой объем импульсный источник питания для светодиодной ленты светодиодного модуля и
- Категория: >>>
- Поставщик: Shenzhen,Ramasun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.73 $* | 0.58 $* |
| Aug-15-2025 | 0.86 $* | 0.30 $* |
| Jul-15-2025 | 0.76 $* | 0.21 $* |
| Jun-15-2025 | 0.13 $* | 0.61 $* |
| May-15-2025 | 0.98 $* | 0.79 $* |
| Apr-15-2025 | 0.18 $* | 0.83 $* |
| Mar-15-2025 | 0.25 $* | 0.94 $* |
| Feb-15-2025 | 0.26 $* | 0.86 $* |
| Jan-15-2025 | 0.11 $* | 0.36 $* |
Характеристики
BUYERS NOTICES:
1. ALL THE DESCRIPTIONS AND THE PRICES MARKED ON THIS PAGE ARE NOT CORRECT, SUBJECT TO OUR FINAL CONFIRMATION.
2. TO GET LATEST PRICES AND FREIGHT COST, PLEASE KINDLY INQUIRE US NOW.
3. FREE SAMPLES ARE AVAILABLE TO PROVIDE. HOPE YOU ARE LUCKY TO GET THEM FREE.
..................................................................................................................................................................
Model | HS-800-12 | |
Output | DC Voltage | 12V |
Voltage Tolerance | +1% | |
Rated Current | 66A | |
Current Range | 0-66A | |
Rated Power | 800W | |
Ripple & Noise | 150 mVp-p | |
DC Voltage Adi. Range | +10% | |
Setup,Rise,Hold Time | 1000ms,100ms,30ms/230VAC | |
Input | Voltage Range | 170~264 VAC 47~63 Hz; selected by switch 235~373VDC |
AC Current | 4.5 A/ 230 V | |
Efficiency | 80% | |
Inrush Current | Cold start50 A/230VAC | |
Leakage Current | less than 3.5 mA/240VAC | |
Standards | Safety Standard | Design refer to UL1012 |
EMC Standard | Design refer to FCC Part 15J Conduction Class B |
