2-в-1 осциллограф и функция генератор сигналов двухканальный Осциллограф портативный цифровой

Описание и отзывы

Трекер стоимости

Характеристики

"Features:

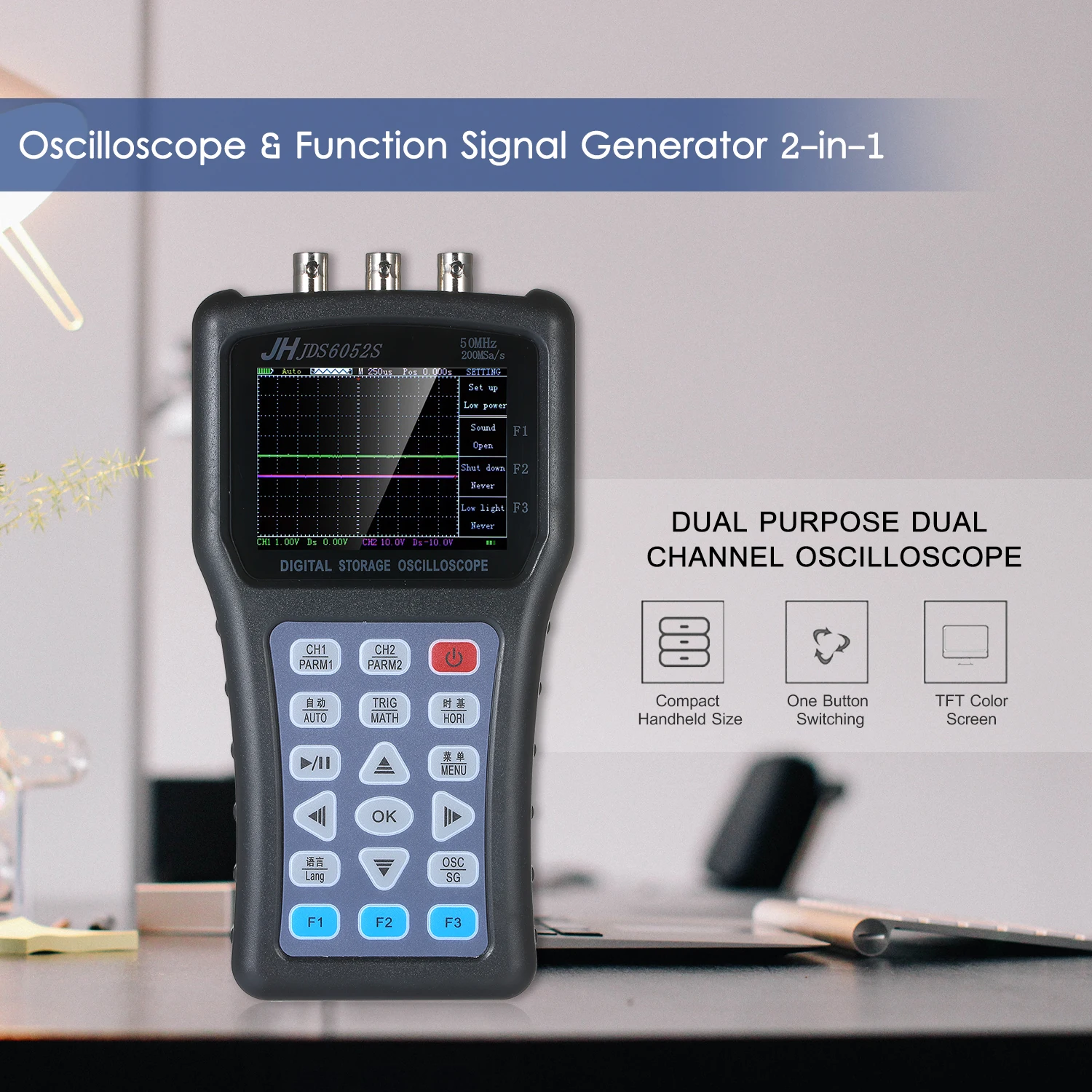

2-in-1 Functions: dual purpose dual channel scope meter that combine functions of digital oscilloscope and function signal generator.

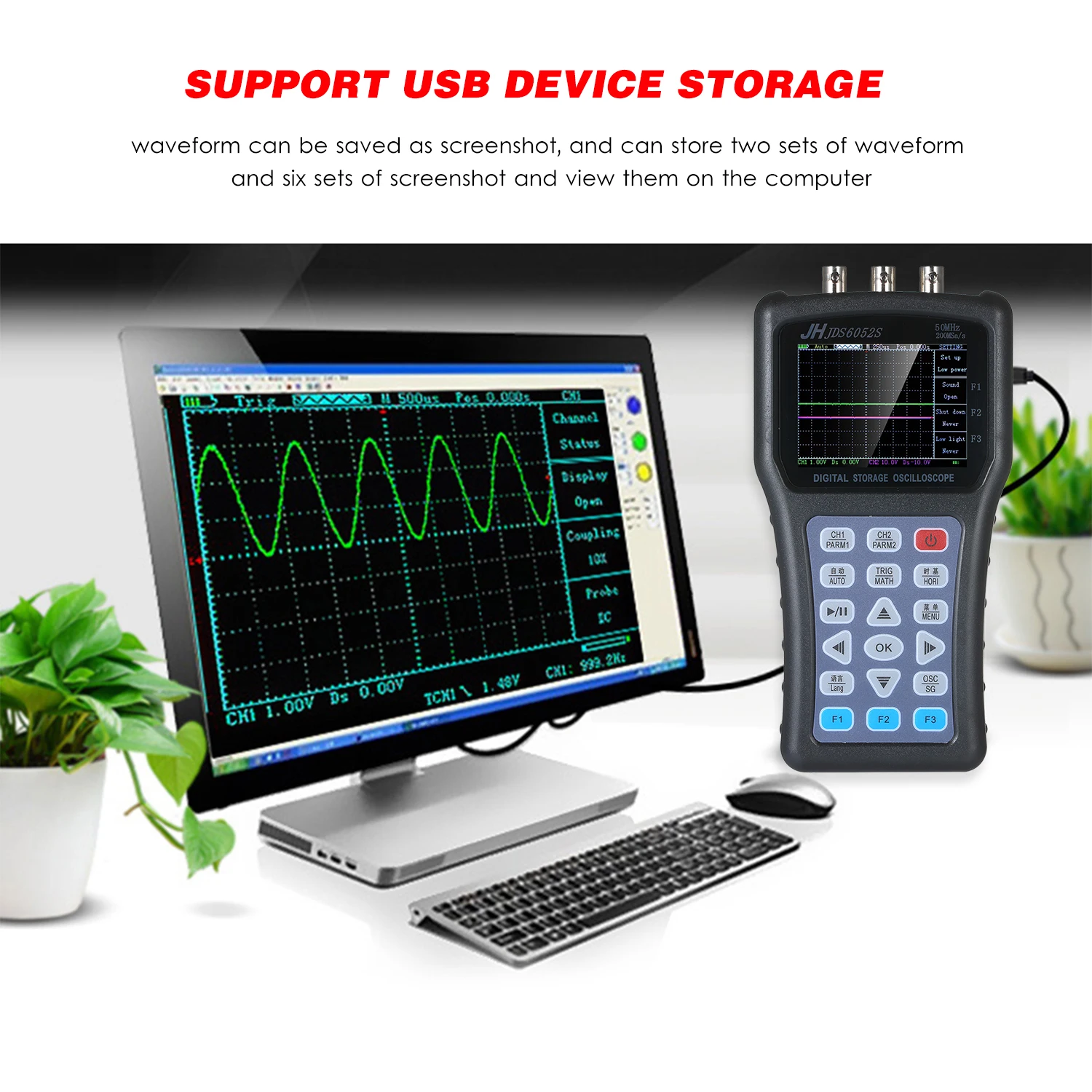

Support USB Device Storage: waveform can be saved as screenshot, and can store two sets of waveform and six sets of screenshot.
2.8-inch TFT Full Color Screen: display waveform clearly and stably, which allows you to check out the measured results clearer and faster.

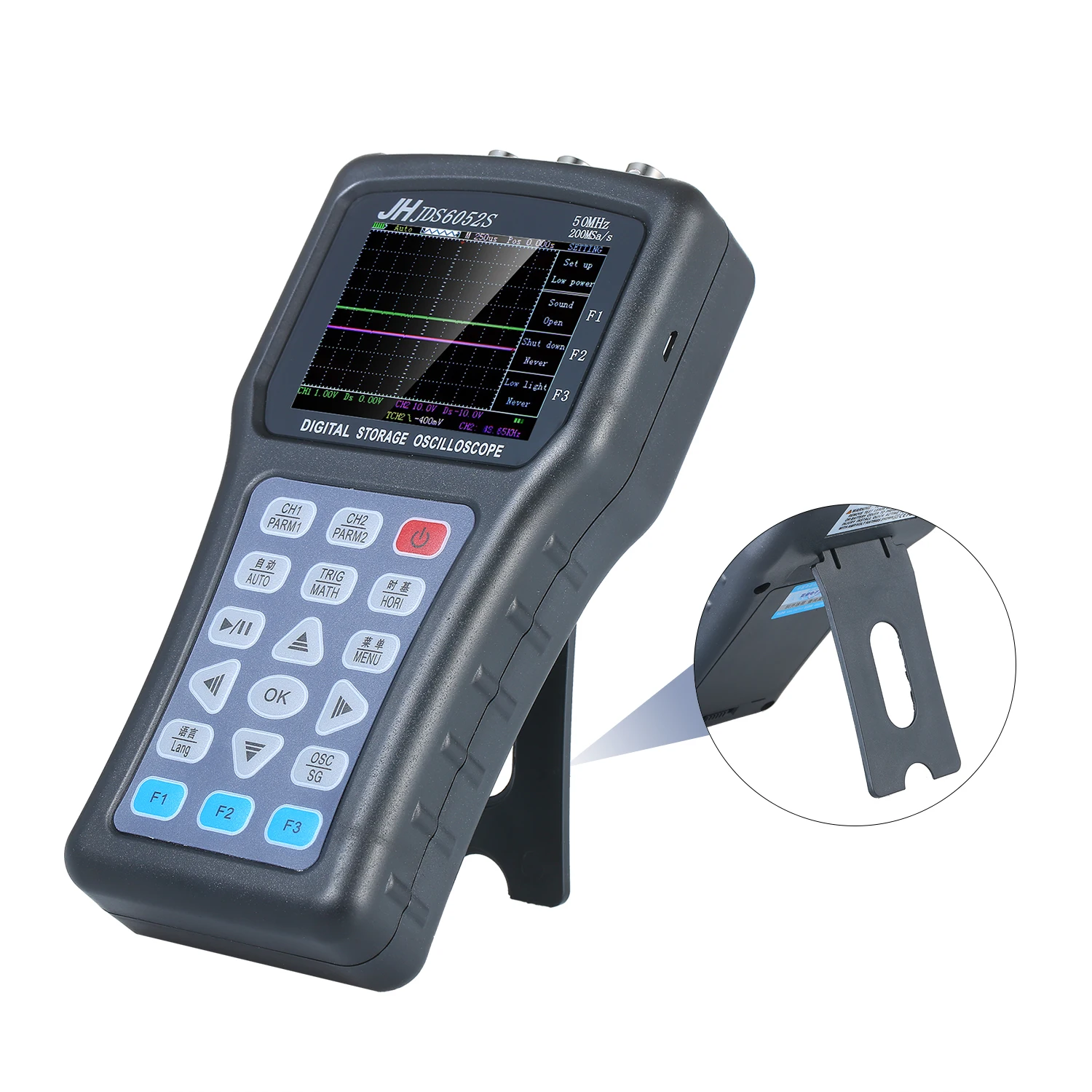

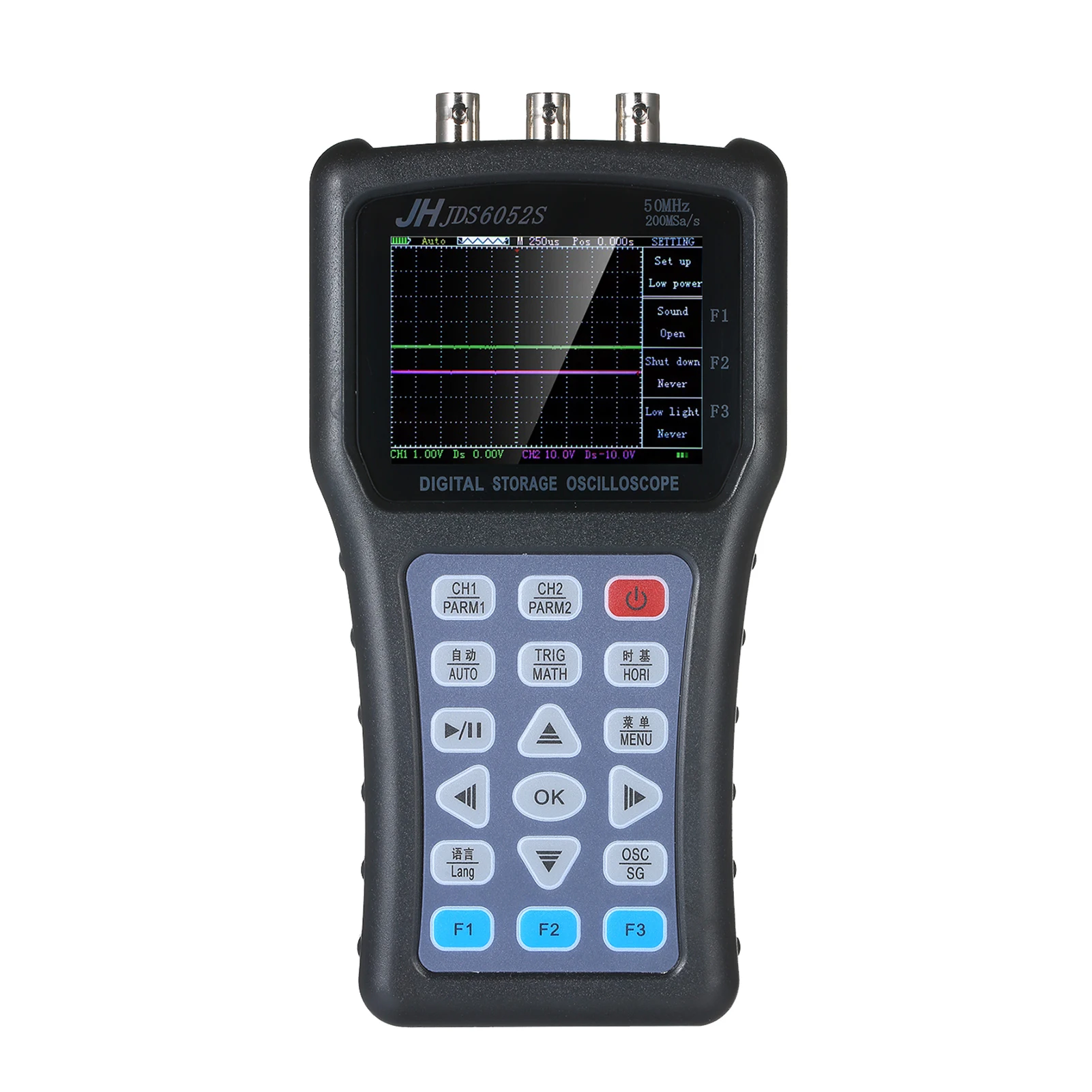

Simple Operate Panel: compact design handheld digital oscilloscope is simple and intuitive to operate.
Channel Port: support manual trigger, CH1, CHE trigger, and can arbitrarily output.
Accessories: a pair of 1X & 10X oscilloscope probes, a alligator clip cable, a battery charger, a USB cable, and other necessary parts.

Specifications:
Material: ABS
Color: Black+gray
Display: Full color TFT LCD display(320*240 pixels)
Power Supply: 1 * 3.7V 2800mAh lithium battery (NOT included)
Item Size: 195 * 100 * 39mm / 7.68 * 3.94 * 1.54in
Item Weight: 323g / 11.39oz
Package Weight: 772g / 27.23oz
Package Size: 28.4 * 23.2 * 8.2cm / 11.18 * 9.13 * 3.23in

OSCILLOSCOPE:
The Number of Channels: 2
Maximum Real-time Sampling Rate: 200MSa/s(single channel CH1), 100MSa/s(dual channel CH1,CH2)
Bandwidth: 50M(single channel), 25M(dual channel)
Vertical Resolution: 8 bits
Vertical Gear: 10mV~5V (probe x1)  100mV~50V ( probe x10), 1,2,5 stepping level
Impedance: 1MΩ 25pF
Coupling: DC, AC
Display Mode: Y-T / X-Y
Input Voltage: 40V(probe x1 ), 400V(probe x10), using a high voltage probe, the maximum voltage is determined by the quality of the probe
Time Base Range: 12.5ns~5s, 100ms~5s scan mode (scan)
Storage Depth: 3K per channel
Trigger Mode: Automatic, normal and single
Trigger Type: Rising edge, falling edge
Automatic Detection: 50Hz~20MHz
Cursor Measurement: Time, voltage (manual mode)
Recordable Contrast Waveform: 2
Screenshot Function: Support
Mathematical Calculation: CH1+CH2, CH1-CH2, CH2-CH1
Self-calibration: Support

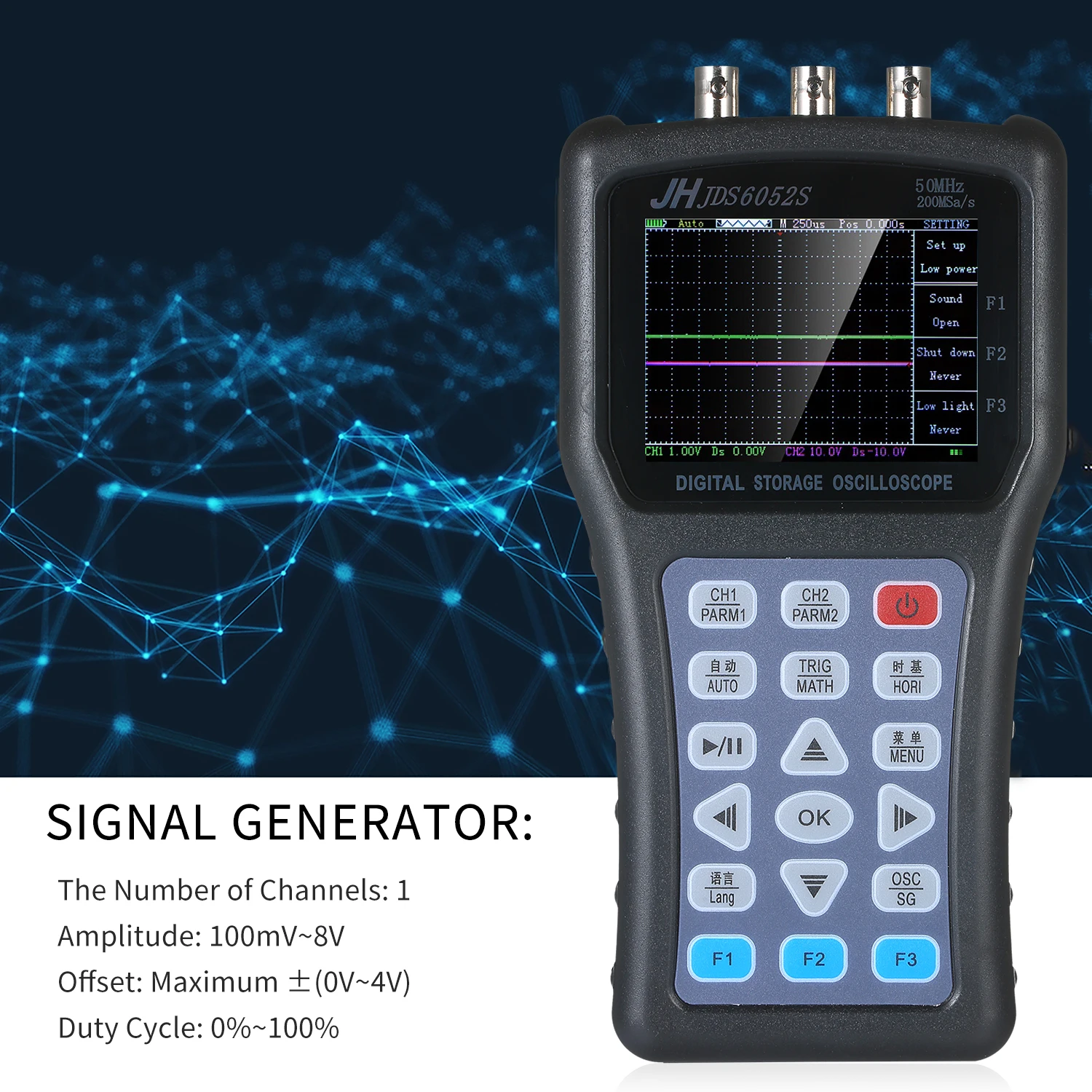

SIGNAL GENERATOR:
The Number of Channels: 1
Frequency: Sine wave (1Hz-5MHz), square wave (1Hz-1MHz), positive sawtooth wave (1Hz-1MHz), reverse sawtooth (1Hz-1MHz)
Amplitude: 100mV~8V
Offset: Maximum ±(0V~4V)
Duty Cycle: 0%~100%

Packing List:
1 * Oscilloscope
1 * Pair of Oscilloscope Probe
1 * Alligator Clip Cable
1 * Battery Charger
1 * USB Cable
1 * Screen Protector
1 * CD
1 * Probe Compensation Adjustment Tool
2 * Insulation Cap
8 * Maker Ring
1 * User's Guide (English)
