Plug and play 8CH 4K 8MP POE NVR KIT with 8pcs 4K 8MP IP67 waterproof bullet POE IP camera and 8CH 4K 8MP POE NVR and Cables


Products Description

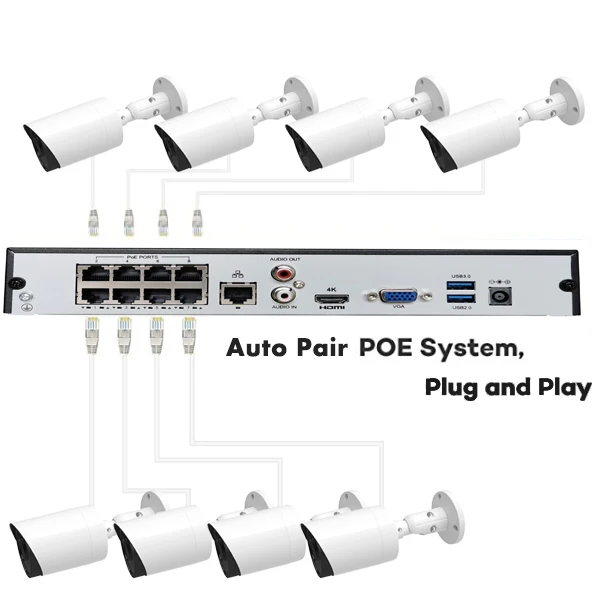

Plug and play 8CH 4K 8MP POE NVR KIT

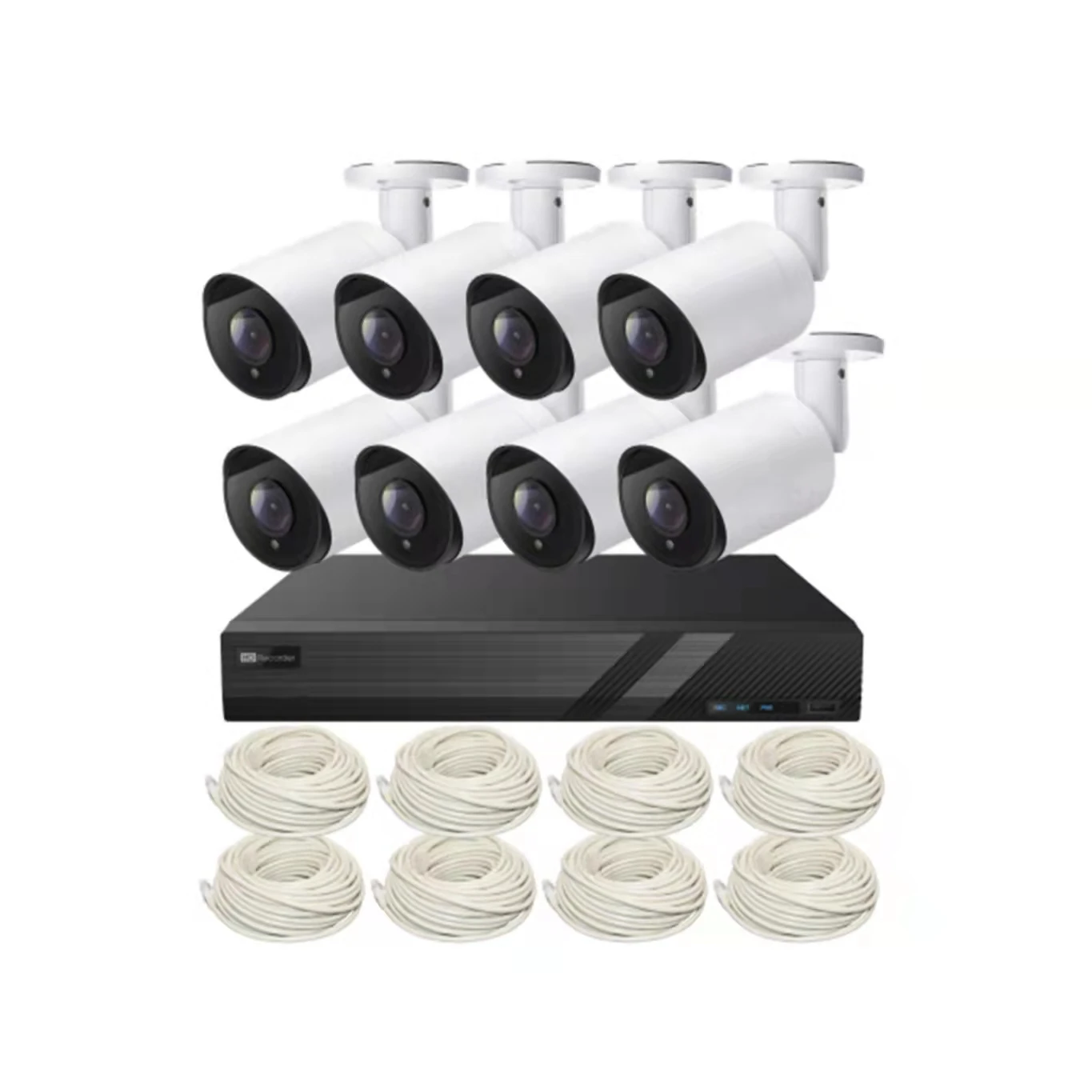

Packing list
8x 4K 8MP@20fps HD IP POE Camera IR bullet /3.6mm Lens/30m IR/Build in Audio(Optional)
1x 8CH 4K 8MP H.265+ POE NVR with 1 SATA HDD slot
8x 60ft Ca5e Network Cable(Default)
1x Power Supply (for POE NVR)1x 2TB/4TB HDD (Not included, Pre-installed in the NVR Optional)
User Manual, Screws bag, Mouse

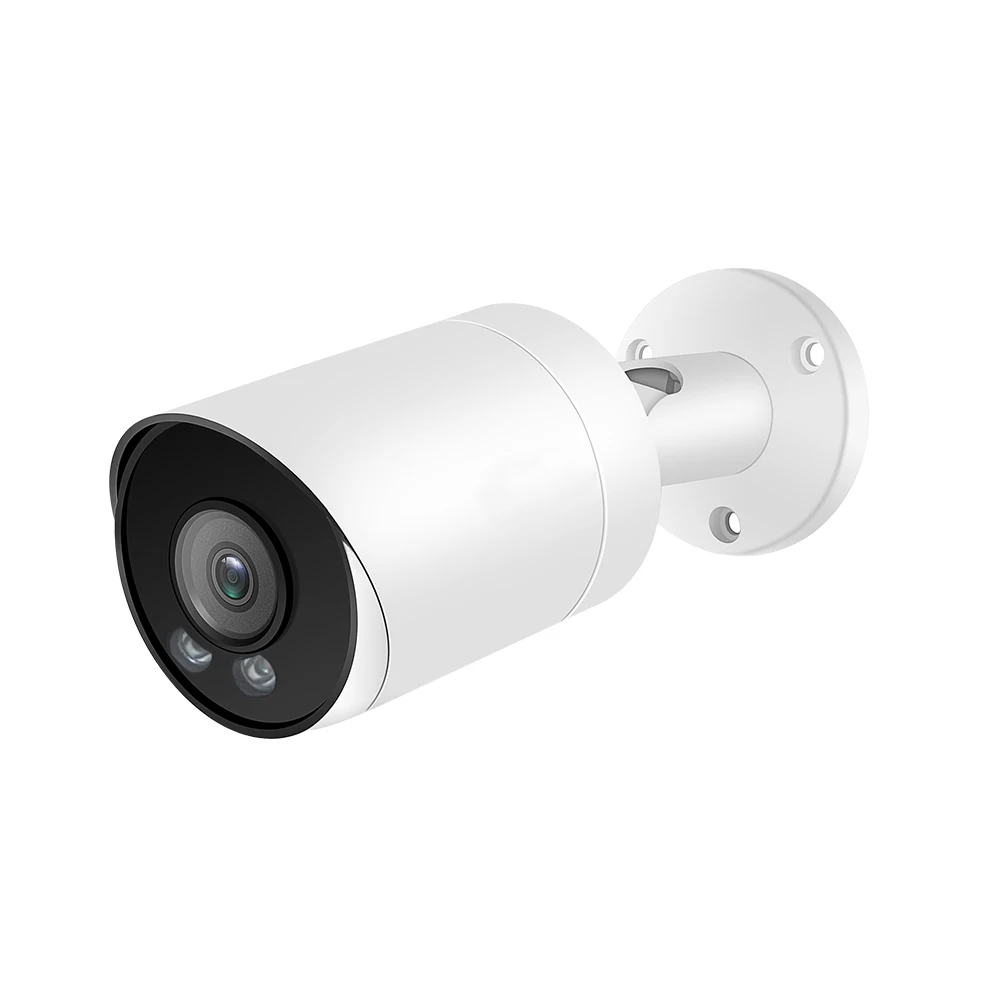

Camera KEY features:
>.Model No.: W608FAHZ49EA >.Chipset:SSC30KQ+SO-NY IMX415
>.Resolution: 8MP,3840*2160P@20fps
>.IR LEDs and distance:2pcs IR Array LEDs,20-30m IR
>.Lens:2.8/3.6/6mm lens optional,default 3.6mm
>.Microphone : built in Microphone optional , if need , add $0.5
>.POE: built in POE
NVR KEY features:
>.Model No.: NVR3108-P8-S3>.Channels: 8CH 4K 8Mp
>.POE ports: 8CH POE Ports
>.HD-MI & VGA:1* HD-MI(4K) , 1* VGA(1080P)
>.HDD slots:1 SATA HDD slot(maximum 10TB HDD)
>.Playback: 8CH Synchronous Playback

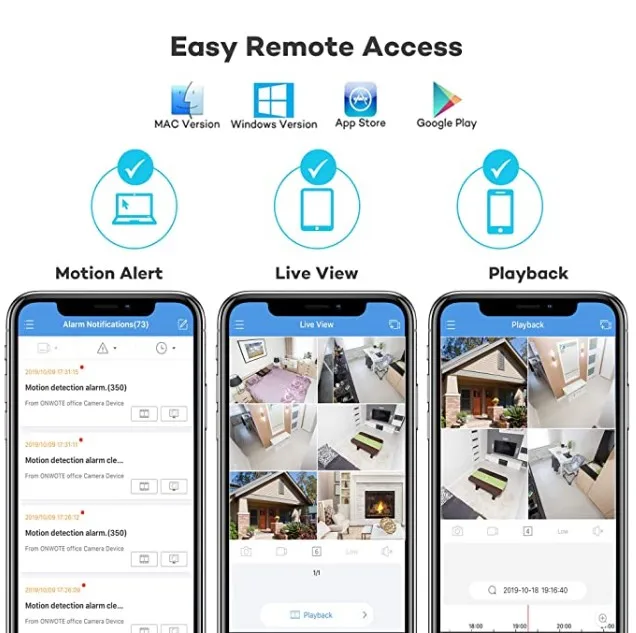

>.Mobile app name : Guard Viewer


Product Paramenters


Camera specifications
Model
W608FAHZ49EA
Camera
Image Sensor
1/2.8" SO-NY IMX415 CMOS
Effective Pixels
3840 (H) × 2160 (V)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto/Manual
BLC /HLC
Support
DNR
2D/3D DNR
Other
Human body and Vehicle detection ,Motion Detection,Privacy Mask,Flip,Rotate,RIO,OSD overlay
Encode
Video Standard
H.264/H.265
Video Resolution
Main Stream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates
512Kbps - 12Mbps, VBR/CBR
Audio Standard
G.711-u/G.711-a
Built-in Mic
Optional
OSD Overlay
Title and Time overlay ,custom color adjustable
IR Led
IR Led
2 pcs IR Array Leds
IR Distance
20-30M
Lens
Focal length
2.8/3.6/6 mm fixed lens optional
Optional Function
Audio and so on
Network Services
Protocol
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
P2P
Yes
Web
IE , Firefox (32bit esr), etc.
Media
CMS, Android, IOS
ON-VIF
17.06 compatible
General
Network Port
1-RJ45, 100Mbps
Power Supply
12 VDC ± 10%,POE
Power Consumption
< 8 W
Operating Temp.
-30℃-(+60)℃, 10%-90%RH
NVR specifications
Model
NVR3108-P8-S3
Video/Audio Input
IP Video Input
8-ch
Network
Incoming Bandwidth
64Mbps
Outgoing Bandwidth
48Mbps
Remote Users
128
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output
HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output
1-ch, RCA
Synchronous Playback
8-ch
Corridor Mode Screen
3/4/5/7/9
Decoding
Decoding format
Ultra265/H.265/H.264
Live view/Playback
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA
1 SATA interfaces
Capacity
Up to 8TB for each disk
External Interface
Network Interface
1 RJ-45 10M/100Mself-adaptive Ethernet Interface
USB Interface
Rear panel: 2 x USB2.0
PoE
Interface
8 RJ-45 10M/100Mself-adaptive Ethernet Interface
Max Power
Max 30W for single port
Max 75W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
General
Power Supply
52V DC
Power Consumption: ≤9 W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
Weight (without HDD)
≤1.1kg (2.43lb)


Installation Instructions




Company Profile






YCX Exhibition
YCX will attend many professional Security show each year: ISC America,Secutech Taiwan,IFSEC UK,Mips Russia,ESSEN Germany,Intersec,Dubai,CPSE China.etc.Welcome to meet us at the show!


Product packaging


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


OEM Inner Box
Label with basic information of camera
Outer box with our special secuirty packaging tape.




FAQ


1.Q:Are you a factory or trading company?
A:YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 11 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.

2.Q: What's your main products?
A: YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hikvision private and standard Onvif protocol, which can compatible very well with Hikvision NVR.

3.Q: What's the MOQ?
A: No MOQ required for sample order, at least one carton per model after sample order.

4.Q:How long is the delivery time?
A: Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of
production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's
required.Meanwhile, the tracking number will be provided once the goods were sent out.

5.Q:How about warranty?
A:All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.

6.Q: Can you provide OEM/ODM Service?
A: Sure, YCX has over 11-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
