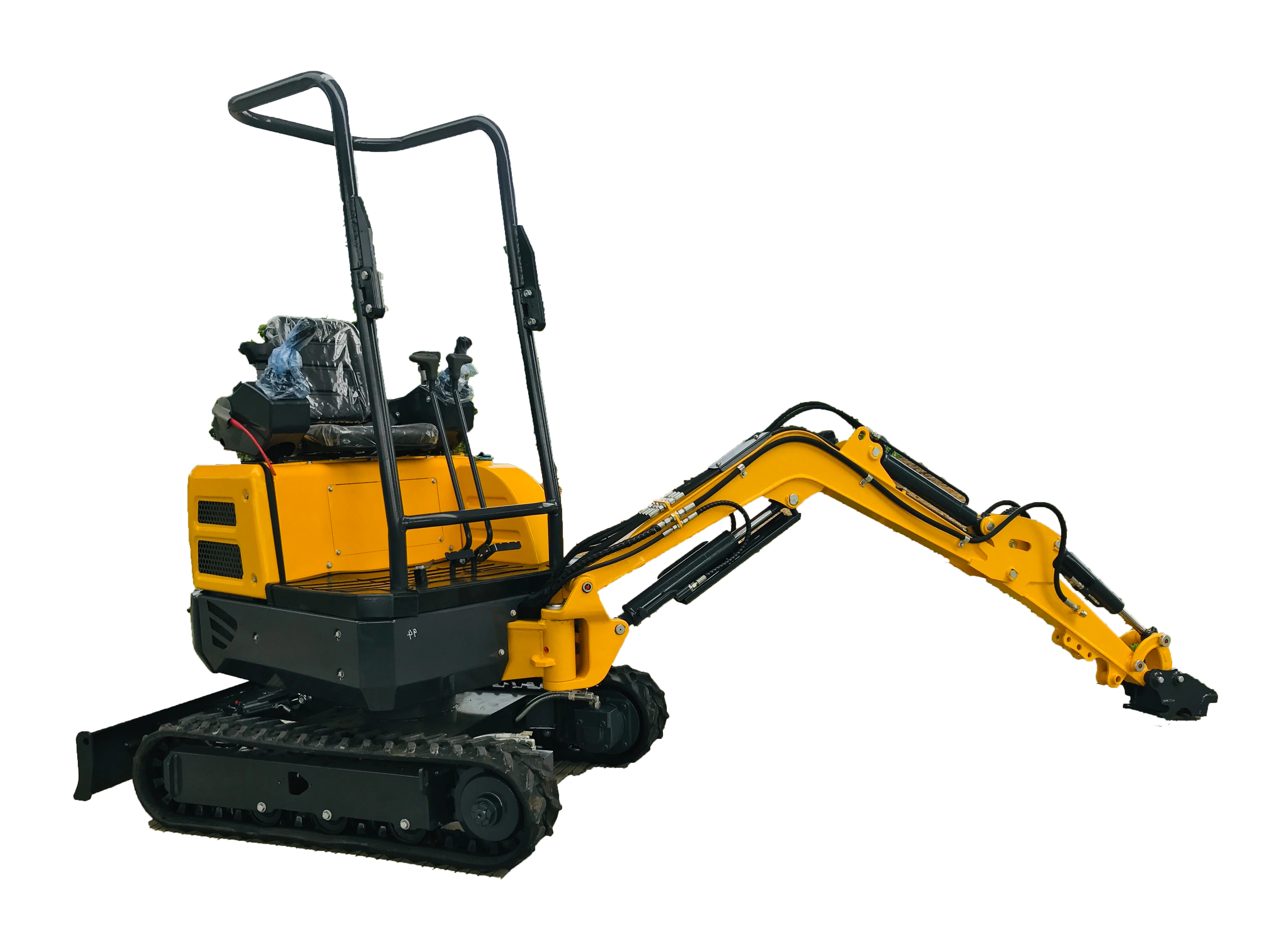

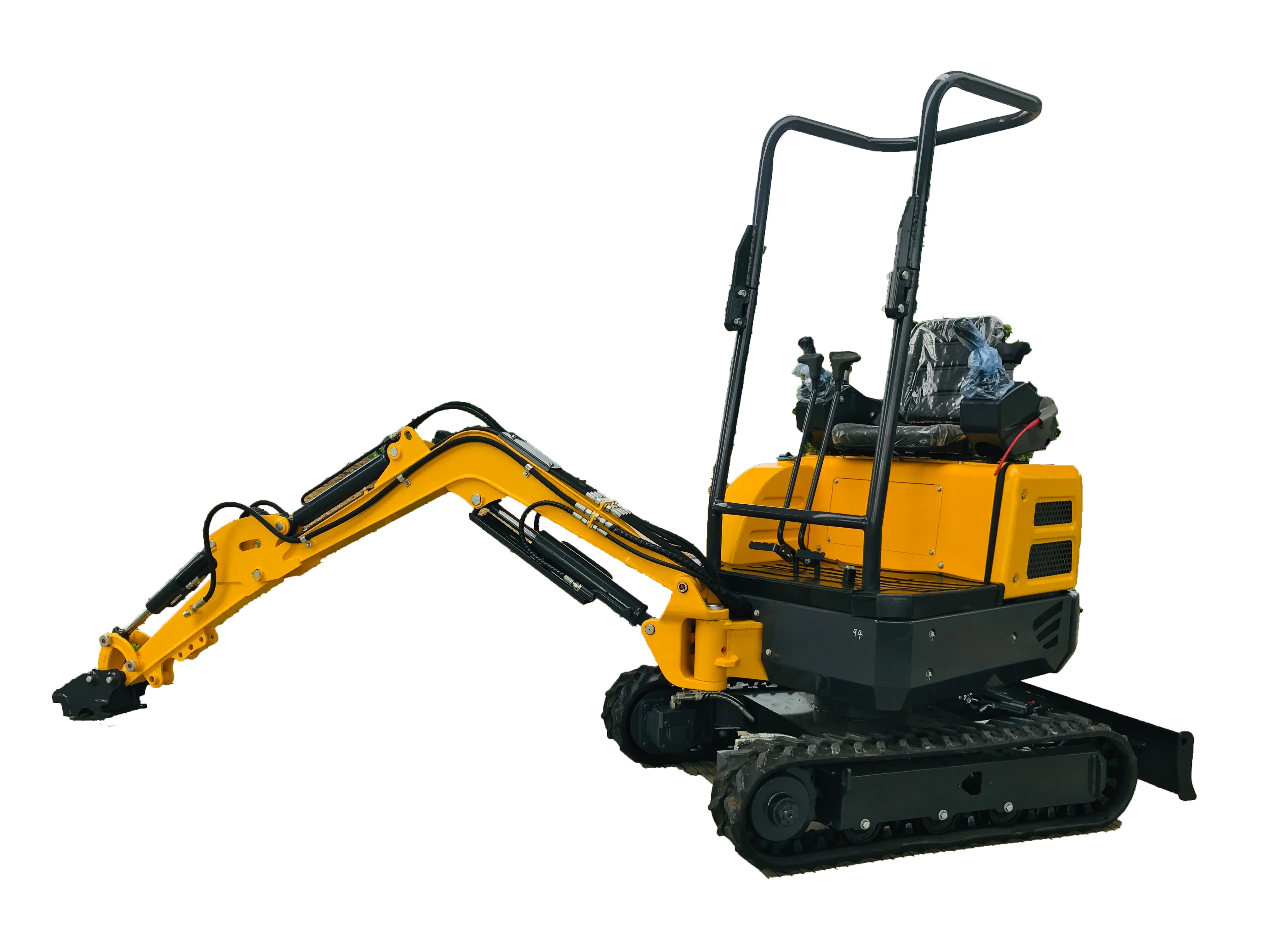

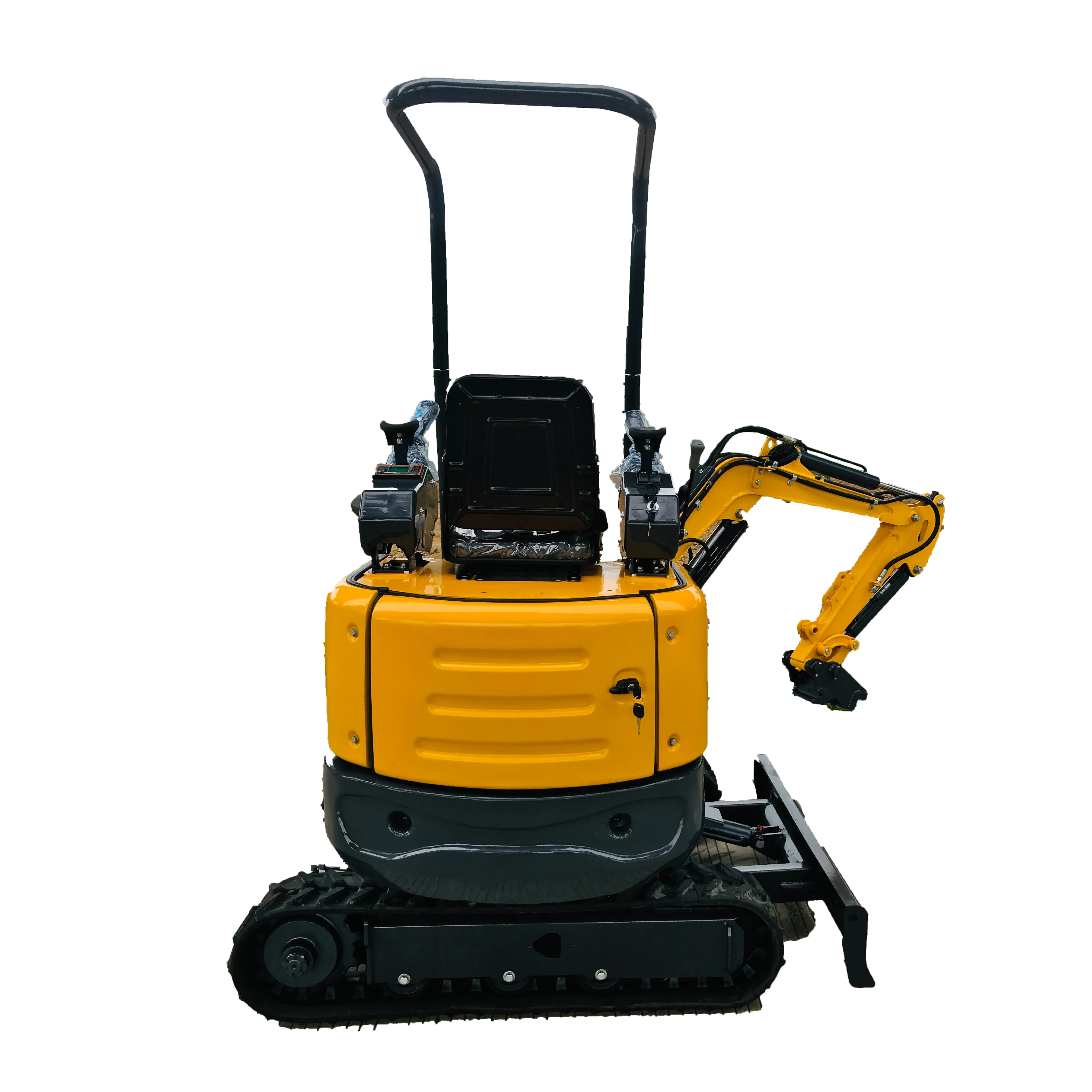

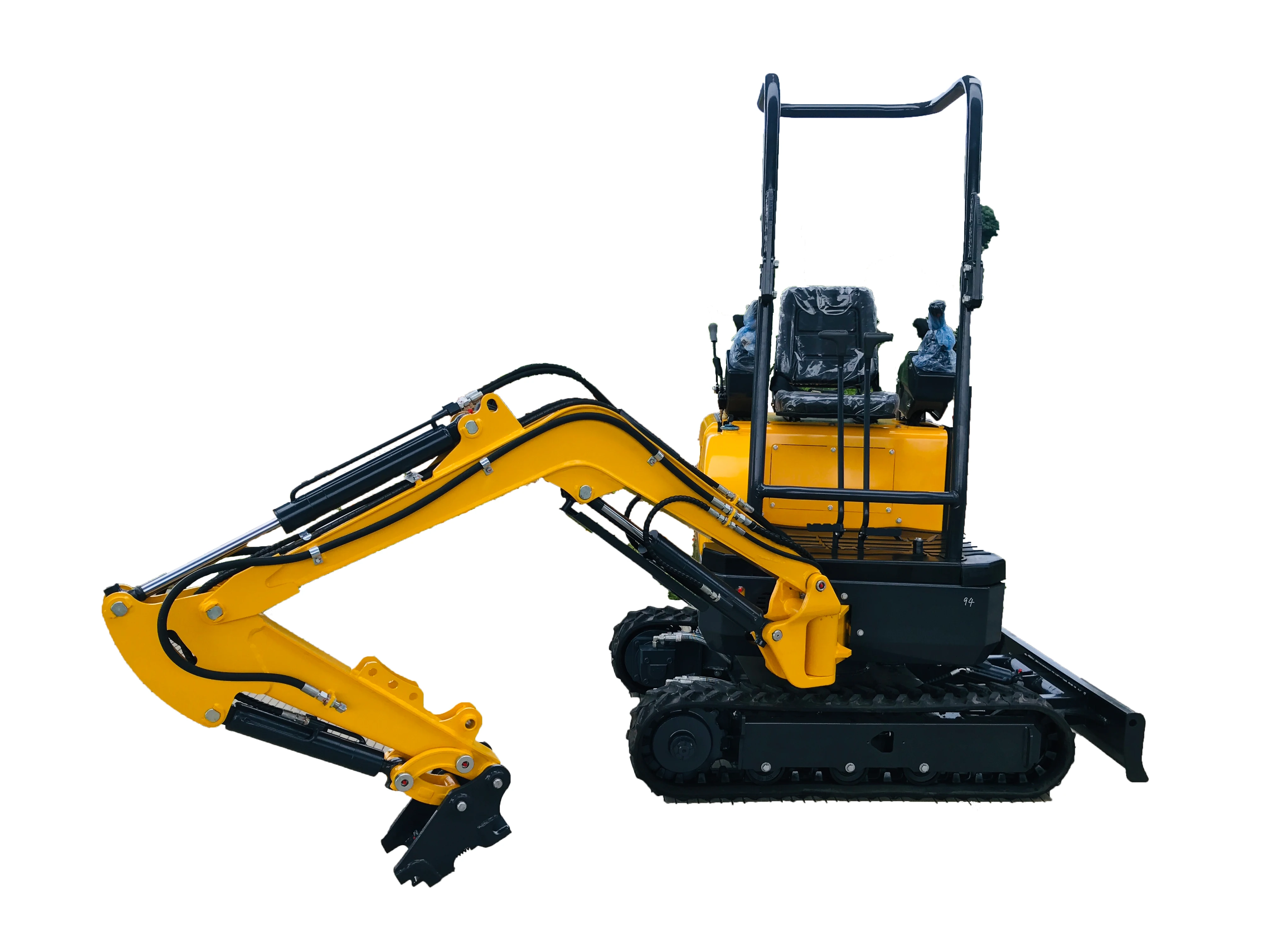

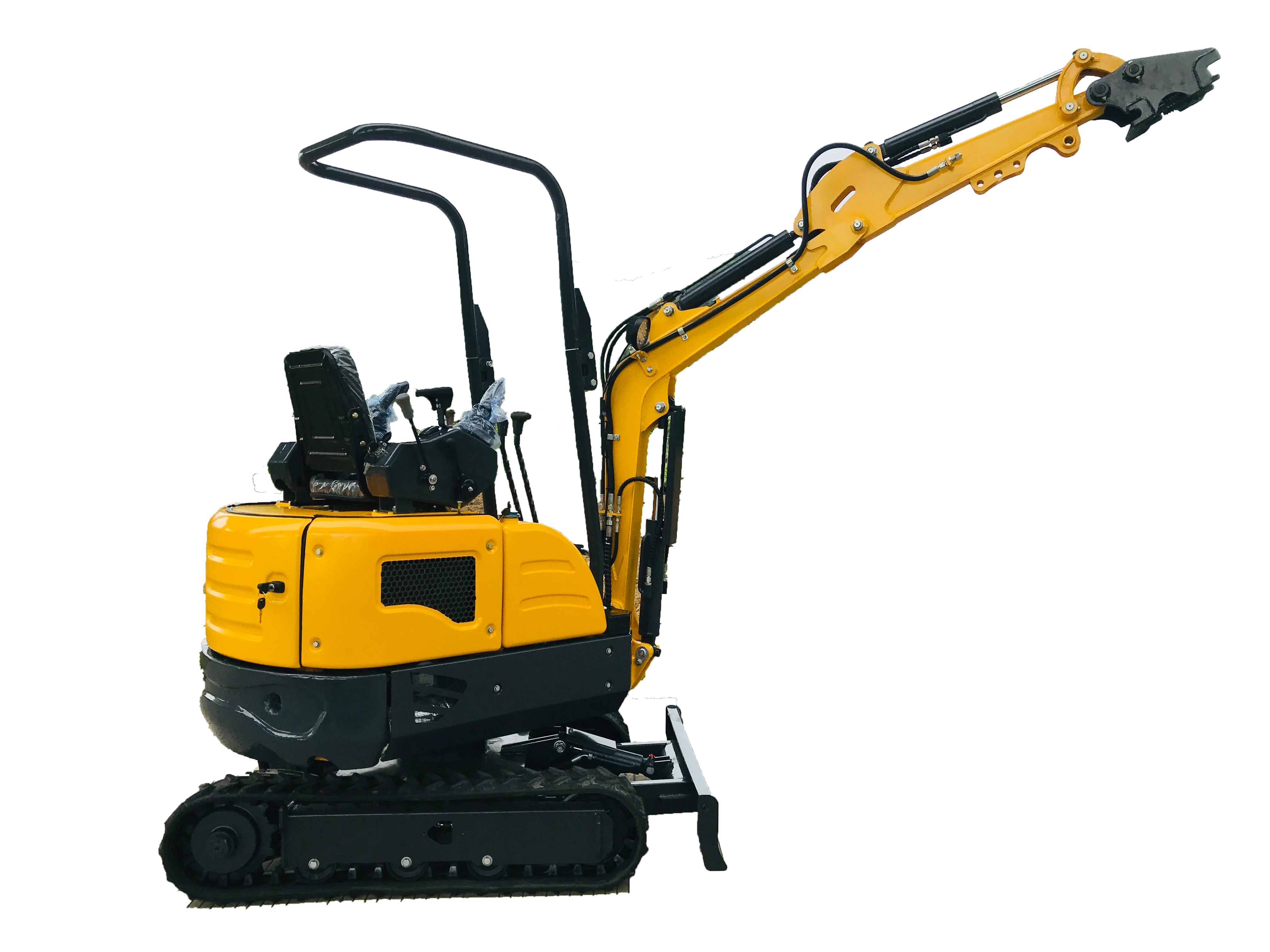

Chuangxin CX15B bagger японский двигатель 1 5 тонн мини-экскаватор minibagger маленькая кожа
- Категория: Construction & Building Machinery >>>
- Поставщик: Ningbo,Yinzhou,Chuangxin,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 9639.57 $* | 10121.86 $* |
| Aug-17-2025 | 9558.4 $* | 10036.93 $* |
| Jul-17-2025 | 8019.23 $* | 8420.93 $* |
| Jun-17-2025 | 9396.62 $* | 9866.2 $* |
| May-17-2025 | 8181.69 $* | 8590.19 $* |
| Apr-17-2025 | 9234.73 $* | 9696.15 $* |
| Mar-17-2025 | 9153.9 $* | 9611.1 $* |
| Feb-17-2025 | 9072.73 $* | 9526.79 $* |
| Jan-17-2025 | 8991.20 $* | 9441.89 $* |
Характеристики
Model: | CX15B | |
Operating Weight | 1520KGS | |
Bucket Capacity | 0.03 CBM | |
Width of Bucket | 380 mm | |
Length of Swing Arm | 1560mm | |
Length of Bucket Arm | 793 mm | |
Oil capacity | ||
Fuel Tank | 20 L | |
Hydraulic Oil Tank | 13 L | |
Engine Oil Change | 2 L | |
Hydraulic System | ||
Main Pump Types | DHP0010 | |
Main Overflow Setting Pressure (Mpa) | 17 | |
Maximum Flow Of Main Pump (L/min) | 23 | |
Walking Hydraulic Motor Type | 6W-245 | |
Type of Rotary Hydraulic Motor | BM1-315 | |
Boom Cylinder- Number × Cylinder Diameter × Rod Diameter × Stroke (mm) | 1*63*30*285 | |
Bucket Arm Cylinder- Number × Cylinder Diameter × Rod Diameter × Stroke (mm) | 1*50*30*325 | |
Bucket Cylinder- Number × Cylinder Diameter × Rod Diameter × Stroke (mm) | 1*50*30*240 | |
Bulldozing Cylinder-Number × Cylinder Diameter × Rod Diameter × Stroke (mm) | 1*50*30*100 | |
Whether the Hydraulic Crushing Pinpeline is Standard | Yes | |
Hydraulic Pilot Operating System | Yes | |
Performance | ||
Rotation Speed (rpm) | ||
Travel Speed (Km/h) | ||
Grade Ability (%) | ||
Ground Specific Pressure (Kpa) | ||
Bucket Digging Force (kN) | ||
Bucket Arm Digging Force (kN) | ||
Engine | ||
Model of Engine | YANMAR 3TNV74F | |
Rated Powder | 10.8/2400 (Kw/rpm) | |
Max. Torque | 51.8 | |
Displacement | 0.993 | |
Number of Cylinders | 3 | |
Cylinder diameter × Stroke | 74*77 | |
Type of Cooling | Water Cooling | |
Fuel Consumption Rate | 273 | |
Working Area | ||
Maximum Digging Radius | 3225 mm | |
Maximum Digging Depth | 1650 mm | |
Maximum Digging Height | 2740 mm | |
Maximum Discharge Height | 1970 mm | |
Width of Bulldozer Plate × Height | 1040*205 mm | |
To Lift or Push Deep | 170/220 mm | |
Arm Rotation Angle | Left50°/ Right70° | |
Main Size | ||
Total Length of Transport | 3160 mm | |
Total Width of Transport | 1055 mm | |
Total Height of Transport | 2204 mm | |
Width of Bus | 905 mm | |
Counterweight Clearance Above Ground | 405 mm | |
Track Grounding Length | 980 mm | |
Total Length of Track | 1290 mm | |
Width of track plate | 180 mm | |
Total Width of Track | 1055 mm | |
track | 980 mm | |
Minimum Ground Clearance | 110 mm | |
Minimum Turning Radius of the Front Working Device | 1470 mm | |
Tail Radius of Turn | 850 mm | |
