Ручной аппарат для лазерной сварки 1000 Вт
- Категория: Laser Welders >>>
- Поставщик: Shandong,Igolden,CNC,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7735.66 $* | 8122.23 $* |
| Aug-16-2025 | 7670.30 $* | 8054.64 $* |
| Jul-16-2025 | 6435.7 $* | 6757.80 $* |
| Jun-16-2025 | 7540.96 $* | 7917.19 $* |
| May-16-2025 | 6565.79 $* | 6893.23 $* |
| Apr-16-2025 | 7410.50 $* | 7781.69 $* |
| Mar-16-2025 | 7345.98 $* | 7712.4 $* |
| Feb-16-2025 | 7280.76 $* | 7644.18 $* |
| Jan-16-2025 | 7215.86 $* | 7576.97 $* |
Характеристики
Product Description
Features:
1. Pure hand-held laser welding machine is a hand-held welding head, which connects the optical fiber to the hand-held welding head, and then realizes various welding of products.
2. The advantage of the handheld laser welding machine is that for products with larger specifications and longer welding lengths, such as sinks and stainless steel kitchen cabinets, they can be welded without placing these products on the workbench.
3. The welding is flexible and easy to operate. In addition to repairing large molds, large machines can also achieve long-distance welding, which can be welded without disassembling the product.
4. It has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables. It can perfectly replace traditional argon arc welding, electric welding and other processes for welding thin stainless steel plates, iron plates,galvanized plates and other metal materials.
2. The advantage of the handheld laser welding machine is that for products with larger specifications and longer welding lengths, such as sinks and stainless steel kitchen cabinets, they can be welded without placing these products on the workbench.
3. The welding is flexible and easy to operate. In addition to repairing large molds, large machines can also achieve long-distance welding, which can be welded without disassembling the product.
4. It has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables. It can perfectly replace traditional argon arc welding, electric welding and other processes for welding thin stainless steel plates, iron plates,galvanized plates and other metal materials.
◆ The handheld laser welding machine adopts the latest generation of laser sources for welding stainless steel plates, carbon steel plates, galvanized sheets and other metal materials. Laser welding machines can be used in almost any field that requires metal welding. Compared with traditional welding methods, handheld laser welding machines have the advantages of simple operation, beautiful welds, fast welding speed and high efficiency.
Specification
Item No. | iGWL-HW | ||
Laser Wavelength | 1070nm | ||
Laser Power | 1000w/1500w/2000w/3000w | ||
Fiber Type | Continuous/ Modulation | ||
language | Chinese, English, Korean, Japanese, Russian, Traditional, French, Spanish, Israeli（custom made） | ||
Welding mode | 4 types: Normal continuous welding mode TIG welding fish scale welding mode Thin plate QCW self-melting spot welding mode Thick plate welding without oxidation mode | ||
Automatic wire break | Yes | ||
Focus focal length | 150mm | ||
Light source diameter | Adjustable（0.5-5）mm | ||
Fiber length | 8-10m (15moptional) | ||
Pump Source | Semiconductor | ||
Light Beam | ≤1.1 | ||
Voltage | 220V/380V±5%, 50Hz/60Hz | ||
Cooling Method | Water-cooling | ||
Water-cooling Temperature | 15-35℃ | ||
Machine Size | 600*1200*1100+600mm | ||
Machine Weight | 220kg |
Product Details
Hand-held welding laser head
The handheld laser welding machine can perform long-distance laser welding of large workpieces. The heat affected area is small during welding, and it will not cause deformation, blackening, and traces on the back of the workpiece. The connection depth is large, the welding is firm, and the melting is sufficient. There is no depression in the joint between the raised part of the molten material in the bath and the substrate! The welding speed is fast, 2-10 times faster than traditional welding, and one machine can save at least 2 welders a year.

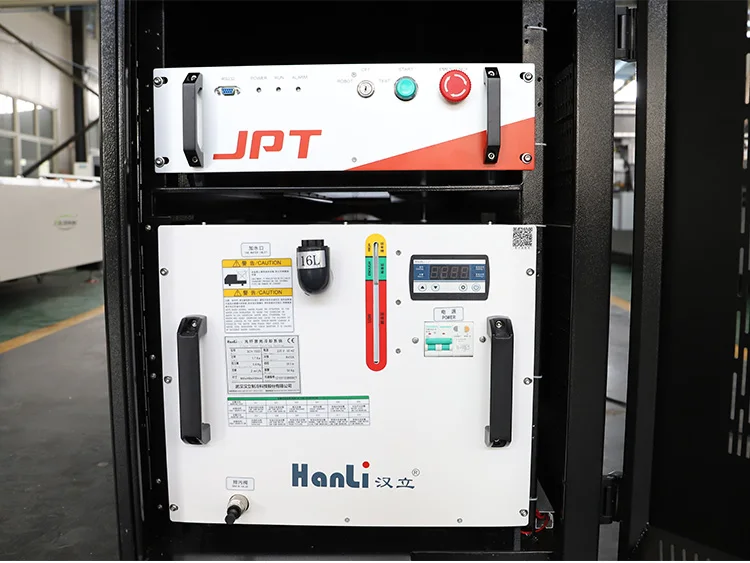

Laser Source
1. The laser adopts water-cooled heat dissipation and rack-mounted chassis design.
2. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, and easy integration for customers.
3. It is industrial laser welding and other Ideal light source for application.
HANLI Chiller
1. The cooling capacity is up to 1400W, and environmentally friendly refrigerants can be used;
2. Small size, long life and durable, easy to operate;
3. The temperature control accuracy can reach +0.3C;
4. The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions;
5. With multiple alarm protection functions.
Sample
Application materials: stainless steel, die steel, carbon steel, alloy steel, aluminum alloy, aluminum, copper, zinc, gold, silver, titanium, alloy and other metals.
Application industry: door and window processing industry, advertising industry, mobile communication, electronic components, glasses, watches, jewelry, hardware products, precision equipment, medical equipment, auto parts, craft gifts and other industries.
Company Profile
Packing & Delivery
Recommend Products
FAQ
Q1: How to choose the right power?
A1: The power of the machine is determined by materials being processed. You can tell us materials and thickness you want to weld, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
A1: The power of the machine is determined by materials being processed. You can tell us materials and thickness you want to weld, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
Q3: Can you arrange the shipment for me ?
A3: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
A3: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
