Новое поступление векторная оптика 1x35 мм 3-в-1 тепловой объем клип на монокуляр ночного видения
- Категория: Night Vision >>>
- Поставщик: Shanghai,Vector,Optics,Operation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 3174.87 $* | 3237.31 $* |
| Jul-17-2025 | 2574.4 $* | 2625.39 $* |
| Jun-17-2025 | 3124.9 $* | 3186.43 $* |
| May-17-2025 | 3099.24 $* | 3161.49 $* |
| Apr-17-2025 | 2474.89 $* | 2523.96 $* |
| Mar-17-2025 | 3049.78 $* | 3110.56 $* |
| Feb-17-2025 | 3024.16 $* | 3084.45 $* |
| Jan-17-2025 | 2999.56 $* | 3059.20 $* |
Характеристики
About Us
Welcome to Vector Optics China Top Optical Scopes Online Store
* 15 Years Industry ODM/OEM Experience.
* Good Optical Performance and Affordability
* Support 5pcs~10pcs Trial Order.
* Delivery time 3-7 days.
* Original Manufacturer, 100% Trade Assurance Security !
* Good Optical Performance and Affordability
* Support 5pcs~10pcs Trial Order.
* Delivery time 3-7 days.
* Original Manufacturer, 100% Trade Assurance Security !
Product Description
CO35 1x35mmThermal Image Scope 3-IN-1: Scope/Monocular + Clip on
Thermal Scope Night Vision Hunting Highlights
The 35mm thermal module is the centre of the system with its 35mm lens system and 384x288px . The matrices are built using 12 um technology, which makes it possible to obtain a greater optical magnification without increasing the external dimensions of the device. Based on VOx (vanadium oxide) technologies, with high thermal sensitivity, 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions. This increases the detection range of heat-contrast objects and makes it possible to “see the substrate”
Durable
You will be able to see the target even in extreme surveillance conditions such as snow, rain, fog/high humidity and at high
ambient temperatures (from 30 degrees Celsius).
Frame refresh rate - 50 Hz.

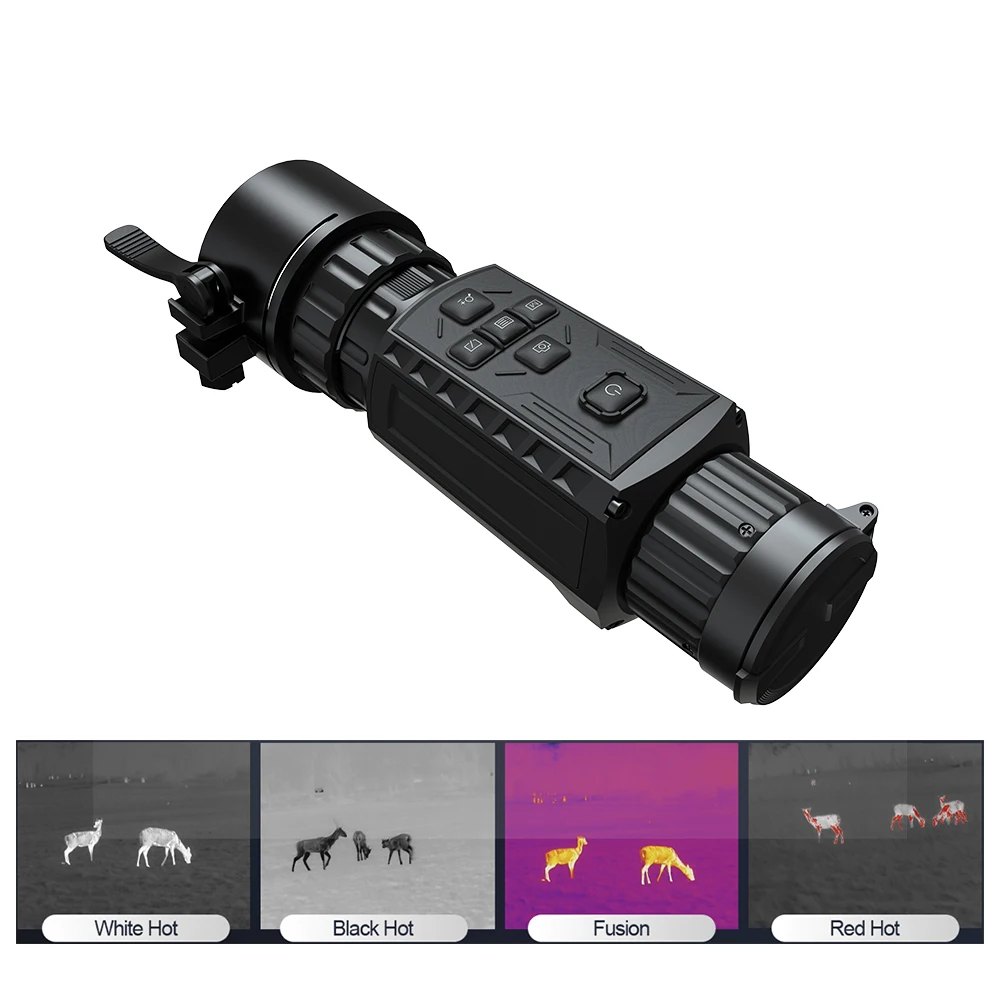

4 different image display color palettes (hot white, hot red, hot black and hot iron).
8x digital zoom.
3 sensor calibration modes - automatic, semi-automatic, manual.
ambient temperatures (from 30 degrees Celsius).
Frame refresh rate - 50 Hz.
4 different image display color palettes (hot white, hot red, hot black and hot iron).
8x digital zoom.
3 sensor calibration modes - automatic, semi-automatic, manual.
* The device is made according to the international standard for housing protection - IP67 (sealed, protected from dust and dirt,waterproof).
* The body is made of aluminum alloy, which provides increased shock resistance. Withstands heavy recoil.
* The operating temperature range of the environment is from -30 to +55 degrees.
* Mounting the sight is possible on various brands of using mounts
* The sight has a compartment for 4 CR123A batteries or batteries of the same size. The device can operate from any number of installed batteries within the available 4 places, even from one battery.
* Mounting the sight is possible on various brands of using mounts
* The sight has a compartment for 4 CR123A batteries or batteries of the same size. The device can operate from any number of installed batteries within the available 4 places, even from one battery.
Clip-On Scope Clamp Sizes:
Clip-On Scope Clamp Sizes:
40A = Suitable for Scopes with a 47mm-51mm Objective.
50A = Suitable for Scopes with a 55mm-59mm Objective.
60A = Suitable for Scopes with a 62mm-66mm Objective.
...
40A = Suitable for Scopes with a 47mm-51mm Objective.
50A = Suitable for Scopes with a 55mm-59mm Objective.
60A = Suitable for Scopes with a 62mm-66mm Objective.
...
Product Specification
Image Sensor | Uncooled Focal Plane Arrays | Exit Pupil | 22mm |
Resolution | 384 × 288 | Eye Relief | 10mm |
Frame Rate | 50 Hz | Record Video | On-board video recording |
Pixel Interval | 12 μm | Capture Snapshot | yes |
Response Waveband | 8 μm to 14 μm | Standby Mode | yes |
NETD | less than 35 mK (25 °C, F#=1.0) | Homogeneity Correction | Auto, External Correction |
Focal Length | 35 mm | Storage Capacity | Built-in EMMC (64 GB) |
Detaction Distance | 1800m | Picture-in-Picture | Yes |
IFOV | 0.343 mrad | Defect Point Correction | Yes |
Field of View | 7.5° × 5.7° | Hot Spot | Yes |
Min. Focusing Distance | 3.5m | Hot Spot Tracking | Yes |
Aperture | F1.0 | Cross-Line Reticle | Yes |
Magnification | 1x | Range Finding Function | No |
Display | 1024x768, 0.39 inch, OLED | Battery Type | Replaceable Applicable type: CR123A, RCR123A |
Palettes | Black hot, white hot, red hot, fusion | Battery Operating Time | 8 h (25 °C, with hotspot off) |
Work Temperature/Humidity | -20 °C to 55 °C (-4 °F to 131°F) | Battery Capacity Display | yes |
Protection Level | IP67 | Overvoltage Protection | yes |
Vibration & Shock | 750 g/1 ms | Overvoltage Protection | yes |
Dimension | 179×68×63mm | Type-C Power Bank | 5 VDC, 2 A Supports external power supply |
Weight | 532 g without eyepiece and batteries | Port | Type-C |
Included Items：
Company Profile
FAQ
1. who are we?
Vector Optics is a leading optical scope manufacturer in China from 2007. Vector Optics is famous for premium quality. We have exported our products to more than 58 countries all over the world.
2.what can you buy from us?
Optical Scope/Red Dot Sight/ lLaser Sight/Flashlight/Other Accessories
Vector Optics is a leading optical scope manufacturer in China from 2007. Vector Optics is famous for premium quality. We have exported our products to more than 58 countries all over the world.
2.what can you buy from us?
Optical Scope/Red Dot Sight/ lLaser Sight/Flashlight/Other Accessories
3.ODM/OEM service available?
Yes, ODM/OEM available , like the logo , customized package (color box) etc. Just tell us your requirement
4. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
5. why should you buy from us not from other suppliers?
Vector Optics delivers unmatched performance products with an unforgettable user experience at unbeatable prices. Now，We are one of the best top-rated scopes in the new century. We are recognized all over the world and exported to customers in more than 80 countries.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Always a pre-production sample before mass production;
Always final Inspection before shipment;
5. why should you buy from us not from other suppliers?
Vector Optics delivers unmatched performance products with an unforgettable user experience at unbeatable prices. Now，We are one of the best top-rated scopes in the new century. We are recognized all over the world and exported to customers in more than 80 countries.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
7.Do you have after-sales service for your products?
Of course，we offer 5-years warranty or lifetime warranty.
