16 мощных оптических портов 400 м постоянного тока 960 в Двойной источник питания слой 2 неуправляемой сети рельсового Типа Промышленный Din переключатель
- Категория: Network Switches >>>
- Поставщик: Wuhan,MoweStar,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 221.65 $* | 232.53 $* |
| Aug-16-2025 | 219.64 $* | 230.84 $* |
| Jul-16-2025 | 184.21 $* | 193.92 $* |
| Jun-16-2025 | 216.5 $* | 227.56 $* |
| May-16-2025 | 188.62 $* | 197.35 $* |
| Apr-16-2025 | 212.4 $* | 223.75 $* |
| Mar-16-2025 | 210.38 $* | 221.2 $* |
| Feb-16-2025 | 208.63 $* | 218.75 $* |
| Jan-16-2025 | 206.98 $* | 216.97 $* |
Характеристики
Product Description
Technical Parameters | ||
Protocol Standard | IEEE802.3(Ethernet), IEEE802.3u (100Base-TX& 100Base-FX) | |
Switch Capability | ||
MAC Table Size | 8k | |
Switch Bandwidth | 8Gbps | |
Switch Latency | <5μs | |

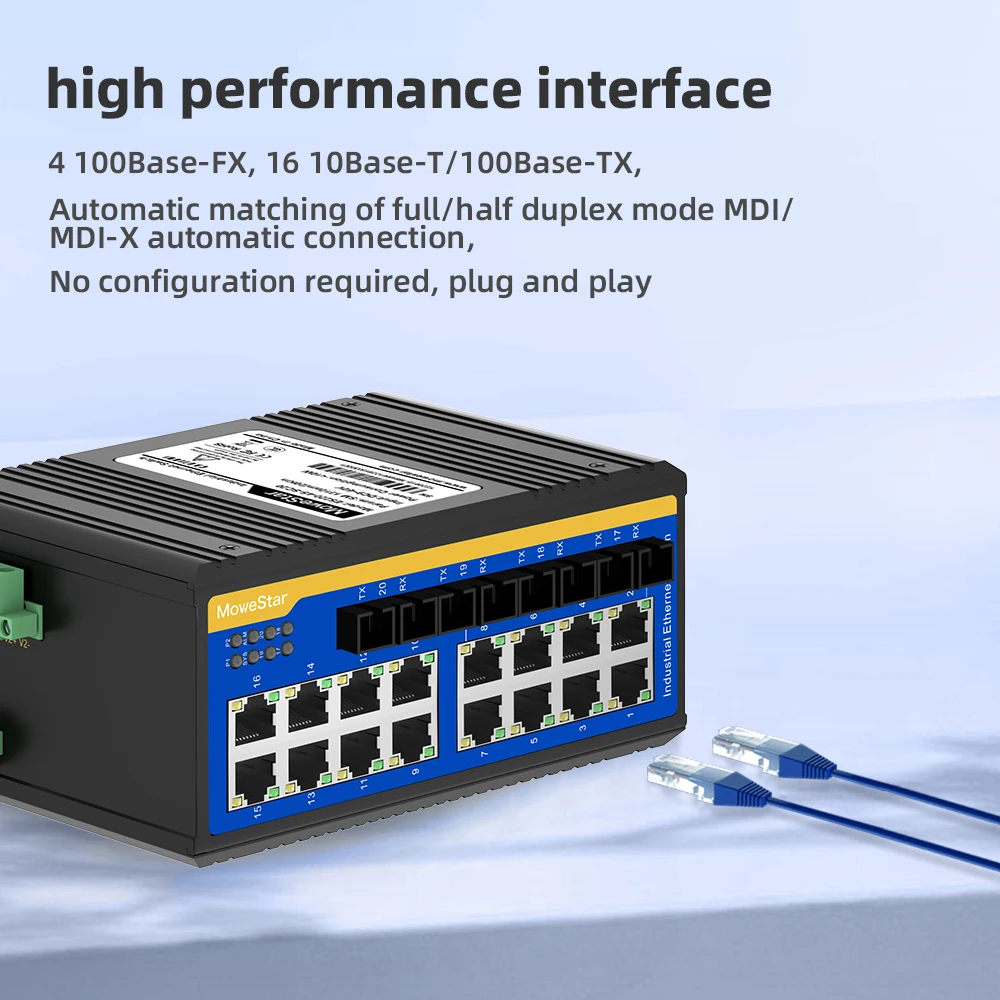

Interface | ||
100M port | Number: 20 | |
Connector:1×9 fixed optical port(single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port | ||
Baud rate:100Base-FX(fiber port), auto-negotiation 10/100Mbase-TX | ||
Terminal block for relay alarm | 5.08mm terminal block ,1A@24VDC | |
Terminal block for power input | 5.08mm terminal block | |
Communication Distance | ||
Twisted-pair | 100m(CAT5/CAT5e cable) | |
Multimode fiber | 100M multimode: 1310nm, 2km | |
Single mode fiber | 100M single mode: 1310nm, 20/40km; 1550nm, 60/80km | |
LED Indicator Lights | ||
Front panel LED lights | Port light: LINK/ACT; SPEED; ALARM | |
System work light: RUN | ||
Power status light: PWR1; PWR2 | ||
Power | ||
Input power | DC9-60V AD220V | |
Power consumption | <9W@(MAX) | |
Overload protection | support | |
Inversed protection | support | |
Redundancy protection | support | |
Working Environment | ||

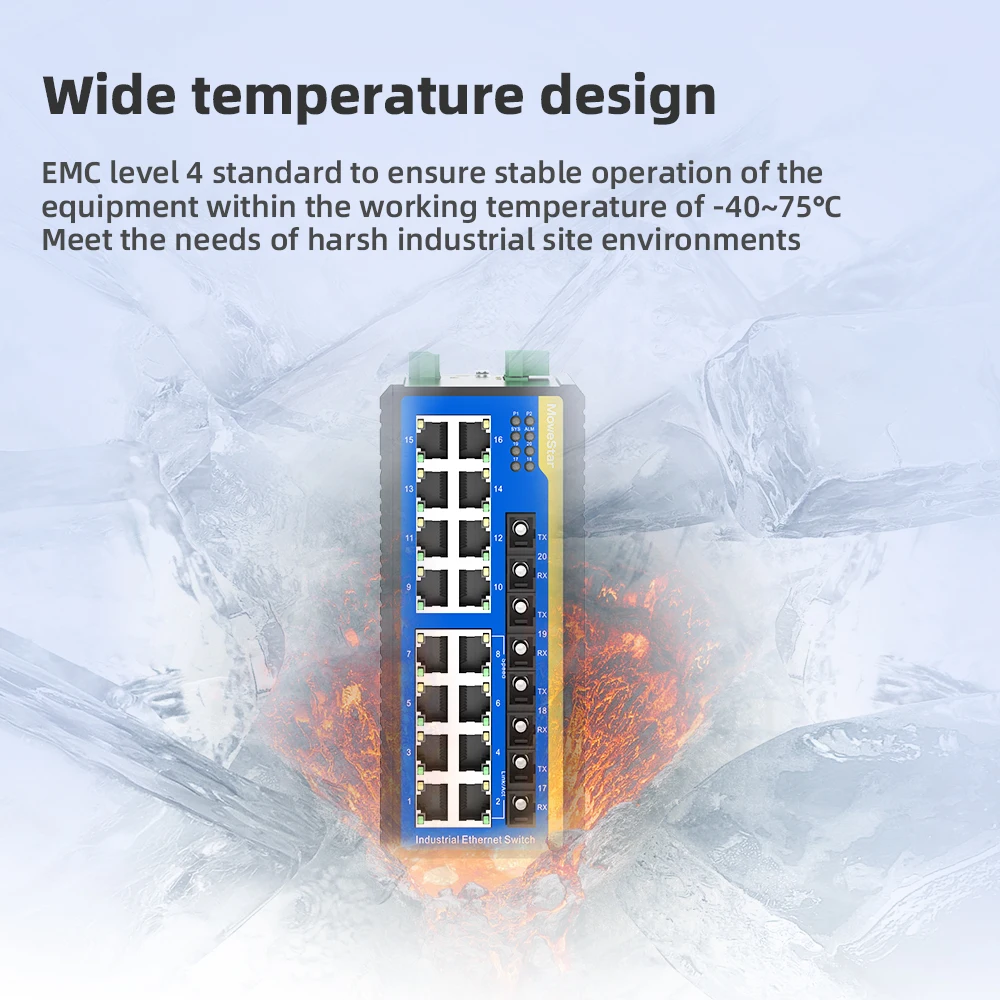

Operating temperature | -40°C~85°C | |
Storage temperature | -40°C~85°C | |
Ambient humidity | 5%~95% | |
Physical Characteristics | ||
Shell | IP40 protection, aluminum alloy shell | |

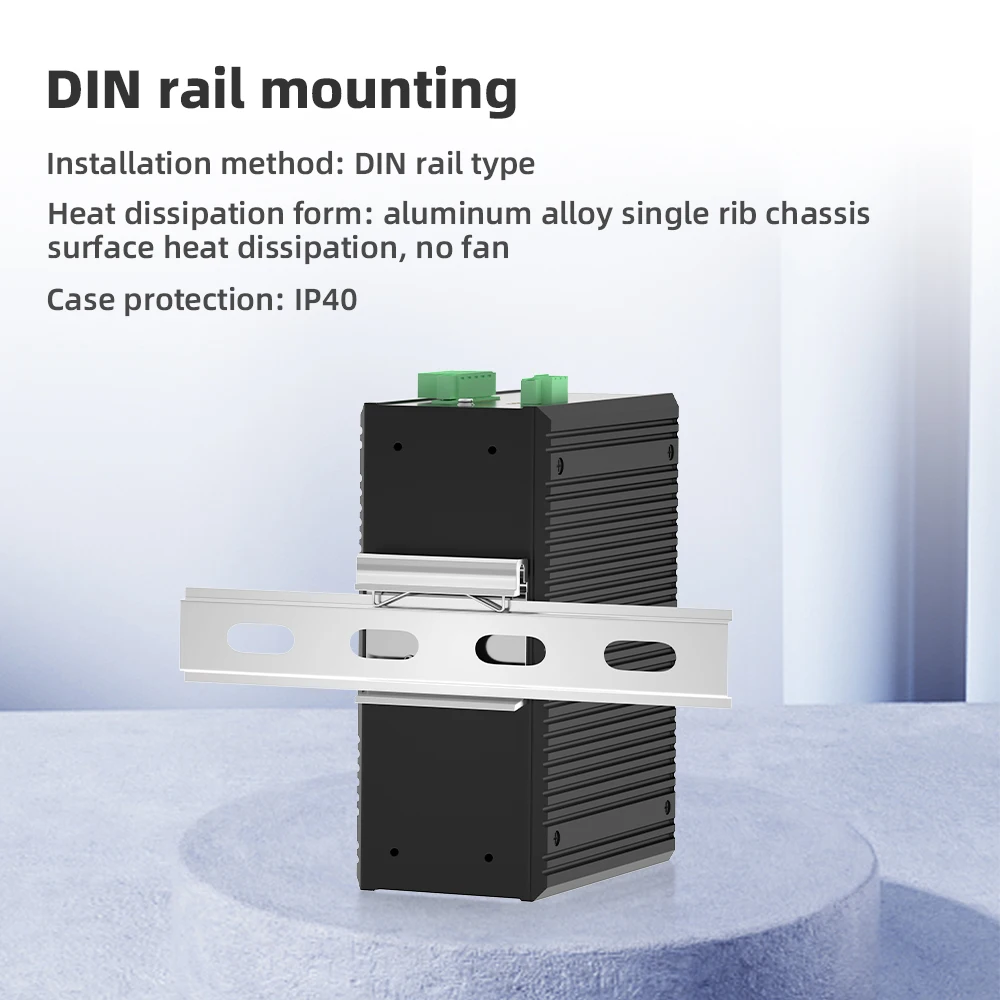

Installation | Standard 35mm DIN-rail Mounting | |
Dimension | 72mm*160mm*122mm | |
Industry Standard | ||
EMC | EN61000-4-2(ESD), Level 4 EN61000-4-3(RS0, Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 | |
Impact | IEC60068–2-27 | |
Falling | IEC60068-2-32 | |
Shock | IEC60068-2-6 | |
Warranty | ||
Warranty | 5 Years | |
Certification | CE, FCC, RoHS | |
Features:
1 * 10/100BaseT(X) (RJ45 Connector), 100BaseF(X) (Single/Multi-mode, SC/ST/FC Connector)
2* IP40 Aluminum Alloy Shell with Fanless Design
3* Support Power-down Status Reply Alarm Output
4* Working Temperature -40 to 85°C
5* Satisfy Harsh Industrial Environment
2* IP40 Aluminum Alloy Shell with Fanless Design
3* Support Power-down Status Reply Alarm Output
4* Working Temperature -40 to 85°C
5* Satisfy Harsh Industrial Environment

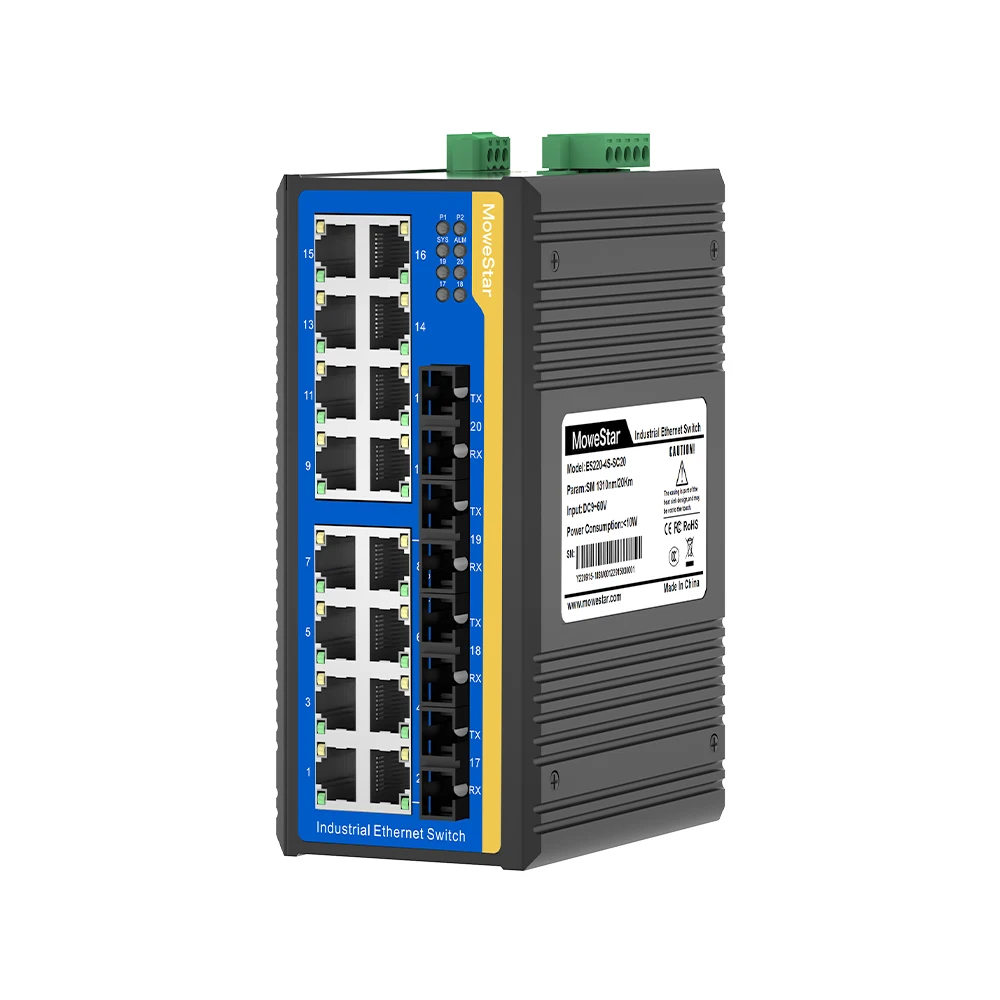

Product Picture
Company Profile
Certifications
Packing&Shipping
FAQ
1.Are you a Factory/manufacturer?
Yes, We are the manufacturer with exported network devices for 20 years.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. We are interested in your products, Can i get samples?
Sure, samples order is welcomed, meanwhile we have a very friendly policy about applying for refund samples fee in your formal order.
4.Can your factory make my logo or design?
Of course, This is a very good way to increase your brand awareness, We warmly welcome OEM&ODM order.
5.How About The Shipping ?
We Will Deliver The Goods With Internation Express Like FEDEX,DHL,UPS,TNT And So On .
6.Which Payment Terms Do You Accepte?
We Can Accept The Tt，alibaba Escrow,western Union
7.How could i become a exclusive agent in my country?
this is a very encouraging behavior that to be our exclusive agent, Please contact our sales to consult the corresponding country sales status first, and then discuss exclusive details.
Yes, We are the manufacturer with exported network devices for 20 years.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. We are interested in your products, Can i get samples?
Sure, samples order is welcomed, meanwhile we have a very friendly policy about applying for refund samples fee in your formal order.
4.Can your factory make my logo or design?
Of course, This is a very good way to increase your brand awareness, We warmly welcome OEM&ODM order.
5.How About The Shipping ?
We Will Deliver The Goods With Internation Express Like FEDEX,DHL,UPS,TNT And So On .
6.Which Payment Terms Do You Accepte?
We Can Accept The Tt，alibaba Escrow,western Union
7.How could i become a exclusive agent in my country?
this is a very encouraging behavior that to be our exclusive agent, Please contact our sales to consult the corresponding country sales status first, and then discuss exclusive details.
Buyer Reviews
