FCom 49s hc49us 4 897 МГц 20pF 20ppm многоволновый генератор 2-контактный 3-500z кварцевый кристаллический
- Категория: Oscillators old >>>
- Поставщик: Shenzhen,Huihao,Electronic,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.28 $* | 0.14 $* |
| Aug-19-2025 | 0.55 $* | 0.70 $* |
| Jul-19-2025 | 0.44 $* | 0.93 $* |
| Jun-19-2025 | 0.83 $* | 0.45 $* |
| May-19-2025 | 0.53 $* | 0.94 $* |
| Apr-19-2025 | 0.60 $* | 0.26 $* |
| Mar-19-2025 | 0.24 $* | 0.76 $* |
| Feb-19-2025 | 0.36 $* | 0.28 $* |
| Jan-19-2025 | 0.96 $* | 0.79 $* |
Характеристики
Products Description

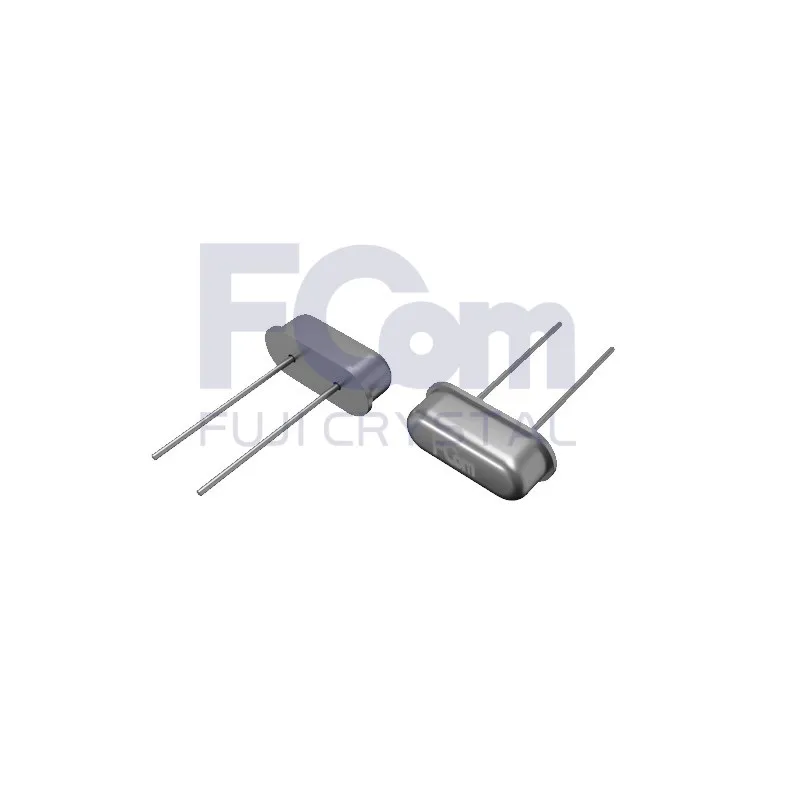

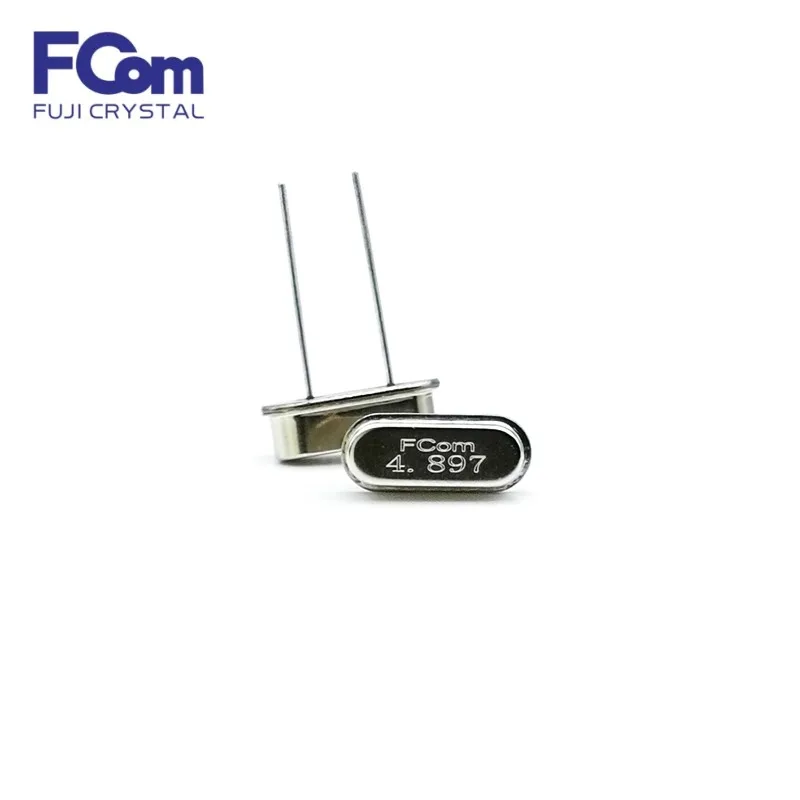

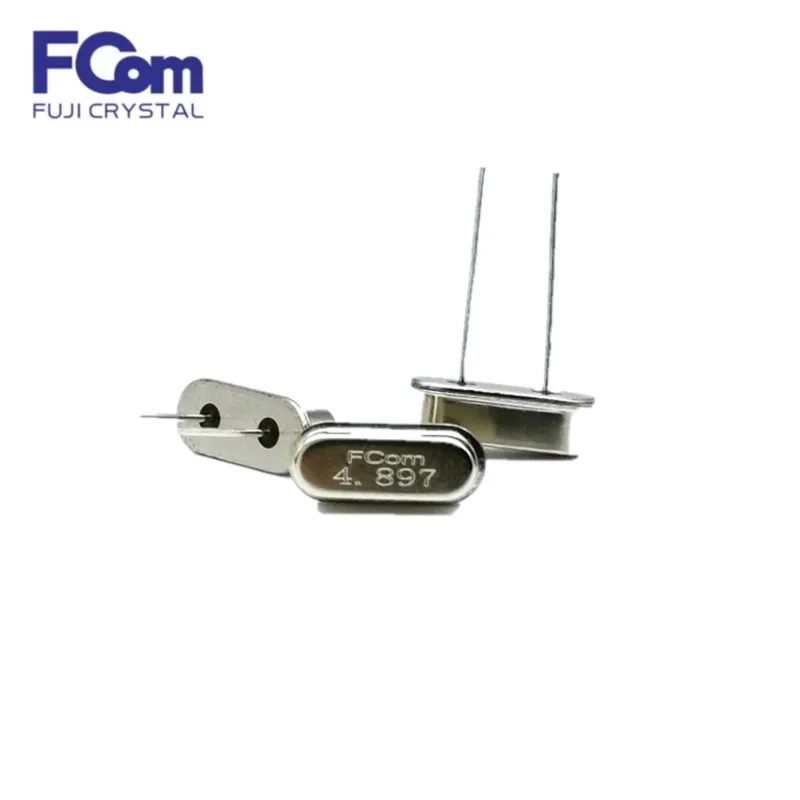

FCX-9S HC-49/US Quartz Crystal Resonators
Model : HC-49/US 4.879MHz
Brand : FCom
Type : Quartz Crystal Resonators
Nominal frequency : 4.897MHz
Adjust frequency difference : ±20ppm
Temperature frequency difference : ±20ppm
Load capacitance : 20pF
Operating Temp. Range : -40~+85℃
HC-49US in-line 2P | ||||
Standard frequency | load capacitance | frequency deviation | ||
3.6864MHZ | 20PF | 20PPM | ||
3.579545MHZ | 20PF | 20PPM | ||
4MHZ | 20PF | 10PPM | ||
5.5296MHZ | 20PF | 20PPM | ||
8MHZ | 20PF | 20PPM | ||
10MHZ | 20PF | 20PPM | ||
11.0592MHZ | 20PF | 10PPM | ||
12MHZ | 20PF | 10PPM | ||
13.560MHZ | 20PF | 20PPM | ||
16.000MHZ | 12PF | 20PPM | ||
20MHZ | 20PF | 20PPM | ||
24MHZ | 20PF | 20PPM | ||
24.576MHZ | 20PF | 20PPM | ||
25MHZ | 20PF | 20PPM | ||
26MHZ | 20PF | 20PPM | ||
27.120MHZ | 20PF | 20PPM | ||
27MHZ | 20PF | 20PPM | ||
28.6363MHZ | 20PF | 20PPM | ||
30MHZ | 20PF | 20PPM | ||
36MHZ | 20PF | 20PPM | ||
Excitation Level | Quartz Crystal (mW) |
Reference temperature | -20~+70 (℃) |
Insertion loss | 49S 8M in-line (dB) |
Stop Band Attenuation | 8M DIP (dB) |
