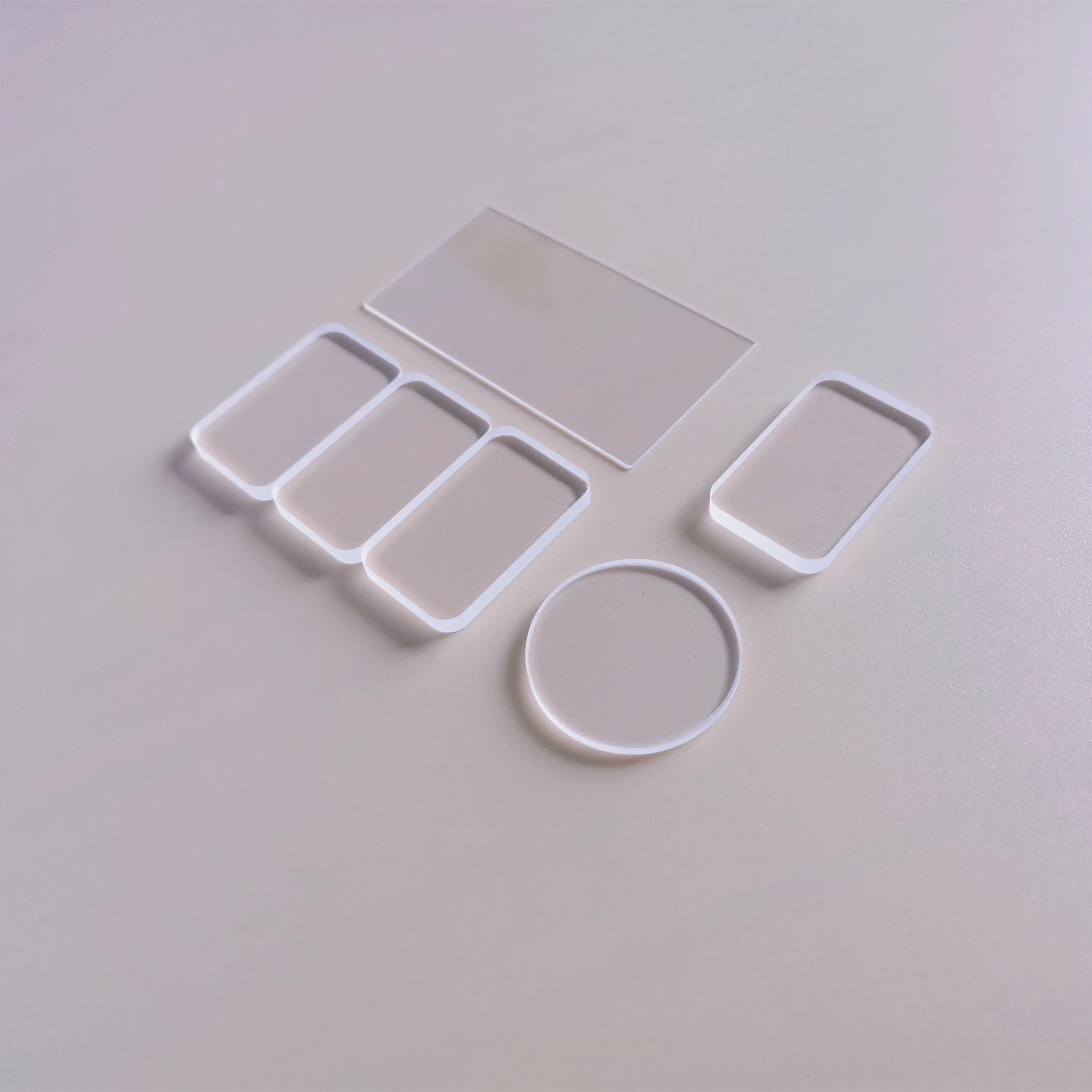

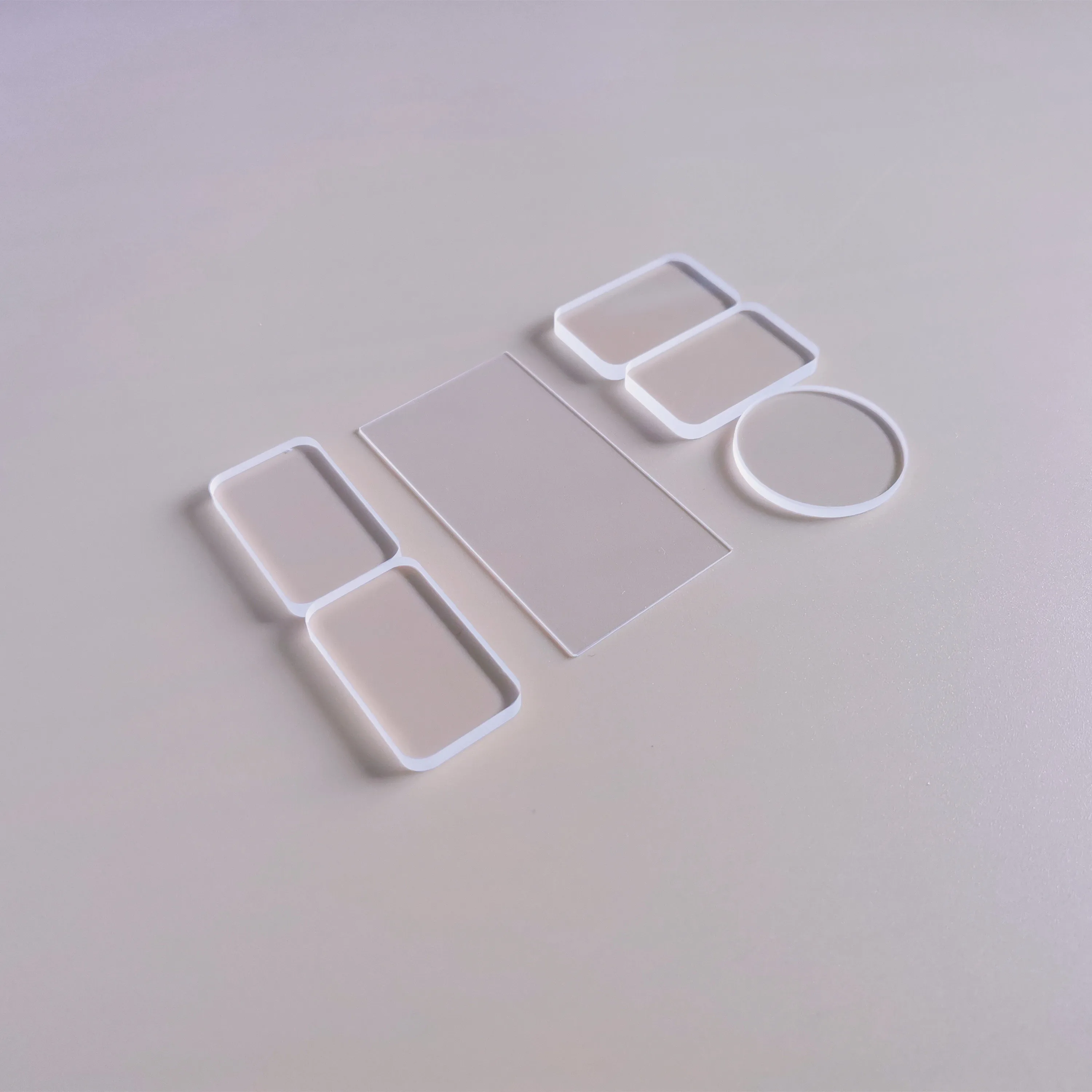

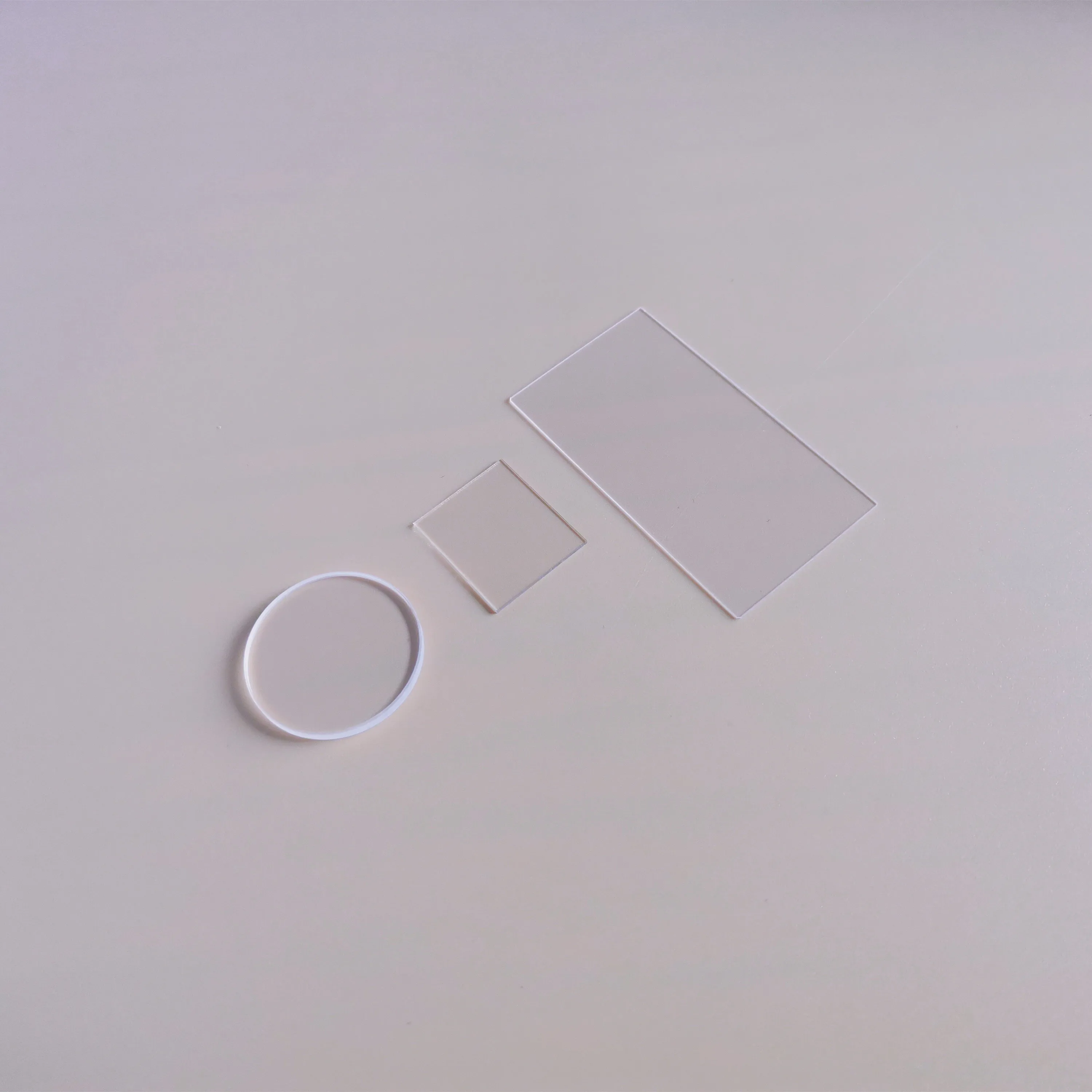

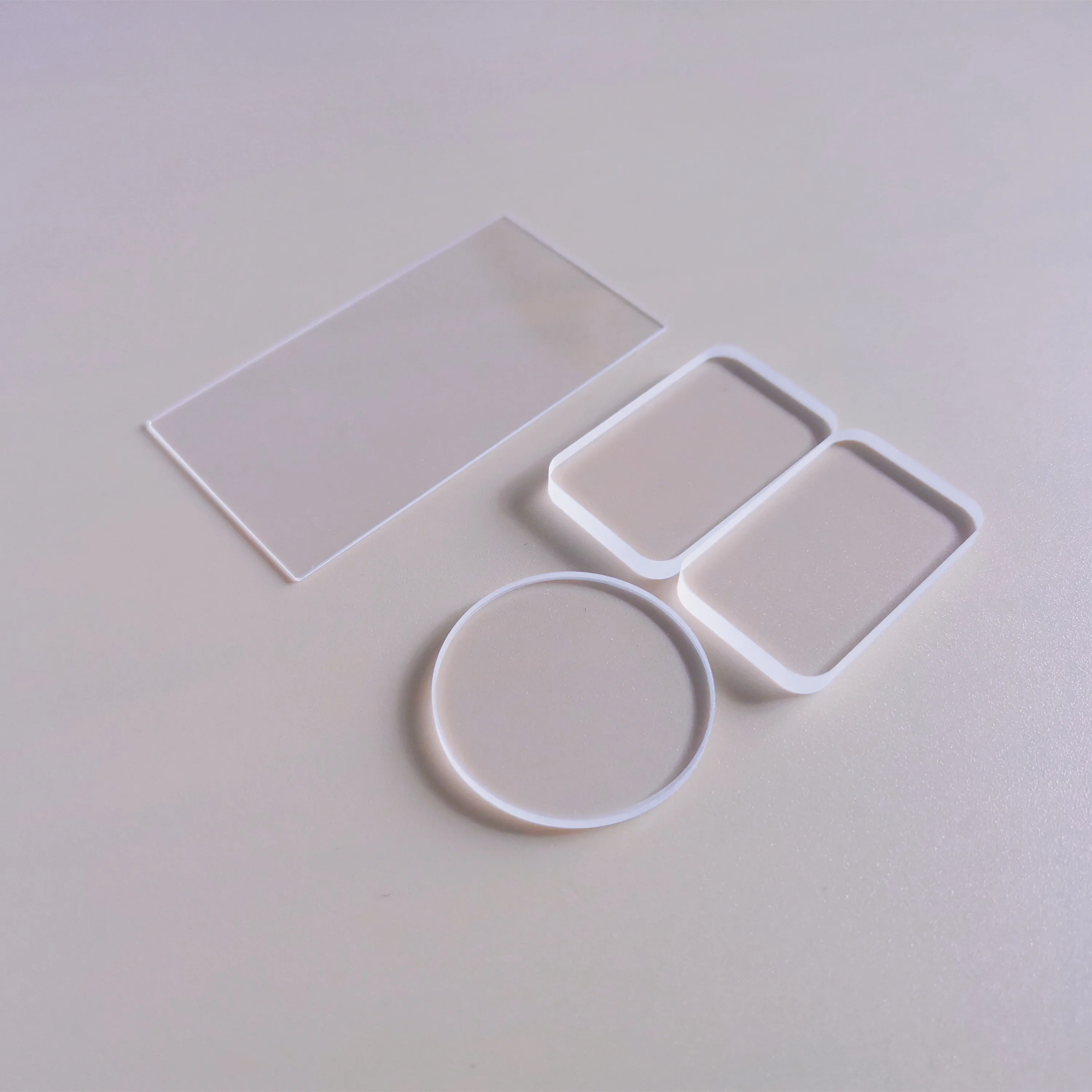

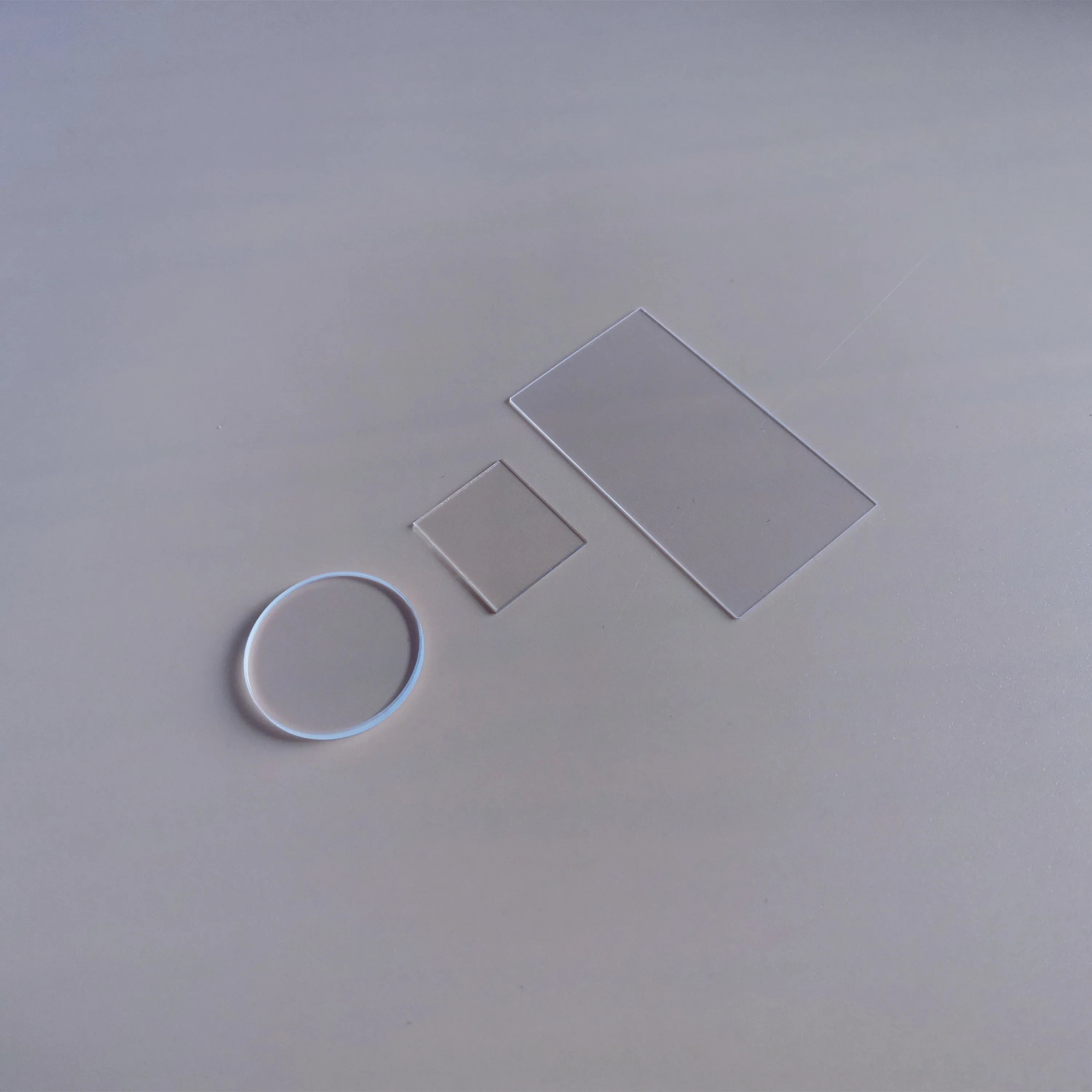

Оптические линзы MgF2 кристаллы фторид

Категория: Other Optics Instruments >>>
Поставщик: Zoolied,Inc.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.60 $*	0.5 $*
Aug-16-2025	0.21 $*	0.4 $*
Jul-16-2025	0.82 $*	0.25 $*
Jun-16-2025	0.78 $*	0.83 $*
May-16-2025	0.27 $*	0.70 $*
Apr-16-2025	0.53 $*	0.65 $*
Mar-16-2025	0.26 $*	0.0 $*
Feb-16-2025	0.9 $*	0.49 $*
Jan-16-2025	0.17 $*	0.60 $*

Характеристики

Products Parameters

Material	Crystal
Chamfer	Protective Chamfer
Dimension	2-20mm
Length	10-200mm
S/D	20/10-40/20
Flatness	L/8-L/10
Parallelism	10"-20"
Bevel	Protective bevel as needed
Shape	Cuboid/Rod/Cube
Coating	AR

Products Description

Standard Products:
Dia φ or Width W(mm)	Thickness(mm)	Cut axis
A-cut with the maximum birefringence
φ25.4	1.0	[100]
φ25.4	2.0	[100]
φ25.4	3.0	[100]
φ25.4	4.0	[100]
φ25.4	5.0	[100]
φ25.4	1.0	[100]
φ25.4	2.0	[100]
φ25.4	5.0	[100]
C-cut with no birefringence
φ25.4	1.0	[001]
φ25.4	2.0	[001]
φ25.4	3.0	[001]
φ25.4	4.0	[001]
φ25.4	5.0	[001]

MgF2 is positive uni-axial crystal with a very high optical transmittance from the vacuum UV to IR. It also has a large resistance to mechanical and thermal shock, to optical radiation, and is chemically stable, making it a very useful materials for UV and IR optics.

Advantages:
* High optical transmittance from the vacuum ultraviolet to the infrared spectrum region(0.12~8.5μm).
* Resistant to mechanical and thermal shock, to radiation
* Chemically stable
* A positive birefringent crystal ,used for optical fiber communicationt
* Used for Optical prisms, lenses, wedges, windows, other optical components,and etc

HG’s MgF2 crystals are high transmittance( 5% @ 120nm, 78% @ 140nm, 90% @ 200nm,93% @ 300-5000nm) in DUV for large size single domain, and especially suitable for Excimer or DUV windows.

Zoolied Crystals Lists
ND:YAG	Pr∶YLF	Er:YAP	Tm∶YVO4	Fe:LiNb03
Cr:YAG	Yb∶KGW	LiF	GGG	RTP
YV04	Sapphires	Er:YAG	Nd∶GSGG	KYW
MD:YV04	YLF	Cr:LiCAF	KDP	TSAG
Yb:YAG	YAG	SrWO4	Ti∶sapphire	KTA
ND∶GdV04	Ce:LuAG	GdSc03	YLF	GYSGG
Nd:YLF	Ho:LUGG	Cr:GSGG	Yb∶YLF	Cr:Nd:YAG
Ho∶YAG	Nd:LuAG	TGGG	Yb∶CaF2	Yb:YAB
BBO	Tm:Ho:YLF	ADP	LYSO	Tb:YLF
LBO	Nd:YAP	LiSAF	LiGa02	Ho∶YLF
KTP	V:YAG	Yb∶KYW	Tm∶YAP	YSGG
TGG	SGGG	Iceland crystal	KGW	MgF2
LiNbO3	LiL03	Mg0∶LiNbO3	Cr∶Er∶YSGG	PMN-PT
CaF2	Nd:Ce:YAG	Ho∶YV04	Cr∶LiSAF	Dy:YLF
LiTa03	BLO	Nd∶YSAG	LiCAF	Nd:KGW
a-BB0	Er:Yb:YAB	Er∶YLF	YIG	BiB0
Co∶MgAl204	Er:YSGG	Nd:GYSGG	DKDP	Er:Caf2
JGS1	Ho:YAP	Er∶KGW	YAB	Ce:YAG
GdV04	YSGG	ND:GYSAG	Mg0:LiTa03	CBN
Tm∶YLF	HGTR-KTP	Quartz	Tm:KYW	PPKTP
