CHYT хорошее качество 35 мм Din-рейки 20KA 40KA 600 В DC 2P SPD защитное устройство для защиты
- Категория: Other Electrical Equipment >>>
- Поставщик: Zhejiang,Dabo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.88 $* | 0.45 $* |
| Aug-16-2025 | 0.17 $* | 0.77 $* |
| Jul-16-2025 | 0.24 $* | 0.22 $* |
| Jun-16-2025 | 0.48 $* | 0.5 $* |
| May-16-2025 | 0.67 $* | 0.20 $* |
| Apr-16-2025 | 0.12 $* | 0.75 $* |
| Mar-16-2025 | 0.79 $* | 0.65 $* |
| Feb-16-2025 | 0.29 $* | 0.94 $* |
| Jan-16-2025 | 0.60 $* | 0.73 $* |
Характеристики
Product Description
Product introduction
Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system). These units must be installed in parallel on the dc networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the dc power supply line (solar panel side and inverter/converter side), especially
if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Product features
1.Type 2 surge protective device for Photovoltaic.
2.Module design, convenient installation, could be replaced.
3.Time of response <25ns.
4.The color of visible window shows operating status, green means normal, red means abnormal.
5.No leakage, no operating currents.
6.Remote Signaling (option).
2.Module design, convenient installation, could be replaced.
3.Time of response <25ns.
4.The color of visible window shows operating status, green means normal, red means abnormal.
5.No leakage, no operating currents.
6.Remote Signaling (option).
Specification
Product Model | ESP-D40 | ||||||
Pole | 2P | 3P | |||||
Rated Frequency | One port | ||||||
SPD Category | Combined type | ||||||
Test Category | Class II test | ||||||
Colour | Green | ||||||
Maximum Continuous Operating Voltage Uc | 600VDC 1000VDC | 1000VDC 1500VDC | |||||
Voltage Protection Level Up(8/20μs) | ≤2.8kV | ≤3.5kV | |||||
Nominal Discharge Current ln(8/20μs) | 20kA | 20kA | |||||
Maximum Discharge Current lmax(8/20μs) | 40kA | 40kA | |||||
Response Time tA | ≤25ns | ||||||
Size | 36x90x66 | 54x90x66 | |||||
Failure Indication | Green: Normal Red: Failure | ||||||
Sectional Area Of Wires | 6~25mm2 | ||||||
Installation Method | 35mm standard rail | ||||||
Working Environment Temperature | -40℃ ~+85℃ | ||||||
Sheathing Material | Plastic | ||||||
Protection Level | IP20 | ||||||
Executive Standard | IEC 61643-31 | ||||||

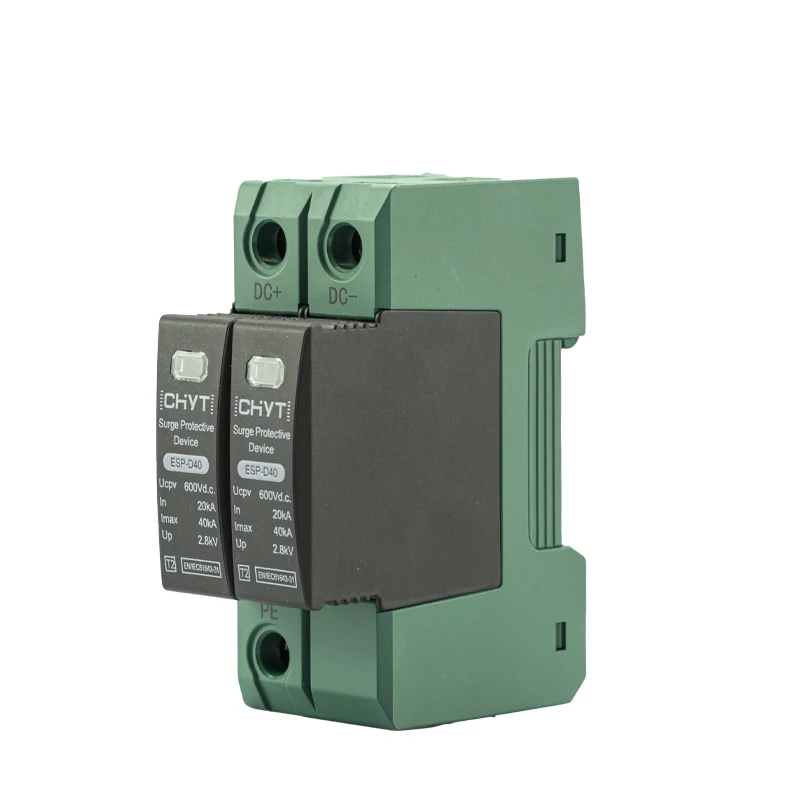

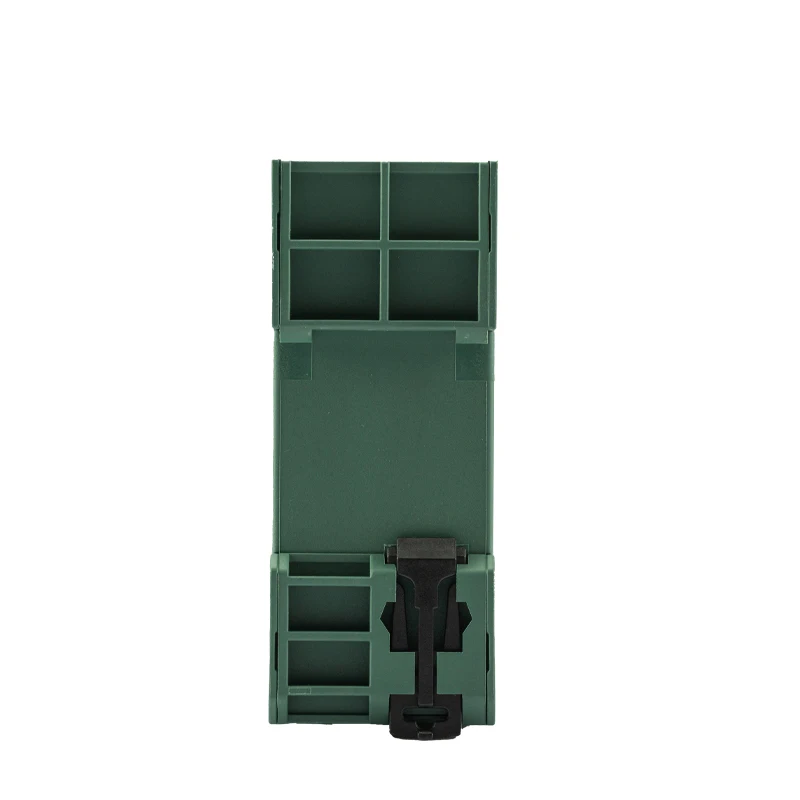

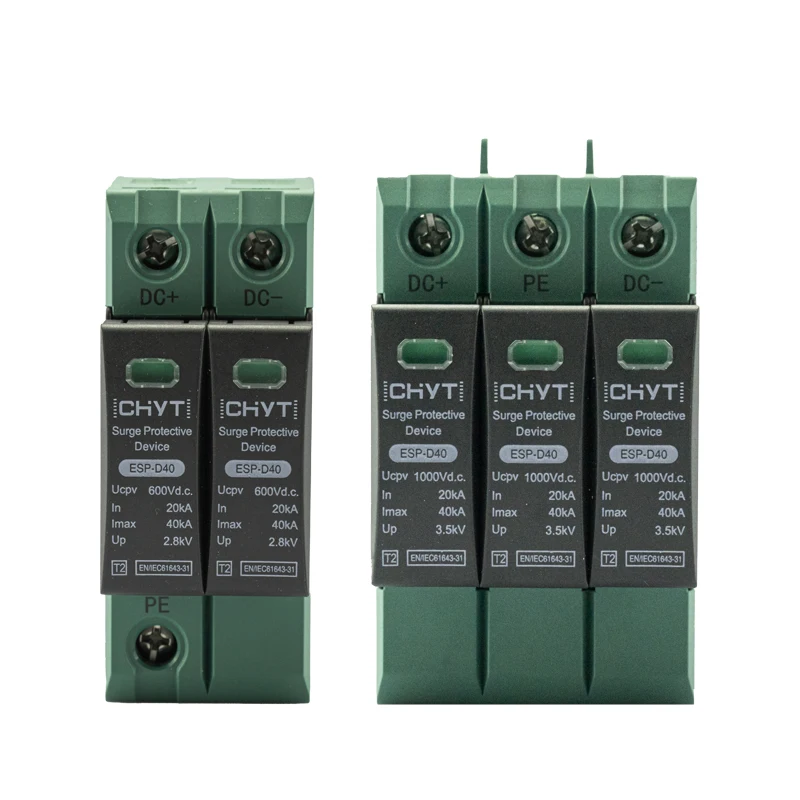

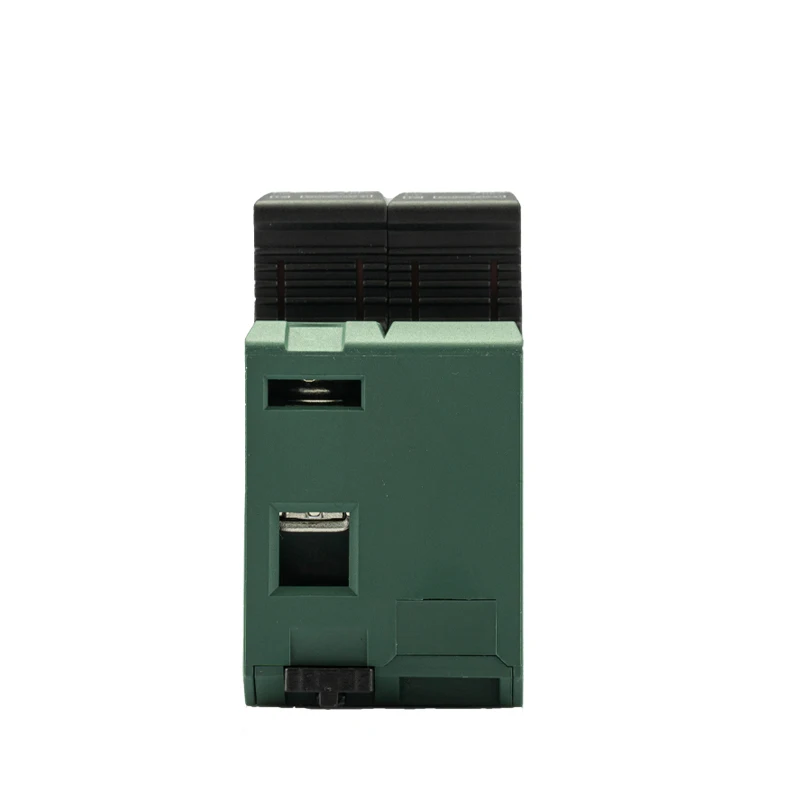

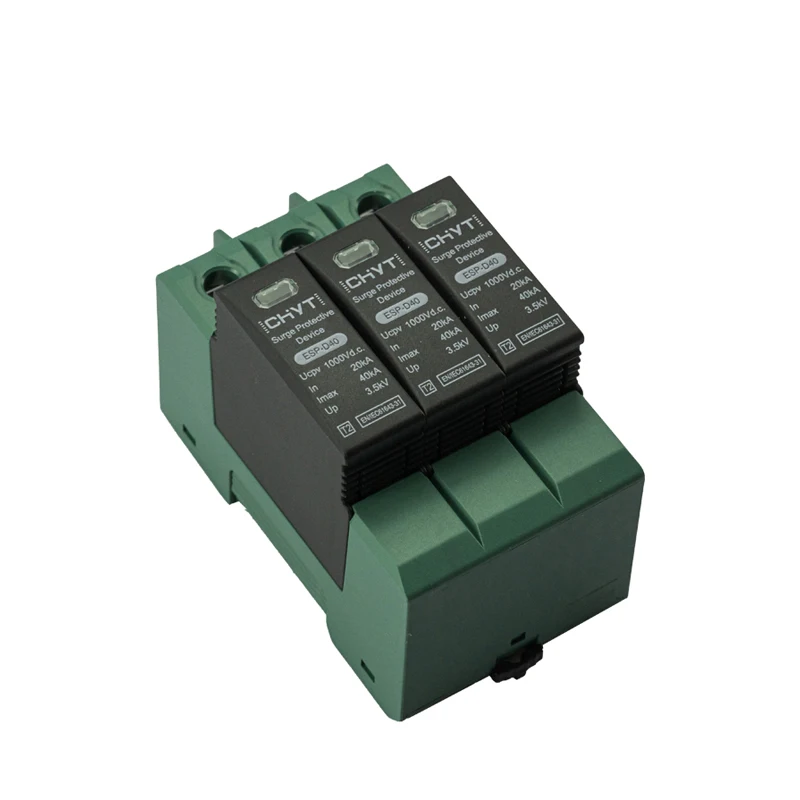

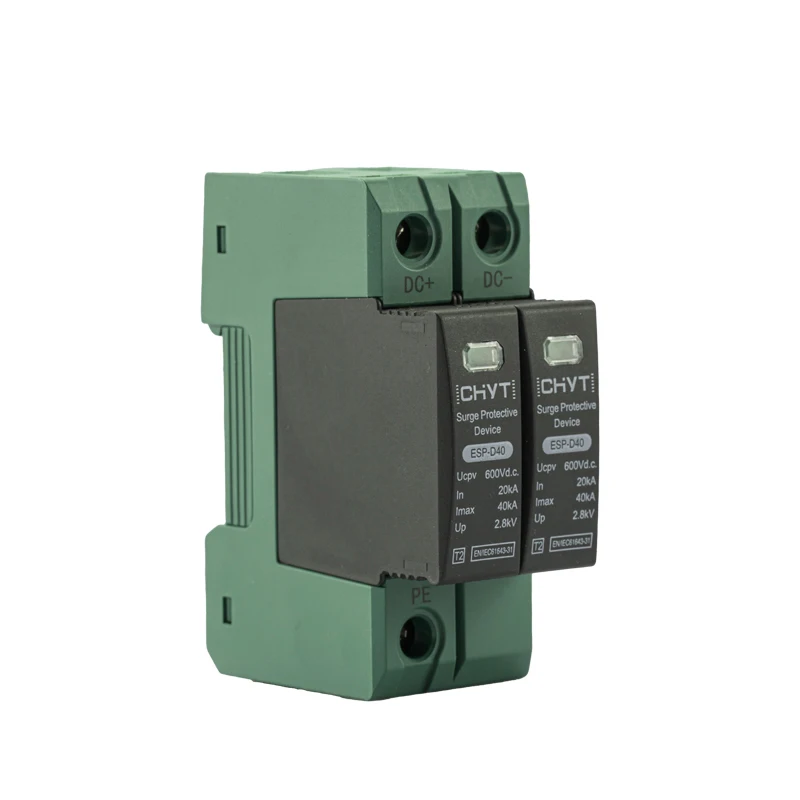

Details Images
