Products Description

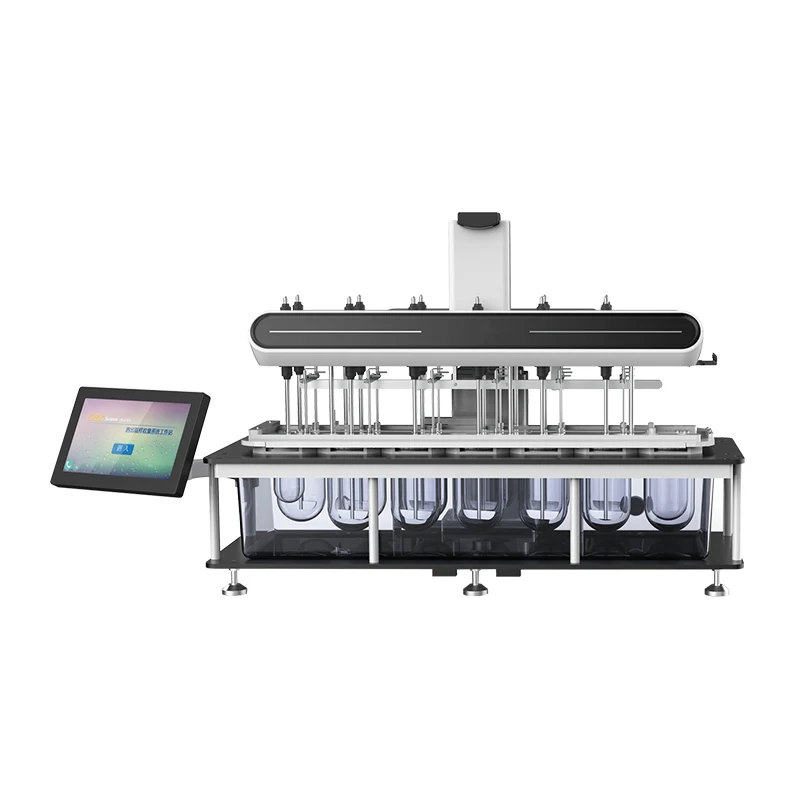

Product Description of ZRD-1402 Intelligent Dissolution Tester
Product features:
The ZRD-1402 intelligent dissolution tester is developed and produced by the unique patent of Beijing Beiyan Company and conforms to the latest CFDA/USP/EP standard. The instrument adopts 14 cups and 12 paddles design, has 2 rehydration cups with the same water bath temperature, electric lifting structure, simple operation, and can run continuously for up to 69 days.
The external heating circulation system can effectively reduce the impact of vibration and facilitate later maintenance.

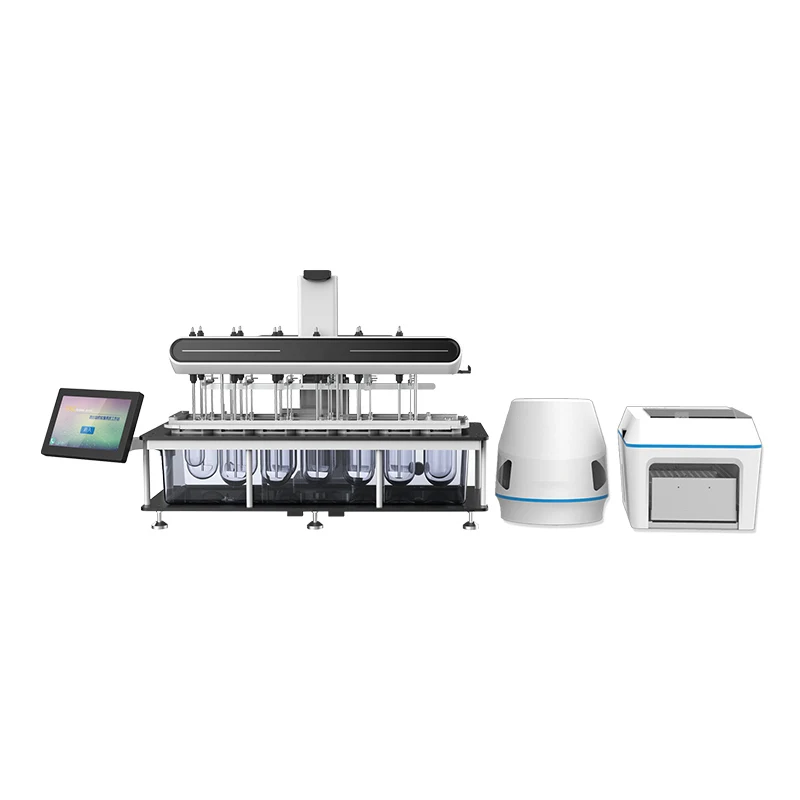

Optional accessories of ZRD-1402 intelligent dissolution tester: automatic sampling and collection system, temperature monitoring system in dissolution cup, printer and mechanical verification kit.
Performance characteristics:
★It is operated by a 13.3-inch LCD touch all-in-one machine and can be freely expanded and placed in different positions;
★• The instrument has a computer software operating system, which is easier to use; like a smart phone-style icon button, it is easy to operate, all Chinese operating system, easy to operate, and strong applicability;
The split design is adopted, and the heating circulating pump is separated from the main engine, which is convenient for later use and maintenance;
The electric head is used for lifting, which is convenient to replace the rotary paddle and the dissolution cup, and has the automatic height setting of the rotary paddle, eliminating manual operation;
★The design of 14 cups 12 paddle double row can carry out automatic sampling operation of up to 12 cups of samples at the same time, and meet the control requirements of blank samples and standard products;
The quality and performance of the paddle rod, basket rod and rotating basket body made of high-quality 316L stainless steel fully meet the testing requirements of the Chinese Pharmacopoeia. It can also be equipped with paddles with PTFE coating according to user requirements.
Adopt advanced rotary rod and paddle separation design, carry out paddle method and basket method experiment, only need to replace paddle and basket head, avoid artificial height error;
The dissolution cup is fixed with integral mold fittings, which is simple to operate, and the rotary paddle and the dissolution cup are marked with unique positions, which fully meet the requirements of the guiding principles for mechanical verification;
With self-checking function and automatic protection function, it can give a variety of fault alarm signals;
The water tank adopts the design of the bottom quick interface for draining water, the operation of draining water is simple, and the rotating rod and the dissolution cup are automatically positioned in the center;
★It has dual-mode setting of synchronous speed and stepped speed, and can be equipped with up to 2 stirring motors for zoned speed control to ensure different experimental requirements;
Users can choose a temperature monitoring system in the dissolution cup to monitor the temperature in the dissolution cup in real time;
• It can be equipped with an integrated anti-evaporation dissolution cup cover, which can effectively reduce the evaporation of the solvent medium, and the rehydration circulation pipeline is embedded in the dissolution cup cover;
Workstation software:
★The instrument has four levels of authority management functions, which are divided into super administrators (unlimited), administrators (unlimited), experimenters (unlimited), visitors (unlimited), and hierarchical management systems. Effectively solve the classification of usage rights of each user, which can be combined with rights management for personnel management, and there is no upper limit for storage. At the same time, you can assign permissions and set the account status. At the same time, you can also have information prompts such as password expiration, password invalidation, and password modification.
★Workstation software has experimental method storage (no quantity limit), can store and call experimental methods at any time for experimental operation, and has the function of stopping in the middle of the experiment, and can save and export the experimental state in real time to generate data records, the export format is PDF;
★The workstation software has the functions of querying experimental data and working log and exporting PDF at the same time, which fully meets the data integrity requirements of Chinese Pharmacopoeia and European Pharmacopoeia;
★The workstation software can record the verification status of the dissolution instrument, and will automatically prompt the user to carry out the verification work after the verification date;
★Workstation software has data backup and export functions, and the export format is database;
The workstation software can also expand the functions of users, such as video monitoring system, filter head replacement system, dilution platform system, etc.
The ZRD-1402 intelligent dissolution tester is developed and produced by the unique patent of Beijing Beiyan Company and conforms to the latest CFDA/USP/EP standard. The instrument adopts 14 cups and 12 paddles design, has 2 rehydration cups with the same water bath temperature, electric lifting structure, simple operation, and can run continuously for up to 69 days.
The external heating circulation system can effectively reduce the impact of vibration and facilitate later maintenance.
Optional accessories of ZRD-1402 intelligent dissolution tester: automatic sampling and collection system, temperature monitoring system in dissolution cup, printer and mechanical verification kit.
Performance characteristics:
★It is operated by a 13.3-inch LCD touch all-in-one machine and can be freely expanded and placed in different positions;
★• The instrument has a computer software operating system, which is easier to use; like a smart phone-style icon button, it is easy to operate, all Chinese operating system, easy to operate, and strong applicability;
The split design is adopted, and the heating circulating pump is separated from the main engine, which is convenient for later use and maintenance;
The electric head is used for lifting, which is convenient to replace the rotary paddle and the dissolution cup, and has the automatic height setting of the rotary paddle, eliminating manual operation;
★The design of 14 cups 12 paddle double row can carry out automatic sampling operation of up to 12 cups of samples at the same time, and meet the control requirements of blank samples and standard products;
The quality and performance of the paddle rod, basket rod and rotating basket body made of high-quality 316L stainless steel fully meet the testing requirements of the Chinese Pharmacopoeia. It can also be equipped with paddles with PTFE coating according to user requirements.
Adopt advanced rotary rod and paddle separation design, carry out paddle method and basket method experiment, only need to replace paddle and basket head, avoid artificial height error;
The dissolution cup is fixed with integral mold fittings, which is simple to operate, and the rotary paddle and the dissolution cup are marked with unique positions, which fully meet the requirements of the guiding principles for mechanical verification;
With self-checking function and automatic protection function, it can give a variety of fault alarm signals;
The water tank adopts the design of the bottom quick interface for draining water, the operation of draining water is simple, and the rotating rod and the dissolution cup are automatically positioned in the center;
★It has dual-mode setting of synchronous speed and stepped speed, and can be equipped with up to 2 stirring motors for zoned speed control to ensure different experimental requirements;
Users can choose a temperature monitoring system in the dissolution cup to monitor the temperature in the dissolution cup in real time;
• It can be equipped with an integrated anti-evaporation dissolution cup cover, which can effectively reduce the evaporation of the solvent medium, and the rehydration circulation pipeline is embedded in the dissolution cup cover;
Workstation software:
★The instrument has four levels of authority management functions, which are divided into super administrators (unlimited), administrators (unlimited), experimenters (unlimited), visitors (unlimited), and hierarchical management systems. Effectively solve the classification of usage rights of each user, which can be combined with rights management for personnel management, and there is no upper limit for storage. At the same time, you can assign permissions and set the account status. At the same time, you can also have information prompts such as password expiration, password invalidation, and password modification.
★Workstation software has experimental method storage (no quantity limit), can store and call experimental methods at any time for experimental operation, and has the function of stopping in the middle of the experiment, and can save and export the experimental state in real time to generate data records, the export format is PDF;
★The workstation software has the functions of querying experimental data and working log and exporting PDF at the same time, which fully meets the data integrity requirements of Chinese Pharmacopoeia and European Pharmacopoeia;
★The workstation software can record the verification status of the dissolution instrument, and will automatically prompt the user to carry out the verification work after the verification date;
★Workstation software has data backup and export functions, and the export format is database;
The workstation software can also expand the functions of users, such as video monitoring system, filter head replacement system, dilution platform system, etc.
Technical parameters:
★Number of dissolution cup positions: 14
Swing amplitude of stirring paddle: ≤ 0.5mm
Rotating basket swing range: ≤ 0.8mm
Deviation between rotating rod and dissolution cup shaft: ≤ 1.0mm
Speed regulation range: 0~400 r/min 1 rpm; 400~1000 r/min 4% rpm
Temperature control range: room temperature -50.0 ℃
Temperature control accuracy: ≤ 0.1 ℃
Operating power supply: 220V ± 10% AC 50Hz
Overall power: 1800W
Swing amplitude of stirring paddle: ≤ 0.5mm
Rotating basket swing range: ≤ 0.8mm
Deviation between rotating rod and dissolution cup shaft: ≤ 1.0mm
Speed regulation range: 0~400 r/min 1 rpm; 400~1000 r/min 4% rpm
Temperature control range: room temperature -50.0 ℃
Temperature control accuracy: ≤ 0.1 ℃
Operating power supply: 220V ± 10% AC 50Hz
Overall power: 1800W
Number of dissolution cup positions | 14 |
Swing amplitude of stirring paddle | ≤ 0.5mm |
Rotating basket swing range | ≤ 0.8mm |
Deviation between rotating rod and dissolution cup shaft | ≤ 1.0mm |
Speed regulation range | 0~400 r/min 1 rpm; 400~1000 r/min 4% rpm |
Temperature control range | room temperature -50.0 ℃ |
Temperature control accuracy | ≤ 0.1 ℃ |
