Product Description
Product Name: Ac Power Analyzer Three Phase Four Wires Lcd Display Rs485 Modbus Rtu Energy Meter
PD194Z-E20 Multi-function power meter adopts rail mounting mode, and can be equipped with different functional modules.It is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.

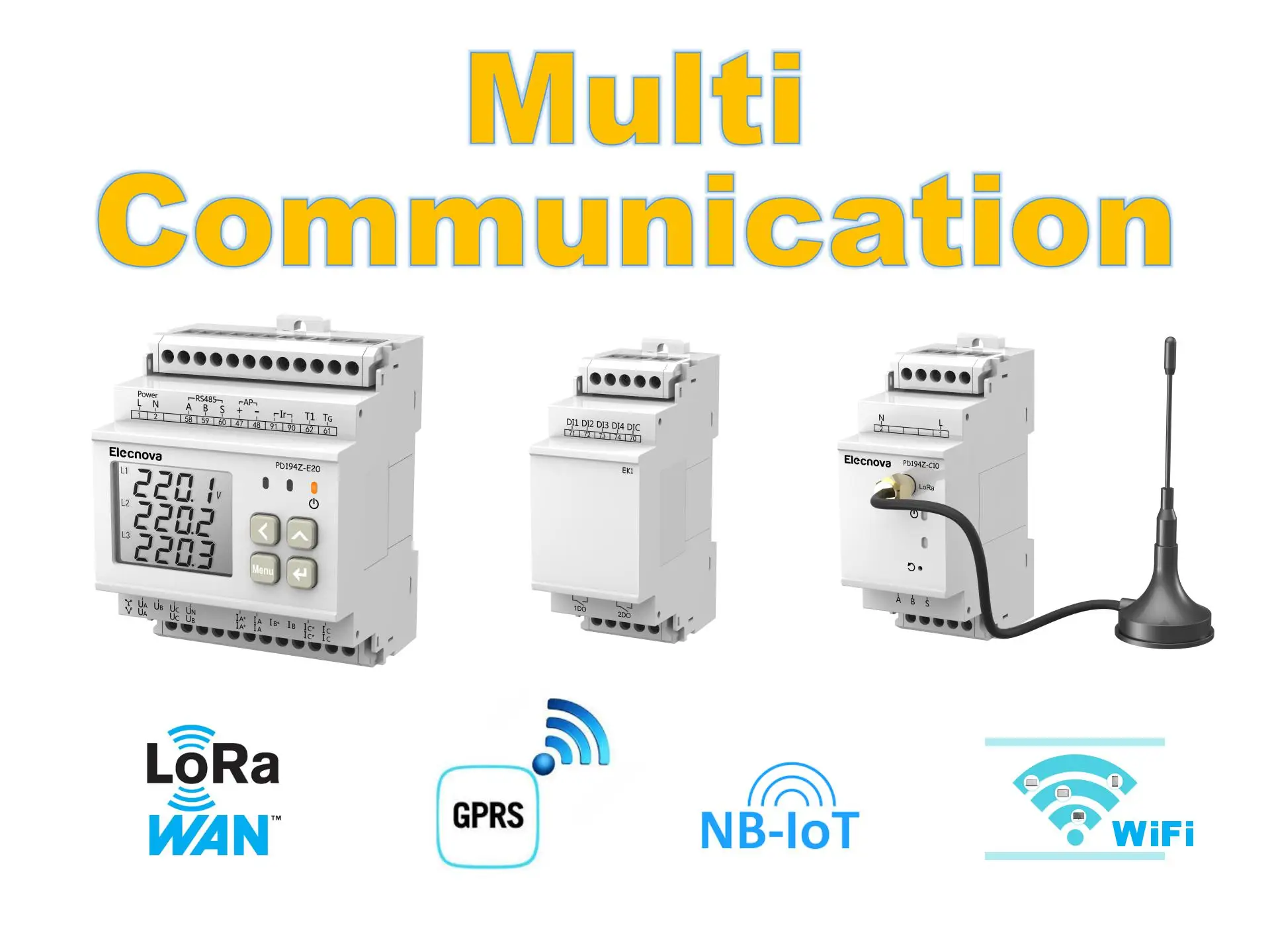

Wireless Module

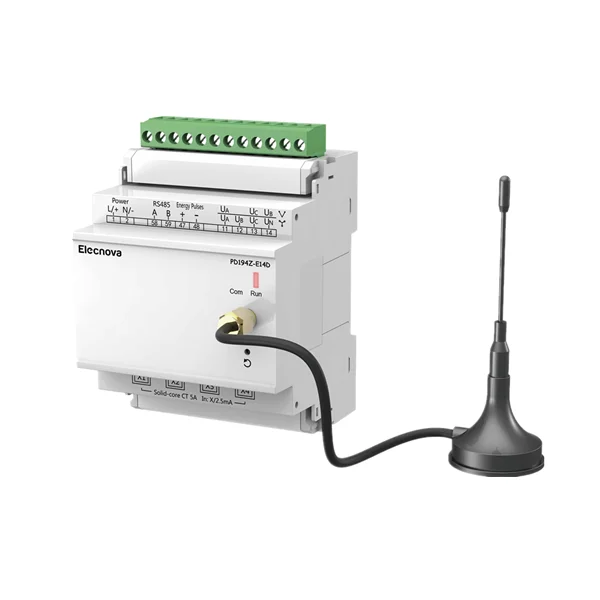

The SC2 LoRa communication gateway uses a serial port for data transmission and reception, which reduces the threshold for wireless applications and can realize one-to-one or one-to-many communication.
SCX series gateway is a small gateway device that can collect multiple protocol bus devices and upload data to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
Optional CT
Technical parameters
Display mode | LCD | |
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.5% | |
F | ±0.01Hz | |
±KWh | Class 0.5S | |
±Kvarh | Class 2 | |
Voltage Input | Rated value | AC100V, AC380V |
Overload | Continuous:1.2Vn Instantaneous:2Vn/10s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Current Input | Rated value | AC1A AC5A |
Overload | Continuous:1.2In Instantaneous:2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20MΩ | |
Residual Current Input | AC 1mA | |
Auxiliary Power Supply | Working Range | AC 80~270V 50/60HZ ,DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485,Modbus-RTU ,2-wire,up to 9600bps | |
Energy Pulse Output | 1 photocoupler output,pulse width (80±20%)ms | |
Optional Module(EK1) | Digital Inputs | Dry digital inputs,Isolation:≥2kvac |
Relay outputs | Contact rated at AC 250/5A or DC 30V/5A | |
Environment Conditions | Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kvac |
