Соединительная муфта ISO2531 300 мм труба из ковкого чугуна для проектов подземной муниципальной
- Категория: Iron >>>
- Поставщик: Anqing,Great,Wall,Pipeline,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.1 $* | 0.44 $* |
| Aug-20-2025 | 0.70 $* | 0.64 $* |
| Jul-20-2025 | 0.40 $* | 0.11 $* |
| Jun-20-2025 | 0.20 $* | 0.28 $* |
| May-20-2025 | 0.58 $* | 0.84 $* |
| Apr-20-2025 | 0.99 $* | 0.7 $* |
| Mar-20-2025 | 0.8 $* | 0.55 $* |
| Feb-20-2025 | 0.25 $* | 0.36 $* |
| Jan-20-2025 | 0.9 $* | 0.42 $* |
Характеристики
Products Description

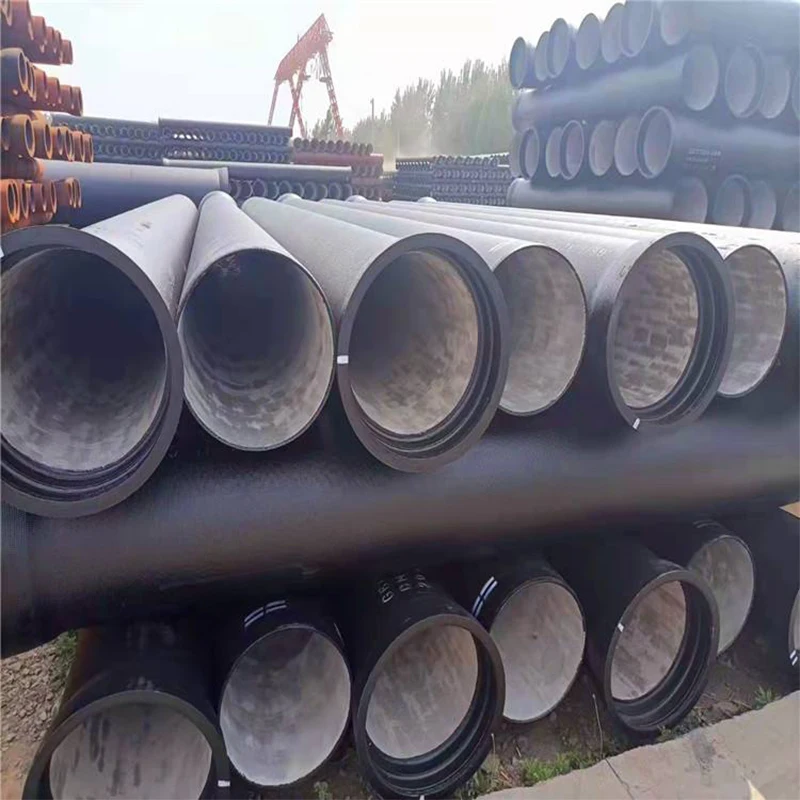

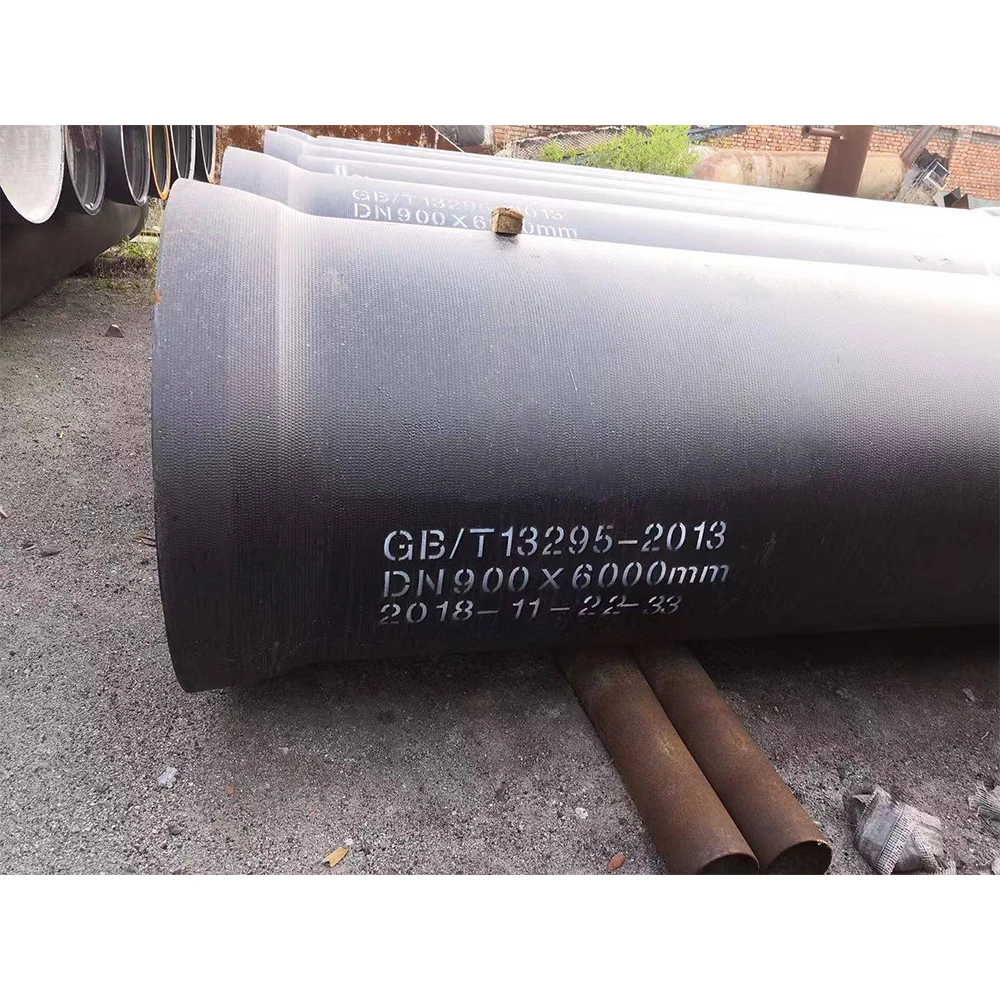

T type joint ductile iron pipe (push-in type) is the preferred pipe for municipal water supply project, with the advantages of easy installation, good seismic performance, corrosion resistance and so on. Our T-type joint ductile iron pipe sizes range from DN80mm to DN1800. T-type joint nodular cast iron pipes are laid with flexible socket joints in the engineering site.
Advantages of Ductile Iron Pipe
Better Mechanical Properties .
Ductile Iron Pipe have better Mechanical Properties than Steel Pipe and Grey Iron Pipe
Type of pipes | Ductile Iron pipes | Grey Iron pipes | Steel pipes |
Tensile strength (N/mm²) | ≥420 | 150-260 | ≥400 |
Elongation (%) | DN80-1000 ≥10 DN1100-2600 ≥7 | /Negligible | ≥18 |
Hardness (HB) | ≤230 | ≤210 | 140/Approx.140 |
Ductile Iron Pipes have better corrosion resistance properties than Steel Pipes and Grey Iron Pipes
The comparison of seawater corrosion resistance
Corroded volume when merged into sea water (gr/cm2) | |||
After 45 days | After 90 days | ||
Ductile Iron Pipes | 0.0060 | 0.0090 | |
Grey Iron Pipes | 0.0060 | 0.0103 | |
Steel Pipe | 0.0294 | 0.0396 | |
Specifications:
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.

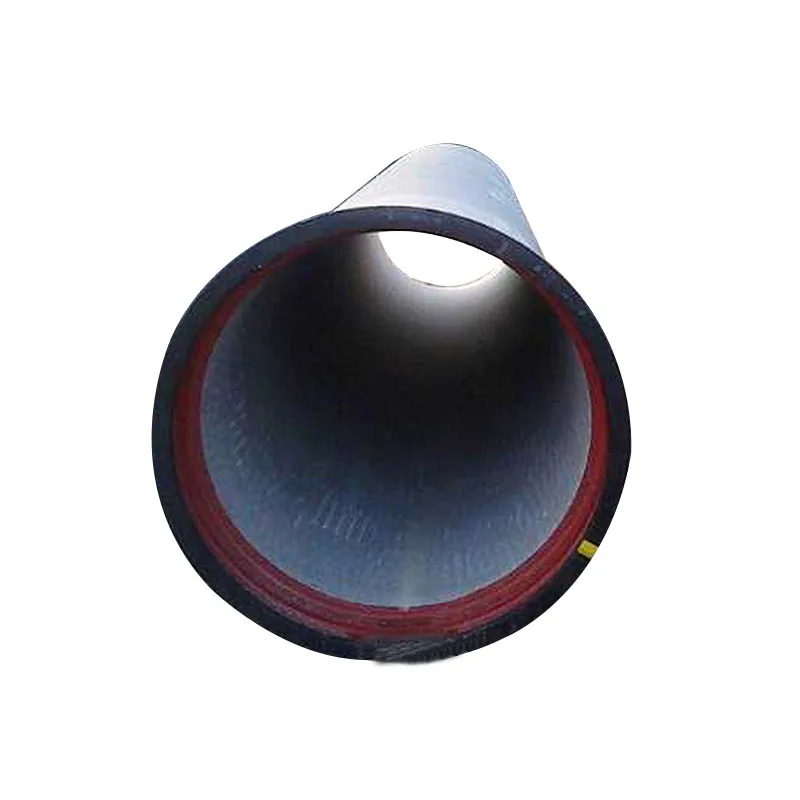

5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life
time
11) Checked by automatic inspection equipment
12) Chemical composition: (%)
3. a) C: 3.5 - 4.0
4. b) Si: 1.9 - 2.6
5. c) Mn:0.15 - 0.45
6. c) P: <0.06
7. d) S: <0.02
13) Process and testing:
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life
time
11) Checked by automatic inspection equipment
12) Chemical composition: (%)
3. a) C: 3.5 - 4.0
4. b) Si: 1.9 - 2.6
5. c) Mn:0.15 - 0.45
6. c) P: <0.06
7. d) S: <0.02
13) Process and testing:
1. a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
2. b) Casting (Visual check and weight check)
3. c) Heat treatment (Micro structure)
4. d) Hydrostatic test (Pressure test)
5. e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
6. f) Zinc spraying (Thickness testing)
7. g) Lining and coating (100% visual check, thickness testing randomly)
8. i) Marking and packing (100% visual check)
2. b) Casting (Visual check and weight check)
3. c) Heat treatment (Micro structure)
4. d) Hydrostatic test (Pressure test)
5. e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
6. f) Zinc spraying (Thickness testing)
7. g) Lining and coating (100% visual check, thickness testing randomly)
8. i) Marking and packing (100% visual check)
14) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.

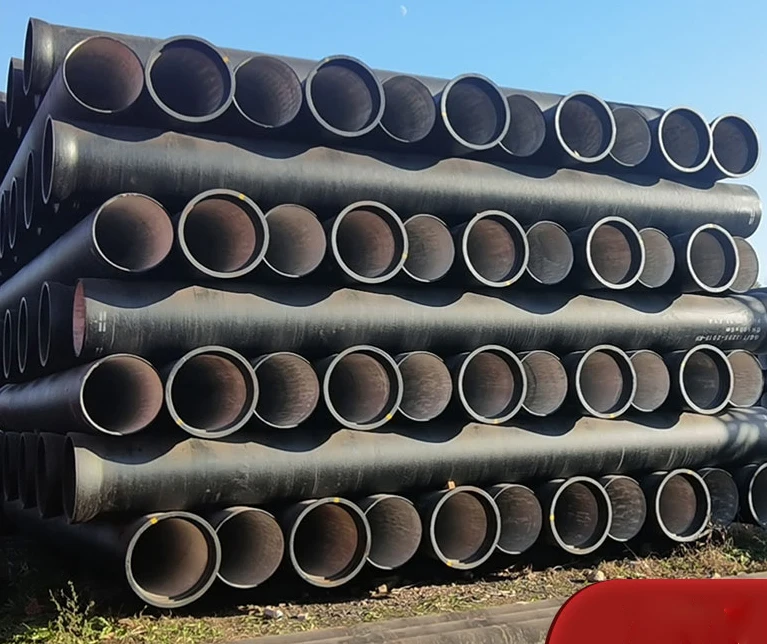

Packing: bundled with steel belts or in bulk
Shipment: in bulk or container
Packing: bundled with steel belts or in bulk
Shipment: in bulk or container
Production Process

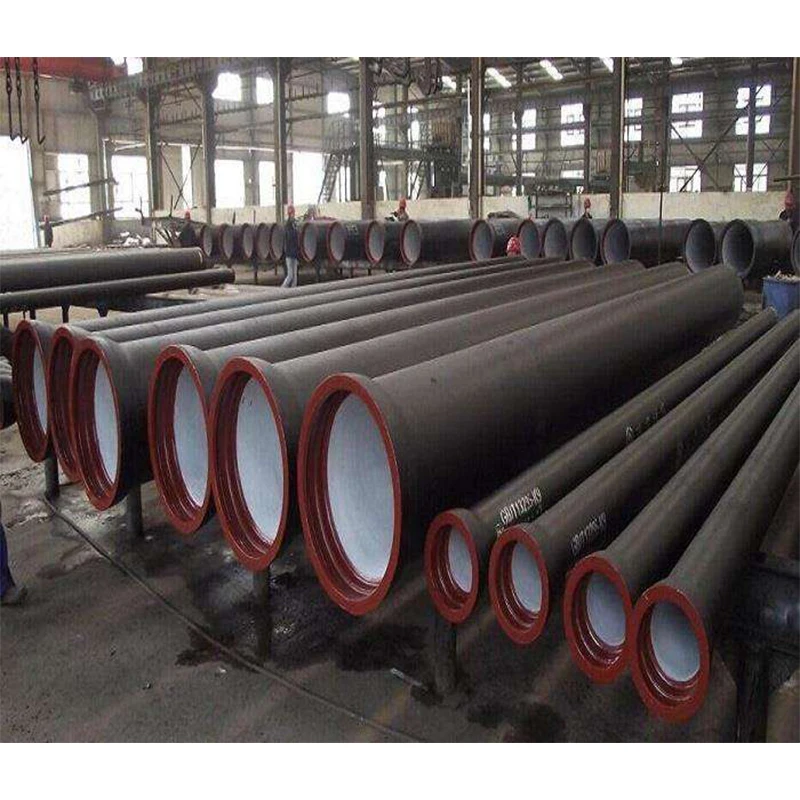

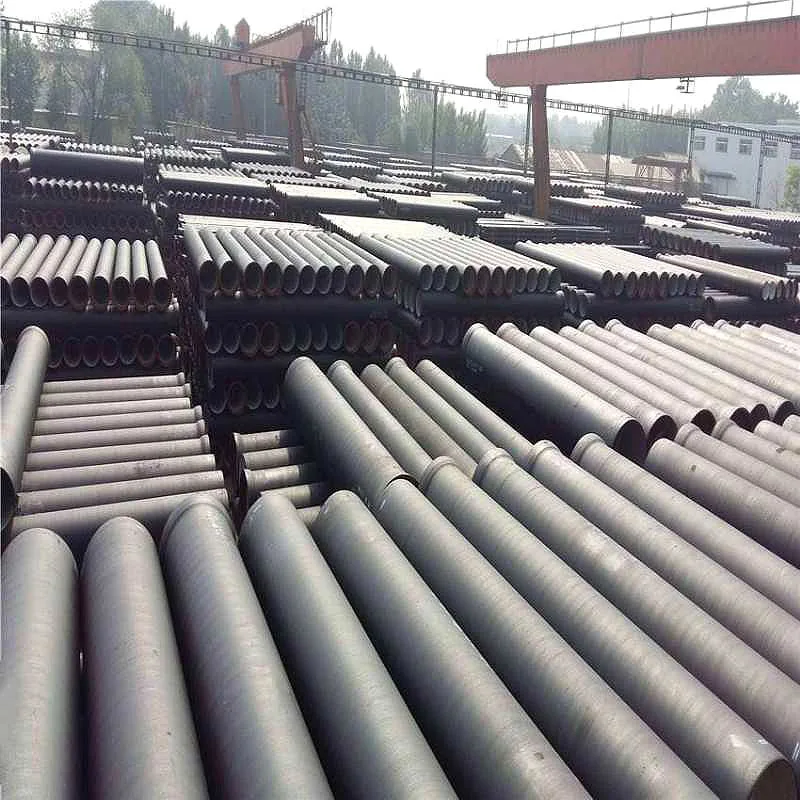

Workshop
Hydrostatic Pressure Test
DN(mm) | Minimum Test Pressure (Bar) | Duration Time | ||||
ISO2531-1998 | ISO2531-2009 | |||||
K<9 | K≥9 | Preferred pressure classes | S | |||
≤300 | 0.5(K+1)2 | 50 | 40 | 10S | ||
350-600 | 0.5K2 | 40 | 30 | 10S | ||
700-1000 | 0.5(K-1)2 | 32 | 25 | 10S | ||
1200-2000 | 0.5(K-2)2 | 25 | 25 | 10S | ||
2200-2600 | 0.5(K-3)2 | 18 | 25 | 10S | ||
Technical Specification
Technical Specification of T Type Joint Ductile Iron Pipe
Packing & Delivery
Project Case
