Производство труб Установка Expans гибкий соединитель трубы Индонезия мягкое расширение соединение концентрический
- Категория: Pipe Fittings >>>
- Поставщик: Henan,Changhong,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9.9 $* | 9.37 $* |
| Jul-16-2025 | 7.94 $* | 7.56 $* |
| Jun-16-2025 | 9.33 $* | 9.18 $* |
| May-16-2025 | 9.28 $* | 9.92 $* |
| Apr-16-2025 | 7.10 $* | 7.24 $* |
| Mar-16-2025 | 9.19 $* | 9.80 $* |
| Feb-16-2025 | 8.69 $* | 8.6 $* |
| Jan-16-2025 | 8.92 $* | 8.46 $* |
Характеристики
TEN Reasons to Choose Us

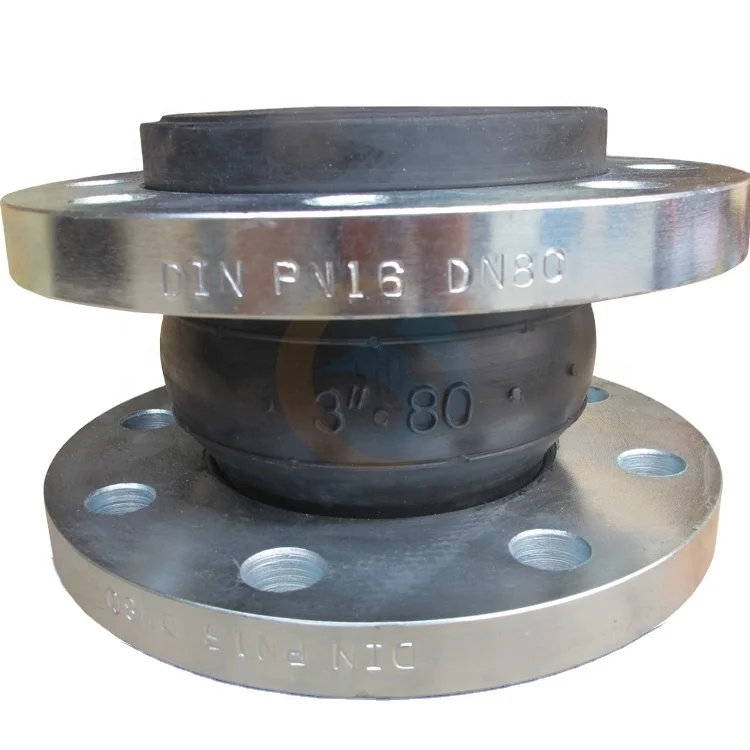

Product Description
Title goes here.
HENANCHANGHONG is one of the leading suppliers of high-quality expansion joint.Designed by the industry’s top experts.
1.Six structure types: single sphere, double sphere, three sphere, pump suction sphere and elbow body. The spherical rubber joint is classified into three types: concentric and same diameter, concentric different diameter and eccentric different diameter.
2. Product Specification:DN20mm-DN3600mm
3. Product Pressure:0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa
4. Level of shock Absorption:A level,shock absorption is very high
5. Product Certification:ISO9001:2008,CE
6. Scope of Application:acid,alkali,corrosion,oil,hot and cold water,compressed natural gas,compressed air
1.Six structure types: single sphere, double sphere, three sphere, pump suction sphere and elbow body. The spherical rubber joint is classified into three types: concentric and same diameter, concentric different diameter and eccentric different diameter.
2. Product Specification:DN20mm-DN3600mm
3. Product Pressure:0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa
4. Level of shock Absorption:A level,shock absorption is very high
5. Product Certification:ISO9001:2008,CE
6. Scope of Application:acid,alkali,corrosion,oil,hot and cold water,compressed natural gas,compressed air
Rubber Material | NBR, EPDM, NR, SBR, CR, IIR,PTFE | |
Flange Material | Stainless Steel, Carbon Steel,Ductile Iron | |
Nominal Diameter | DN25mm-DN3600mm | |
Working Pressure | 0.6-2.5MPa | |
Material | Remarks | Remarks | ||
Outer/inner rubber | EPDM,NBR,CR,PTFE | Select different materials according to the media | ||
Frame | Nylon cord fabric | The density and number of layers determine the pressure | ||
Pressurized ring | Steel wire strand | Prevent pressure bearing deformation from being pulled off | ||
Flange | stainless steel,carbon steel,ductile iron | Choose different materials according to your requirements | ||
DN Nominal diameter | Length(mm) | Axial displacement | Horizontal displacement(mm) | Deflexion angle | ||||||||||
mm | inch | Can Customized | Extension(mm) | Compression(mm) | ||||||||||
32 | 1 1/4 | 95 | 130 | 150 | 6 | 9 | 9 | 15° | ||||||
40 | 1 1/2 | 95 | 130 | 150 | 200 | 6 | 10 | 9 | 15° | |||||
50 | 2 | 105 | 130 | 150 | 7 | 10 | 10 | 15° | ||||||
65 | 2 1/2 | 115 | 130 | 150 | 7 | 13 | 11 | 15° | ||||||
80 | 3 | 130 | 130 | 150 | 8 | 15 | 12 | 15° | ||||||
100 | 4 | 150 | 130 | 10 | 19 | 13 | 15° | |||||||
125 | 5 | 165 | 130 | 150 | 12 | 19 | 13 | 15° | ||||||
150 | 6 | 180 | 130 | 150 | 200 | 12 | 20 | 14 | 15° | |||||
200 | 8 | 210 | 130 | 150 | 200 | 16 | 25 | 22 | 15° | |||||
250 | 10 | 230 | 130 | 150 | 200 | 16 | 25 | 22 | 15° | |||||
300 | 12 | 245 | 130 | 150 | 200 | 16 | 25 | 22 | 15° | |||||
350 | 14 | 255 | 130 | 150 | 200 | 16 | 25 | 22 | 15° | |||||
400 | 16 | 255 | 130 | 150 | 200 | 16 | 25 | 22 | 15° | |||||
450 | 18 | 255 | 200 | 16 | 25 | 22 | 15° | |||||||
500 | 20 | 255 | 200 | 16 | 25 | 22 | 15° | |||||||
600 | 24 | 260 | 200 | 16 | 25 | 22 | 15° | |||||||
700 | 28 | 260 | 16 | 25 | 22 | 15° | ||||||||
800 | 32 | 260 | 16 | 25 | 22 | 15° | ||||||||
900 | 36 | 260 | 16 | 25 | 22 | 15° | ||||||||
1000 | 40 | 260 | 18 | 25 | 22 | 15° | ||||||||
1200 | 48 | 260 | 18 | 26 | 24 | 15° | ||||||||
1400 | 56 | 350 | 20 | 26 | 24 | 15° | ||||||||
1600 | 64 | 350 | 25 | 28 | 26 | 15° | ||||||||
1800 | 72 | 350 | 25 | 35 | 30 | 15° | ||||||||
2000 | 80 | 420 | 25 | 35 | 30 | 15° | ||||||||
2200 | 88 | 420 | 25 | 35 | 30 | 15° | ||||||||
2400 | 96 | 420 | 25 | 35 | 30 | 15° | ||||||||
2600 | 104 | 450 | 25 | 35 | 30 | 15° | ||||||||
2800 | 112 | 450 | 25 | 35 | 30 | 15° | ||||||||
3000 | 120 | 500 | 25 | 35 | 30 | 15° | ||||||||

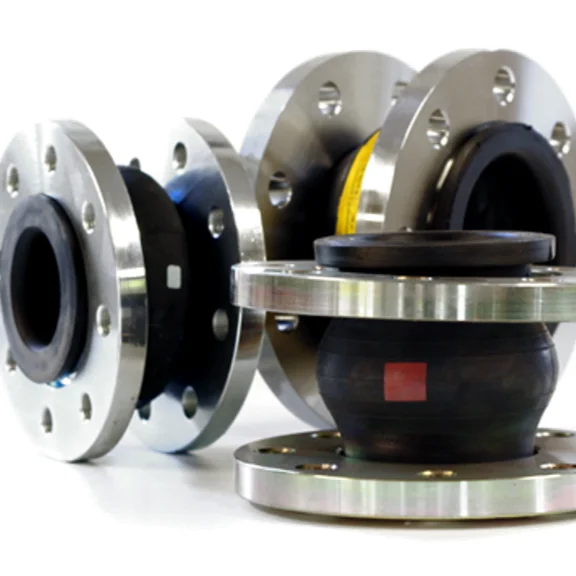

Details Images
Advantage of the Flange
1.No rust,No thin,No sand holes,
2.Flange material:Carbon steel,Low Temp carbon steel,SS,Duples SS,Low Alloy Steel,Cast Iron,Ductile Iron
Advantage of the rubber :
1.More than 55% rubber content
2.Galvanized steel wire and Mult-layer nylon cord fabric
3.Cooper plated steel wire 10 layer of Nylon cord
Advantage of the rubber ball :
1.Have special lengths.
2.No leakage.
3.Rubber material:EPDM,NR,NBR,PTFE material:EPDM,NR,NBR,PTFE,BR4.Above DN100 have the steel wire prevent it from being pulled off

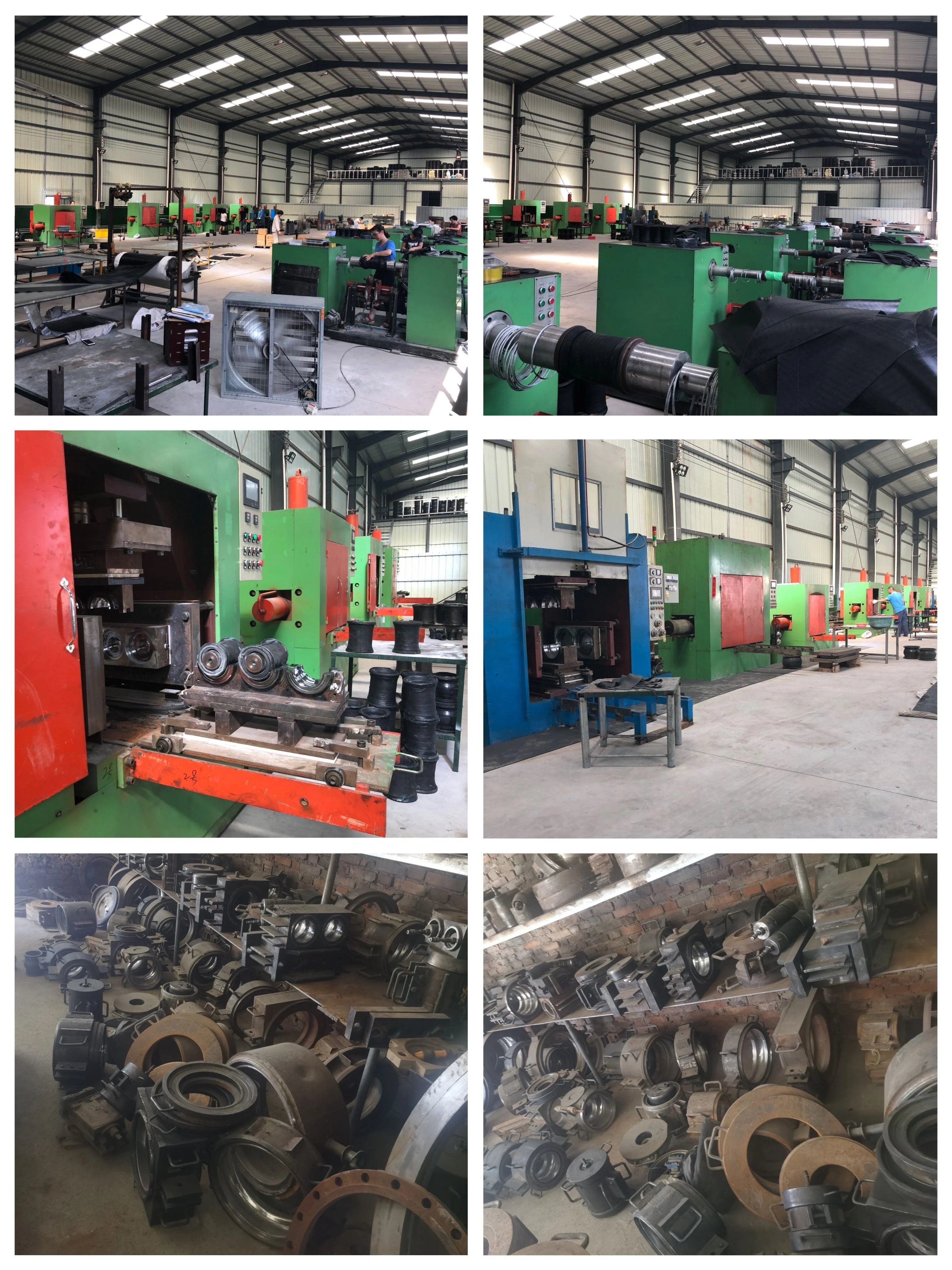

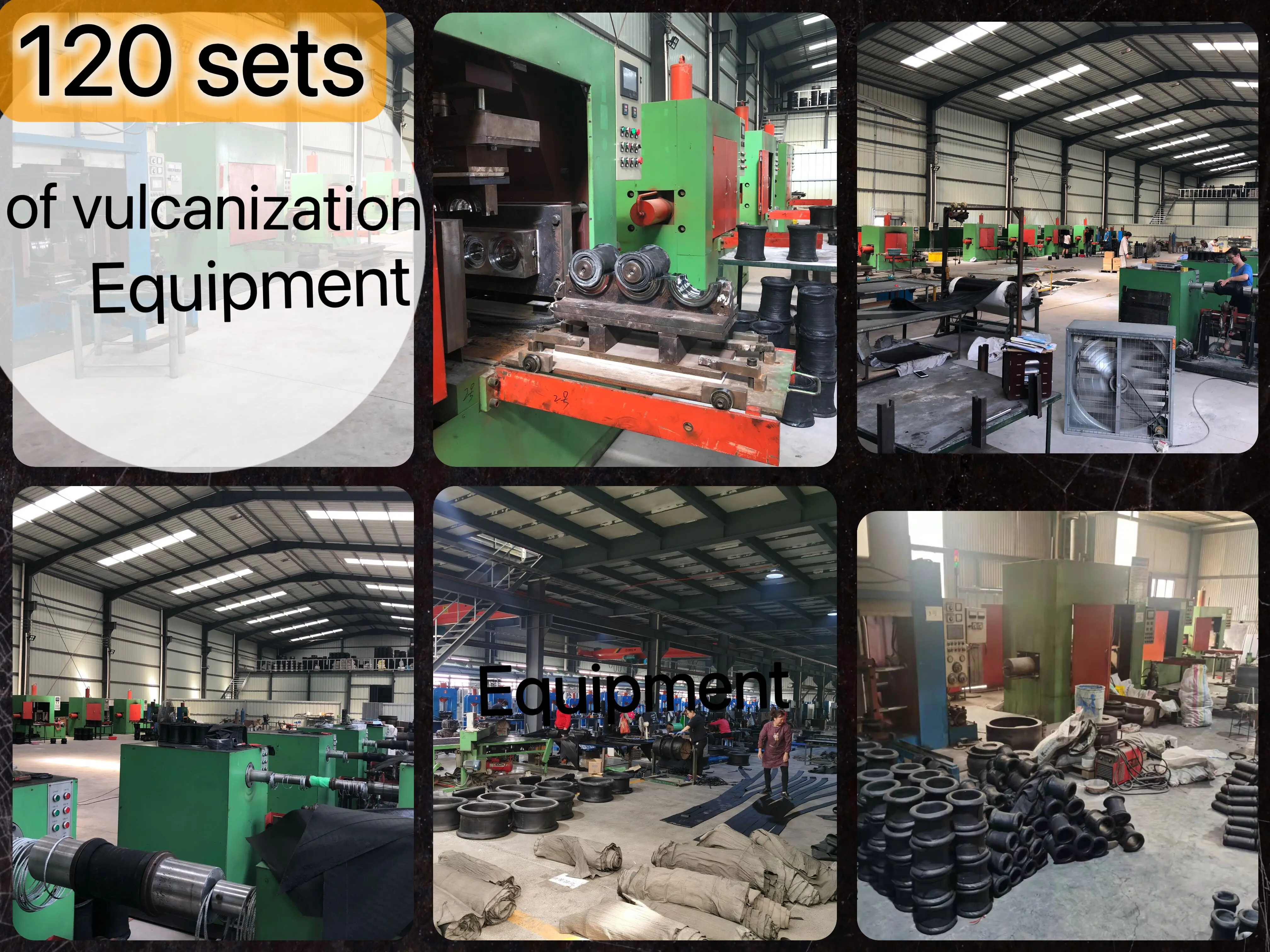

Production
1.Grasp the quality from the source of raw materials, including rubber mixing, molding, vulcanization and testing.
2.Forbidden to use recycled rubber raw material,Real material can be seen
3.We track and test every and record every process. We can track every link of the product.
2.Forbidden to use recycled rubber raw material,Real material can be seen
3.We track and test every and record every process. We can track every link of the product.
Packing & Delivery
Inner package:plastic bag & carton cases one pcs/box
(different size depending on the size )
Outer pacakge :wooden cases (mix packing or every size packing:in usually the size of 1100mm*1100mm*1100mm ,the 20 feet container can hold 18 wooden cases .)
pack all goods in wooden case or pallet and cover it with plastic sheet,to avoid carton damage and rain and container condensation water
(different size depending on the size )
Outer pacakge :wooden cases (mix packing or every size packing:in usually the size of 1100mm*1100mm*1100mm ,the 20 feet container can hold 18 wooden cases .)
pack all goods in wooden case or pallet and cover it with plastic sheet,to avoid carton damage and rain and container condensation water

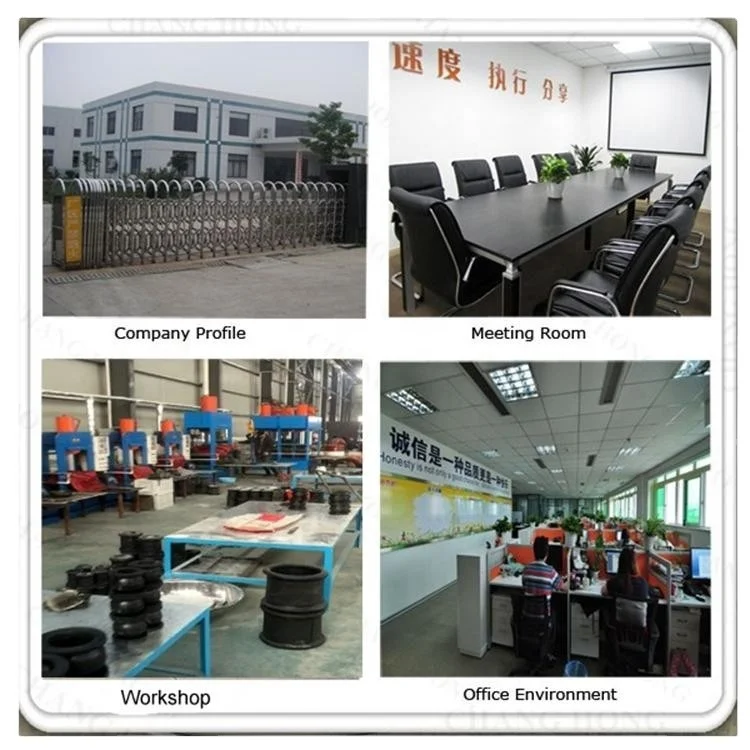

Company Profile
SGS CE WARS ISO
Our valve and pipe fitting department started in 1995, and is our strongest department for export activities. After our company regrouped in 2005, the valve and pipe fitting department built its own factories to strengthen the capability. We mainly manufacture pipe fittings, flanges and valves. Now, our products are PED- and API-certified. Our engineers, with 10 to 30 years of experience, ensure our products' stability and polished surfaces. Our workers are also required to take technical skill training twice a year. SGS, Bureau Veritas and OMIC inspections are welcome.
Customer Photos
FAQ
1. who are we?
We are based in Henan, China, start from 2014,sell to Southeast Asia(36.00%),Mid East(15.00%),North America(14.00%),South Asia(10.00%),Southern Europe(5.00%),Eastern Asia(5.00%),Central America(5.00%),Northern Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Rubber Joint/Metal Expansion Joint/Rubber Duckbill Valve/Dismantling Joint/Repair Clamp/Flange/Pipe Fittings
4. why should you buy from us not from other suppliers?
specialized in expansion joint line .a monthly capacity of 30,000 rubber expansion joint ,valves, 1,000 tons of flanges and 600 tons of pipe fittings. Our products are popular across Europe, the Southeast Asia and Middle East some of our OEM /ODM clients.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2014,sell to Southeast Asia(36.00%),Mid East(15.00%),North America(14.00%),South Asia(10.00%),Southern Europe(5.00%),Eastern Asia(5.00%),Central America(5.00%),Northern Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Rubber Joint/Metal Expansion Joint/Rubber Duckbill Valve/Dismantling Joint/Repair Clamp/Flange/Pipe Fittings
4. why should you buy from us not from other suppliers?
specialized in expansion joint line .a monthly capacity of 30,000 rubber expansion joint ,valves, 1,000 tons of flanges and 600 tons of pipe fittings. Our products are popular across Europe, the Southeast Asia and Middle East some of our OEM /ODM clients.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
