Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
YY1001 ультра-высокой гибкое управление цепной неэкранированный кабель высокоскоростной сервопривода H05VV-F
- Категория: Control Cables >>>
- Поставщик: Guangzhou,Chengjia,Wire&Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.61 $* |
| Aug-19-2025 | 0.23 $* | 0.23 $* |
| Jul-19-2025 | 0.95 $* | 0.13 $* |
| Jun-19-2025 | 0.71 $* | 0.37 $* |
| May-19-2025 | 0.30 $* | 0.24 $* |
| Apr-19-2025 | 0.17 $* | 0.2 $* |
| Mar-19-2025 | 0.40 $* | 0.69 $* |
| Feb-19-2025 | 0.59 $* | 0.52 $* |
| Jan-19-2025 | 0.6 $* | 0.22 $* |
Характеристики
YY1001 Ultra-high flexible control drag chain unshielded cable high-speed servo cable H05VV-F control signal cable
Products Description
10 million times highly flexible PVC sheathed cable, using special PVC as the outer sheath, it is extremely resistant to oil and coolant, can be used in humid environments, but can not be used outdoors, the special structure and PVC synthetic materials make the cable durable Working life. Widely used in sensor technology, computer systems and control equipment of measurement control technology; the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The outer sheath color is black, other colors is available
Product Feature
Technical Parameter
Standard | Comply with EU RoHS and Reach regulations | ||||||
Conductor | adopts high-quality tinned copper stranded copper wire | ||||||
Insulation material | Special PVC sheath with high flexibility | ||||||
Temperature range: | Mobile installation -5 °C to +70°c Fixed installation -15 °C to +80°c | ||||||
Insulation resistance: | Minimum 20 MOhm x km | ||||||
Outer sheath | Modified PVC mate | ||||||
Minimum bending radius: | Mobile installation 7.5×cable diameter Fixed installation 6×cable diameter | ||||||
Nominal voltage | Uo/U 300/300 V | ||||||
Test voltage | 1500 V | ||||||
Application: | It is especially suitable for continuous ultra-high flexibility and high-speed towline bending applications of mechanical equipment and machine tools. The ultra-high flexible cable uses specially modified insulating materials and outer covering materials, which have high abrasion resistance and medium resistance, and can withstand long-term acceleration, deceleration, tensile and compressive stress, and more than ten million cycles of periodic bending , And always maintain high stability. | ||||||

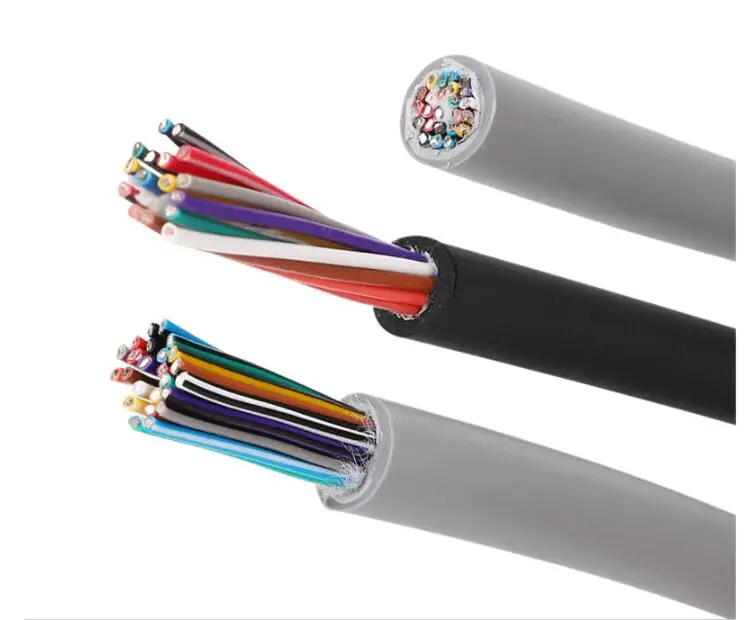

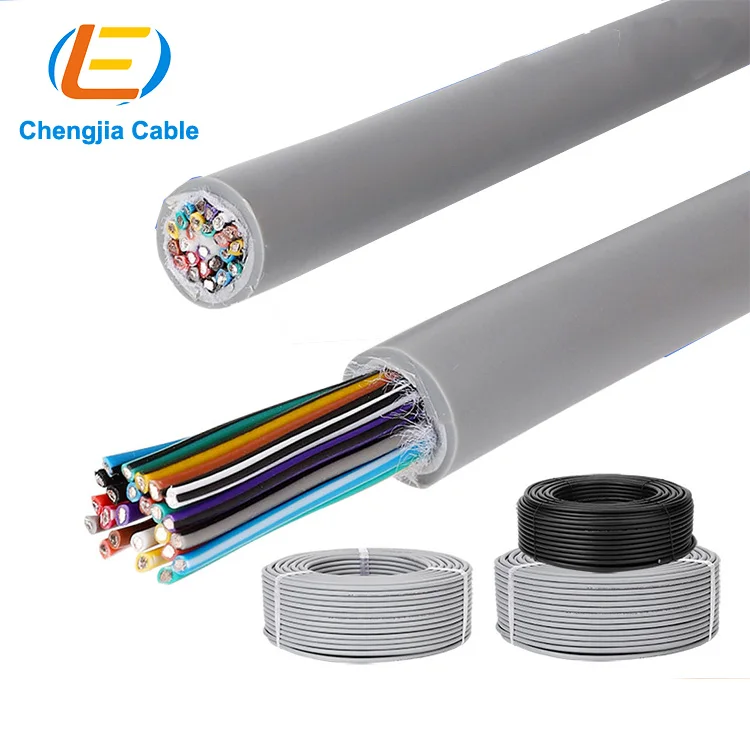

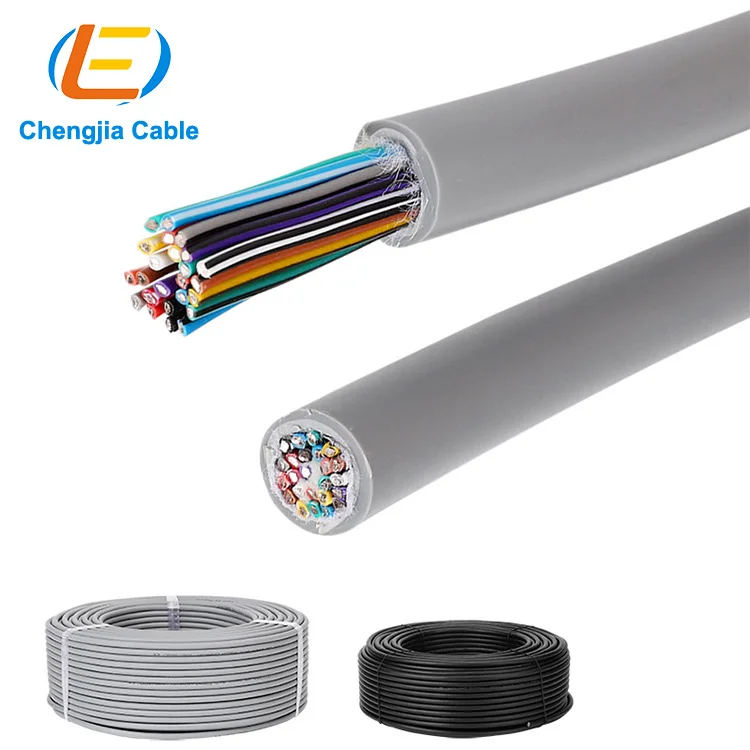

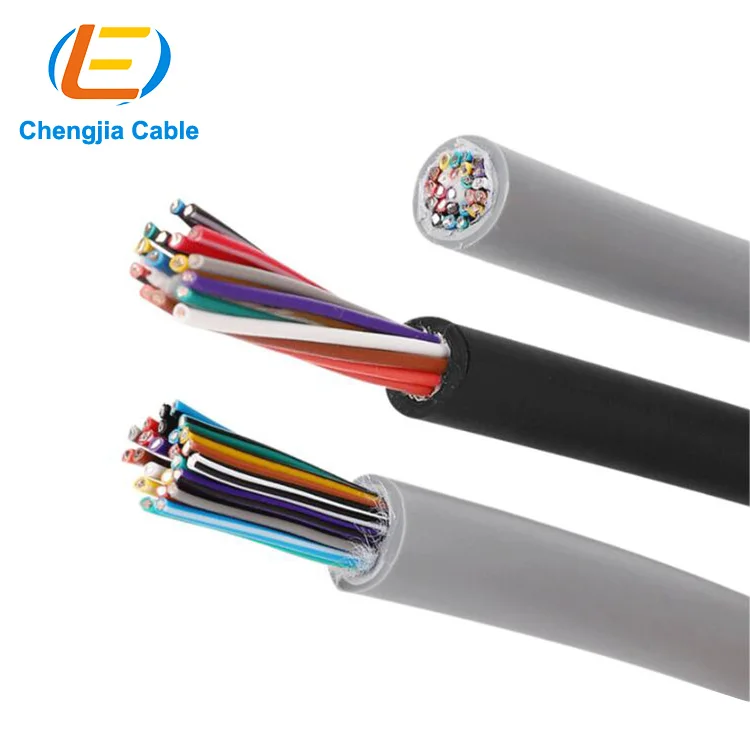

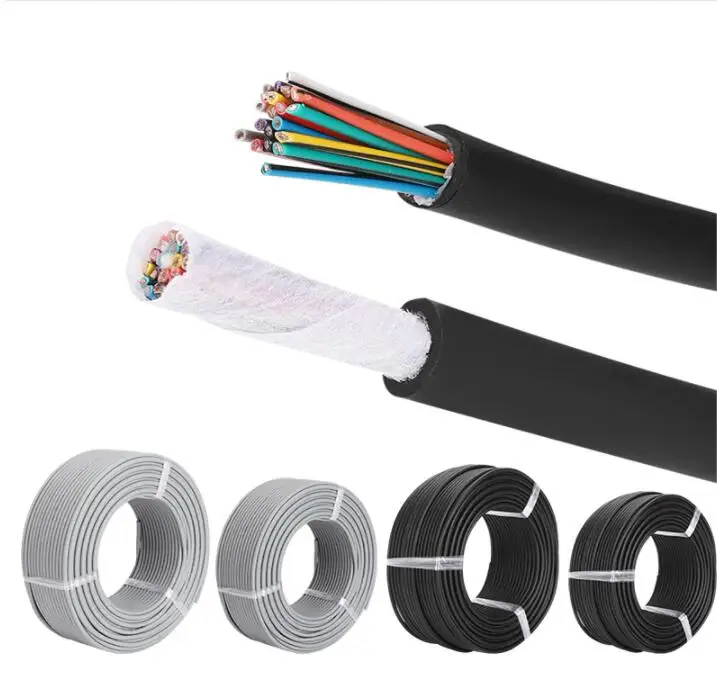

Cable Structure
Control Cable Structure
1. Bare copper conductor, ultra-fine copper wire
Comply with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Black core wire, with continuous white digital code, yellow-green ground wire on the outer layer (3 cores and above)
4. The wire core is stranded in layers with the best pitch
5. Special PVC outer sheath
6. Gray (RAL 7001) matte
Comply with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Black core wire, with continuous white digital code, yellow-green ground wire on the outer layer (3 cores and above)
4. The wire core is stranded in layers with the best pitch
5. Special PVC outer sheath
6. Gray (RAL 7001) matte
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
FAQ
Q Are you a manufacturer or a trading company?
A We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
