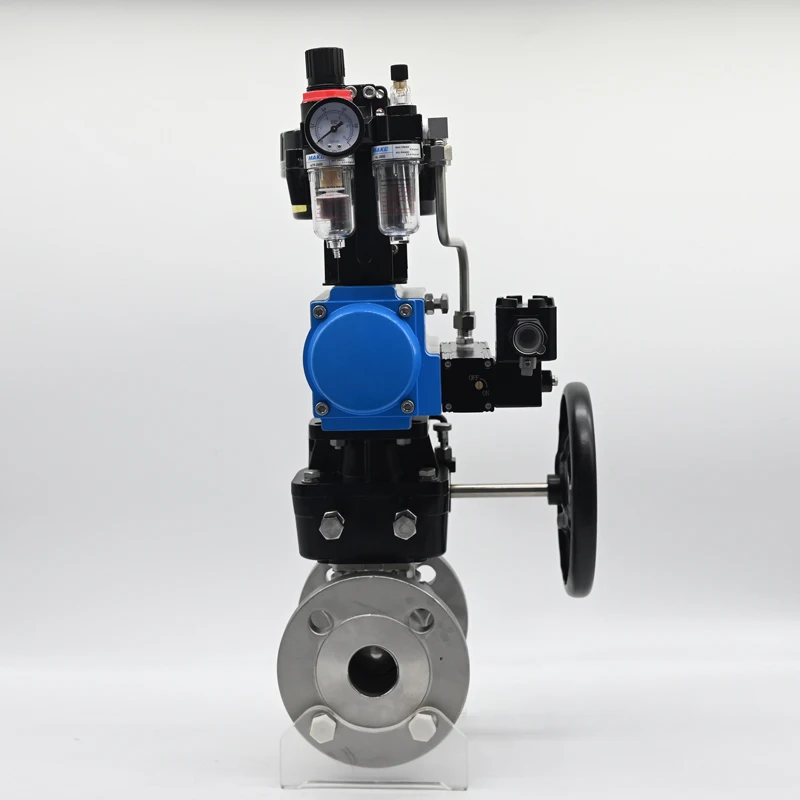

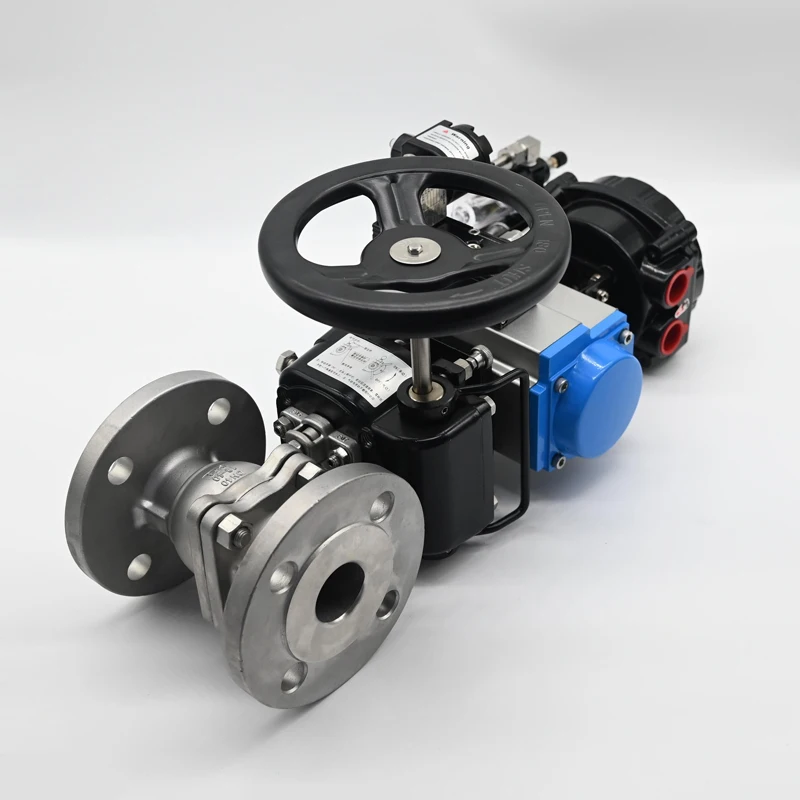

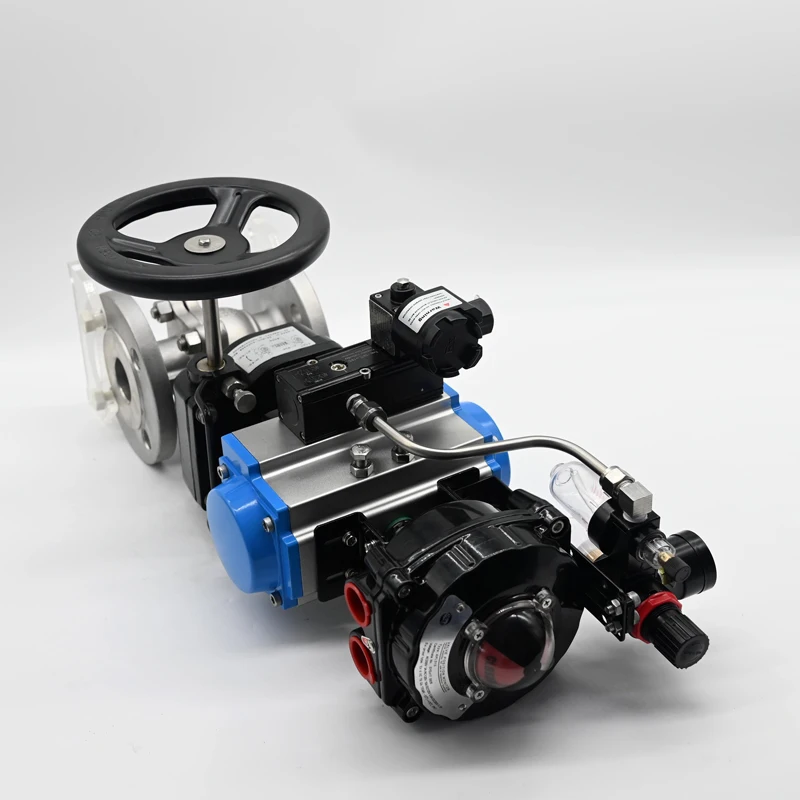

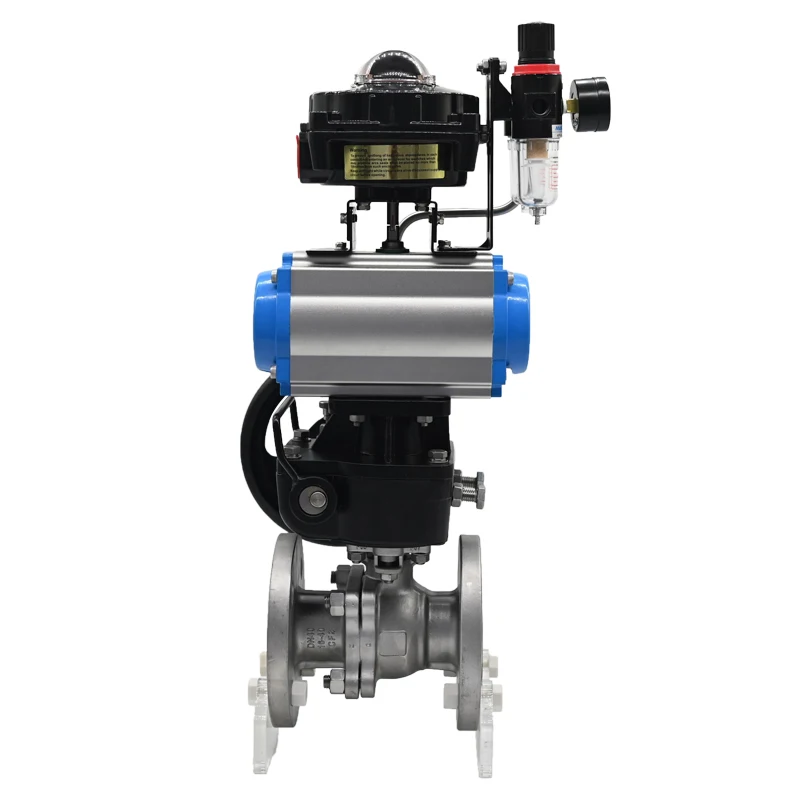

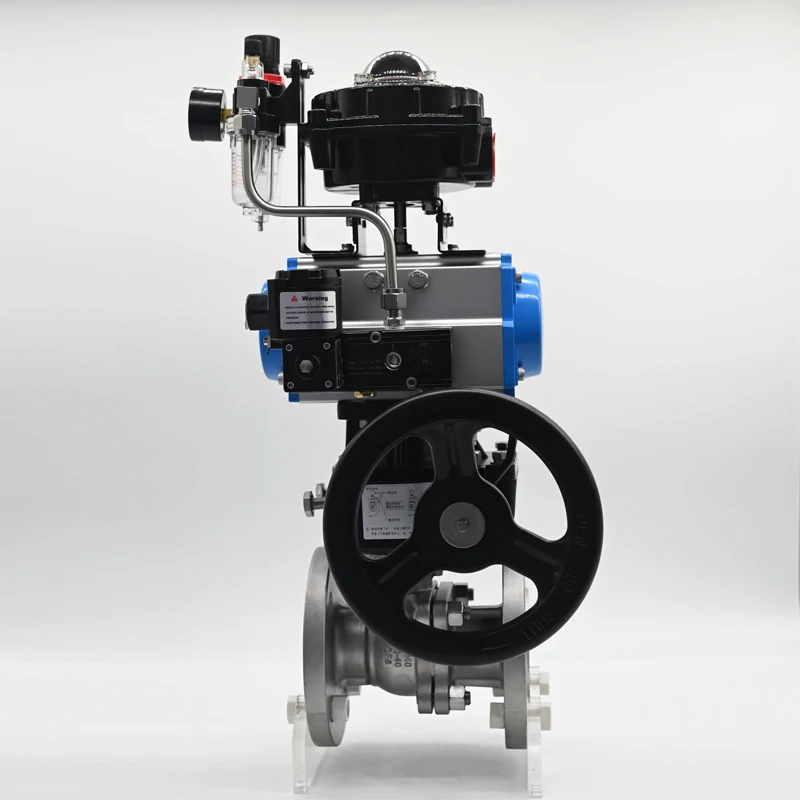

JTAIV заводская настройка DN15-DN200 управление жидкостью водяным газом и маслом пневматический фланцевый шаровой
- Категория: Valves >>>
- Поставщик: Zhejiang,Jiutai,Valve,Co.,Ltd.Zhejiang,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.39 $* | 0.94 $* |
| Aug-19-2025 | 0.52 $* | 0.6 $* |
| Jul-19-2025 | 0.77 $* | 0.89 $* |
| Jun-19-2025 | 0.22 $* | 0.68 $* |
| May-19-2025 | 0.37 $* | 0.21 $* |
| Apr-19-2025 | 0.18 $* | 0.49 $* |
| Mar-19-2025 | 0.5 $* | 0.99 $* |
| Feb-19-2025 | 0.49 $* | 0.18 $* |
| Jan-19-2025 | 0.62 $* | 0.75 $* |
Характеристики
Product Description
item | value |
Warranty | 1 year |
Type | Pneumatic Butterfly Valves |
Customized support | OEM, ODM |
Place of Origin | China |
Zhejiang | |
Brand Name | JTAIV |
Model Number | Q641F-16P |
Application | General |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
Power | Pneumatic |
Media | water, oil, gas, acid |
Structure | BALL |
1.Operating media:
Dry orlubricated air, or the non-corrosive gassesthemaximum particle diameter mustless than 30μm
2.Air supply pressure:
The Min supply pressure is 3 BarThe Max supply pressure is 8 Bar
3.Operating temperature:
Standard:-20°C~+80C
Lowtemperature:-40°C~+80°C
High temperature:-20°C~+160°C
4.Travel adjustment:
Have adjustment range of ±5 for the rotation at O°and 90°
5.Useoccasions:
Indoor or outdoor
Dry orlubricated air, or the non-corrosive gassesthemaximum particle diameter mustless than 30μm
2.Air supply pressure:
The Min supply pressure is 3 BarThe Max supply pressure is 8 Bar
3.Operating temperature:
Standard:-20°C~+80C
Lowtemperature:-40°C~+80°C
High temperature:-20°C~+160°C
4.Travel adjustment:
Have adjustment range of ±5 for the rotation at O°and 90°
5.Useoccasions:
Indoor or outdoor
Double acting
Air supply connection is designed in accordancewith NAMUR Standard to install solenoid valves.
Indicator cover
The Namur drive pinion and the Namur top mountingconnection permit direct installation of accessoriessuch as limit switch box and positioner.
Bottom connection mode
Bottom mounting connection is designed in accordancewith ISO5211 and DIN3337 standards for direct mountingwith valve gear boxes or mounting brackets
Compressed air is input from port A to make the left
and right pistonsmove in opposite directions,
The output shaft rotates counterclockwiseto open the valve
and air on the sides of the two pistonsExcluded byport B.
and right pistonsmove in opposite directions,
The output shaft rotates counterclockwiseto open the valve
and air on the sides of the two pistonsExcluded byport B.
Compressed air is input from port B to make the left and rightpistons move in opposite directions,The output shaft rotatesclockwise to close the valve and the sides of the two pistonsare empty.Gas is removed from port A
Compressed air is input from port A to make the left
and right pistonsmove in opposite directions,
The output shaft rotates counter clockwiseto open the valve and air on the sides of the two pistonsExcluded byport B.
and right pistonsmove in opposite directions,
The output shaft rotates counter clockwiseto open the valve and air on the sides of the two pistonsExcluded byport B.
When losing air or power, the center of the two pistons
moves dueto the action of the spring, and the output Clockwise, close the valvethe air will be discharged from port A, and the intake of port B canaccelerate Close the valve.
moves dueto the action of the spring, and the output Clockwise, close the valvethe air will be discharged from port A, and the intake of port B canaccelerate Close the valve.
