Промышленный Электрический ультразвуковой вибратор из

Промышленный Электрический ультразвуковой вибратор из

Категория: Mining Machinery >>>
Поставщик: Xinxiang,Zhongnuo,Mechanical,Equipment,Company

Цена:3 960,00 $ - 4 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4712.3 $*	4948.67 $*
Aug-19-2025	4673.29 $*	4907.0 $*
Jul-19-2025	3920.65 $*	4116.39 $*
Jun-19-2025	4594.15 $*	4824.67 $*
May-19-2025	4000.25 $*	4200.54 $*
Apr-19-2025	4514.21 $*	4740.19 $*
Mar-19-2025	4475.7 $*	4699.36 $*
Feb-19-2025	4435.90 $*	4657.77 $*
Jan-19-2025	4396.95 $*	4616.46 $*

Характеристики

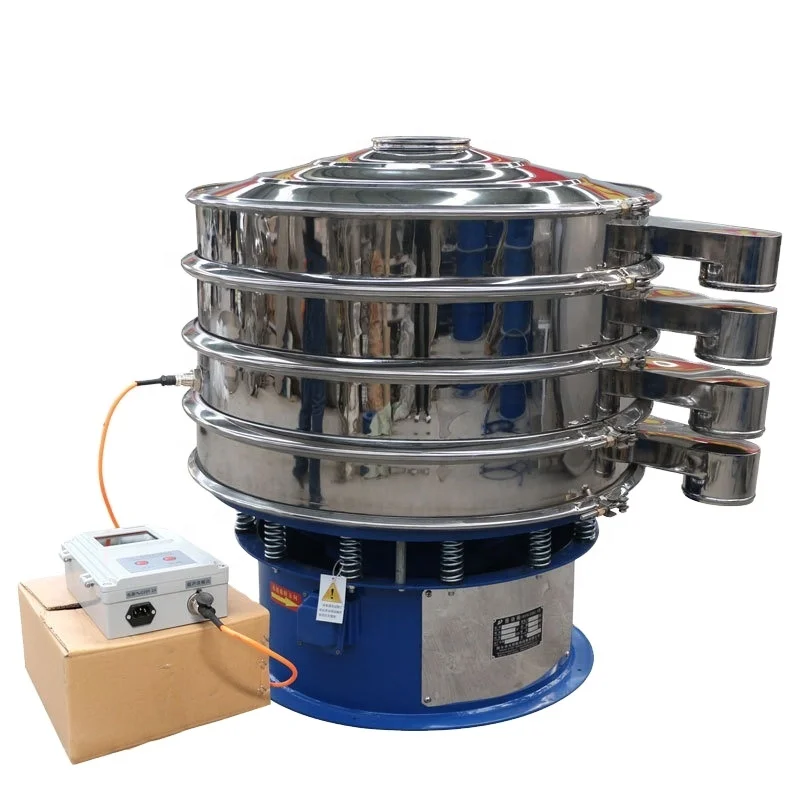

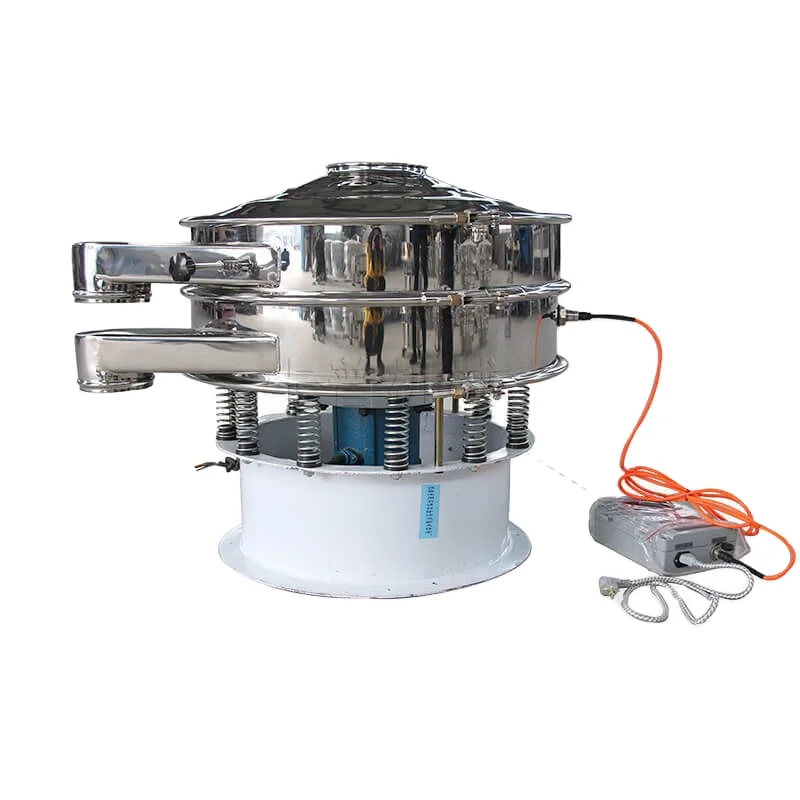

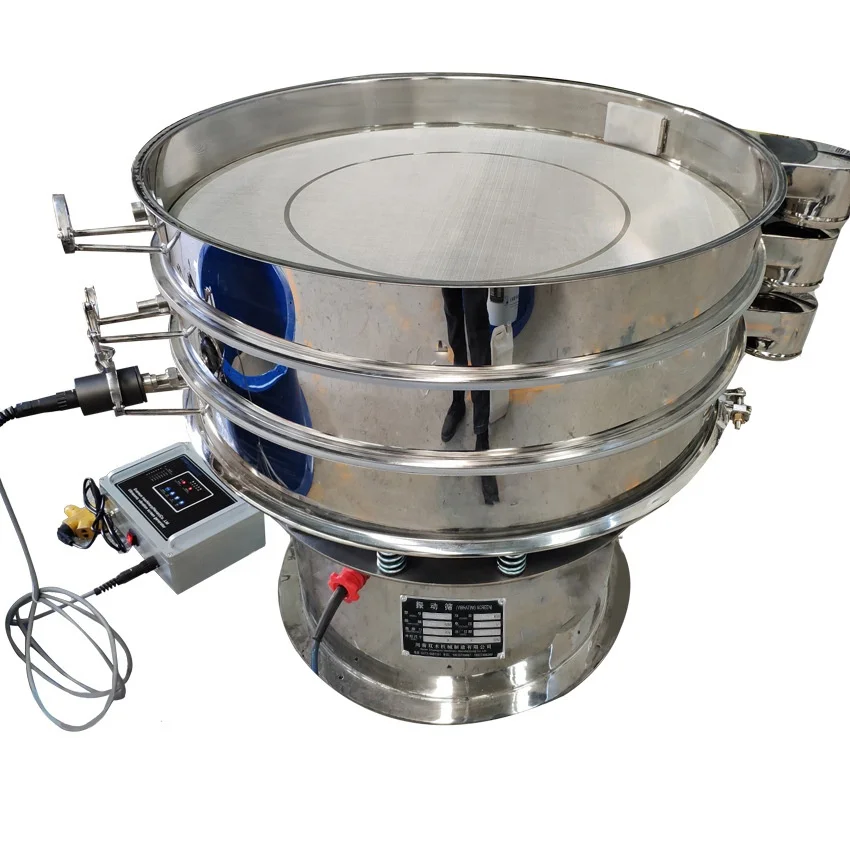

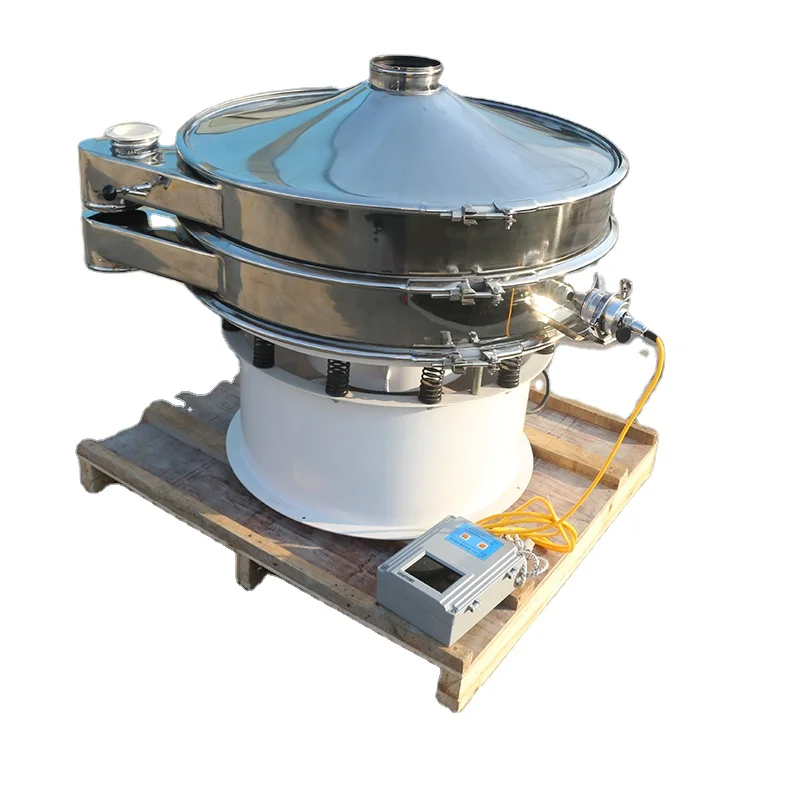

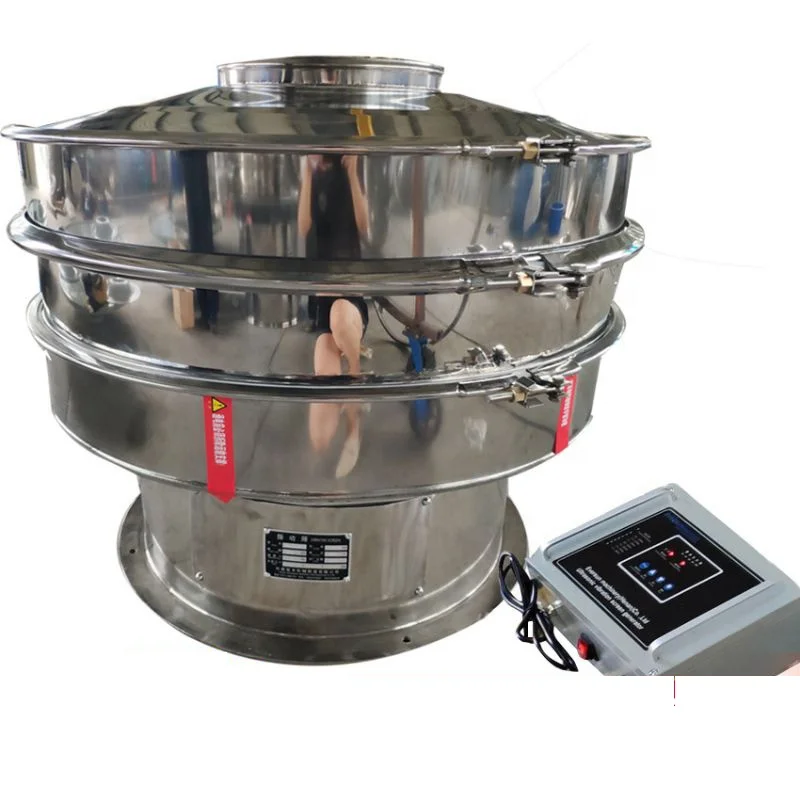

Stainless Steel Industrial Electric Ultrasonic Vibro Sifter

Products Description

Stainless Steel Industrial Electric Ultrasonic Vibro Sifter is able to convert electric energy with 220V,50Hz or 110V,60Hz into high-frequency electric energy with 18KHz and then puts it into ultrasonic energy exchanger to make it change into mechanical vibration with 18KHz and attains the purpose. Ultrasonic screening machine is suitable for the users who demand the high additional value and fine powder with high-efficiency sieve and cleaning mesh, which makes it easy to sieve the superfine powder. This system uses a low amplitude, high frequency ultrasonic vibrating wave(mechanical wavejon the sieve mesh by the traditional vibrating sieve to improve the sieving abilities of superfine powder.

1. High efficiency screening

Solve the screening problems caused by static, reunionsuper fine powder,screening strong absorbent materials.

2. Fine powder screening

Superfine powder sieving and screening up to 625 mesh.

3. High screening accuracy

Screening accuracy can be improved by 80%.Capacity can be improved 50%.

4. Easy to install

Single-layer or multi-layers screening..Simple structure, low noisy. Easy to install and maintain, save the cost.

5.Upgrade ultrasonic net rack

Can replacement mesh size. Ultrasonic system cleaning screen mesh.

6.Without blocking

220v, 50hz electric energy is converted into 36kh mechanical vibration.Achieved the effect of rapid screening and net cleaning.

Working Principle

Specification

Model	Effective screening diameter （mm)	Screen mesh size range	No. of layers	Power (kw)
ZN-400	340	100-625 mesh	1-3 layers	0.18
ZN-600	540				0.25
ZN-800	730				0.55
ZN-1000	910				1.1
ZN-1200	1100				1.1
ZN-1500	1400				1.5
ZN-1800	1700				2.2

Application Industry

Ultrasonic vibrating screening machine on Site

Packing & Delivery

Company Profile

Customer Photos

FAQ

Pls provide the following information and we can choose the suitable model for you:
1. what 's the material name, the density(kg/m3)?
2. the necessary capacity you required(per hour)?
3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel,the other parts is carbon steel.
4. the dimension of the machine can be designed for you.
5. the mesh size you need? or the particles size?
6. Pls inform the voltage&frequency in your city.
