Комплект для электровелосипеда MXUS XF15F XF15R XF07 XF08 36 В 48 350 Вт
- Категория: Electric Bicycle Part >>>
- Поставщик: Guangxi,Bernee,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.71 $* |
| Aug-19-2025 | 0.10 $* | 0.93 $* |
| Jul-19-2025 | 0.24 $* | 0.77 $* |
| Jun-19-2025 | 0.62 $* | 0.69 $* |
| May-19-2025 | 0.43 $* | 0.42 $* |
| Apr-19-2025 | 0.71 $* | 0.33 $* |
| Mar-19-2025 | 0.23 $* | 0.32 $* |
| Feb-19-2025 | 0.38 $* | 0.75 $* |
| Jan-19-2025 | 0.16 $* | 0.53 $* |
Характеристики
Specification
Product name | Bike Hub Motor Brushless |
Motor Type | Hub Wheel Motor |
Power | 250/360w/500W |
Voltage | 36/48v |
Model: MXUS XF07
Rated Voltage(V):36V
Rated Power(W):250W
Wheelsize(inch):16-28inch
Rated Speed(km/h):25-28km/h
Reduction Ratio:1:4.4
Weight(KG):3
Spoke: 36 hole spoke 12G/13G
Position: Rear
Construction: Gear
Dropout/ Open Size(mm):100mm
Magnet Poles(2p):10
Brake Type: V/Disk Brake
Freewheel:6S-9S
Cabling Route: Shaft center Right
Operating Temperature(℃）-20-45℃
Efficiency(%):≥78%
Noise Grade(DB) ＜55
IP Grade:IP65
Salt Spray Test Standard(h) 96
Surface Color :Black
Rated Voltage(V):36V
Rated Power(W):250W
Wheelsize(inch):16-28inch
Rated Speed(km/h):25-28km/h
Reduction Ratio:1:4.4
Weight(KG):3
Spoke: 36 hole spoke 12G/13G
Position: Rear
Construction: Gear
Dropout/ Open Size(mm):100mm
Magnet Poles(2p):10
Brake Type: V/Disk Brake
Freewheel:6S-9S
Cabling Route: Shaft center Right
Operating Temperature(℃）-20-45℃
Efficiency(%):≥78%
Noise Grade(DB) ＜55
IP Grade:IP65
Salt Spray Test Standard(h) 96
Surface Color :Black
Model: MXUS XF08
Rated Voltage(V):36V
Rated Power(W):250W
Wheelsize(inch):16-28inch
Rated Speed(km/h):25-28km/h
Reduction Ratio:1:4.4
Weight(KG):3
Spoke: 36 hole spoke 12G/13G
Position: Rear
Construction: Gear
Dropout/ Open Size(mm):135mm
Magnet Poles(2p):10
Brake Type: V/Disk Brake
Freewheel:6S-9S
Cabling Route: Shaft center Right
Operating Temperature(℃）-20-45℃
Efficiency(%):≥78%
Noise Grade(DB) ＜55
IP Grade:IP65
Salt Spray Test Standard(h) 96
Surface Color :Black
Rated Voltage(V):36V
Rated Power(W):250W
Wheelsize(inch):16-28inch
Rated Speed(km/h):25-28km/h
Reduction Ratio:1:4.4
Weight(KG):3
Spoke: 36 hole spoke 12G/13G
Position: Rear
Construction: Gear
Dropout/ Open Size(mm):135mm
Magnet Poles(2p):10
Brake Type: V/Disk Brake
Freewheel:6S-9S
Cabling Route: Shaft center Right
Operating Temperature(℃）-20-45℃
Efficiency(%):≥78%
Noise Grade(DB) ＜55
IP Grade:IP65
Salt Spray Test Standard(h) 96
Surface Color :Black
Model: MXUS XF15F/ XF15R
Rated Voltage(V) :36/48
Rated Power(W): 36V 350W / 48V 500W
Wheel Size (inch) :16''18''20''22''24''26''27.5''700C
RPM :340-440
Rated Speed(km/h) :25-32/30-35
Rated Efficiency(%) :>=80
Reduction Ratio:1:05
Weight(KG):3.5
Open Size(mm):100/135-142/145
Drive and Freewheel:N/6-9S/7S-11S
Cable Location:shaft center right
Spokes Specification:12G/13G
Hallsensor:Yes
Integrate speed sensor:Yes
Surface:Black
Brake type:V/Disc brake
Salt fog test:24/96
Noise(db):<55db
Waterproof Grade:IP54
Rated Voltage(V) :36/48
Rated Power(W): 36V 350W / 48V 500W
Wheel Size (inch) :16''18''20''22''24''26''27.5''700C
RPM :340-440
Rated Speed(km/h) :25-32/30-35
Rated Efficiency(%) :>=80
Reduction Ratio:1:05
Weight(KG):3.5
Open Size(mm):100/135-142/145
Drive and Freewheel:N/6-9S/7S-11S
Cable Location:shaft center right
Spokes Specification:12G/13G
Hallsensor:Yes
Integrate speed sensor:Yes
Surface:Black
Brake type:V/Disc brake
Salt fog test:24/96
Noise(db):<55db
Waterproof Grade:IP54
Product Description
XF07 Front motor 36V 250W drawing
XF08 Rear Thread Motor 36V 250W Drawing
XF08 Cassette Rear Motor 36V 250W Drawing
XF15F front motor 36V 350W/ 48V 500W
XF15R rear thread motor 36V 350W/ 48V 500W
XF15F front motor 36V 350W/ 48V 500W drawing
XF15R rear motor 36V 350W/ 48V 500W drawing

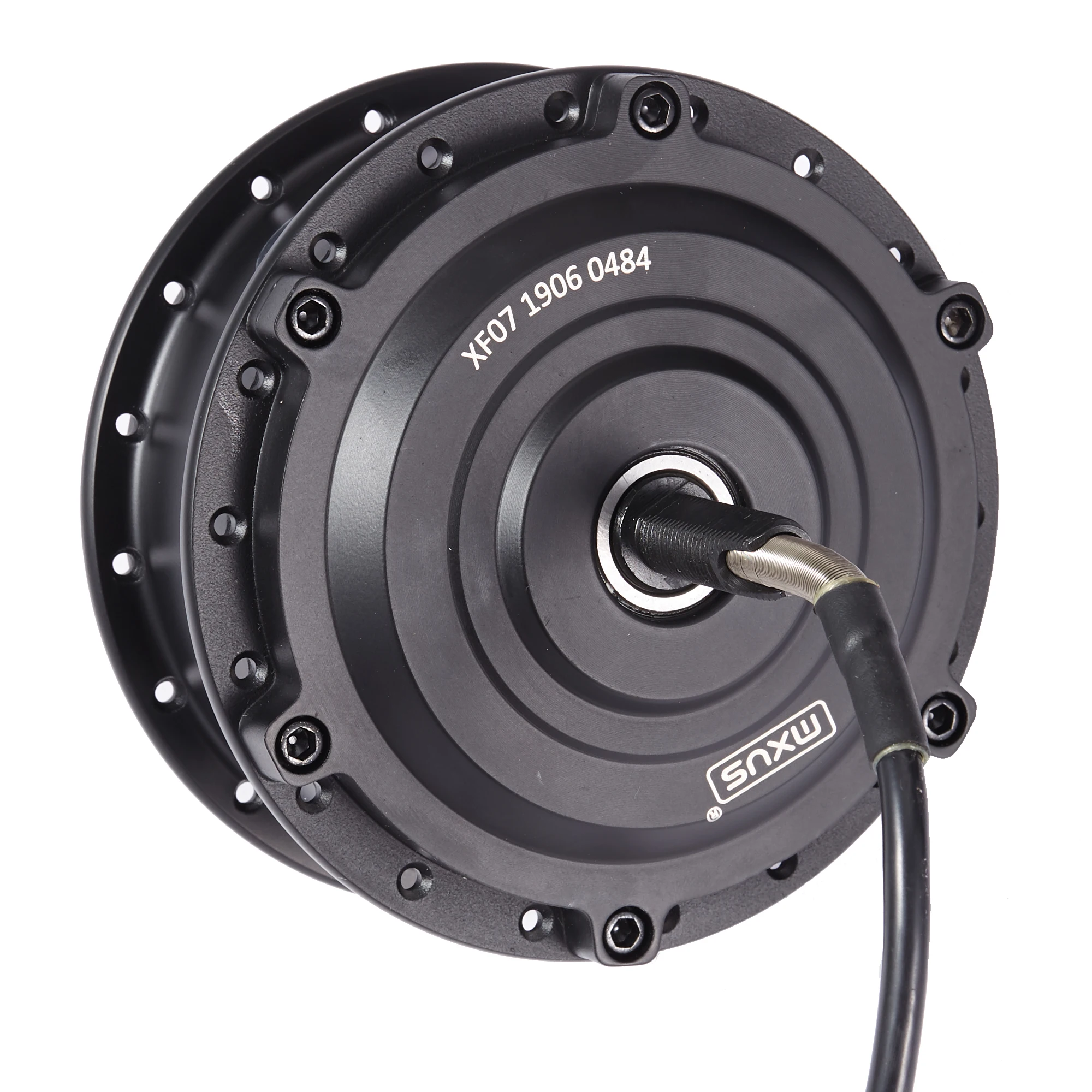

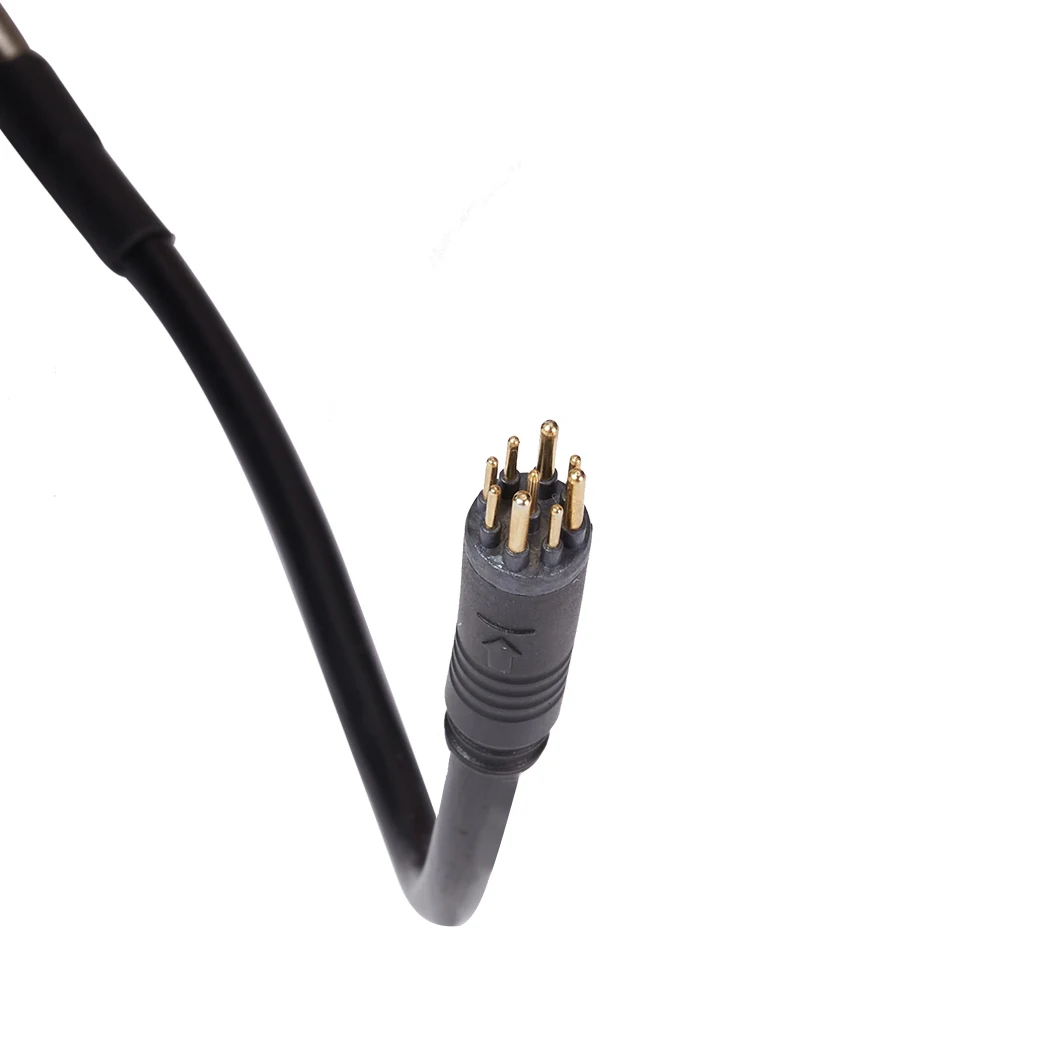

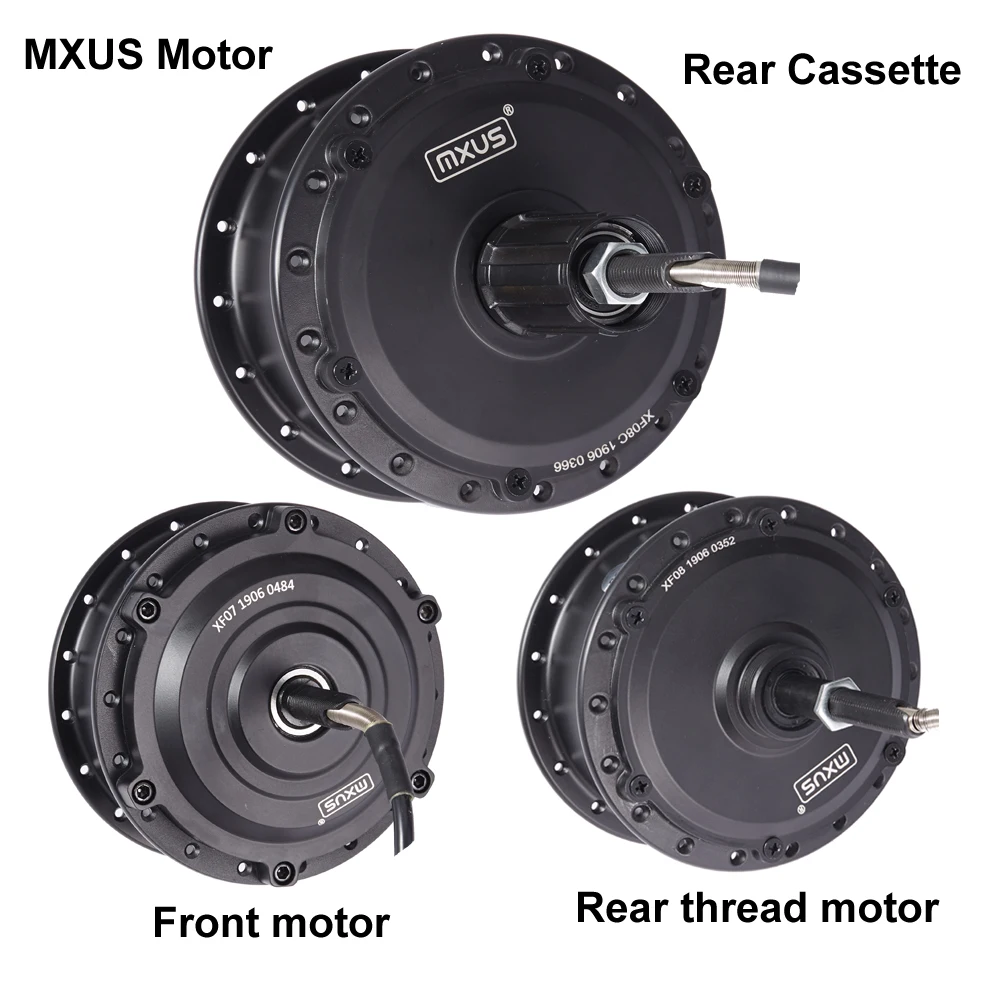

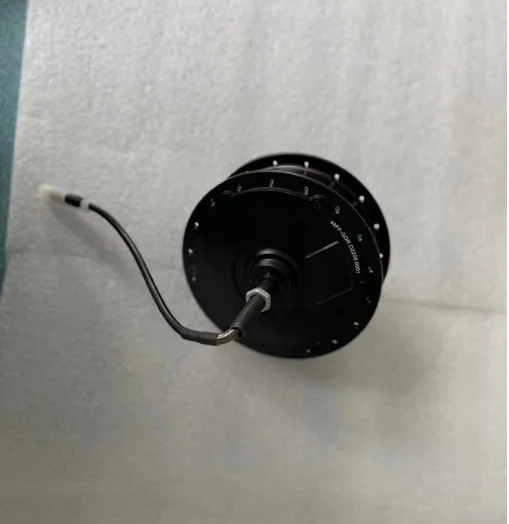

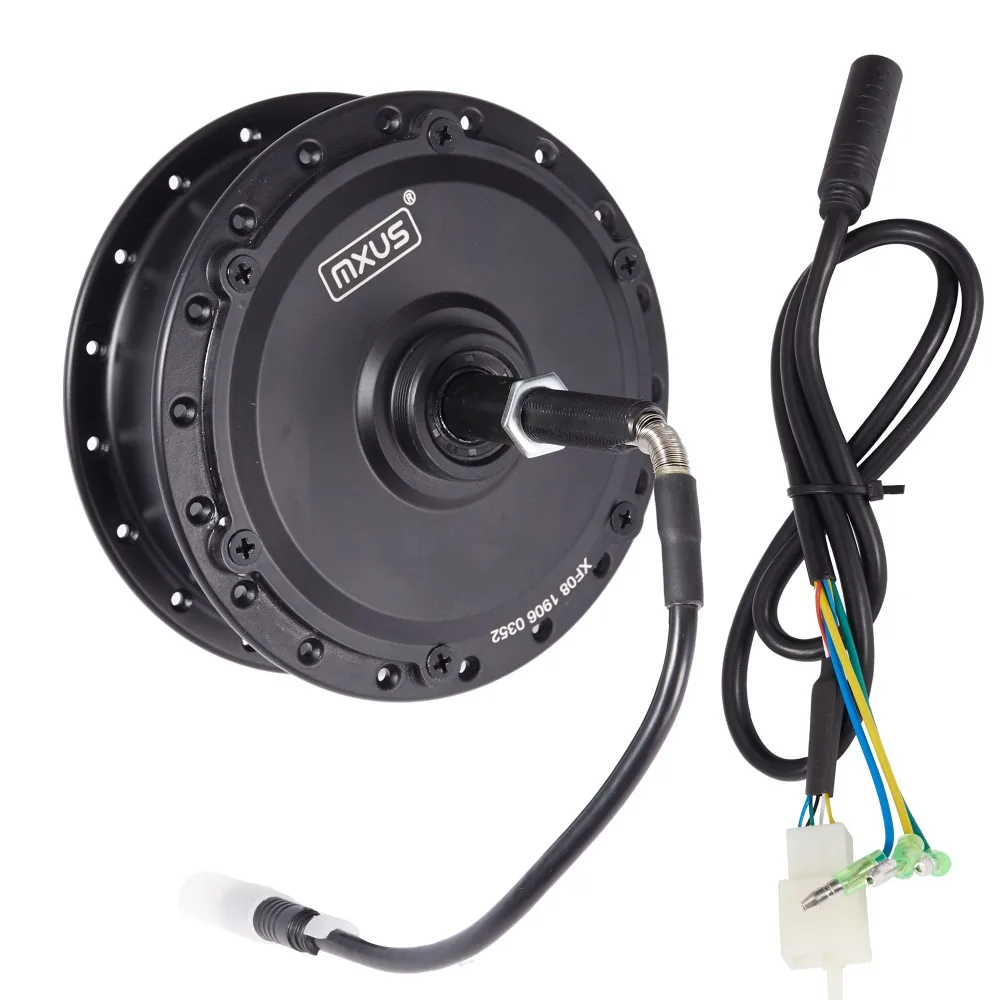

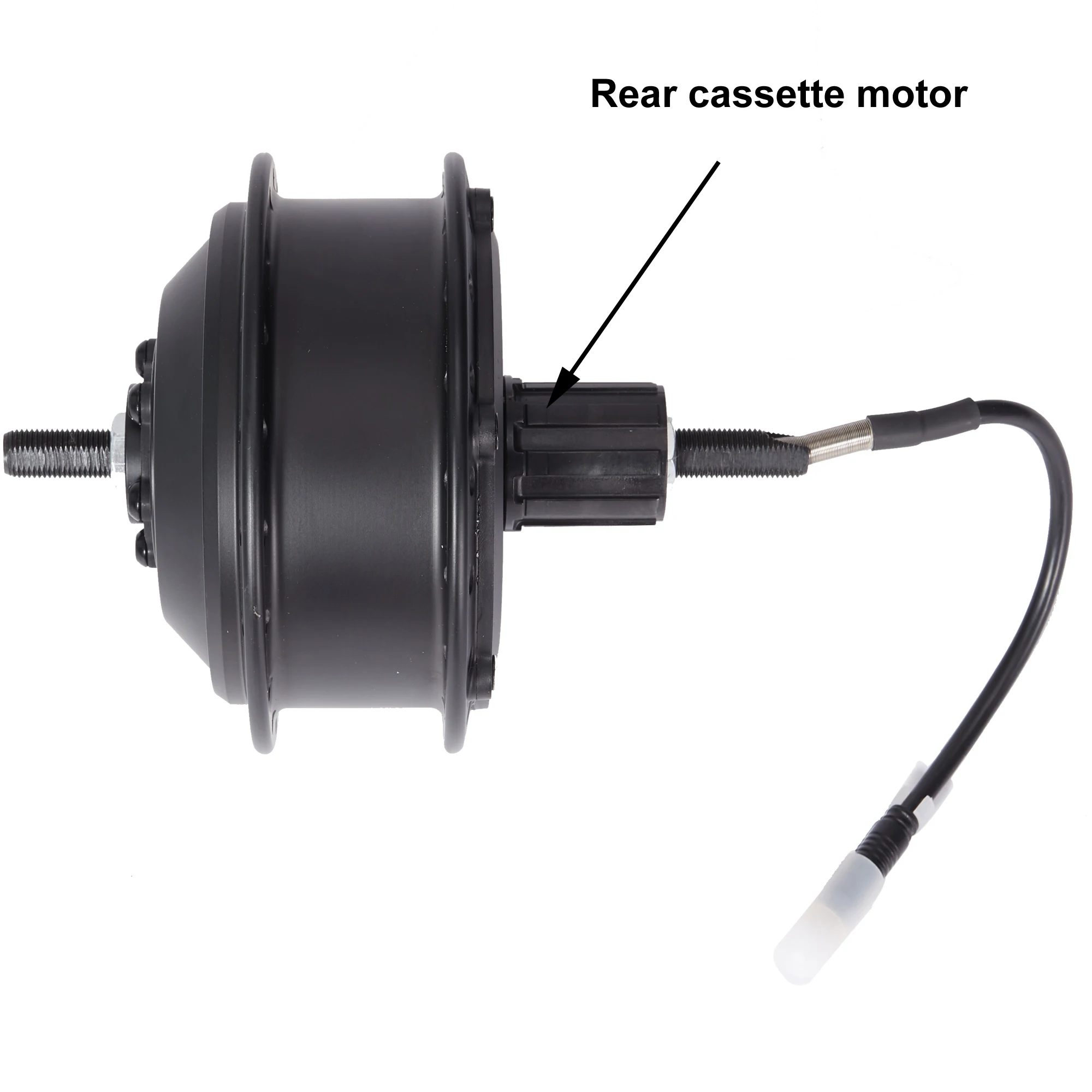

Product Real Picture
