Топ 1 автоматический воздушный вспомогательный Сменный объектив SCULPFUN S30 для дерева металла акрила гравировальный станок
- Категория: Industry Laser Equipment >>>
- Поставщик: Shenzhen,SCULPFUN,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 380.88 $* | 388.13 $* |
| Jul-15-2025 | 308.74 $* | 314.8 $* |
| Jun-15-2025 | 374.49 $* | 381.39 $* |
| May-15-2025 | 371.60 $* | 378.31 $* |
| Apr-15-2025 | 296.36 $* | 302.1 $* |
| Mar-15-2025 | 365.59 $* | 372.33 $* |
| Feb-15-2025 | 362.54 $* | 369.33 $* |
| Jan-15-2025 | 359.1 $* | 366.8 $* |
Характеристики

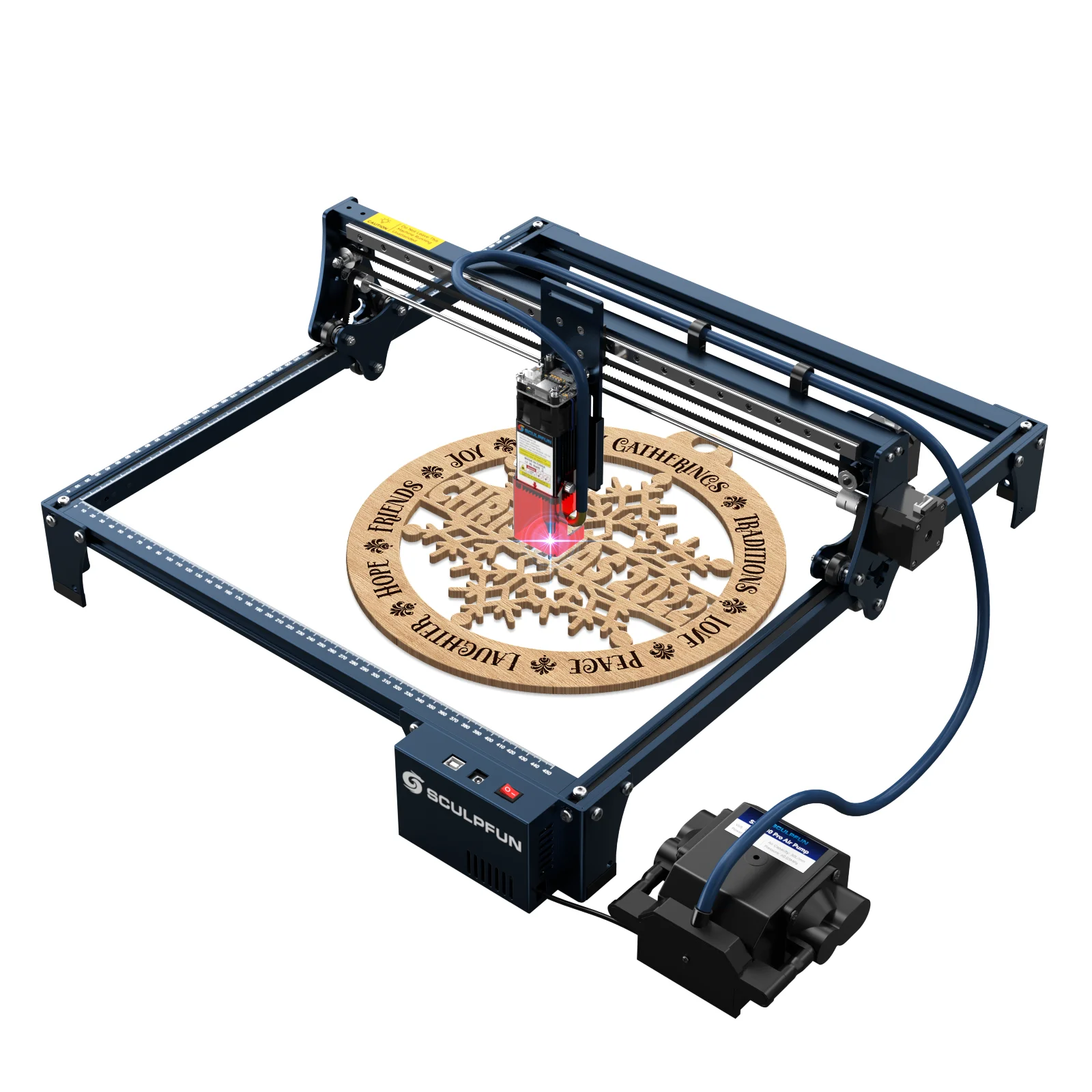

New Sculpfun S30 Series 5w 10w 20w Effect Ultra-thin Laser Wood Metal Acrylic Engraver Cutting Laser Engraving Machine
Product Model | SCULPFUN S30 | SCULPFUN S30 Pro | SCULPFUN S30 Pro Max | |||
Laser Information | ||||||

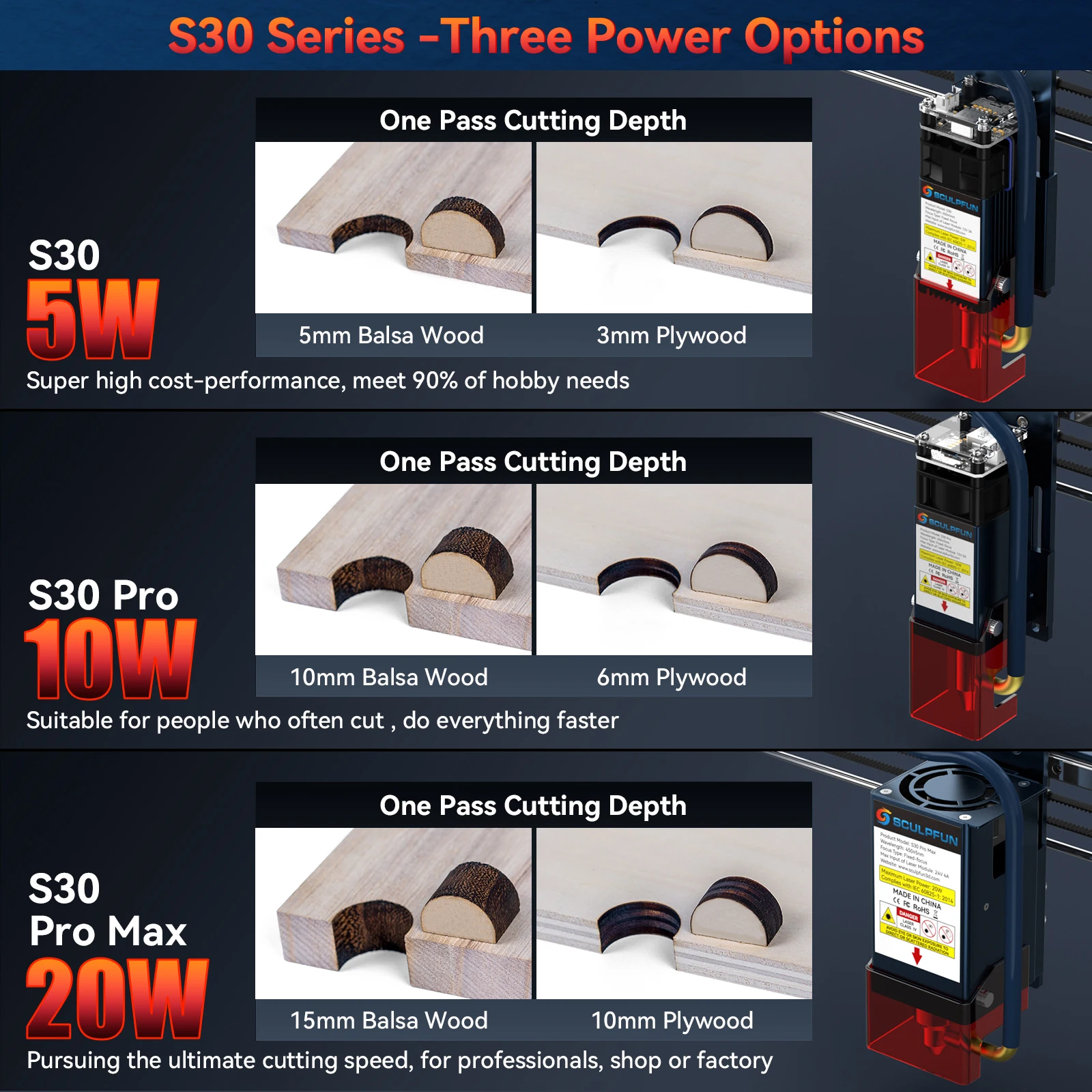

Diode laser output power | 5W (note that this is light energy not electrical energy) | 10W (note that this is light energy not electrical energy) | 20W (note that this is light energy not electrical energy) | |||
Laser focus | 0.06x0.06mm | 0.06x0.08mm | 0.08x0.1mm | |||
Laser wavelength | 455±5nm | 455±5nm | 455±5nm | |||
Focusing method | fixed focus column + sliding device | fixed focus column + sliding device | fixed focus column + sliding device | |||
Laser protection cover | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. | |||
Machine Information | ||||||
Engraving accuracy | 0.005mm | 0.005mm | 0.005mm | |||
Engraving area size | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm | |||
Machine power | about 60W | about 84W | about 120W | |||
Air pump | ||||||

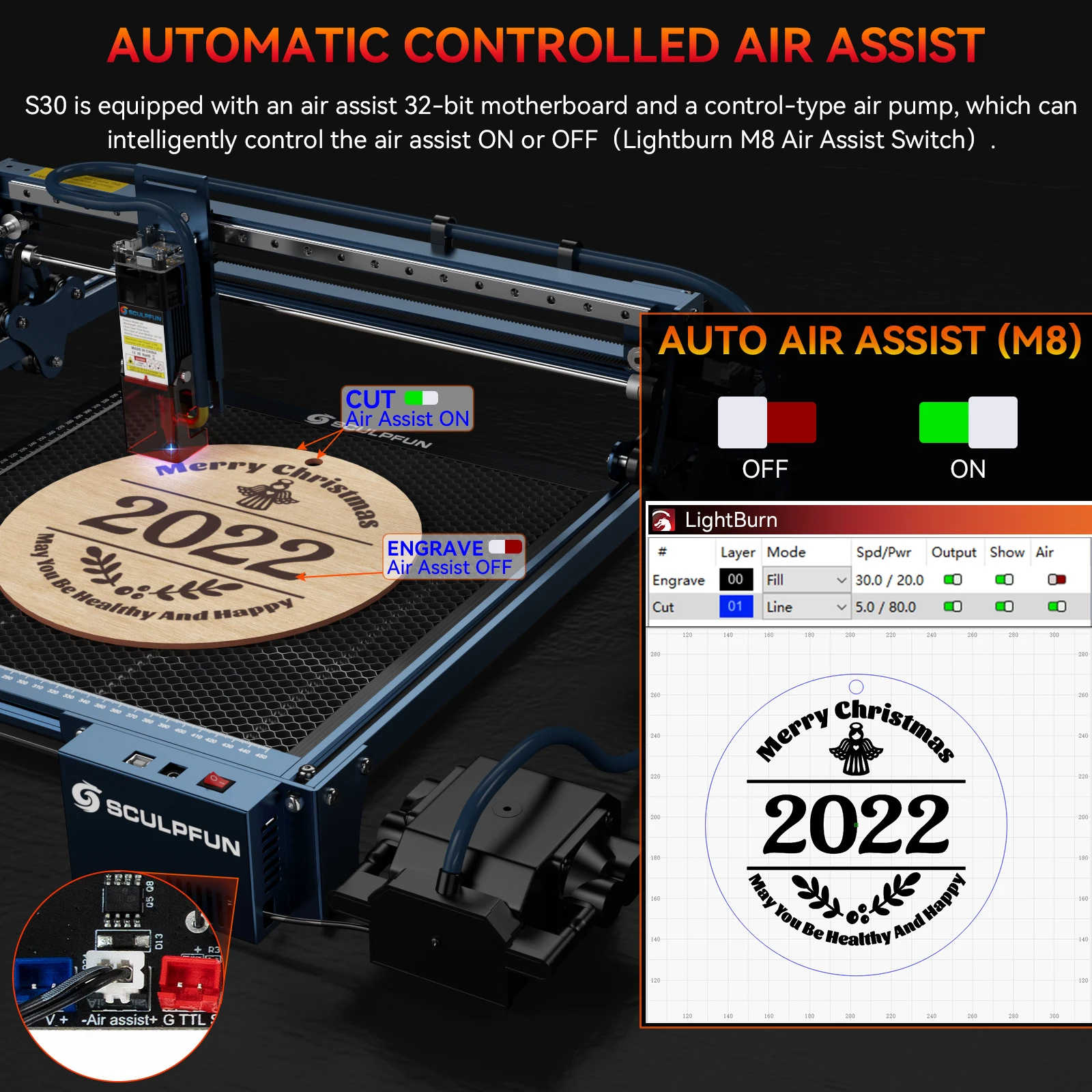

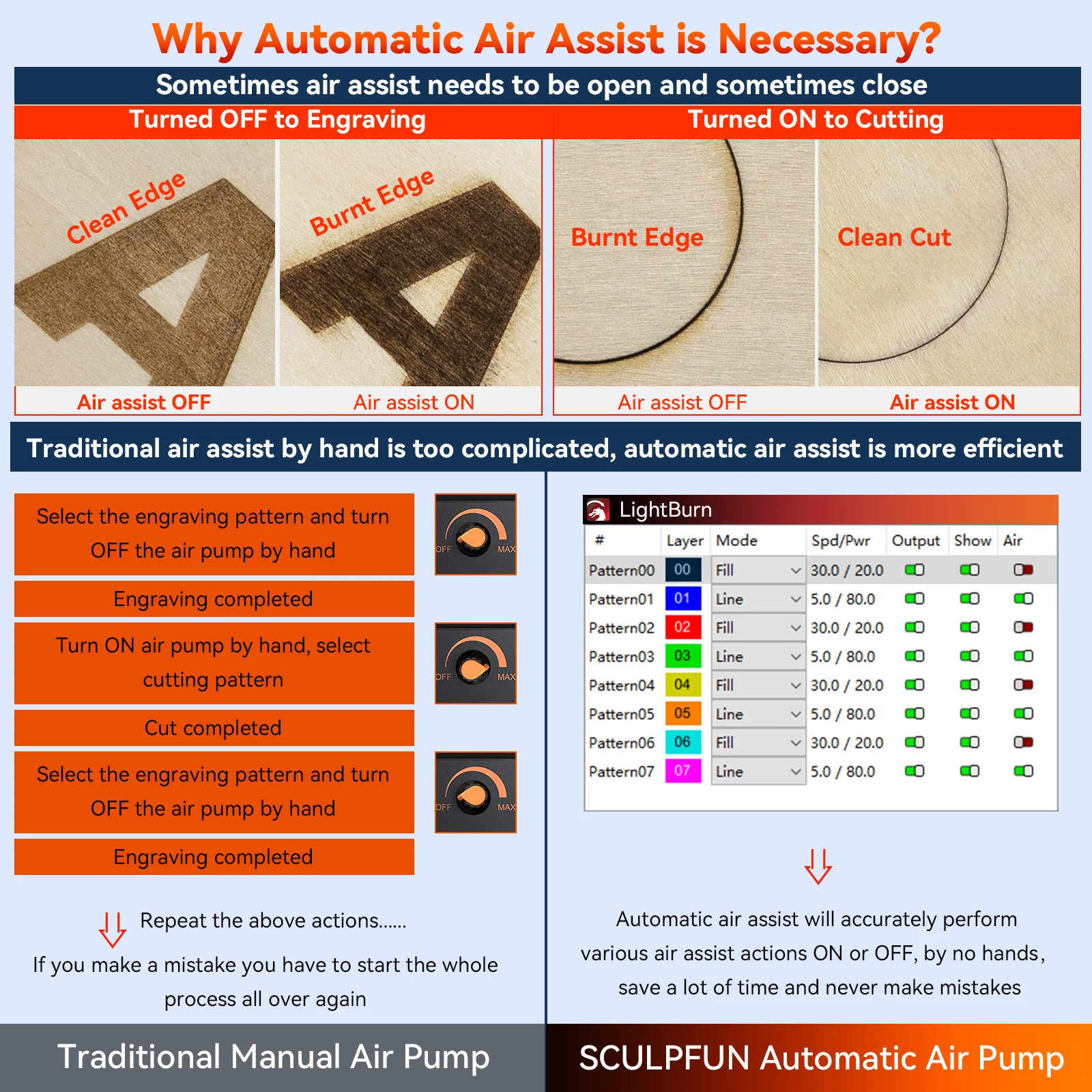

Air pump Type | mainboard-controlled air pump, voltage 12V, flow 30L/min | mainboard-controlled air pump, voltage 12V, flow 30L/min | mainboard-controlled air pump, voltage 12V, flow 30L/min | |||
Air hose inner diameter | 7.5mm | 7.5mm | 7.5mm | |||
Motherboard | ||||||

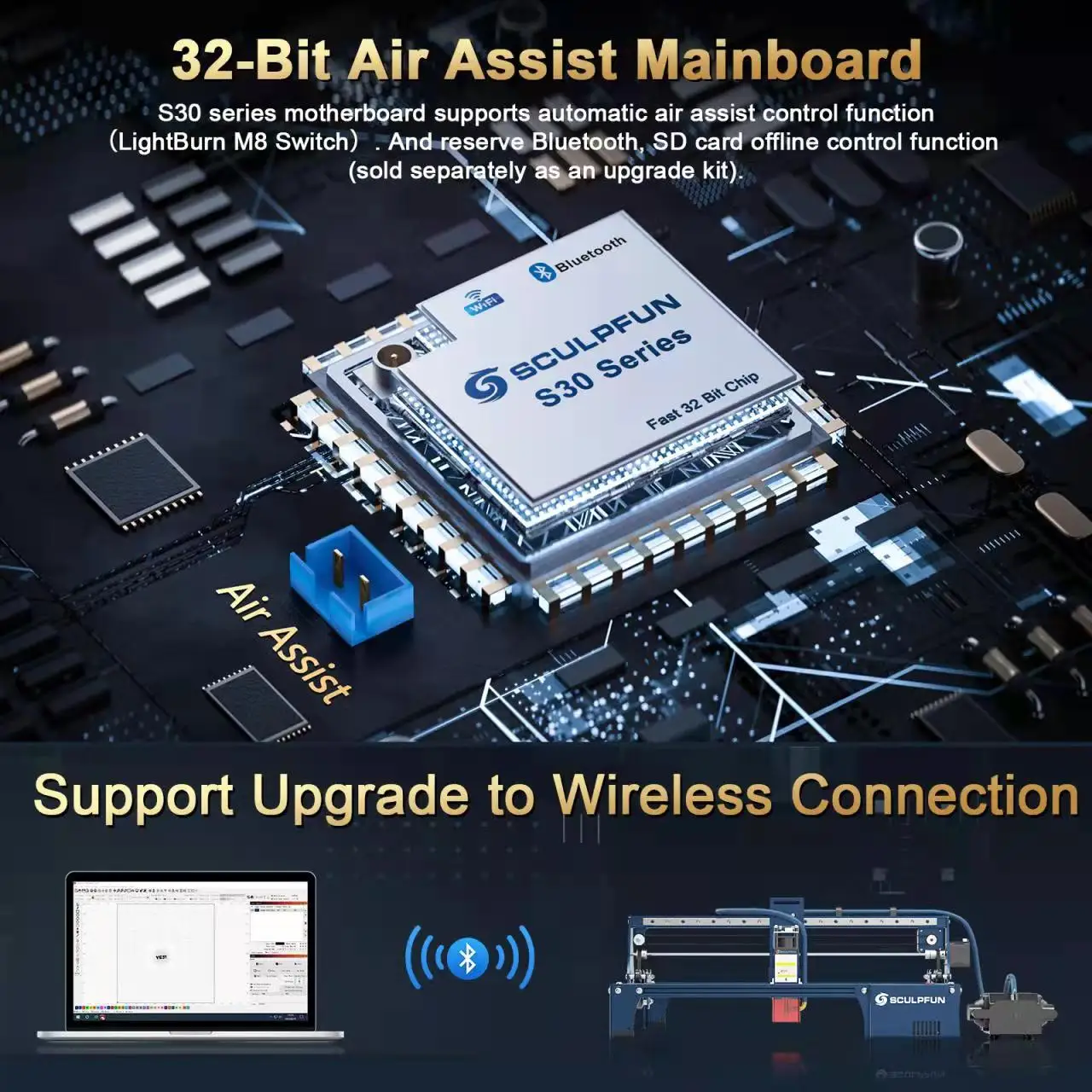

Motherboard | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) | |||
Engraving/cutting materials | ||||||
Engraving/cutting materials | Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards | Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards | Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards | |||
Operating software | ||||||
Operating software | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection | |||
Power supply | ||||||
Power Input | 100-240V AC, 50/60HZ Output: 12V 5A | 100-240V AC, 50/60HZ Output: 12V 7A | 100-240V AC, 50/60HZ Output: 24V 5A | |||
Packing weight | 6.7kg | 6.85kg | 7.53kg | |||
Packing size | 62.3*24*22.5cm | 62.3*24*22.5cm | 62.3*24*22.5cm | |||
packing list | ||||||
packing list | 1×S30 laser 1× Laser Repair Kit 1×12V automatic air pump 3 x A4 size 3mm wooden board 2×Limit Switch 1×12V 5A power adapter 1 x power cord 1×USB cable 1× Air tube 1× Installation tool Kit 1× Laser Goggles 1 x A4 metal backing plate Step 1-6 Install the package 1× Manual 1 x X-axis assembly 2 x X profiles 2 × Y profiles 1×Control Box Assembly 3 x support feet | 1×S30 Pro laser 1× Laser Repair Kit 1×12V automatic air pump 3 x A4 size 3mm wooden board 2×Limit Switch 1×12V 5A power adapter 1x power cord 1×USB cable 1× Air tube 1× Installation Tool Kit 1× Laser Goggles 1 x A4 metal backing plate Step 1-6 Install the package 1× Manual 1 x X-axis assembly 2 x X profiles 2 × Y profiles 1×Control Box Assembly 3 x support feet | 1×S30 Po Max laser 1× Laser Repair Kit 1×12V automatic air pump 3 x A4 size 3mm wooden board 2×Limit Switch 1×24V 5A power adapter 1 x power cord 1×USB cable 1× Air tube 1× Installation Tool Kit 1× Laser Goggles 1 x A4 metal backing plate Step 1-6 Install the package 1× Manual 1 x X-axis assembly 2 x X profiles 2 × Y profiles 1×Control Box Assembly 3 x support feet | |||
Details Images
Certifications
CE
CE
ROHS
FCC
F
IEC
About Us
Shenzhen Sculpfun Technology Co., Ltd. is a company focusing on sculpture product. The company's SCULPFUN brand is committed to creating the best household hobby engraving machine. We hope you can bring you and your family the fun of sculpting through our products. SCULPFUN means "SCULPT YOUR FUN".
The company cooperates with China's top diode laser companies to conduct in-depth research on laser miniaturization and solutions to consumer sculpture needs. And in-depth cooperation with a number of laser research institutes for the future use of lasers, we keep researching how lasers can facilitate people's lives.
Our company's product S6/S6 Pro and S9 S10 S30 series laser engraving machines have been sold on major e-commerce platforms such as Amazon, eBay, AliExpress, and Banggood. It has been praised many times for "most comfortable", "Easy to use" "Extremely Solid"and "very capable" among users and testers around the world. There are detailed usage demonstrations on YouTube and other websites.
Our company attaches great importance to "customer first". On the one hand, we strive for the most comfortable customer experience. On the other hand, the factory strictly controls the production quality. Every machine will be tested and sent out to ensure consumer rights.
The company cooperates with China's top diode laser companies to conduct in-depth research on laser miniaturization and solutions to consumer sculpture needs. And in-depth cooperation with a number of laser research institutes for the future use of lasers, we keep researching how lasers can facilitate people's lives.
Our company's product S6/S6 Pro and S9 S10 S30 series laser engraving machines have been sold on major e-commerce platforms such as Amazon, eBay, AliExpress, and Banggood. It has been praised many times for "most comfortable", "Easy to use" "Extremely Solid"and "very capable" among users and testers around the world. There are detailed usage demonstrations on YouTube and other websites.
Our company attaches great importance to "customer first". On the one hand, we strive for the most comfortable customer experience. On the other hand, the factory strictly controls the production quality. Every machine will be tested and sent out to ensure consumer rights.
Production Process
Quality Control
Our Advantages
Features:
1. Necessary accessories for laser cutting:
After using this laser cutting honeycomb table to cut wood, acrylic and other materials, the edges of the wood are neat and clean, not easy to be yellowed by smoke, and you can get a clean cutting work .
2. Cutting through observable design:
2. Cutting through observable design:
SCULPFUN honeycomb table contains a very convenient cutting and observation design. When the laser cuts through wood or acrylic, the metal plate at the bottom of the honeycomb will emit a bright light, which means that the cutting has penetrated. Solve the problem that ordinary engraving machine is difficult to judge whether cutting through.You don’t need to calculate the number of cuts , just keep repeating cutting until the bottom glows, which means the material has been cut through.
3. Safe metal desktop protection board:
3. Safe metal desktop protection board:
SCULPFUN honeycomb Board is equipped with a metal desktop protection board, which can protect the table from laser damage, which is very suitable for many different diode laser engravers.
4. Square measuring ruler:
4. Square measuring ruler:
X-axis and Y-axis contain precise scale lines to form a right-angle measuring ruler, which is convenient for you to measure the size of cutting objects quickly.
5. Wide compatibility:
5. Wide compatibility:
The machine can be compatible with various mature laser engraving machines, such as diode DIY laser engraving machine and CO2 laser engraving machine.
6. All-metal high flatness:
6. All-metal high flatness:
SCULPFUN is all made of metal, processed by high-precision CNC, solid structure not easy to deform, and high flatness.
