Черные стальные конические Стопорные втулки 1008 1210 2517 разделенная коническая втулка для
- Категория: Power Transmission Parts >>>
- Поставщик: Sichuan,Machinery,Imp.,&,Exp.,Corp.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.65 $* | 0.38 $* |
| Aug-19-2025 | 0.68 $* | 0.37 $* |
| Jul-19-2025 | 0.65 $* | 0.28 $* |
| Jun-19-2025 | 0.9 $* | 0.38 $* |
| May-19-2025 | 0.14 $* | 0.26 $* |
| Apr-19-2025 | 0.18 $* | 0.7 $* |
| Mar-19-2025 | 0.36 $* | 0.12 $* |
| Feb-19-2025 | 0.54 $* | 0.33 $* |
| Jan-19-2025 | 0.86 $* | 0.68 $* |
Характеристики
Abundant Experience For Customeized Serivce
Efficient Solution And Competitive Price For Your Business
MIGHTY has long-term experience and strong technology - V Belt Pulley, Taper Lock Bush, Timing Pulley, Locking Device and Sprocket for over 20 years. Welcome friends from domestic and abroad come to us for business negotiation and cooperation for mutual benefit.
Customized Service: it is available, As per sample or drawing.
Product Description

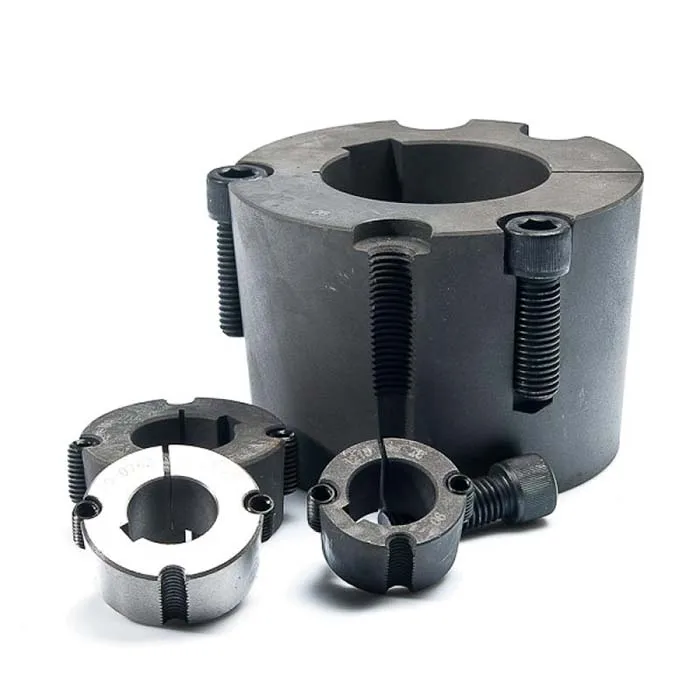

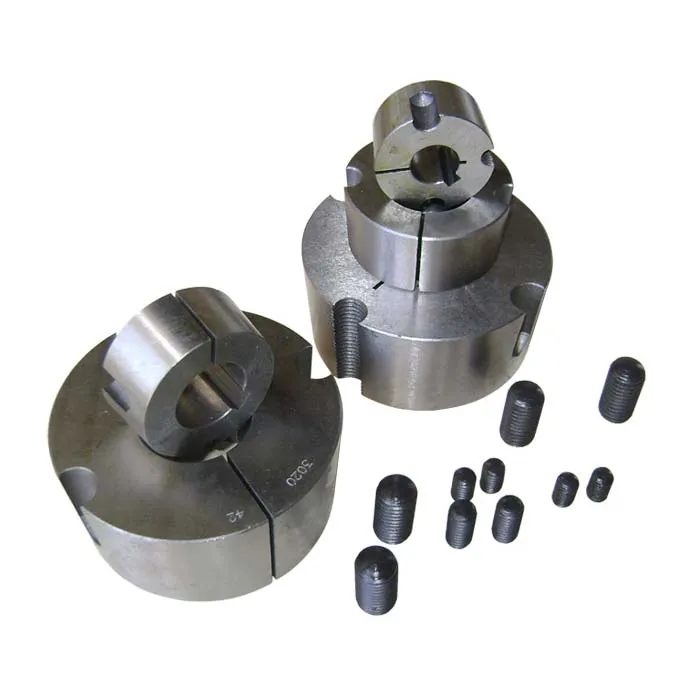

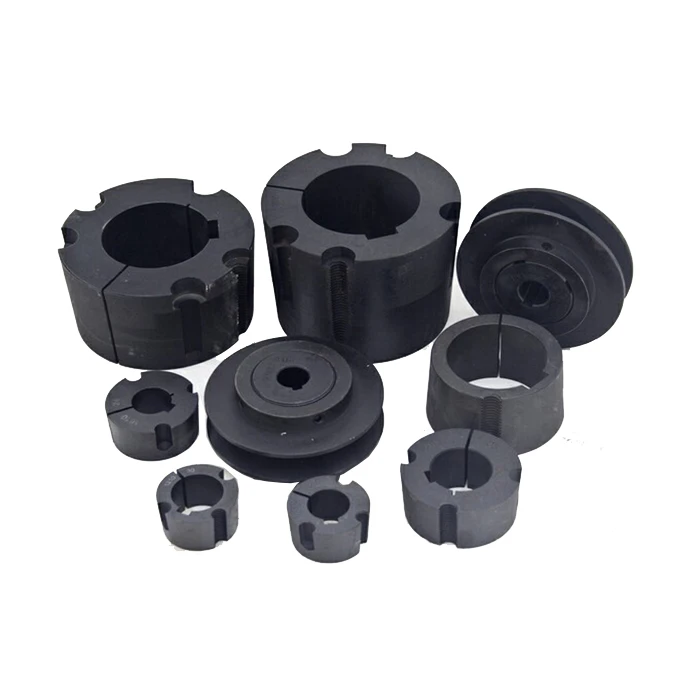

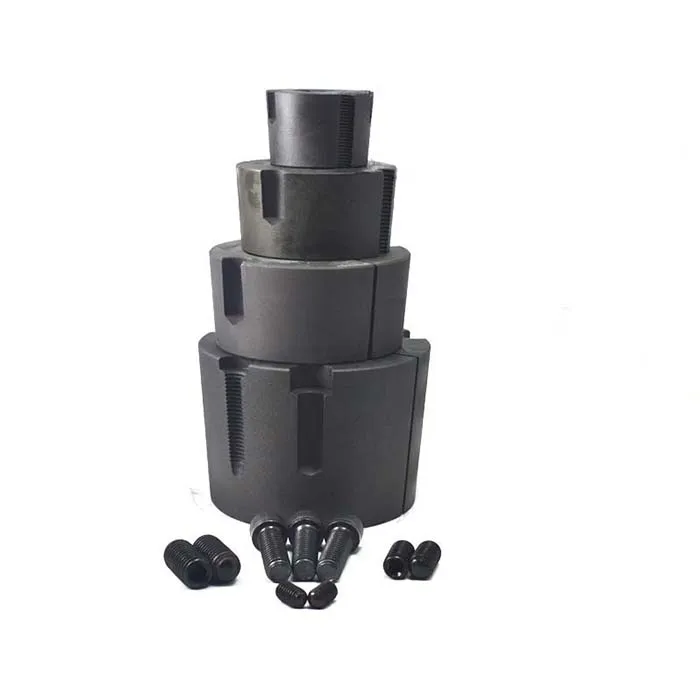

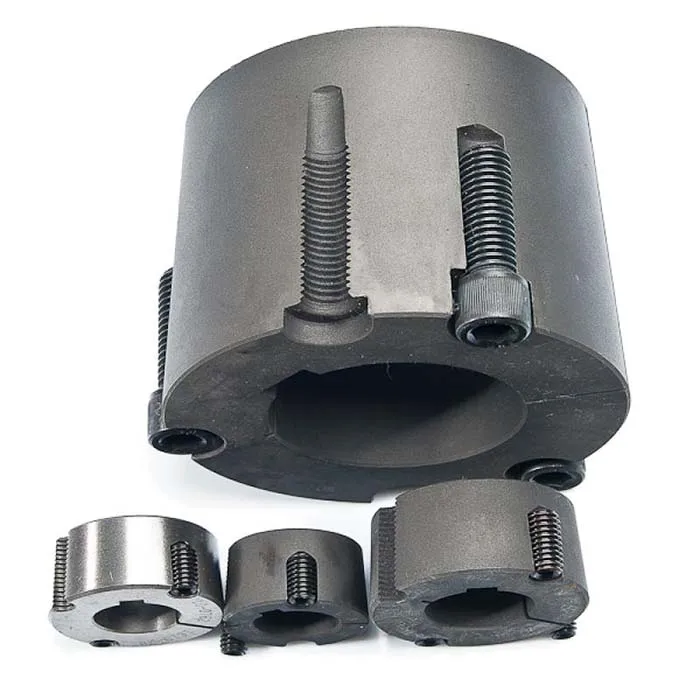

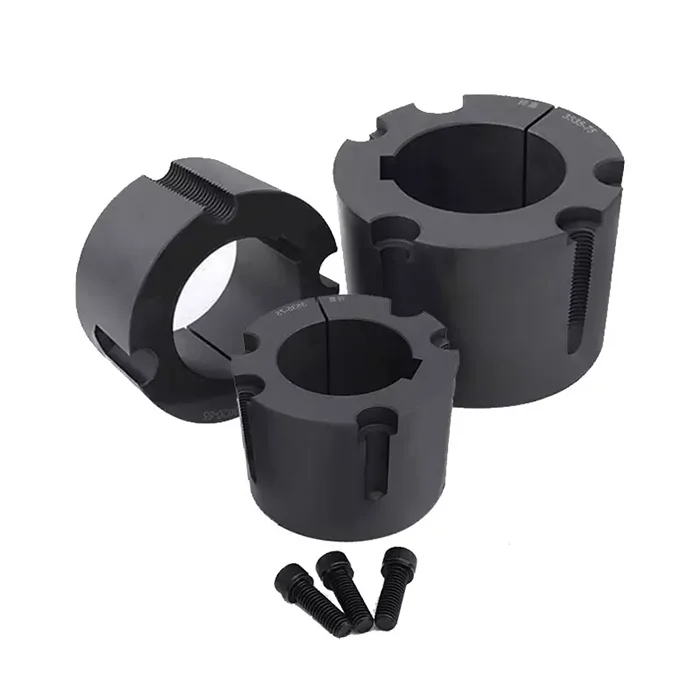

Black Oxide Steel Taper Lock Bushes 1008 1210 2517 Split Taper Bush for V Belt Pulley
Feature:
1008 - 5050 Size Taper Bush
1. Taper bushes form the most convenient and cost effective method of fixing components to a Mating shaft, without the need for any machining process.
2. Size ranges from 1008 to 120100,more information,please contact us.
3. Easy to install and remove, long service life, reduce maintenance cost and save time.
4. Shallow keyway is available.
Specification:
All tapered bushings and QD bushings are available: H, JA, SH, SDS, SD,SK, SF E, F, J, M, N, P, W. S series
- Model Number:1108 1008 1210 1215 1310 1610 1615 2012 2517 2525 3020 3030 3525 3535 4030 4040 4535 4545 5040 5050
- Material: Cast Iron / Stainless Steel
- Surface treatment: Phosphating
- Certificates:ISO9001:2015
- Customized Service: Available
| Taper Bushings | Taper Bushings | ||||
| (Metric Bore) | (Inch Bore) | ||||
| NO. | Bore Range | NO. | Bore Range | ||
| MIN. | MAX. | MIN. | MAX. | ||
| 1008 | 9 | 25 | 1008 | 3/8 | 1 |
| 1108 | 9 | 28 | 1108 | 3/8 | 1 1/8 |
| 1210 | 11 | 32 | 1210 | 1/2 | 1 1/4 |
| 1215 | 11 | 32 | 1215 | 5/8 | 1 1/4 |
| 1310 | 14 | 35 | 1310 | 1/2 | 1 3/8 |
| 1610 | 14 | 42 | 1610 | 1/2 | 1 5/8 |
| 1615 | 14 | 42 | 1615 | 1/2 | 1 5/8 |
| 2012 | 14 | 50 | 2012 | 5/8 | 2 |
| 2017 | 18 | 50 | 2017 | 3/4 | 2 |
| 2517 | 16 | 60 | 2517 | 3/4 | 2 1/2 |
| 2525 | 18 | 60 | 2525 | 7/8 | 2 1/2 |
| 3020 | 25 | 75 | 3020 | 1 1/4 | 3 |
| 3030 | 35 | 75 | 3030 | 1 1/4 | 3 |
| 3525 | 35 | 90 | 3525 | 1 1/2 | 3 1/2 |
| 3535 | 35 | 90 | 3535 | 1 1/2 | 3 1/2 |
| 4030 | 40 | 100 | 4030 | 1 3/4 | 4 |
| 4040 | 40 | 100 | 4040 | 1 3/4 | 4 |
| 4535 | 55 | 110 | 4535 | 2 1/4 | 4 1/2 |
| 4545 | 55 | 110 | 4545 | 2 1/4 | 4 1/2 |
| 5040 | 70 | 125 | 5040 | 2 3/4 | 4 1/2 |
| 5050 | 70 | 125 | 5050 | 3 | 5 |
| QD Bushings | |||
| NO. | WEIGHT | Bore Range | |
| (KG) | Min. | Max. | |
| JA | 0.36 | 3/8 | 1 1/4 |
| SH | 0.45 | 1/2 | 1 11/16 |
| SDS | 0.54 | 1/2 | 2 |
| SD | 0.68 | 1/2 | 2 |
| SK | 0.91 | 1/2 | 2 5/8 |
| SF | 1.59 | 1/2 | 2 15/16 |
| E | 4.08 | 7/8 | 3 1/2 |
Mighty's main products cover:
.Timing Pulley,Timing Bar and Clamping Plate
.Shaft Locking Device: Could be alternative for Ringfeder,Sati,Chiaravalli,Tollok etc
.V Belt Pulley and Taper Lock Bush
.Sprocket and Plate Wheel
.Spur Gear, Bevel Gear, Rack
.Shaft Coupling
.Forging, Casting, Stamping Part
.Other Customized Machining Parts according to drawing(OEM)![picture for products.png]()
For more details, please click here to contact us!![Contact us-Mighty skype: kelly-mighty factory supplier for locking device timing pulley sprocket wheel chain taper bush customized]()
Packaging & Shipping
According to your order quantity, we will choose the reasonable shipping method for you.
1. Inner Packing:Plastic bag,Carton.
2. Outer Packing:Carton or Wooden case, packed in cartons with pallets
2. Outer Packing:Carton or Wooden case, packed in cartons with pallets
 |
Company Information
Sichuan Mighty Machinery Co.Ltd.,specializes in manufacturing precision power transmission components and auto-control basic elements which are widely used in mechanical power transmission since, CNC machine tools, automatic control, aviation, wind power generation etc. Through many years of efforts,we have built up a complete supply chain including our foundry, inspection center and machining facilities and become an important partner for oversea clients in the industrial field.
Most importantly, we keep a strict quality controlling system and have advantates in quality and price, with the certificate ISO9001. Welcome friends from domestic and abroad come to us for business negotiation and cooperation for mutual benefit. |
|
Factory&Sale Team
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, also do trading company business. Because our company have over 20 years export experiences, having our own factories, also cooperated with other many factories.
Q:What’s the MOQ?
A:We have not a clear limit,1 or 2pcs is available.
Q: How long is your delivery time?
A: 3-5 days via DHL, TNT, UPS, FEDEX. Basing on the different countries of customers via ocean shipping.
Q: Do you provide samples ? is it free or extra ?
A:Yes,we provide free samples for checking the build quality and real performance of our products,the freight need to be covered by customer.
Q: What is your terms of payment ?
A: T/T, Paypal, L/C, D/P, D/A, Western Union, etc., all decided by customer's requirements
