Автоматический кромкооблицовочный станок с ЧПУ ПВХ МДФ 45 градусов коническая линейная кривая доска обрезка кромкооблицовочная машина
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Jinan,Pinmai,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6664.30 $* | 6997.42 $* |
| Aug-19-2025 | 6608.49 $* | 6938.0 $* |
| Jul-19-2025 | 5544.35 $* | 5821.41 $* |
| Jun-19-2025 | 6496.86 $* | 6821.24 $* |
| May-19-2025 | 5656.88 $* | 5939.88 $* |
| Apr-19-2025 | 6384.2 $* | 6703.54 $* |
| Mar-19-2025 | 6328.96 $* | 6644.93 $* |
| Feb-19-2025 | 6272.9 $* | 6586.24 $* |
| Jan-19-2025 | 6216.29 $* | 6527.19 $* |
Характеристики

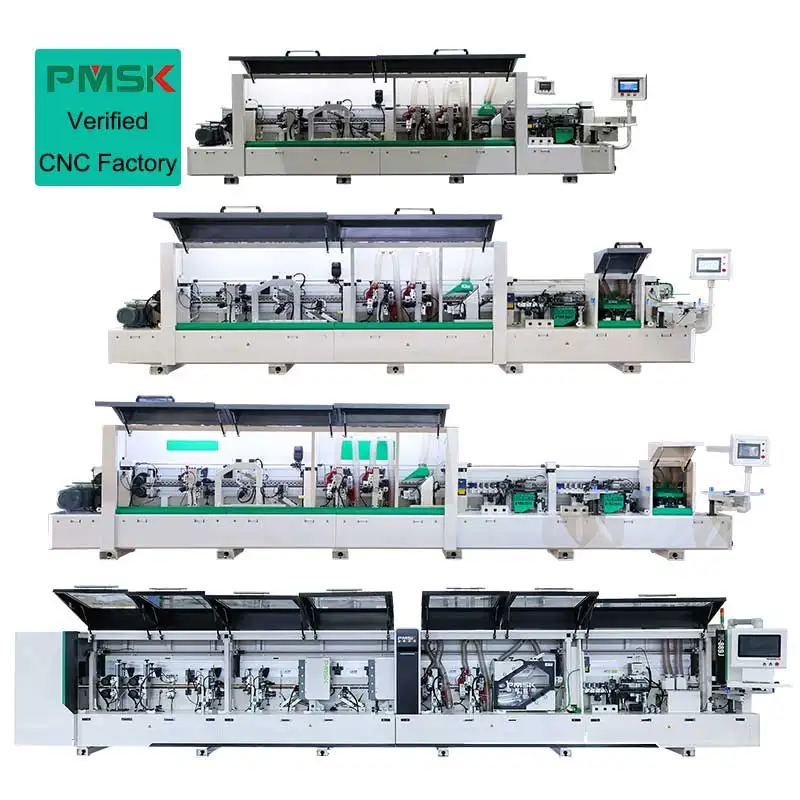

Products Description
We are a factory. There are many models for you to choose from, and we can also customize them according to your requirements. Examples: vertical slot, side hole, bevel edge banding and so on.
Pe668 (9 Functions)
1 Pre-milling, 2 Gluing, 3 Cutting start and end points, 4 Roughing finishing, 5 Fine finishing, 6 Rounded corner , 7 Scraping, 8 Cleaning agent, 9 Polishing.
Pe668j (11 functions)
1 Separating agent, 2 Pre-milling, 3 EVA glue, 4 Multi-wheels pressing, 5 Cutting start and end points, 6 Rough trimming, 7 Fine trimming , 8 Corner trimming, 9 Scraping , 10 Cleaning agents, 11 Polishing
Pe668j-1 (14 functions)
1 Separating agent, 2 Pre-milling, 3 EVA glue, 4 Multi-wheels pressing, 5 EVA gluing device, 6 Multi-wheels pressing, 7 Cutting start and end points, 8 Rough trimming, 9 Fine trimming , 10 Corner trimming, 11 Scraping , 12 Cleaning agents, 13 Polishing one, 14 Polishing two.
Pe669 (14 functions)
1 Infrared baking lamp, 2 Separating agent, 3 Pre milling, 4 Quick soling, 5 Multi wheels pressing, 6 Front and end cutting, 7 Rough trimming, 8 Pneumatic fine trimming, 9 4 Heads corner trimming, 10 Double pneumatic scraping, 11 Off-cut, 12 Flat scraping, 13 Cleaning agent, 14 Double pneumatic Buffing.
CNC Woodworking Machines MANUFACTURER 10 YEARS
Give Back To New And Old Customers（10%off）
Welcome To Be Our Overseas Agent.（30%off）
Free Replacement Parts (Within 3 Years)（100%off）
The machine guarantee is 2 Years ,24 hours technical support online.
Welcome To Be Our Overseas Agent.（30%off）
Free Replacement Parts (Within 3 Years)（100%off）
The machine guarantee is 2 Years ,24 hours technical support online.
For more functional customization, please contact us.
Product Paramenters
Model | pe-668,pe-668j, pe668j-1, pe669 Edge Banding Machine |
Edge tape thickness | 0.4-3mm |
Edge tape width | 12-65mm |
Panel thickness | 10-60mm |
Feeding speed | 0-23m/min |
working air pressure | 0.7Mpa |
Total power | 12.5kw |
equipment weight | 2500kg |
Dust extraction | ∅100mm *7 pieces |
overall size | 6600*1050*1750mm |

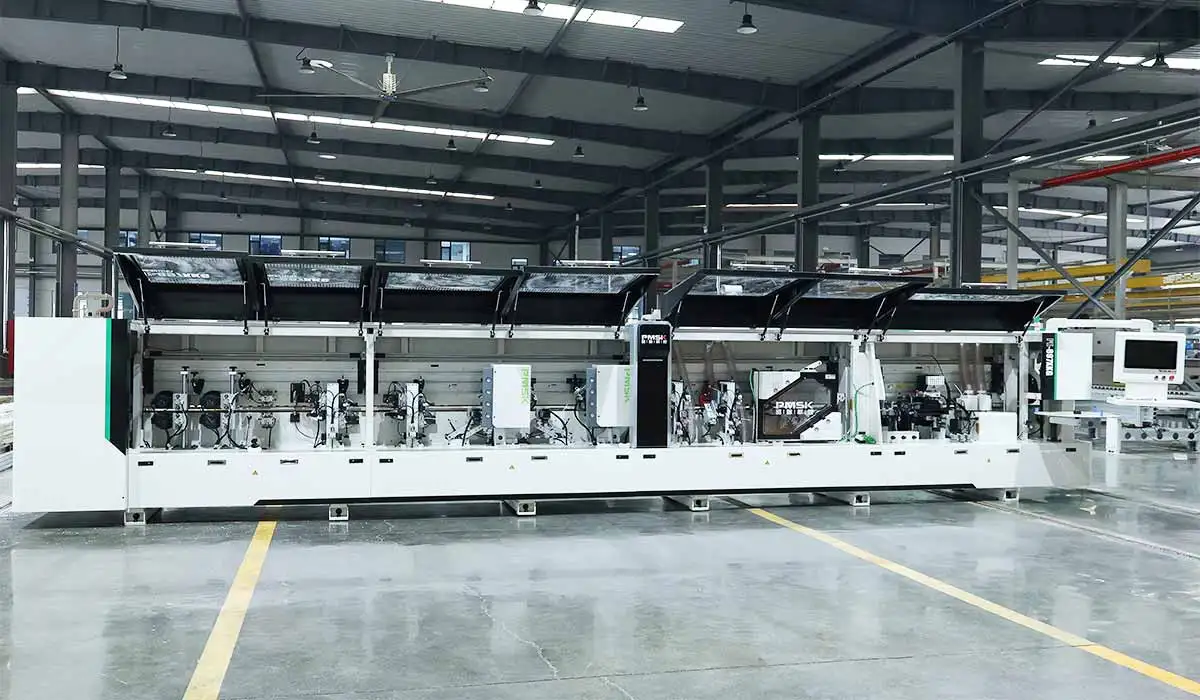

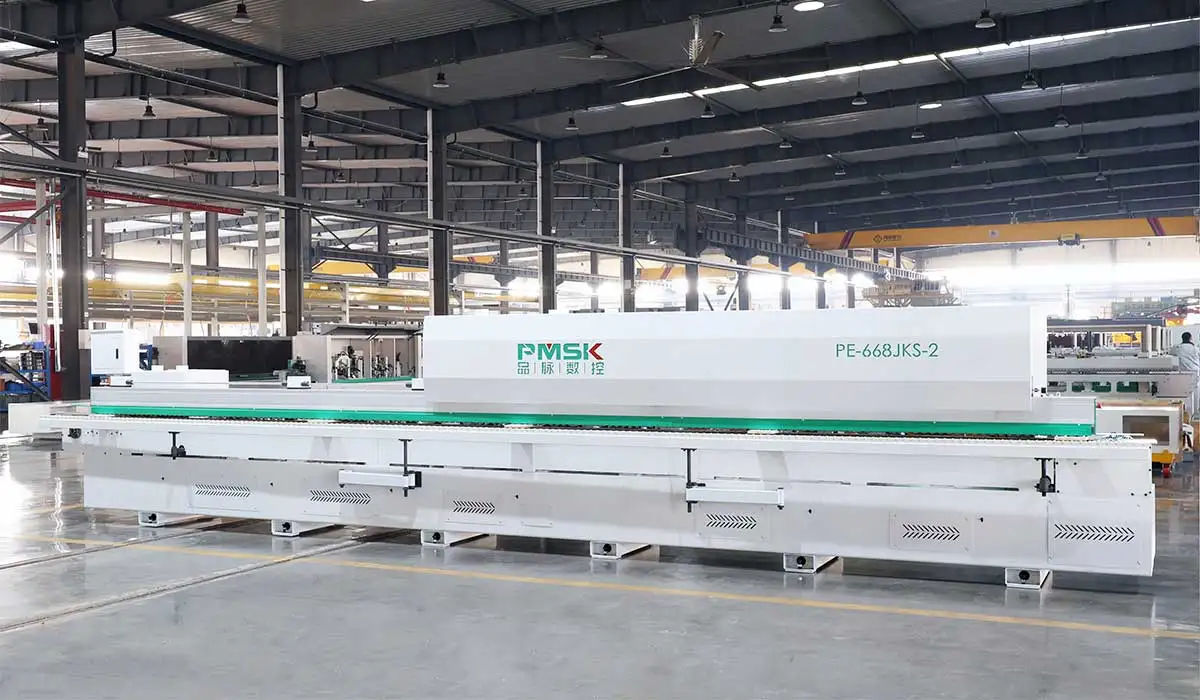

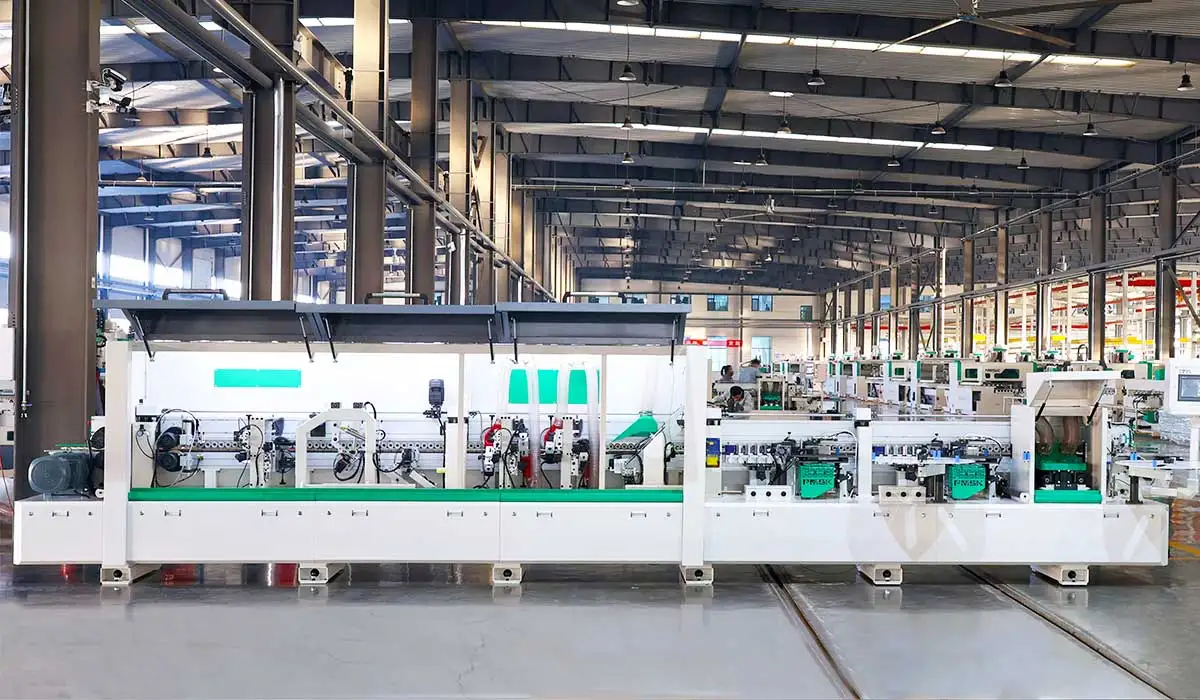

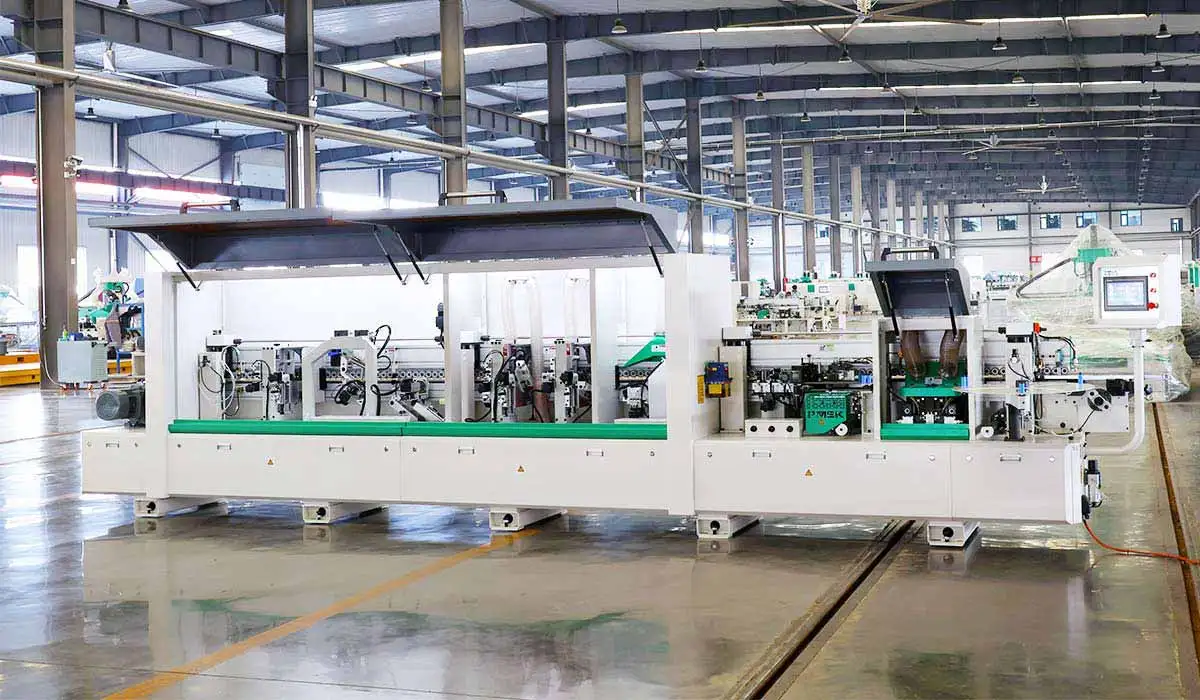

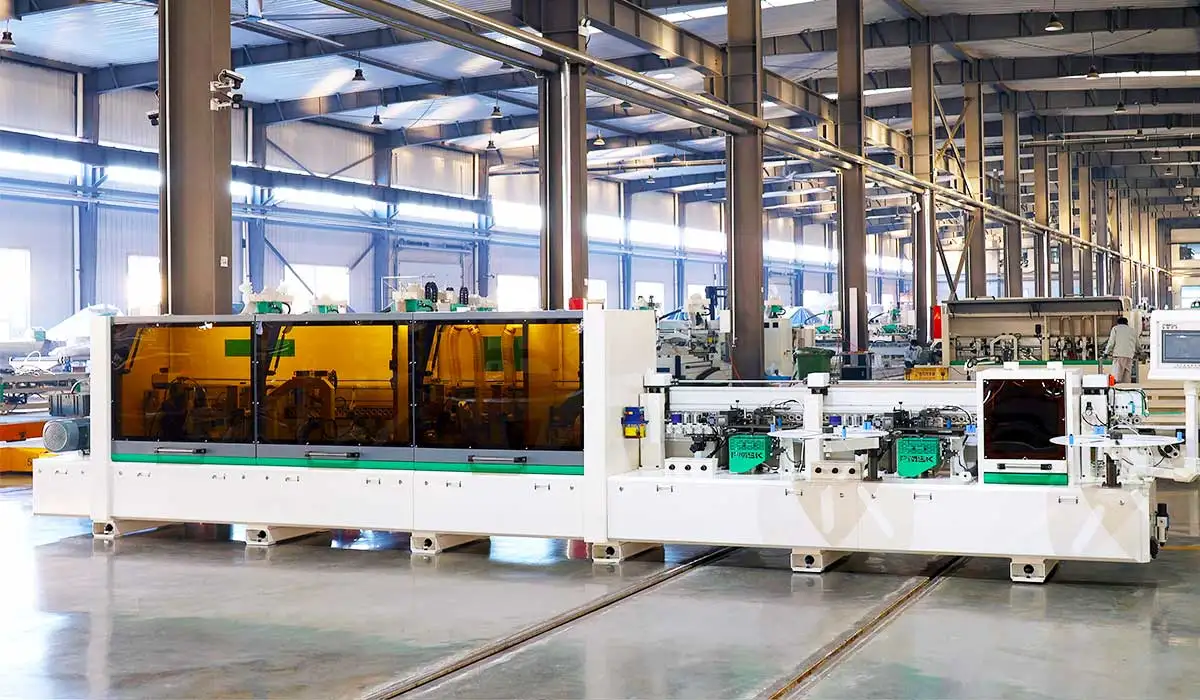

Details Images
Feature:
*Per-milling---Trim equipment with double trim blades work on the wave effect that is caused by precise saw.
*Gluing---Glue mechanism adopts a special structure to gelatinize the plated and coat materials uniformly, which ensures a more solid conglutination.
*End trimming---End trimming mechanism through a precise guide track movement, adopts automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
*Rough and Fine Trimming---Rough/Fine trimming mechanism is used for repairing the excess edge materials, adopting automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.
*Conner trimming---Profiling unit is to make board end more smooth and aesthetic.
*Scraping---Scraping unit works for a perfect finishing of the applied edge.
*Buffing--- Buffing device adopts the board processed by the cotton polishing wheel, by end-polishing to make a more smooth surface.
In addition, we can also customize: vertical slot, side hole, bevel edge sealing and so on.
Company Profile
Exhibition
FAQ
1,I need a CNC router,can you give me some suggestions?
A,Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’ request.
2,Which kind of materials can be processed on this machine?
A:Wood,mdf,stone,acrylic,glass,plastic,foam,aluminium,copper,and almost all kinds of non-steel materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?
A:We are the manufacturer and we have 15 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
