FTTH сеть для строительства GYFXY наружный уличный волоконно-оптический кабель с одной трубкой E-glass Unitube 2-12

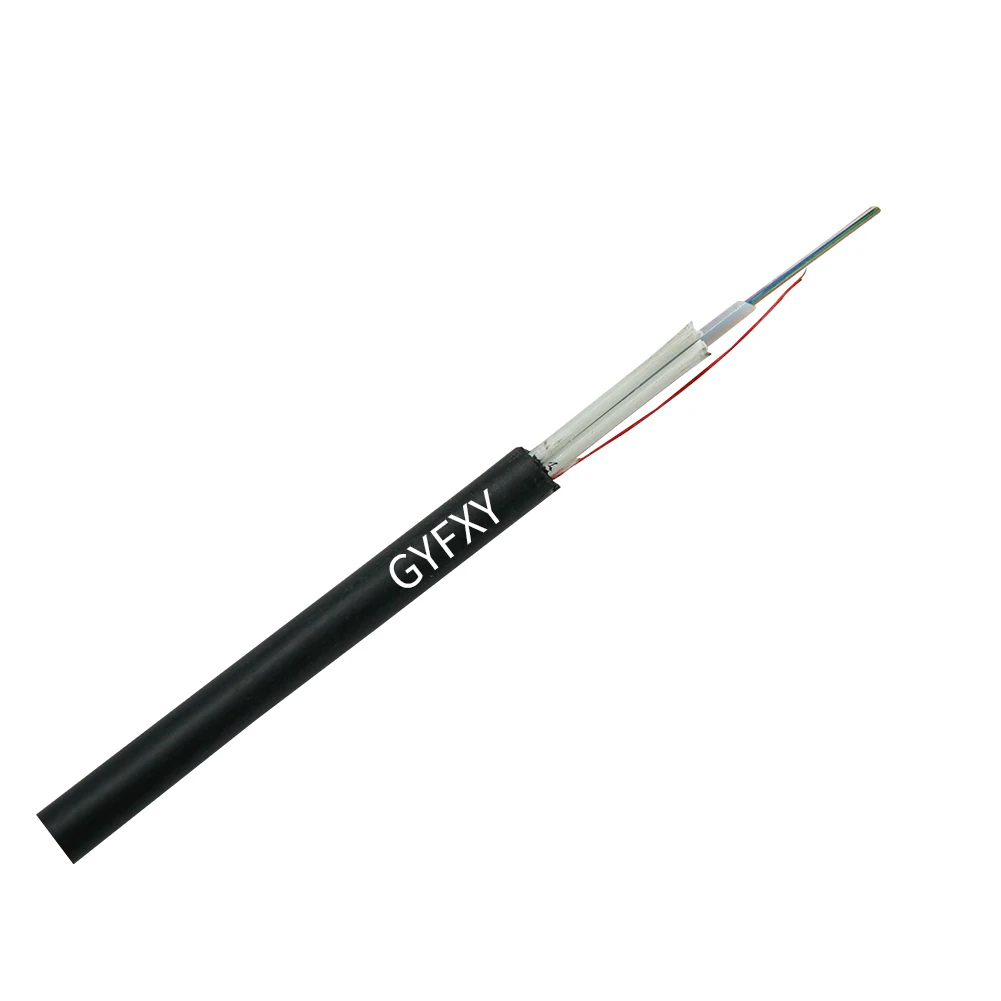

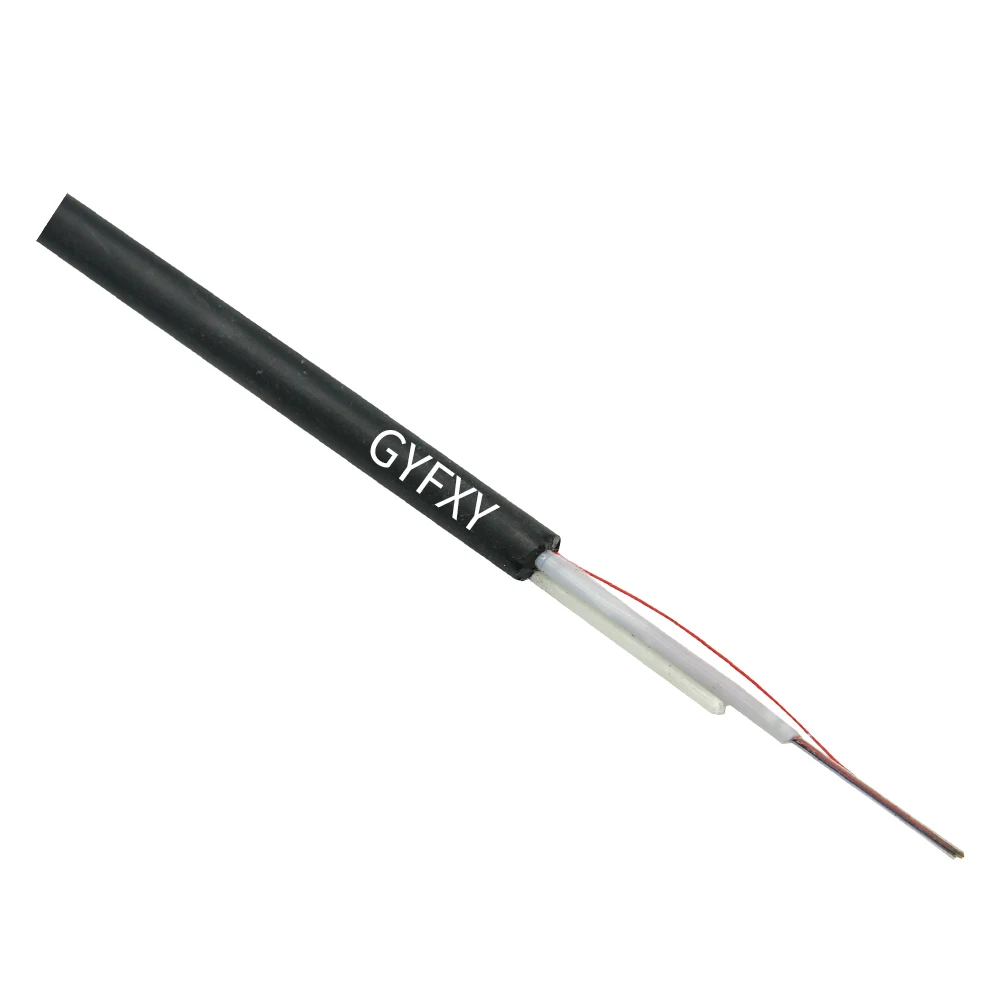

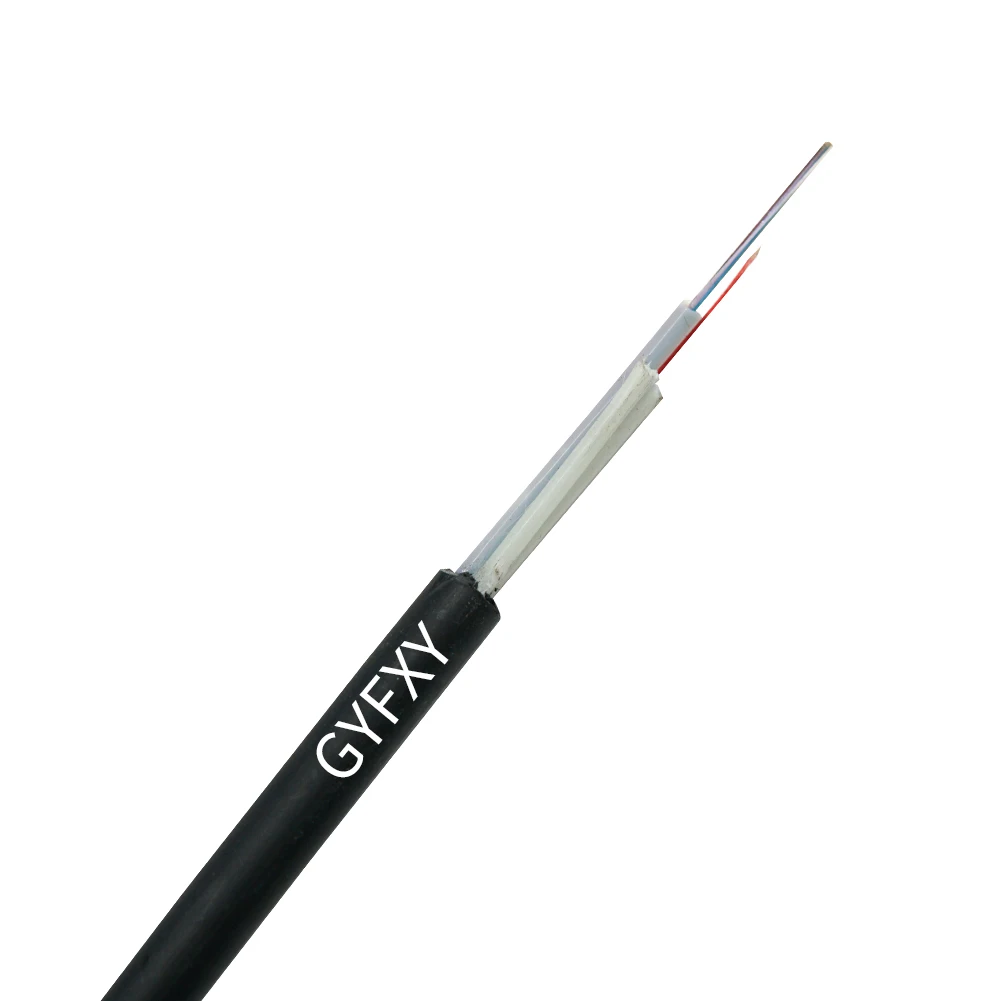

Construction of this GYFXY E-glass FTTH Outdoor Unitube 2-12 Cores FRP Fibre Optic Cable

1. Colored fiber

Coated outside diameter:125.0±0.1um

Optical fiber diameter:242±7um

UV color fiber: Standard chromatogram

-Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua

2. Tube filling compound(Gel)

3. PBT loose tube

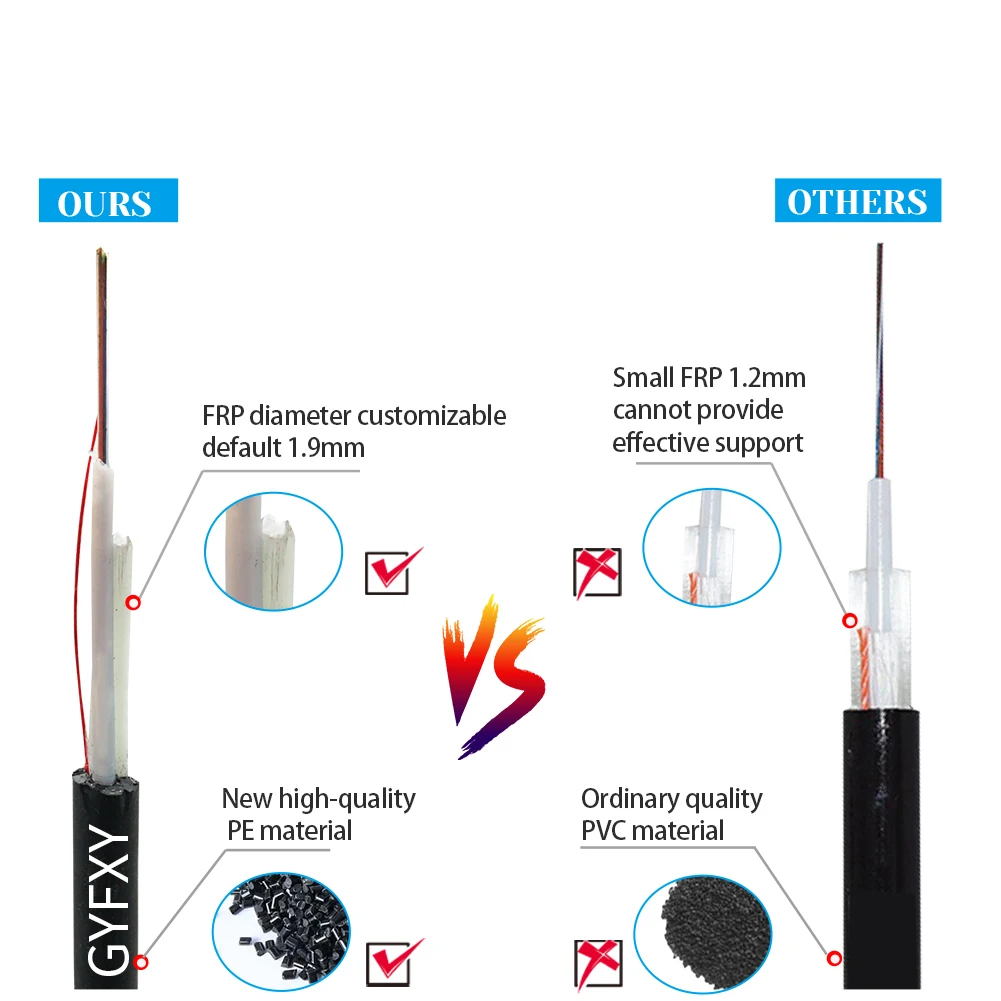

4. FRP

5.Black PE outer sheath Outside diameter: 7.0±0.5mm

Parameters of fiber of GYFXY E-glass FTTH Outdoor Unitube 2-12 Cores FRP Fibre Optic Cable

Optical fiber type

Unit

SM G652D

MM 50/125

MM 62.5/125

MM OM3-300

MM OM3-150

Waveband

nm

1310/1550

850/1300

850/1300

850/1300

850/1300

Attenuation

dB/km

0.36/0.23

3.0/1.0

3.0/1.0

3.0/1.0

3.0/1.0

Product parameters of this GYFXY E-glass FTTH Outdoor Unitube 2-12 Cores FRP Fibre Optic Cable

Performance

Long-term

Short-term

Max. Tension(N)

150

300

Max. Crushing Resistance(N/100mm2)

300

1000

Min. Bending Radius

30D

15D

Storage and operating temperature

-40℃-+70℃
