Квадратный наконечник полированная Латунь 1 3/4 дюйма створчатый оконный
- Категория: Door & Window Rollers >>>
- Поставщик: Dalian,Ruici,Industry,Co.,Ltd.Dalian,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 870.91 $* | 887.55 $* |
| Jul-16-2025 | 706.51 $* | 720.3 $* |
| Jun-16-2025 | 856.53 $* | 873.21 $* |
| May-16-2025 | 849.7 $* | 866.36 $* |
| Apr-16-2025 | 678.45 $* | 692.34 $* |
| Mar-16-2025 | 836.6 $* | 853.83 $* |
| Feb-16-2025 | 829.72 $* | 846.29 $* |
| Jan-16-2025 | 822.55 $* | 838.87 $* |
Характеристики
Products Description

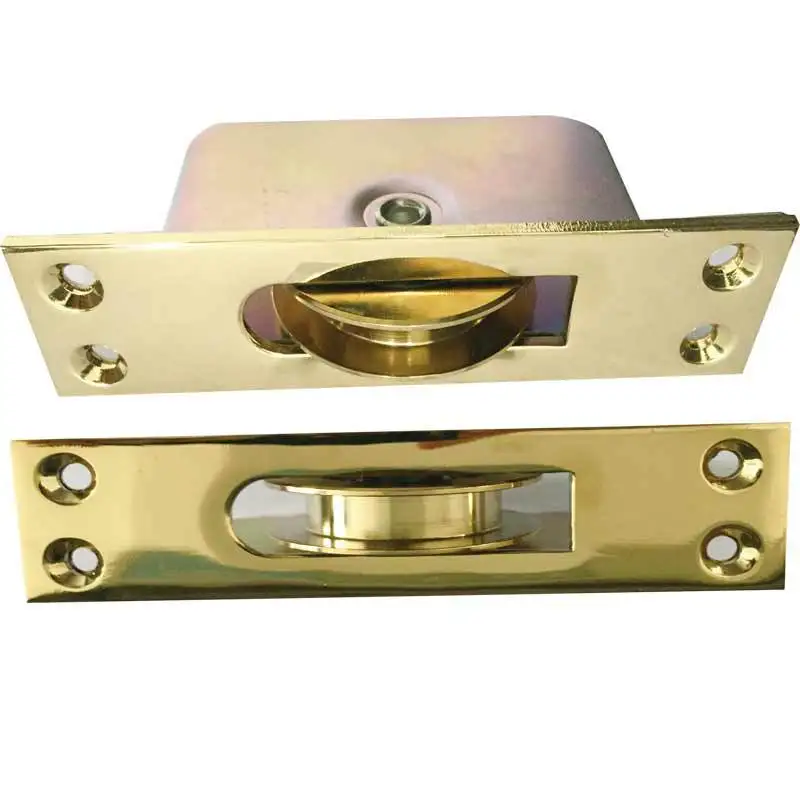

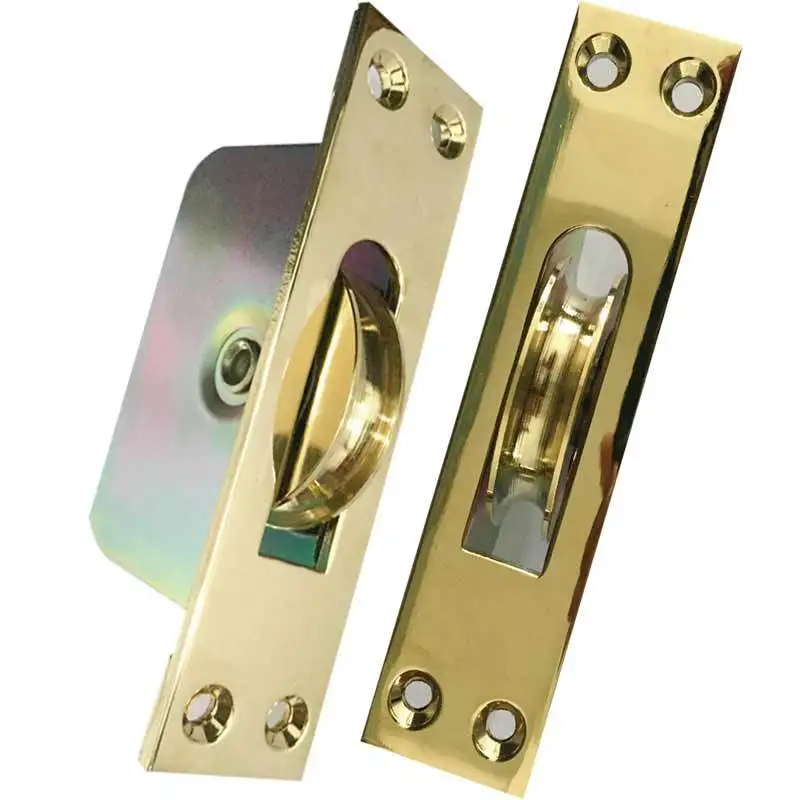

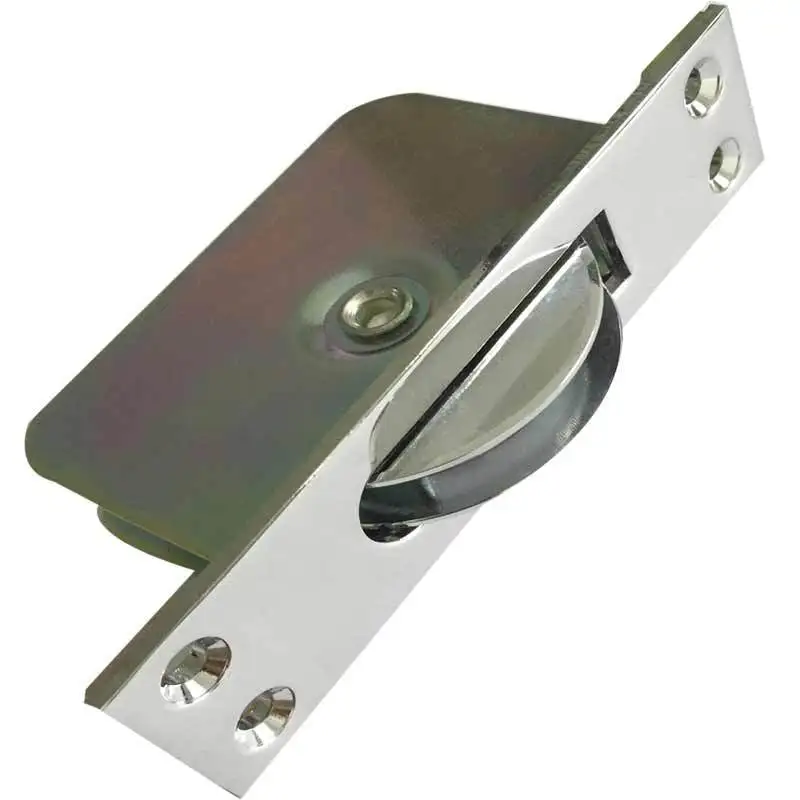

Forged brass sash window pulley
There are relatively few moving parts in a traditional weight and pulley system. Sash have become increasingly heavy with larger glass sizes and double and even triple glazing and the use of very high quality pulleys has become critical. Failure in a pulley (binding, squealing or even a broken axle) results in an improperly operating window. In these cases, repair can be very time consuming and expensive, involving the removal of trim, sash, weather-stripping systems, disassembly of the weight and chain from the sash, installation of a proper high quality sash pulley, reassembly and re-painting. Pulleys are “deeply” built into the construction of and are critical to the smooth operation of a well performing double hung window. It is essential to use the very best.
These sash pulleys are the finest available in appearance, durability, and function.Pulleys are designed for sash weights up to 1-3/4″ diameter when used in typical 7/8″ thick jambs typical in residential and smaller buildings. Commercial and
institutional buildings may require the larger 2-1/2” sash pulley, click here for more information. The pulley is carefully
designed with a precisely machined faceplate and the radiused ends allow for rapid, simple and accurate mortising with a standard 1-1/8″ diameter router bit. Housing body = 2-7/8″ X 7/8″ X 1-7/8″ deep.
The solid brass forged and machined housing shields the ball bearing and axle, preventing dirt and grit from affecting performance and assuring many decades of easy operation. The wheel is CNC machined from solid brass stock. The pulley utilizes a chromed steel axle and sealed ball bearing. Available in five finishes: Lacquered Brass, Unlacquered Brass, Oil Rubbed Bronze, Polished Nickel and Satin Nickel, Chrome plating, Clear painting etc.
By using bronze or stainless steel sash chain with these pulleys you virtually eliminate all maintenance to the weight and pulley system.
There are relatively few moving parts in a traditional weight and pulley system. Sash have become increasingly heavy with larger glass sizes and double and even triple glazing and the use of very high quality pulleys has become critical. Failure in a pulley (binding, squealing or even a broken axle) results in an improperly operating window. In these cases, repair can be very time consuming and expensive, involving the removal of trim, sash, weather-stripping systems, disassembly of the weight and chain from the sash, installation of a proper high quality sash pulley, reassembly and re-painting. Pulleys are “deeply” built into the construction of and are critical to the smooth operation of a well performing double hung window. It is essential to use the very best.
These sash pulleys are the finest available in appearance, durability, and function.Pulleys are designed for sash weights up to 1-3/4″ diameter when used in typical 7/8″ thick jambs typical in residential and smaller buildings. Commercial and
institutional buildings may require the larger 2-1/2” sash pulley, click here for more information. The pulley is carefully
designed with a precisely machined faceplate and the radiused ends allow for rapid, simple and accurate mortising with a standard 1-1/8″ diameter router bit. Housing body = 2-7/8″ X 7/8″ X 1-7/8″ deep.
The solid brass forged and machined housing shields the ball bearing and axle, preventing dirt and grit from affecting performance and assuring many decades of easy operation. The wheel is CNC machined from solid brass stock. The pulley utilizes a chromed steel axle and sealed ball bearing. Available in five finishes: Lacquered Brass, Unlacquered Brass, Oil Rubbed Bronze, Polished Nickel and Satin Nickel, Chrome plating, Clear painting etc.
By using bronze or stainless steel sash chain with these pulleys you virtually eliminate all maintenance to the weight and pulley system.
Product Feature
Heavy duty brass axle pulleys are designed for use on very large windows where high performance is demanded. The faceplate is polished to a mirror finish and lacquered for long-term protection.
* Brass rollers incorporate high quality ball bearings
* Round ends
* Round groove for cord
* Brass (PVD) faceplate
Maximum load capacity: 100~120kg
* Brass rollers incorporate high quality ball bearings
* Round ends
* Round groove for cord
* Brass (PVD) faceplate
Maximum load capacity: 100~120kg
