12*9 5 мм звуковой активный внутренний привод типа магнитный мини 3 в 12

12*9 5 мм звуковой активный внутренний привод типа магнитный мини 3 в 12

Категория: Acoustic Components >>>
Поставщик: Shenzhen,Kuongshun,Electronic,Business,Department

Цена:0,09 $ - 0,12 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.65 $*	0.99 $*
Aug-19-2025	0.42 $*	0.53 $*
Jul-19-2025	0.96 $*	0.74 $*
Jun-19-2025	0.77 $*	0.33 $*
May-19-2025	0.23 $*	0.69 $*
Apr-19-2025	0.47 $*	0.22 $*
Mar-19-2025	0.62 $*	0.45 $*
Feb-19-2025	0.58 $*	0.96 $*
Jan-19-2025	0.63 $*	0.24 $*

Характеристики

Product Description

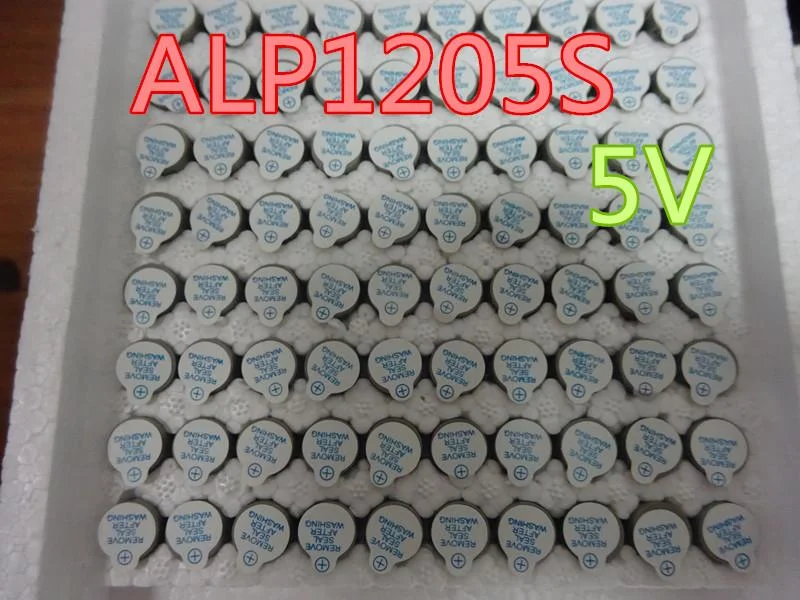

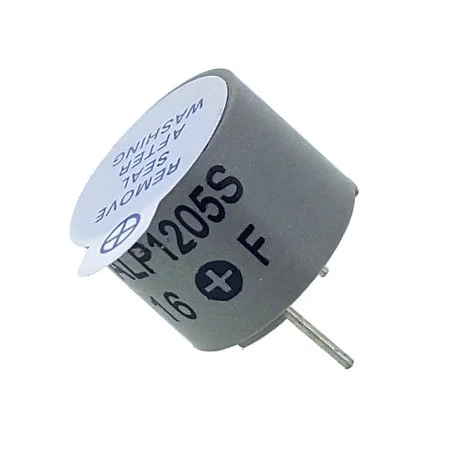

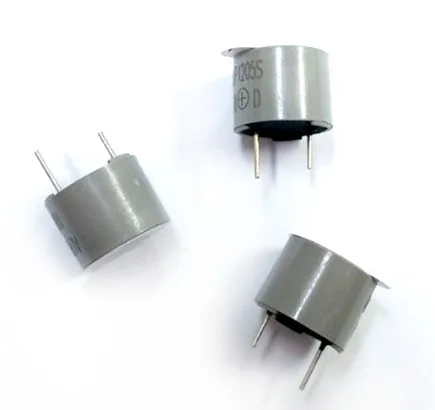

12*9.5mm Sound Active Internal Drive Type Magnetic Mini 3v 5v 12v Buzzer

For PCB Mini Buzzer 5V (Built-In Circuit Type)

■ Features

● Dip solderable and washable.

● Compact.

● Low current consumption.

■ Specifications

● Rated voltage (V): 5V

● Working voltage (V): 4～7V

● Maximum. Rated current (mA): Max30

● Fundamental frequency (Hz): 2,300 ± 30

● Response time (mesc) : Max50

● Sound pressure level (dB): Min85

● Working temperature (℃): -30 ~ +70

● Storage temperature (℃): -40 ~ +80

● Weight (g): 1.6

● Apply the value of the rated voltage.

▶The minimum value is the working voltage.

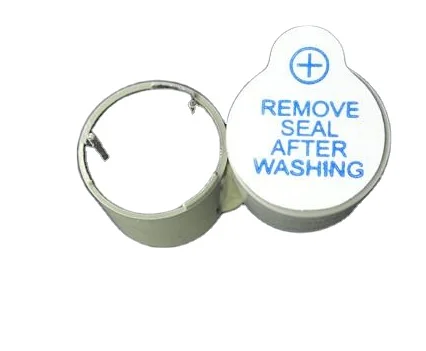

■ Dimensions Sound omissin holo : 2.6mm diameter 12.0mm, height 9.5mm, pin pitch 7.6mm

● Color: Gray

Certifications

Product packaging

FAQ

Are you manufacturer ?	Yes, we are manufacturer.
How long is your delivery time?	Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
If the products can't work after receiving it,what should I do?	We will replace new items for you at once and then we make the judgement for the issue.
What is the warranty?	1-3 months to replace new items for free. 1-2 years repairing free according to different products.
Do you accept OEM design?	Yes, we do. We can design according to your requirement, MOQ usually 2-10.
Do you accept pay 30% in advance?	Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.
What payment terms you accept?	We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD).
