Zing Ear G5T16 16 16A самораскрывающийся Микропереключатель с
- Категория: Limit Switches >>>
- Поставщик: Huizhou,Grandye,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.88 $* | 0.64 $* |
| Aug-16-2025 | 0.97 $* | 0.55 $* |
| Jul-16-2025 | 0.12 $* | 0.69 $* |
| Jun-16-2025 | 0.9 $* | 0.83 $* |
| May-16-2025 | 0.35 $* | 0.28 $* |
| Apr-16-2025 | 0.54 $* | 0.57 $* |
| Mar-16-2025 | 0.24 $* | 0.33 $* |
| Feb-16-2025 | 0.24 $* | 0.74 $* |
| Jan-16-2025 | 0.85 $* | 0.48 $* |
Характеристики
Best Shipping Cost
1.Provide difference shipping way for your options, find the fast and cheap price shipping cost.
1.Provide difference shipping way for your options, find the fast and cheap price shipping cost.
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description

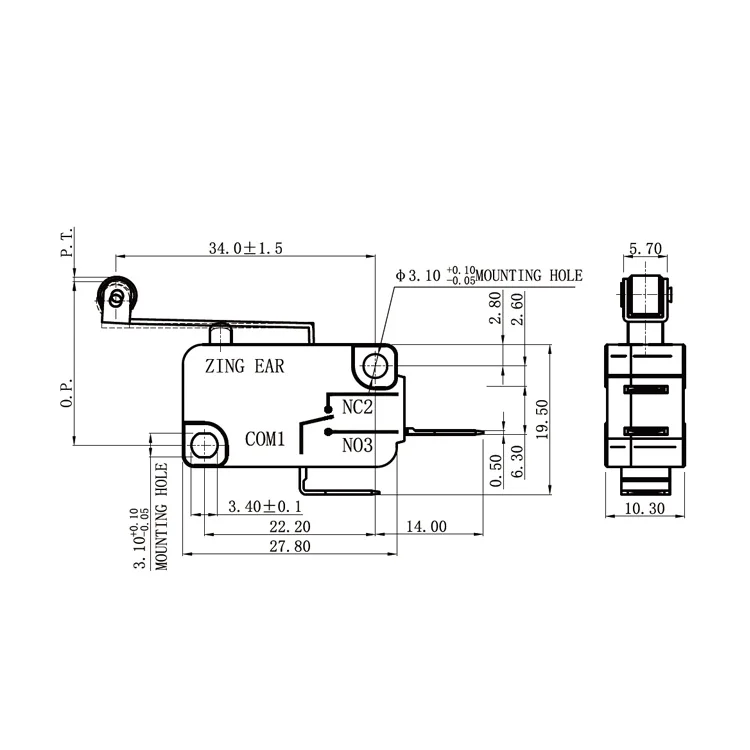

G5T16-D1P200A06 Micro Switch Drawing

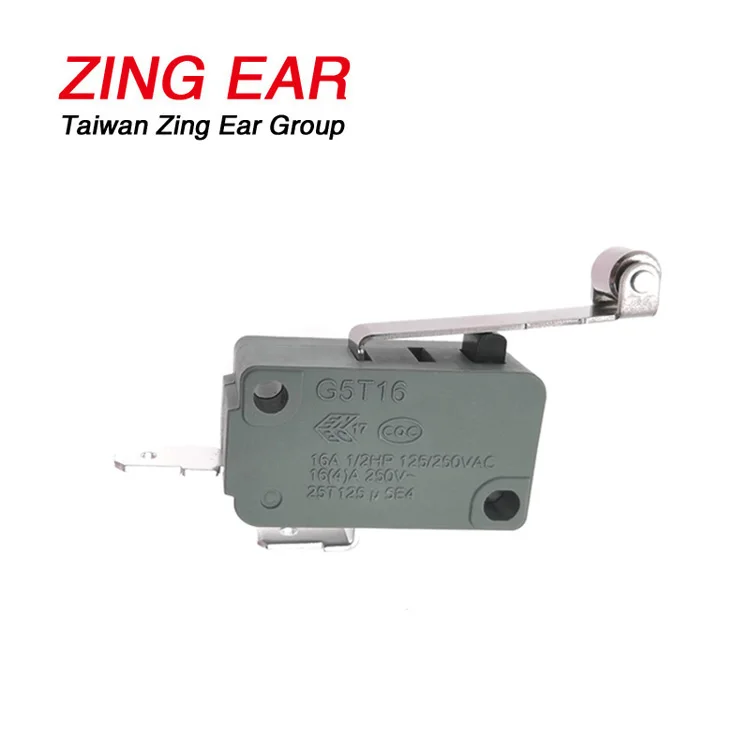

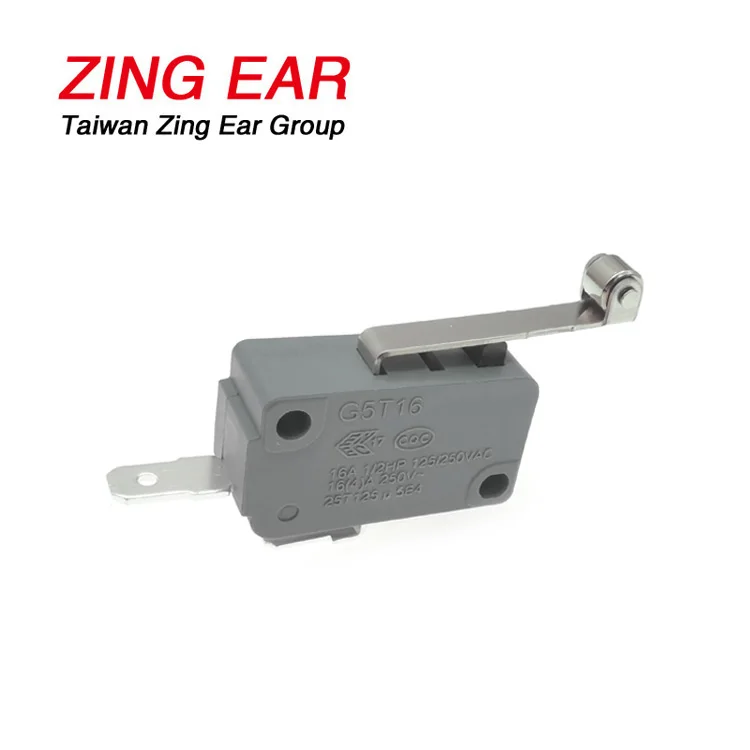

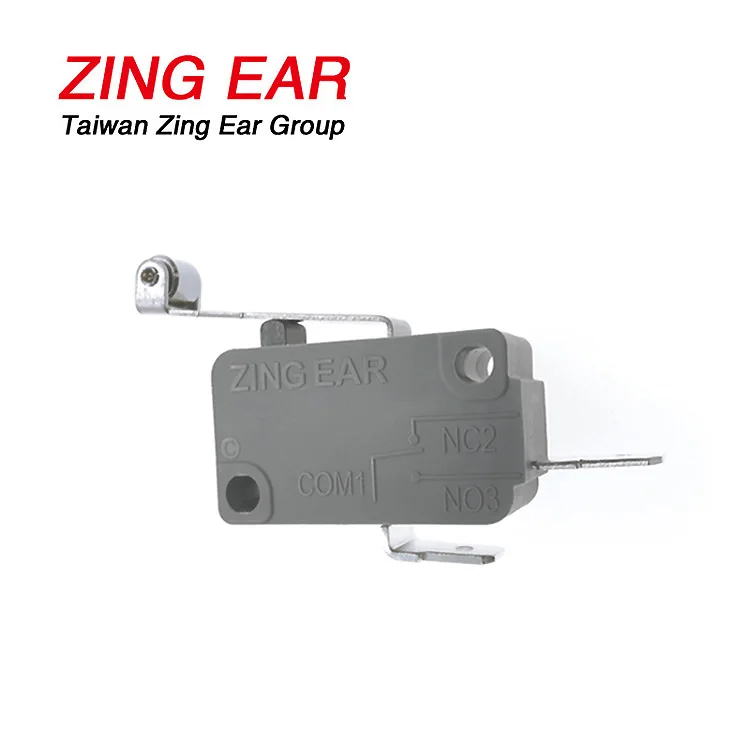

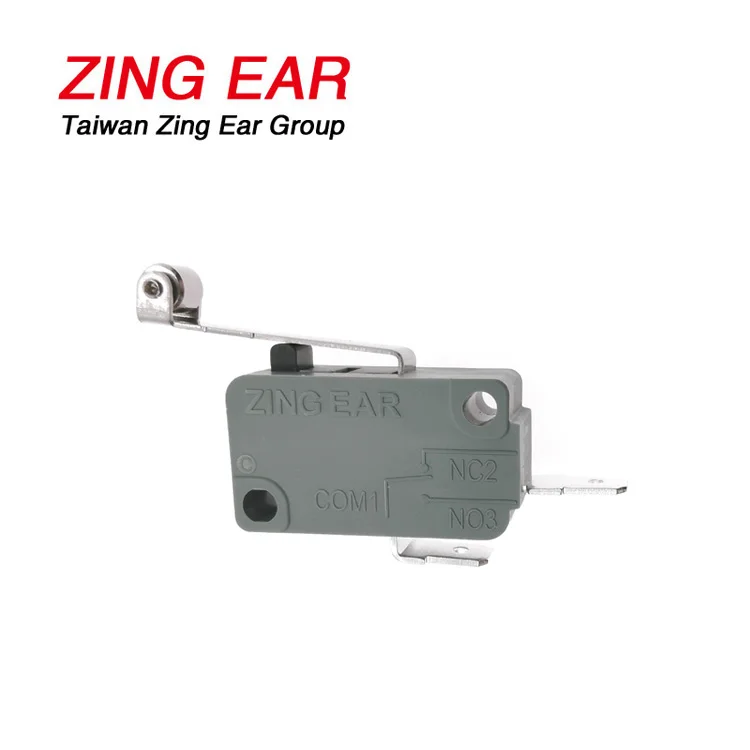

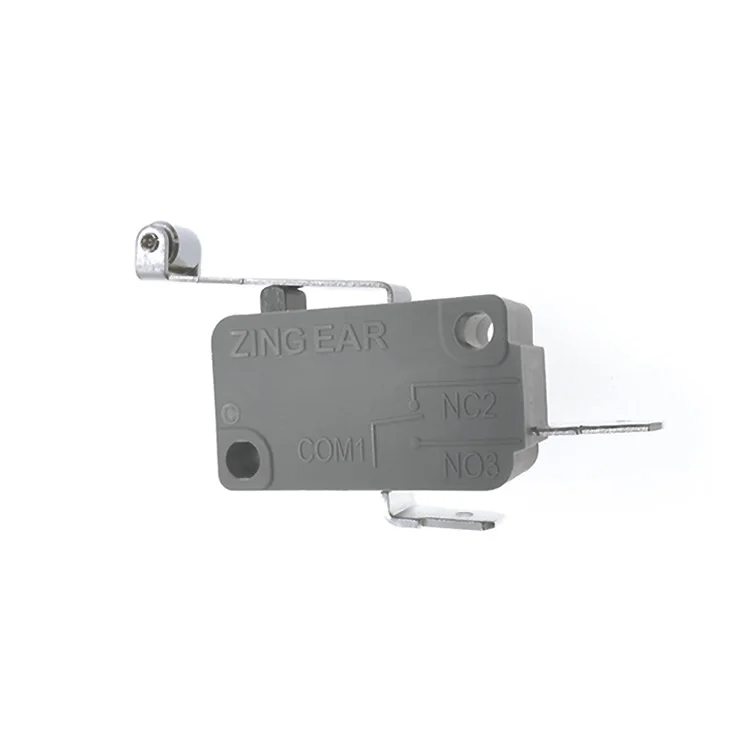

G5T16-D1P200A06 Micro Switch Pictures
G5 Micro Switch Specification
Operating speed | 0. 1mm-1m/s(Related with actuator forms) | ||||||
Operating frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | ||||||
Insulation resistance | ≥ 100 Ω (500VDC) | ||||||
0perating Frequency - Electrical | ≥ 100 Ω (500VDC)10~30 time/min | ||||||
Contact resistance | ≤ 100m Ω (Initial value) | ||||||
Between each terminals of the same polarity | AC1000V, 50/60нz, Imin | ||||||
Betweencurrent-carrying metal partand ground. and between eachterminaland non -current carring metal parts | AC1500V, 50/60HZ, 1min. | ||||||
Vibration resistance | 10-55HZ, 1.5mm Double amplitude | ||||||
Shock resistance | Destruction:0F> 1.0N: 1000m/s2 (approx. 100G) max.0F≤ 1.0N:400m/s2 (approx. 40G) max. 0F> 1.0N:200m/s2 (approx. 20G) max. 0F≤ 1.0N:100m/s2 (approx. 10G) max. | ||||||
Life expectancy | Mechanical >10,000, 000 cycles or 1, 000,000 cyclesElectrical >50,000 cycles or 100,000 cycles | ||||||
Electrical | Min. 100, 000次/cycles(Depend on part NO.) | ||||||
Weight | Approx. 6.2g(No lever). | ||||||
Application for G5
Household appliances
Home oven
vacuum cleaner
Heater
Electric clothes rail
Steam iron
Hanging ironing machine
Gas stoves
Intelligent cleaning robot
Wall-hung stove
Lightwave furnace
Microwave oven
Rice cooker
Water heater
Hairdresser
Electric hot water faucet
Inflatable bathtub
Scanning instrument
Handheld barcode scanner
Wall breaking machine
Broken cooking machine
Home oven
vacuum cleaner
Heater
Electric clothes rail
Steam iron
Hanging ironing machine
Gas stoves
Intelligent cleaning robot
Wall-hung stove
Lightwave furnace
Microwave oven
Rice cooker
Water heater
Hairdresser
Electric hot water faucet
Inflatable bathtub
Scanning instrument
Handheld barcode scanner
Wall breaking machine
Broken cooking machine
Ice cream machine
Ice machine
Insulation machine
compressor
Sand machine
Coffee machine
Game console
Game console joystick
Game console rocker
dishwasher
Bowling machine
heater
Car washer
Automation equipment
Automatic beverage machine
vending machine
Unmanned vending machine
Lawn machine
Lawnmower
Lawn machine garden tools
Roller shutter
Volume gate
Electric trolley
Ice machine
Insulation machine
compressor
Sand machine
Coffee machine
Game console
Game console joystick
Game console rocker
dishwasher
Bowling machine
heater
Car washer
Automation equipment
Automatic beverage machine
vending machine
Unmanned vending machine
Lawn machine
Lawnmower
Lawn machine garden tools
Roller shutter
Volume gate
Electric trolley
Smart dishwasher
Level controller
Pneumatic actuators
Valve echo
Electric Actuator
Level controller
High-pressure sprayer
High-low pressure switch for water purifier
UL Water Pump Electronics
Refrigerator door signal
Built-in dehumidification system
Washing machine control system
Tubular motor
Putter motor
Ball float
Electric valve
Electric valve
Floating torch
electric putter
Putter motor
Treadmill
water heater
Pneumatic actuators
Valve echo
Electric Actuator
Level controller
High-pressure sprayer
High-low pressure switch for water purifier
UL Water Pump Electronics
Refrigerator door signal
Built-in dehumidification system
Washing machine control system
Tubular motor
Putter motor
Ball float
Electric valve
Electric valve
Floating torch
electric putter
Putter motor
Treadmill
water heater
Electric flatbed
Our Main Products
Company Information
R&D Team
Production Line
Our Advantage
1.30 years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
Certificates
ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
Exhibition
We have to participate in famous electrical exhibitions all over the world every year.
2019 Micro Switch in India Electronic & Smart Appliances Expo
HongKong-Electronics-Fair
2019 Micro Switch Indonesia Electronics Fair Micro Switch Shanghai Exhibition-Day 1 Chengdu International Auto Parts Exhibition Company in March 9th -3 11 in Shanghai New International Exp
Company Information
2019 Micro Switch Indonesia Electronics Fair Micro Switch Shanghai Exhibition-Day 1 Chengdu International Auto Parts Exhibition Company in March 9th -3 11 in Shanghai New International Exp
Company Information
Package & Shipment
About Package:
1. Color box inside with foam and carton outside, which can protect goods;
2. Special package is available；
About Shipment:
1. By air, By sea, By land
2. By Express, like DHL, TNT, UPS, Fedx
3. By post or other carrier, this type of shipment will be slow but more cheaper
FAQ
Q1: Are you a trading company or manufacturer?
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:100pcs.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Can you provide free samples?
A: Yes, free sample before place order.
Q5. Leading time for my order?
A: 2-4 weeks generally, 1-5 days for sample
Q6: What is the capacity per month?
A:Over 8 million pcs/month for micro switch series,and over 20 million pcs/month for keyboard switch series.
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:100pcs.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Can you provide free samples?
A: Yes, free sample before place order.
Q5. Leading time for my order?
A: 2-4 weeks generally, 1-5 days for sample
Q6: What is the capacity per month?
A:Over 8 million pcs/month for micro switch series,and over 20 million pcs/month for keyboard switch series.
Send Inquiry Now
LOW MOQ & Free Sample
1Pcs Sample, 10Pcs Order
One-stop Service
Saving Your Time & Money
Fast Delivery &
Cheap Shiping Fees
1-5 Working Days Item In Stock
1. Get the free sample before palce order for all customer
2. Get 3 usd coupon for the first 10 customers each day that send us inquiry
3. One-stop service for free for the first 5 customers each day that send us inquiry.
2. Get 3 usd coupon for the first 10 customers each day that send us inquiry
3. One-stop service for free for the first 5 customers each day that send us inquiry.
