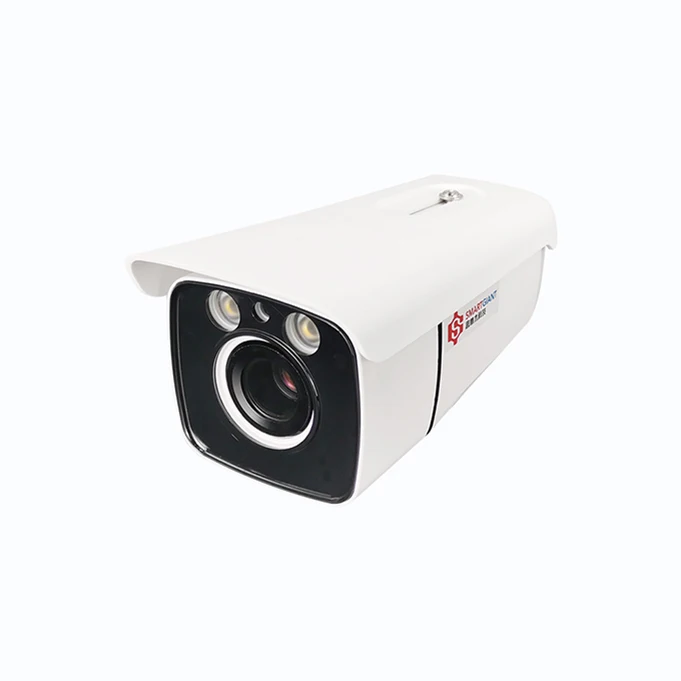

Cctv посещаемость Cmos Imx335 камера Bullet Ai Интеллектуальная Ip-камера Модуль
- Категория: Surveillance Products >>>
- Поставщик: Smartgiant,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 100.7 $* | 105.20 $* |
| Aug-15-2025 | 99.59 $* | 104.25 $* |
| Jul-15-2025 | 83.70 $* | 87.16 $* |
| Jun-15-2025 | 97.8 $* | 102.12 $* |
| May-15-2025 | 85.59 $* | 89.48 $* |
| Apr-15-2025 | 96.17 $* | 101.94 $* |
| Mar-15-2025 | 95.35 $* | 100.92 $* |
| Feb-15-2025 | 94.55 $* | 99.5 $* |
| Jan-15-2025 | 93.2 $* | 98.7 $* |
Характеристики
Product Description
Hot-selling OEM 8GB EMMC Hd Mini Security Board Camera Module Motion Detect Micro CCTV Infrared Micro Camera Module
AI Camera Module Advantage
1. Support Customized Solutions of Assemble Core- Boards.
2. Support NNIE performance up to 2.OTops.
3. Support up to 2T SO/SDXC card local storage.
4. Compatible with 2 million or 5 milion image sensors.
5. Advanced H.265/H.264 high profile level @ 4 video compression technology.
6. ICR infrared filter type automatic switching, enabling real day and night monitoring.
4. Compatible with 2 million or 5 milion image sensors.
5. Advanced H.265/H.264 high profile level @ 4 video compression technology.
6. ICR infrared filter type automatic switching, enabling real day and night monitoring.
7. Advanced 2A pressi teholoby 830 noise reduction technology to ensure high-quality image.
8. Advanced streaming media processing technology to ensure maximum real time image display.
8. Advanced streaming media processing technology to ensure maximum real time image display.

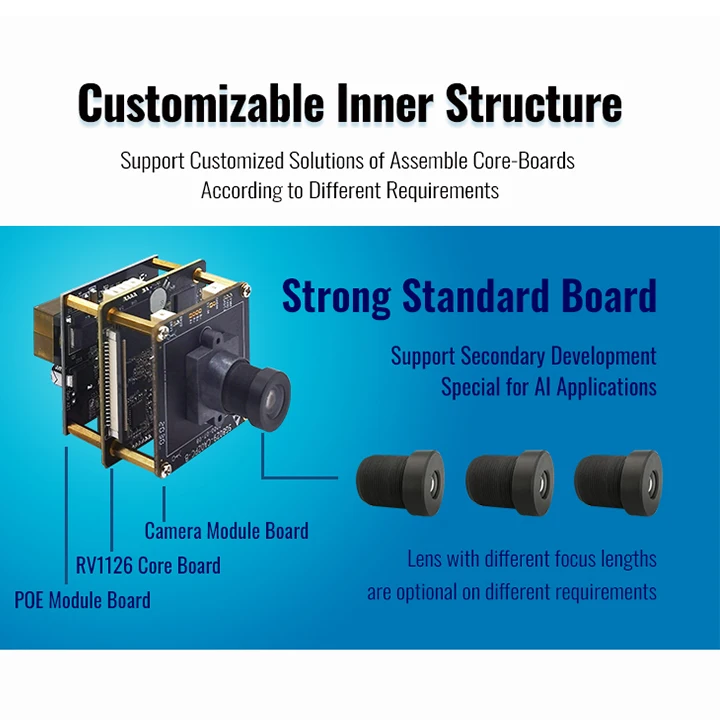

9. Camera Module Board、RV1126 Core Board、POE Module Board are optional on different requirements.
The developed prototype with customized design can provide structure and shell.
Product Specification
AI Camera Module Specification
Product Name | Horus AI camera module | ||||
Operating System | Linux | ||||
CPU | Quad Core ARM Cortex A7@1.5GHz | ||||
RAM | 1GB DDR3 SDRAM | ||||
Memory | EMMC Flash，8GB Capacity Supports TF card storage extension | ||||
Intelligent Video Analysis | Integrated AI computing acceleration engine, 2.0T Tops Neuro Network computing capability | ||||
Watchdog | CPU embedded watchdog | ||||
Board Dimensions | 42*42 mm | ||||
Single-Board Working Voltage | 9-16V; typical value：12V | ||||
Lightning Protection | 4KV lightning Protection on Ethernet Port | ||||
USB Port | 1 Lane USB2.0 1.25mm 6pin Plug | ||||
TF Card | Support External Extension TF Card | ||||
Internal Reserved IO Extension Interface | 4 Lane IO（Accommodates two UART） | ||||
Power Interface | RJ45 POE/DC Power Interface 5.5*2.1mm | ||||
Product Details
AI Camera Module Details
Company Introduction
Guangzhou Smartgiant Technology Co., Ltd.
SmartGiant Technology is an experienced provider of online automated testing solutions, integrating services of R&D,manufacturing, sales, and after-sales maintenance.
● Professional optical darkrooms, calibration rooms, and high-temperature aging rooms
● Factory areas over 4,800 m²
● Professional optical darkrooms, calibration rooms, and high-temperature aging rooms
● Factory areas over 4,800 m²
Why Choose Us
Our advantage
1. Reference customers: The world's largest OEM company, 60% of global mobile phone companies, etc.
2. Mature used in 3C automatic production line and automatic production equipment.
Just as mobile phone, computer, tablet, mobile phone, etc.
3. 15+ years in AI vision inspection & Automated testing.
4. Certificate: ISO-9001,CE,CCC, 41 Copyrights, 32 Patents.
5. Over 300 million Revenue in recent 3 years.
6. 7X24 hours Aftersales service and technical support.
7. Plant Area: 5000 Square meter
4. Certificate: ISO-9001,CE,CCC, 41 Copyrights, 32 Patents.
5. Over 300 million Revenue in recent 3 years.
6. 7X24 hours Aftersales service and technical support.
7. Plant Area: 5000 Square meter
Work Shop
Certifications
Our Production Line
Testing and Measurement Instruments/Solutions
Vision Inspection Instruments/Solutions
Hardware/Firmware Designs
Vision Inspection Instruments/Solutions
Hardware/Firmware Designs
Application Field
Embedded Instrument System
Vision Inspection Solutions
Customized Designs & Verification
Vision Inspection Solutions
Customized Designs & Verification
Location
Headquarter, Panyu, Guangzhou
Pre-Research Center,Huangpu,Guangzhou
Shanghai/Shenzhen/Changsha Branch Office
Hongkong, Sillicon Valley
Pre-Research Center,Huangpu,Guangzhou
Shanghai/Shenzhen/Changsha Branch Office
Hongkong, Sillicon Valley
Our Team
Exhibition
Packaging & Shipping
FAQ
Q: How/When can I get my quote online?
A: We are going to offer you the quote within 24 hours (workdays only) after we receive your inquiry. If you have to request an immediate quote, please contact us.
Q: Can I order samples?
A: Yes. Please feel free to contact us.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7–15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
A: We are going to offer you the quote within 24 hours (workdays only) after we receive your inquiry. If you have to request an immediate quote, please contact us.
Q: Can I order samples?
A: Yes. Please feel free to contact us.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7–15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
