Пластиковая геоячейка используемая в
- Категория: >>>
- Поставщик: Taian,Lin,Yuan,Engineering,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.28 $* | 0.78 $* |
| Aug-17-2025 | 0.41 $* | 0.97 $* |
| Jul-17-2025 | 0.28 $* | 0.62 $* |
| Jun-17-2025 | 0.16 $* | 0.69 $* |
| May-17-2025 | 0.46 $* | 0.31 $* |
| Apr-17-2025 | 0.24 $* | 0.63 $* |
| Mar-17-2025 | 0.88 $* | 0.58 $* |
| Feb-17-2025 | 0.85 $* | 0.84 $* |
| Jan-17-2025 | 0.7 $* | 0.31 $* |
Характеристики
Best Seller Products
Product Description

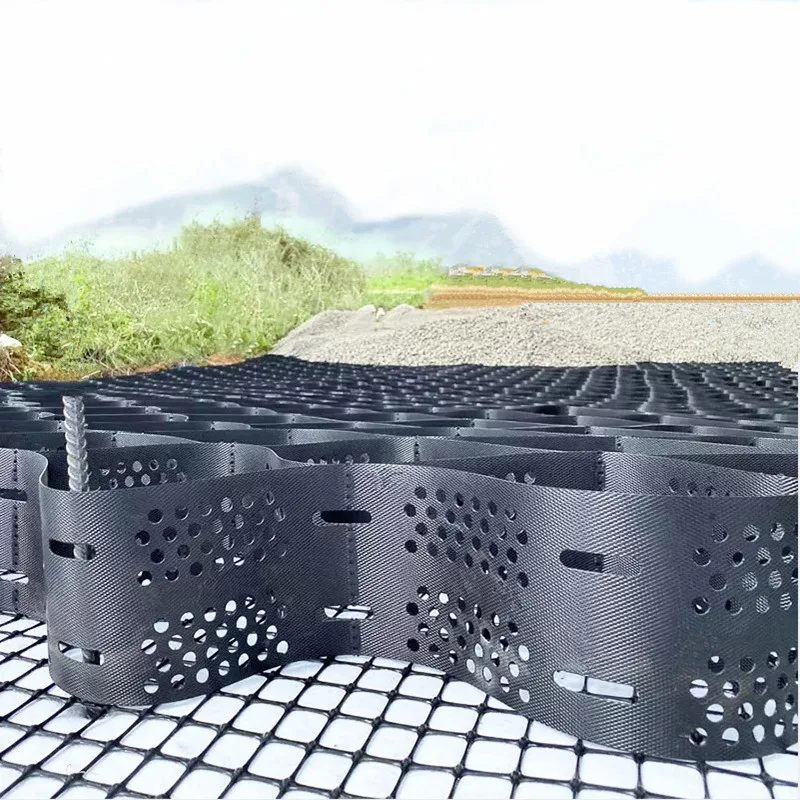

HDPE GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and
storm water control in channels.
Seam peel strength
Sheet thickness
Cell size
Weld spacing
Expanded panel size
SPECIFICATION
Application

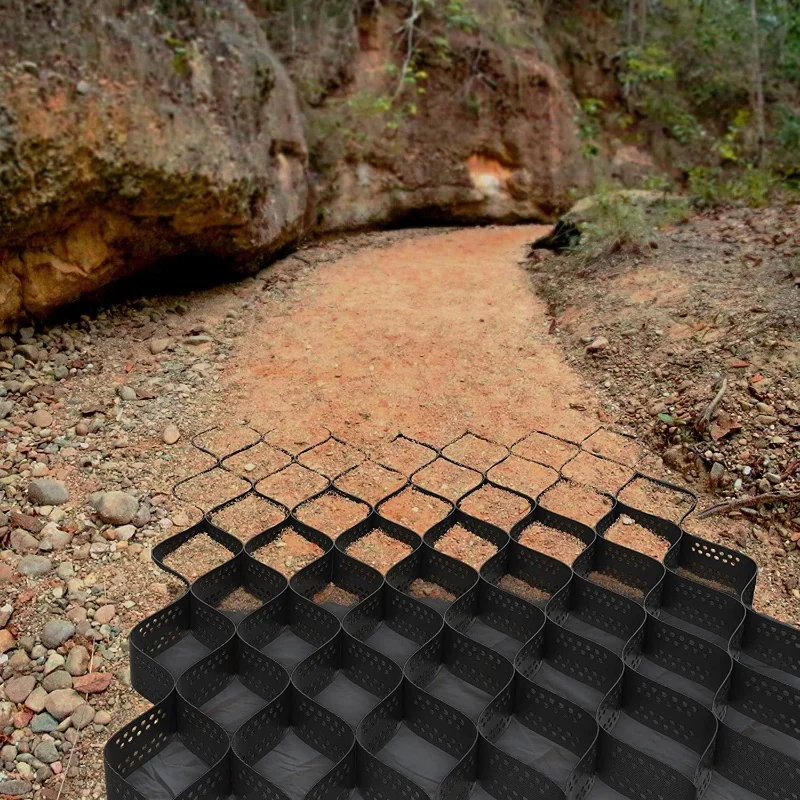

Ground Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior
material for infill as well as reducing the structural support layer thickness.Typical stabilization applications include
reinforcement of base and sub-base layers in flexible pavements, including: roads, railway substructure and ballast confinement;
working platforms in inter modal ports; airport runways.
material for infill as well as reducing the structural support layer thickness.Typical stabilization applications include
reinforcement of base and sub-base layers in flexible pavements, including: roads, railway substructure and ballast confinement;
working platforms in inter modal ports; airport runways.
Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

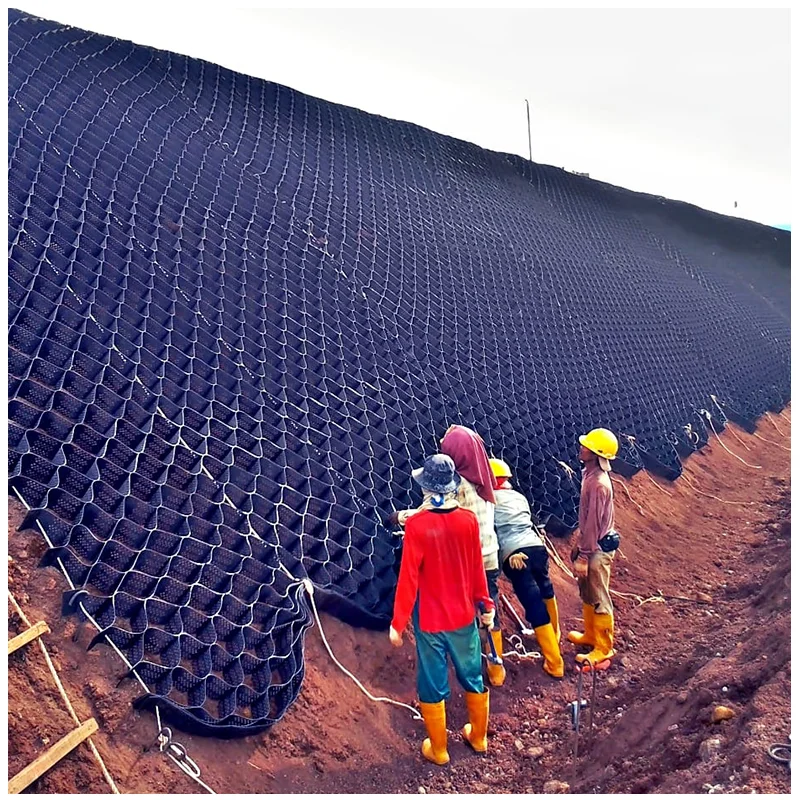

Slope Protection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography
Quality Control
Construction Accessories

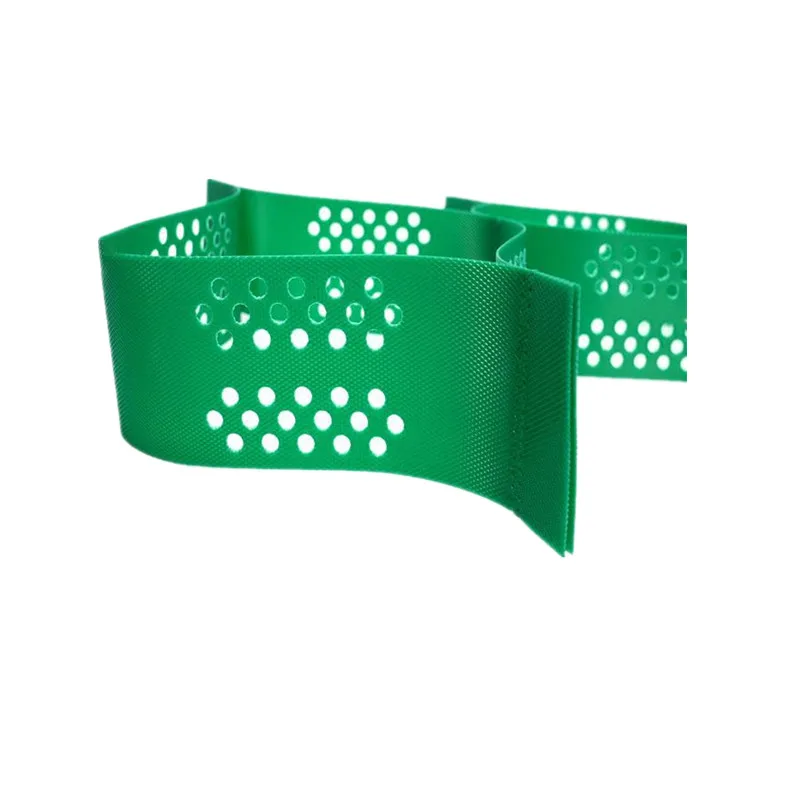

Colorful geocell for projects dependent
Butterfly key for quicker connection of HDPE gecell sections
Anchor & stake clip for geocell
Company Introduction
Company Introduction
Taian Lin Yuan Engineering Materials Co., Ltd., established in 2014. We are focusing on earthwork materials and many relevant products. We always offer customization to every customer for different demands, which means we can offer different width and length. different materials quality, different using fields. Our products include Polyester warp knitting geogrids, glass fiber geogrids, plastic geogrids, geotextiles, geomembrane, composite geomembrane, new three-dimensional geogrids, geogrids etc. Which can be applied to a wide ranges like Railway, highway subgrade reinforcement, water conservancy dam reinforcement, tunnel, subway and other engineering fields. Our annual outputs have exceeded 300 million square meters, exporting to more than 30 countries.
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects; Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!
Looking forward to cooperate with you!
Packaging &Shipping
Packaging: Strips packaging or Pallet Packaging
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
