BY-3520F рубашка-поло закрывающая переднюю часть швейная машина шаблон шаблона футболка
- Категория: Sewing Machines >>>
- Поставщик: Dongguan,Wei,Bi,Ma,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 269998.19 $* | 275398.58 $* |
| Jul-19-2025 | 218975.78 $* | 223355.96 $* |
| Jun-19-2025 | 265746.32 $* | 271061.13 $* |
| May-19-2025 | 263620.58 $* | 268892.88 $* |
| Apr-19-2025 | 210471.62 $* | 214680.78 $* |
| Mar-19-2025 | 259368.27 $* | 264555.4 $* |
| Feb-19-2025 | 257242.70 $* | 262387.94 $* |
| Jan-19-2025 | 255116.64 $* | 260218.76 $* |
Характеристики
Specification
1. | Commodity | Pocket placket sewing machine |
2. | Sewing Area | X(Lateral) Direction Y(Longitudinal) Direction 350(mm) x 200(mm) |
3. | Max. Sewing Speed | 3000rpm（with stitch interval below 3mm） |
4. | Stitch Length | 0.1～12.7mm, and in the control system is of version 5.0 or above, the maximum stitch length can extend to 40 mm（Min Resolution: 0.10mm） |
5. | Feed Motion of Frame | Intermittent feeding (2-shaft driven by pulse motor) |
6. | Needle Bar Stroke | 41.2mm |
7. | Needles | DP×5、DP×17 |
8. | Lift of Frame | Standard 18mm to Max. 22mm（Pneumatic type: Max. 25mm） |
9. | Intermediate Presser | Stepping Driving (Range: 0～8mm) |
10. | Lift of Intermediate Presser | 20mm |
11. | Hook | Tecsun high quality rotating hook |
12. | Memory of Pattern Data | Memory/U Disk |
13. | Pause function | Stop the machine during the sewing |
14. | Scaling Up/Down Function | Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per step) |
15. | Scaling Up/Down Method | Increasing / decreasing stitch length & Increasing / decreasing stitch number |
16. | Sewing Speed Limitation | 200～3000rpm（100rpm per step） |
17. | Pattern Selection Function | Pattern No. selection method |
18. | Up counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
19. | Down Counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
20. | Sewing Machine Motor | Servo Motor |
21. | Stop Needle at Highest Position Function | After the completion of sewing, the needle can return to its highest position |
22. | Rated Power | 750W |

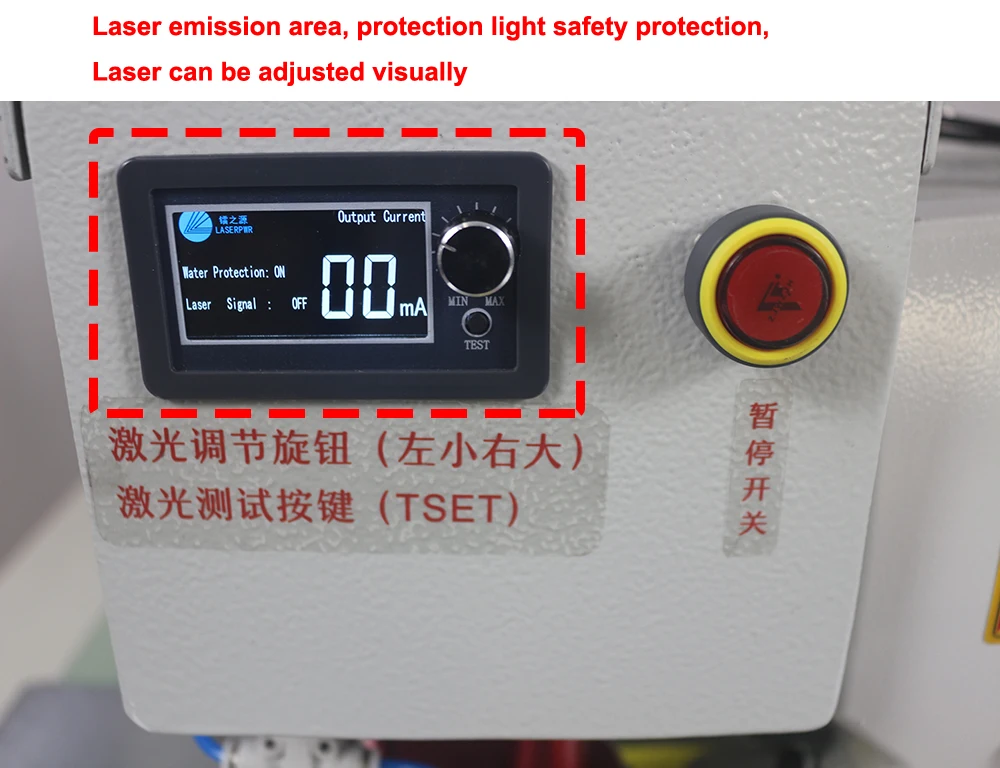

23. | Power of Laser | 120W |
24. | Operation Temperature Range | 0℃～45℃ |
25. | Operation Humidity Range | 35%～85% （No Dew Condensation） |
26. | Line Voltage | AC 220V ± 10%；50/60Hz |
27. | Plywood box size | 170*122*132cm |
28. | Packing volume | 2.7377cbm |
29. | Gross weight | 273kg |
30. | Application | Trousers, pants, jeans, shirts, uniforms, clothes, etc. |
31. | Certification | CE, RoHS |
32. | Language | Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol. |
33. | OEM | Yes |
34. | Working lasting | 24 hours long lasting |
35. | HS code | 8452219000 |
Product Description
Packing & Delivery
Standard plywood box, plastic film wrapped outside for waterproof. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan WeiBiMa Automation Co., Ltd. was established in 2005, the headquarter is located in the famous manufacturing city of China-Dongguan. We are one integrated enterprise which engaged in researching and developing and producing industrial sewing machines. We have a set of complete quality management system(QMS), advanced quality testing instruments and precision machining equipment, Also we have the independent product development Ability. Our own "Sokiei" branded industrial sewing machines are suitable for the luggage bags, handbags, shoes, clothing, leather goods, furniture, sporting goods, etc. After our products putting into the domestic and foreign markets, we have won the praise of the majority of users with excellent quality, exquisite technology and complete after-sales service. At present, the annual production capacity of 150,000 pieces, some models occupied 80% of the domestic market share, and exported to southeast Asia, Europe, America, Middle East and African markets. With the continuous development and growing of the company, we have established Sokiei sewing equipment manufacturing industrial Park in Yuqing Zunyi Guizhou Province, it covers over 50,000 square meters, and production capacity can reach 550,000 pieces per year at
that time. we will constantly meet the demands of customers. "Sokiei" pursues the company principle---"Customer First, Service as the Center, Strives for the survival by the quality, Reasonable price". Along with the good faith, the spirit of innovation, constantly producing competitive products with high quality, to provide professional business consulation, and to provide assured after-sales services, we have won the trust of our customers. We try to make "the creation of famous-branded products, the pursuit of High-quality, raise of customers' satisfaction, persistence of continuous improvement" basics for the purpose, all-out effort to build a model of sewing machinery industry in China, comprehensively to push forward the vigorous development of Dongguan WeiBiMa Automation Co., Ltd. We sincerely welcome you to join Sokiei, and to create brilliant future.
that time. we will constantly meet the demands of customers. "Sokiei" pursues the company principle---"Customer First, Service as the Center, Strives for the survival by the quality, Reasonable price". Along with the good faith, the spirit of innovation, constantly producing competitive products with high quality, to provide professional business consulation, and to provide assured after-sales services, we have won the trust of our customers. We try to make "the creation of famous-branded products, the pursuit of High-quality, raise of customers' satisfaction, persistence of continuous improvement" basics for the purpose, all-out effort to build a model of sewing machinery industry in China, comprehensively to push forward the vigorous development of Dongguan WeiBiMa Automation Co., Ltd. We sincerely welcome you to join Sokiei, and to create brilliant future.
FAQ
Q1. Are you manufacturer?
Re. Yes. we are manufacturing factory, and we only focus on excellence sewing machine.
Q2. How about your machine quality?
Re. I can not answer to you from our side. But our customers said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.
Q3. How about your price?
Re. Our price is not expensive, but also not very cheap, in generally, quality is better than price
Q4. How long could your sewing machine be used?
Re. Generally, more than 6 years.
Q5. What is the shipping port?
Re. We ship the goods via Guangzhou, Shenzhen port or as you like.
Q6. How about payment ?
Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment
Q7. Can you do OEM or ODM for us?
Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.
Q8. Can you supply spare parts?
Re. Yes, of course we can.
Q9. What guarantee you can supply ?
Re: Limited spare parts 1 year guarantee, not including quick-wear parts, like needle, hook, needle plate.
Q10. Do you have wechat, email?
Re. Yes, Mobile / WhatsApp / WeChat: +86 150 1787 5470 , sales@simomachinery.com, Charlie
Re. Yes. we are manufacturing factory, and we only focus on excellence sewing machine.
Q2. How about your machine quality?
Re. I can not answer to you from our side. But our customers said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.
Q3. How about your price?
Re. Our price is not expensive, but also not very cheap, in generally, quality is better than price
Q4. How long could your sewing machine be used?
Re. Generally, more than 6 years.
Q5. What is the shipping port?
Re. We ship the goods via Guangzhou, Shenzhen port or as you like.
Q6. How about payment ?
Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment
Q7. Can you do OEM or ODM for us?
Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.
Q8. Can you supply spare parts?
Re. Yes, of course we can.
Q9. What guarantee you can supply ?
Re: Limited spare parts 1 year guarantee, not including quick-wear parts, like needle, hook, needle plate.
Q10. Do you have wechat, email?
Re. Yes, Mobile / WhatsApp / WeChat: +86 150 1787 5470 , sales@simomachinery.com, Charlie
