Двигатель Sinotruk Howo WD615.47 WD615.96, сборка двигателя
US $2000-$3000

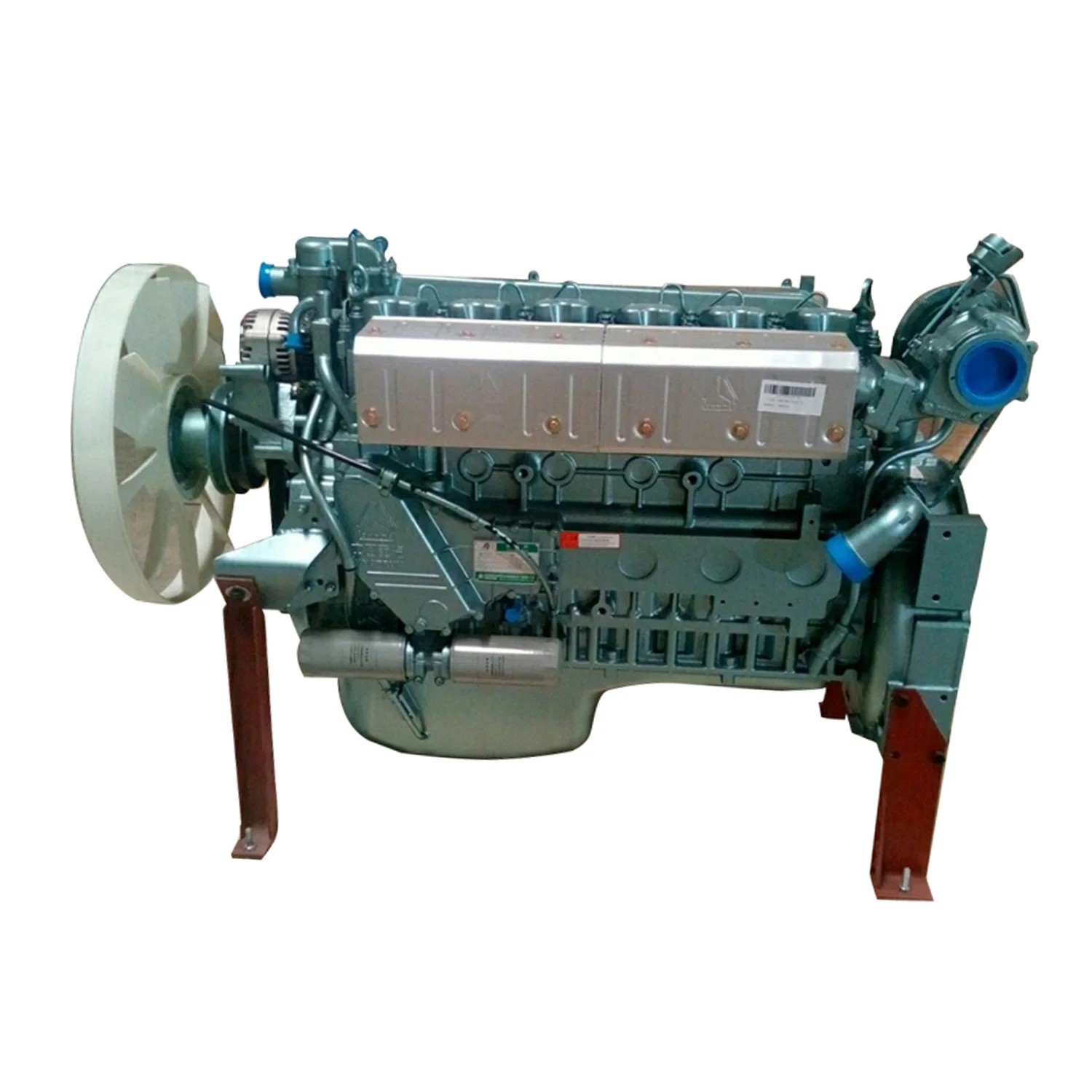

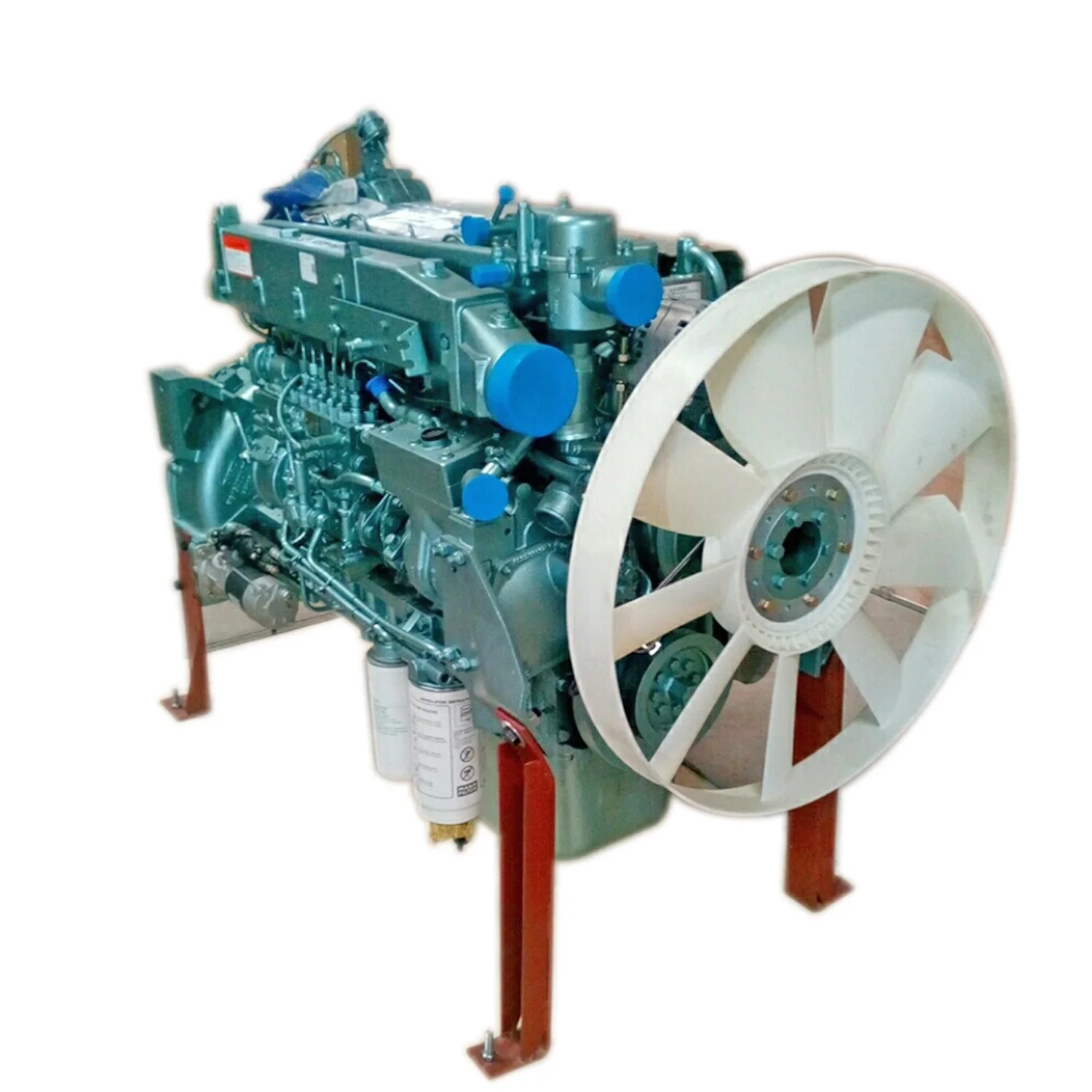

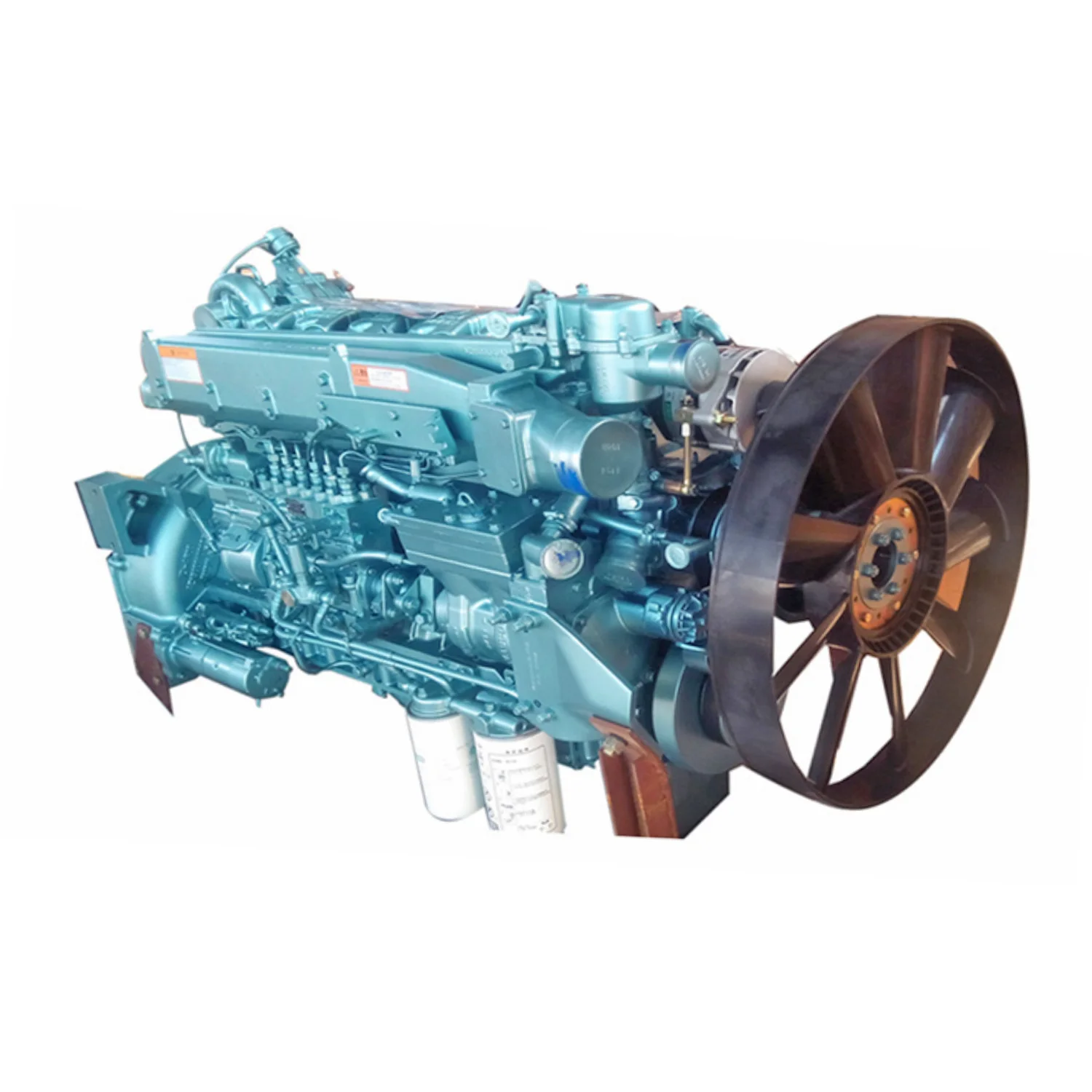

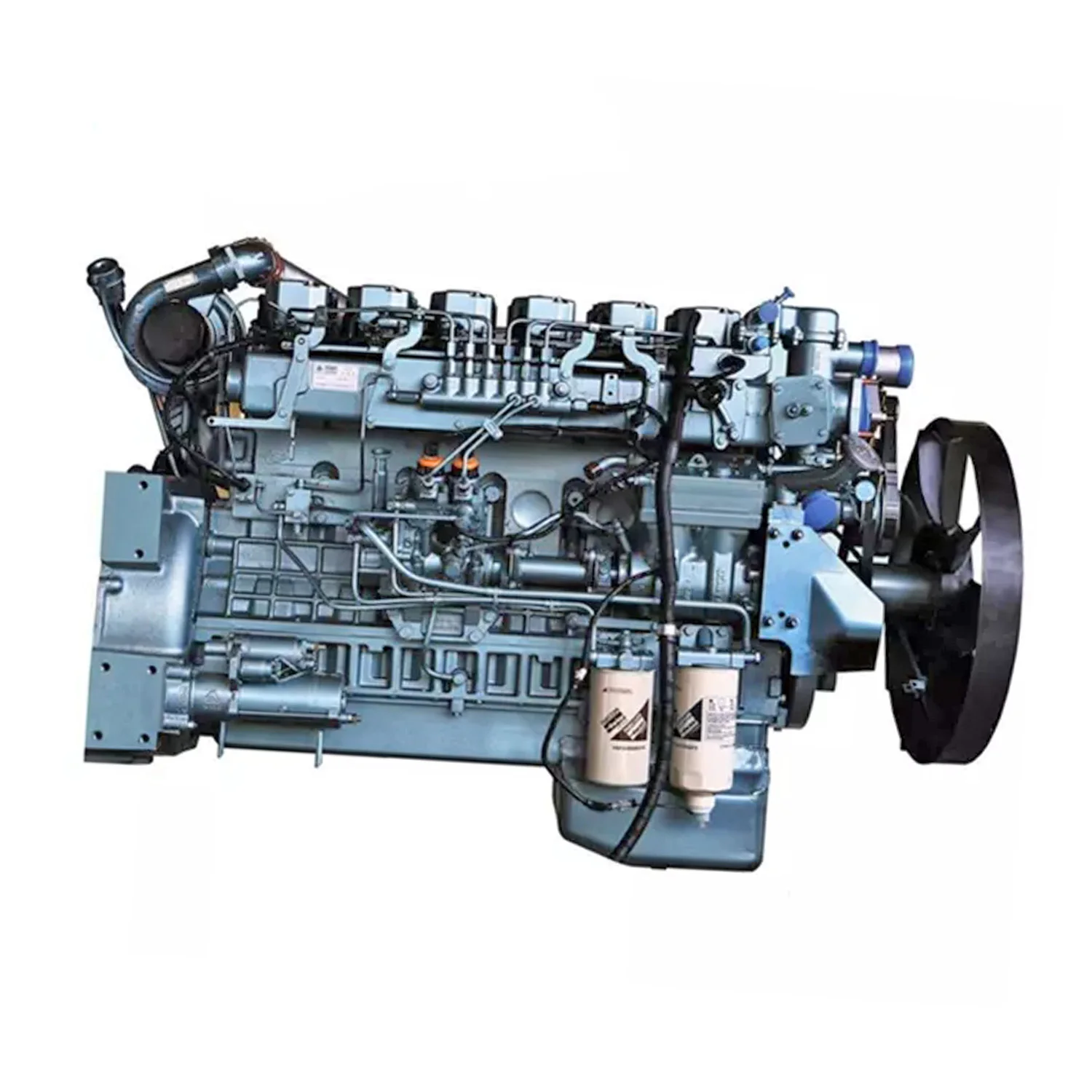

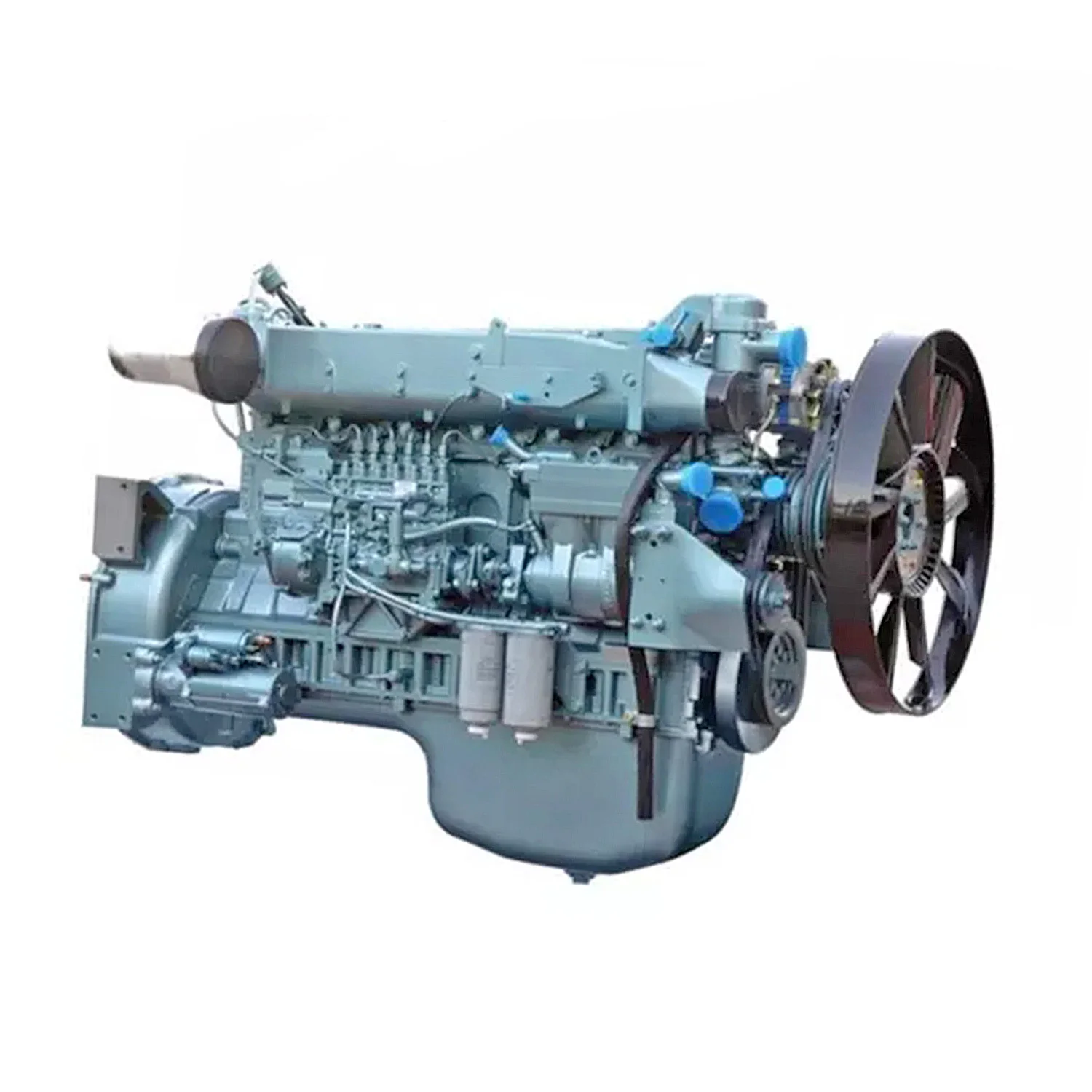

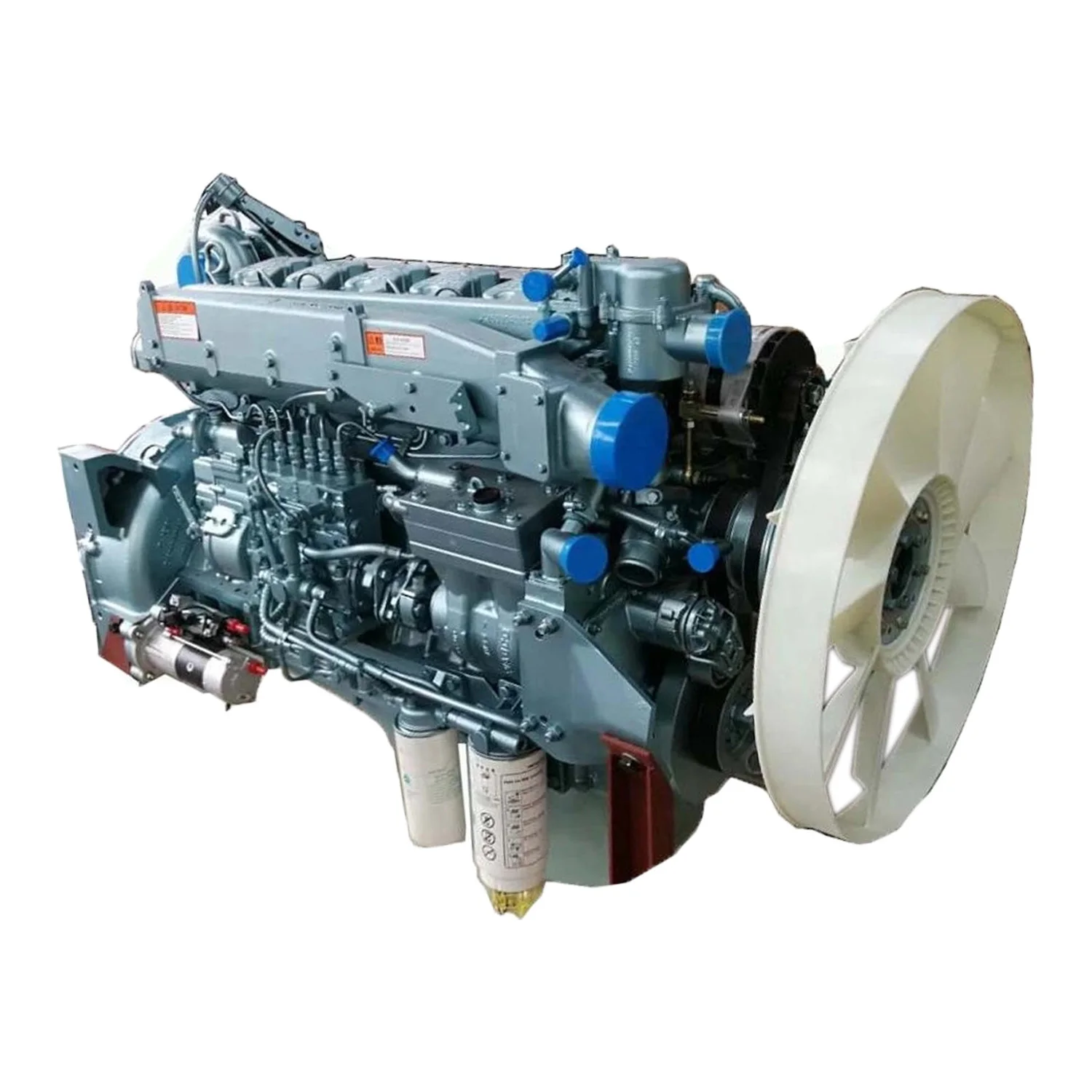

Высококачественный двигатель Sinotruk WD615 для грузовика HOWO
- Категория: Truck Engines >>>
- Поставщик: Jinan,Qungang,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1190.0 $* | 1250.57 $* |
| Aug-19-2025 | 1180.18 $* | 1239.3 $* |
| Jul-19-2025 | 990.7 $* | 1040.25 $* |
| Jun-19-2025 | 1160.66 $* | 1218.10 $* |
| May-19-2025 | 1010.56 $* | 1061.29 $* |
| Apr-19-2025 | 1140.11 $* | 1197.5 $* |
| Mar-19-2025 | 1130.77 $* | 1187.30 $* |
| Feb-19-2025 | 1120.59 $* | 1176.58 $* |
| Jan-19-2025 | 1110.97 $* | 1166.76 $* |
Характеристики
Products Description
Model | WD615.62 | WD615.87 | WD615.69 | WD615.47 | WD615.57 | ||||
Type | 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection | ||||||||
Ignition sequence | 1-5-3-6-2-4 | ||||||||
Valve / Cylinder | 2 | 4 | |||||||
Distance between cylinder core(mm) | 150 | ||||||||
Bore & Stroke(mm) | 126×130 | ||||||||
Displacement(L) | 9.726 | ||||||||
Compression ratio | 17:1 | 17.5:1 | |||||||
Rated power KW(HP) | 196(266) | 213(290) | 247(336) | 273(371) | 302(410) | ||||
Rated speed(r/min) | 2200 | 2100 | |||||||
Max. Torque(N.m) | 1100 | 1160 | 1350 | 1500 | 1650 | ||||
Speed at Max. torque(r/min) | 1100~1600 | ||||||||
Idling speed(r/min) | 600±50 | ||||||||
Specific Fuel consumption(g/kW.h) | ≤193 | ≤191 | |||||||
1m Noise dB(A) | ≤98 | ||||||||
Bare mass(kg) | 850 | ||||||||
Emission | Euro2 | ||||||||
What can we supply?
1.Sinotruk/Weichai engine parts
Crankshaft, connecting rod, cylinder block, cylinder head, piston,flywheel, cylinder liner,piston ,piston rings, piston
pin,connecting rod,bearing, crankshaft bearing ,intake&exhaust valve, valvesprings,camshaft, tappets, camshafts bearing, fuel
tank, fuel pump, fuel filter,air filter, oil filter, battery,alternator, starter, starter motor, ignition coil,water pump,
radiator, fan couplings, fan, thermostat, oil pump,pressure limiting valve ..
1.Sinotruk/Weichai engine parts
Crankshaft, connecting rod, cylinder block, cylinder head, piston,flywheel, cylinder liner,piston ,piston rings, piston
pin,connecting rod,bearing, crankshaft bearing ,intake&exhaust valve, valvesprings,camshaft, tappets, camshafts bearing, fuel
tank, fuel pump, fuel filter,air filter, oil filter, battery,alternator, starter, starter motor, ignition coil,water pump,
radiator, fan couplings, fan, thermostat, oil pump,pressure limiting valve ..
2.Sinotruk/FAST Gearbox Parts
Primary shaft, 2nd shaft, intermediate shaft, 2 / 3 associated gear,2nd speed gear(1/2/3/4/5) , reverse gear ,intermediate
shaft(1/2/3/4/5),synchronize assembly, synchronizer slider,gearbox ,gearbox shell, gearbox cover, gearbox middle cover, shift fork
assembly, PTO...
3.Chassis parts
Clutch cover, clutch disk , wheel hub, brake drum, brake pads ,Brake shoes, lock, wiring harness, drive shaft, front axle,
steering knuckle,steering arm, universal joints, rear axle , main reducer,differential,axle, planetary gears, sun gear, pinion and
bevel gear, spring, shock absorbers, stabilizer bars,steering pole, straight rod, rod joint, wheel reducer, through axle, rear
shell ... ..
Primary shaft, 2nd shaft, intermediate shaft, 2 / 3 associated gear,2nd speed gear(1/2/3/4/5) , reverse gear ,intermediate
shaft(1/2/3/4/5),synchronize assembly, synchronizer slider,gearbox ,gearbox shell, gearbox cover, gearbox middle cover, shift fork
assembly, PTO...
3.Chassis parts
Clutch cover, clutch disk , wheel hub, brake drum, brake pads ,Brake shoes, lock, wiring harness, drive shaft, front axle,
steering knuckle,steering arm, universal joints, rear axle , main reducer,differential,axle, planetary gears, sun gear, pinion and
bevel gear, spring, shock absorbers, stabilizer bars,steering pole, straight rod, rod joint, wheel reducer, through axle, rear
shell ... ..
Recommend Products
Advantages-Why Us
Transport And Payment
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
