Фабрика электромагнитных сточных вод жидкости расходомер
US $240.00-$320.00

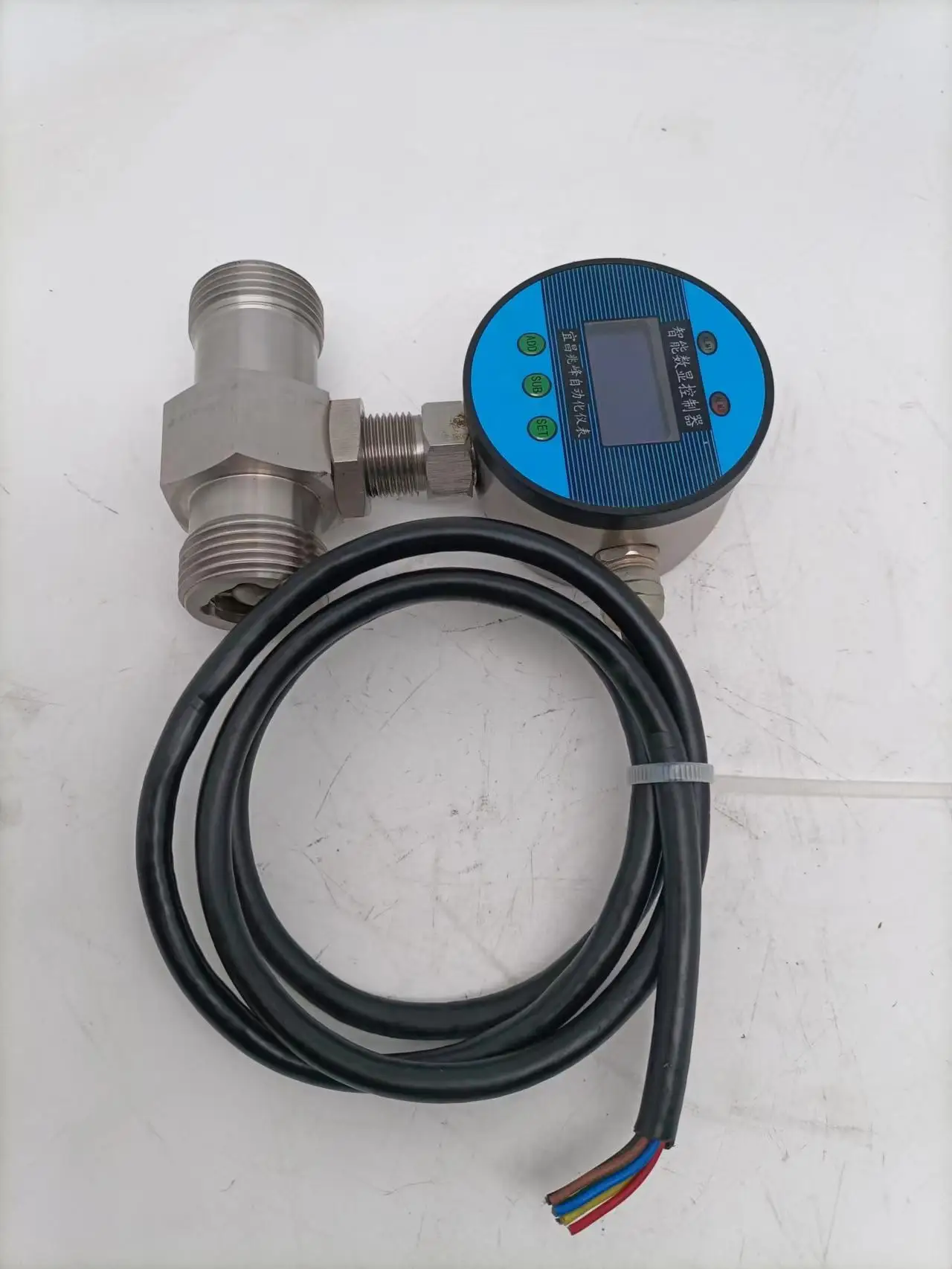

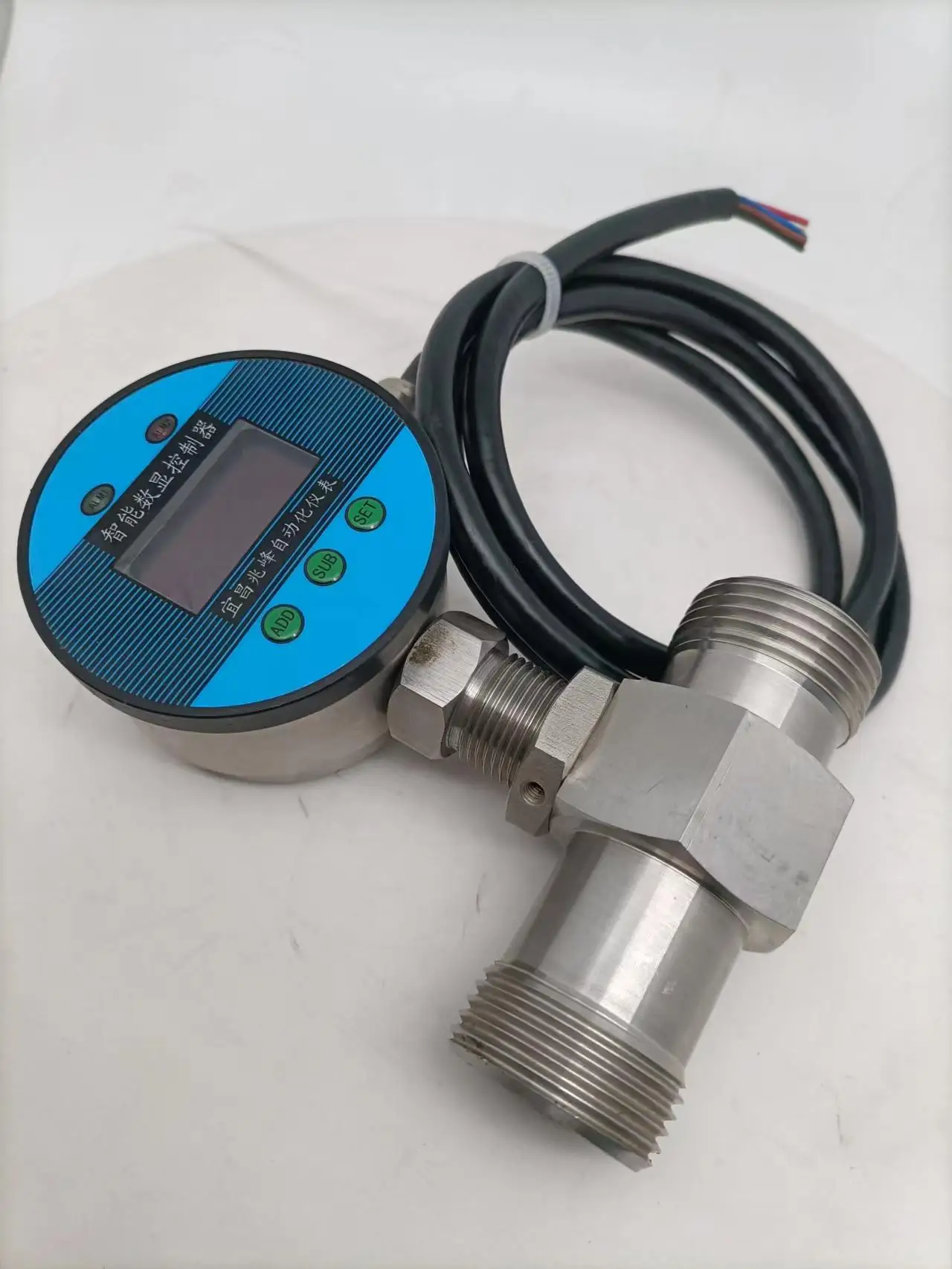

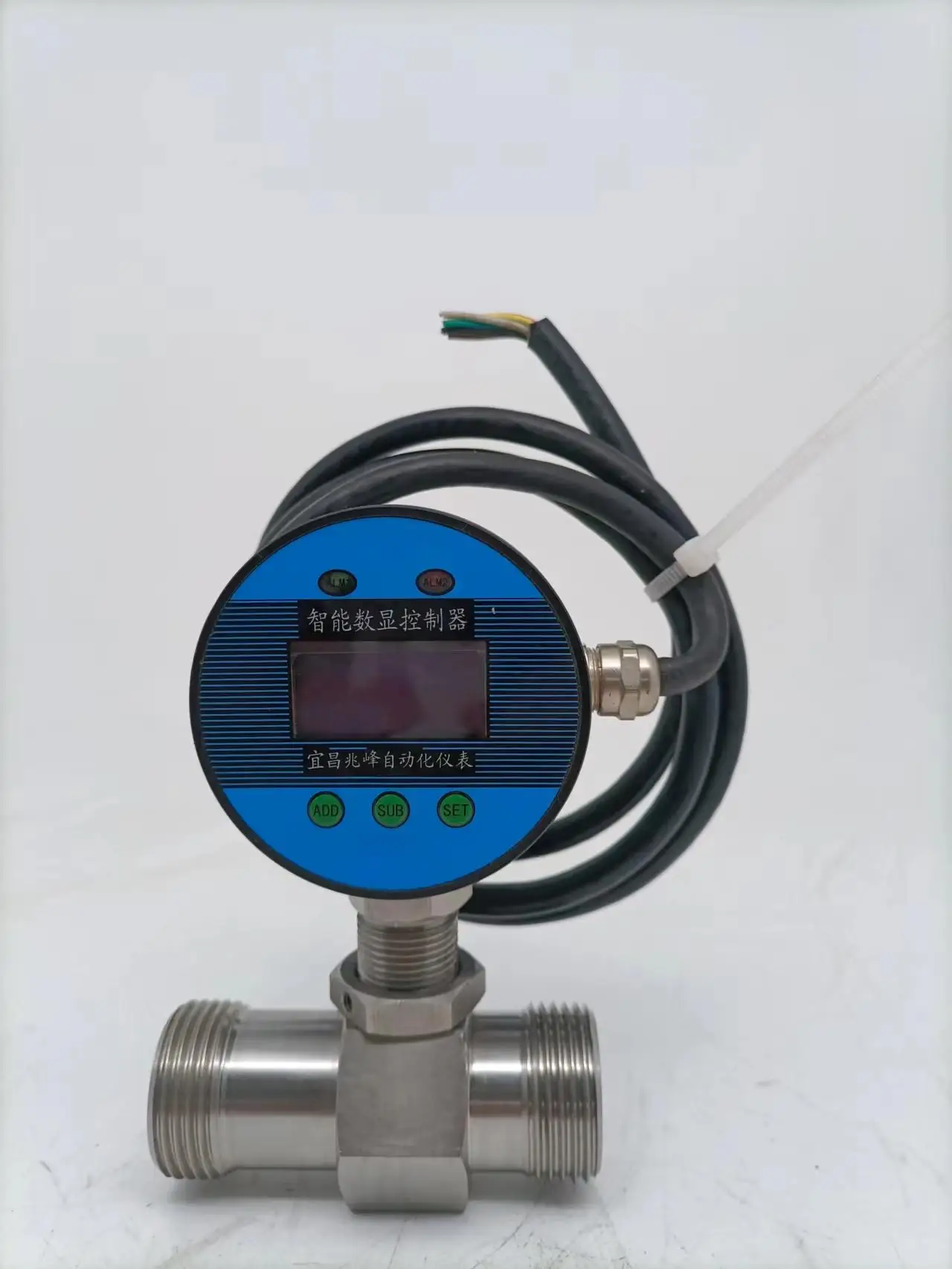

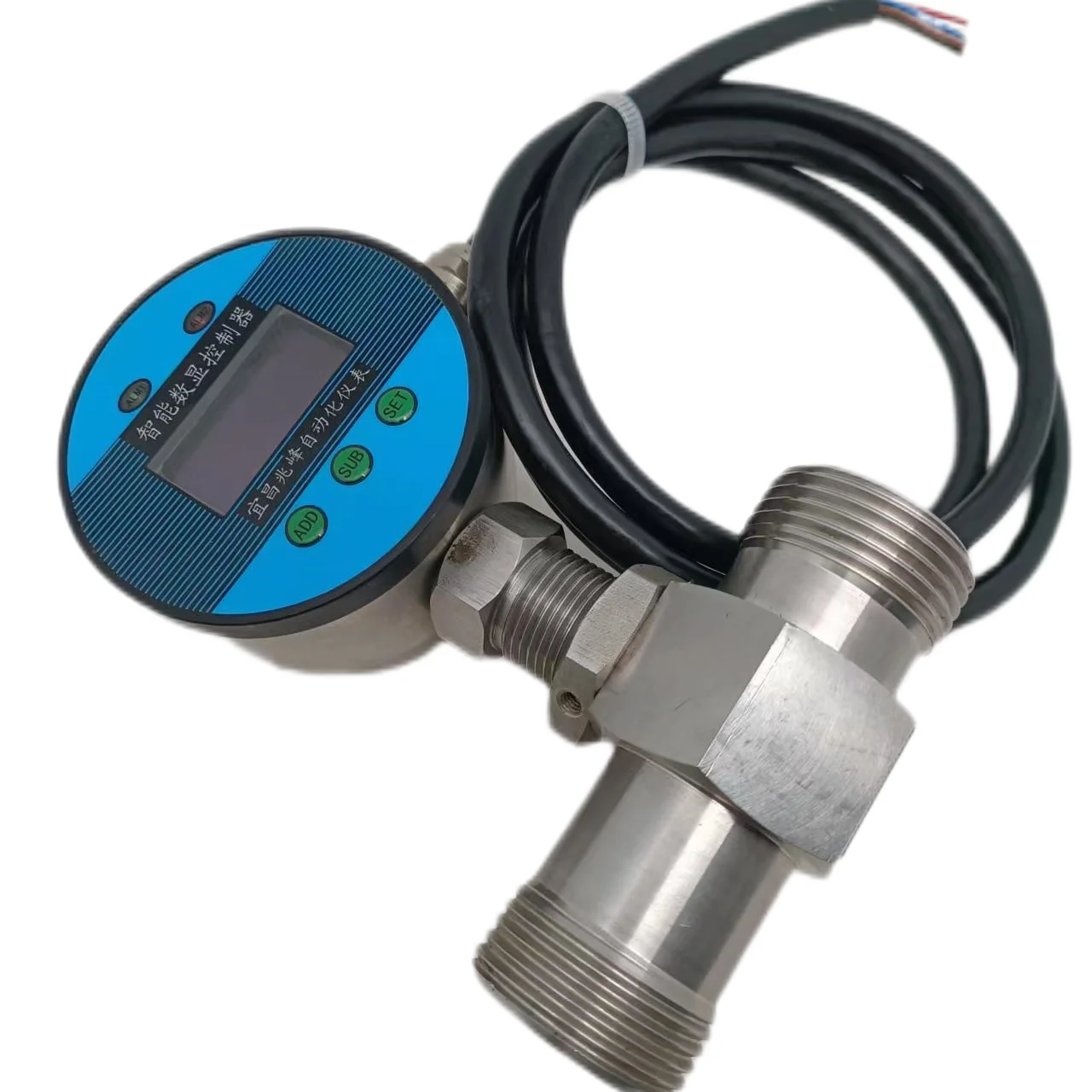

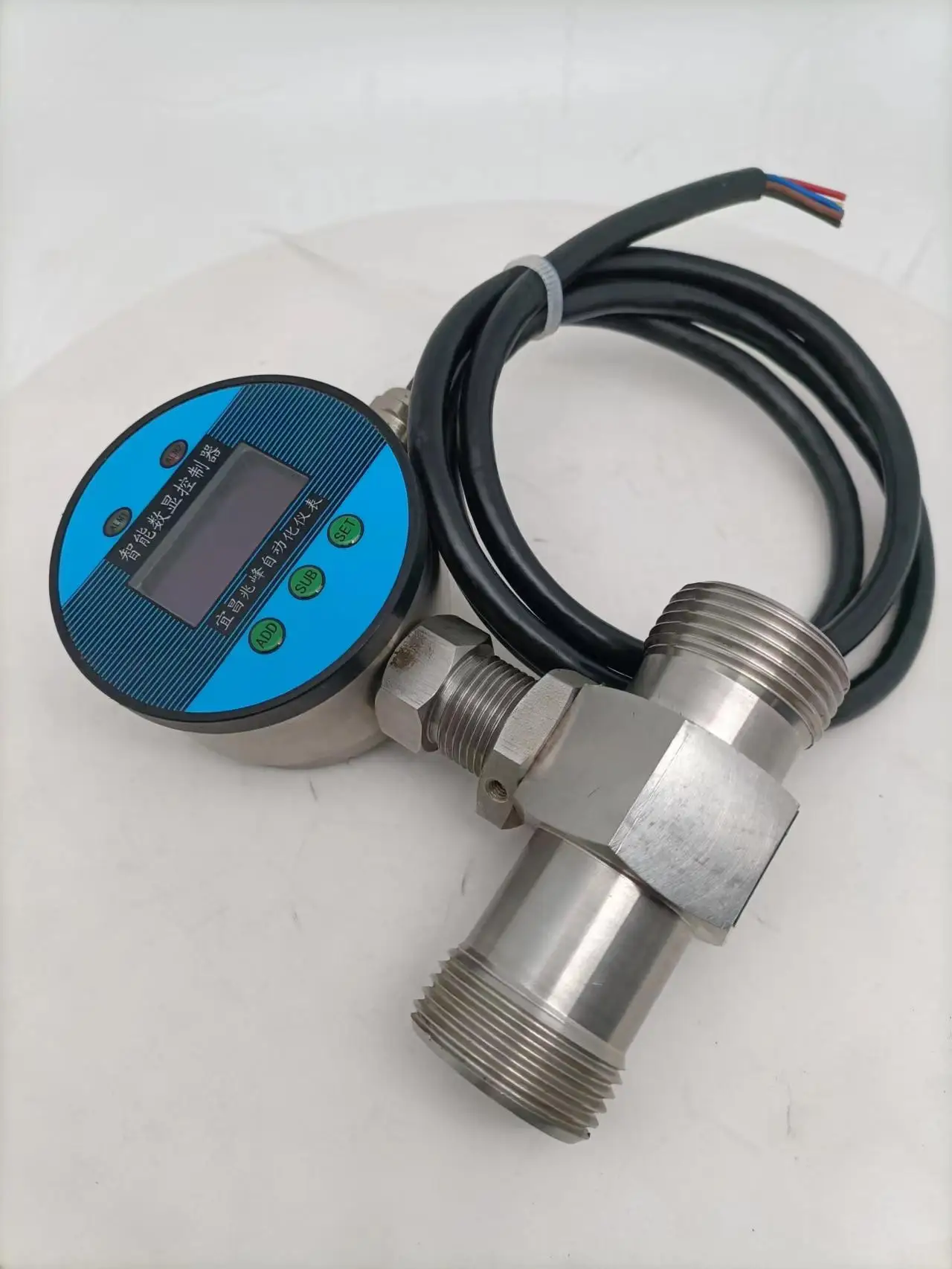

Интеллектуальный Контроллер расхода турбины со светодиодным цифровым дисплеем
- Категория: Flow Sensors >>>
- Поставщик: Yichang,Zhaofeng,Automation,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 342.47 $* | 349.23 $* |
| Jul-19-2025 | 277.97 $* | 283.13 $* |
| Jun-19-2025 | 336.79 $* | 343.28 $* |
| May-19-2025 | 334.88 $* | 341.71 $* |
| Apr-19-2025 | 266.5 $* | 271.22 $* |
| Mar-19-2025 | 328.58 $* | 335.21 $* |
| Feb-19-2025 | 325.59 $* | 332.71 $* |
| Jan-19-2025 | 323.38 $* | 329.99 $* |
Характеристики
Specification
Intelligent turbine flow controller with LED digital display for industry | ||
Viscosity | 0-100m㎡/s | |
Ambient temperature | -10 to +80 ℃ | |
Accuracy | 1%, 0.5% | |
Working Voltage | 9 to 40 V.DC | |
Power consumption | ＜5W | |
Display | OLED, 4 or 5 digital | |
Analog signal output | 4-20mADC, 1-5 VDC | |
Digital signal output | CAN2.0B, RS485 | |
Switch capacity | SPDT, 2A250VA250VAC OR 2A100W60VDC | |
Working temperature | For medium: -30 to +70 ℃ For controller: -40 to +70 ℃ | |
Protection class | IP54/IP65 | |
Liquid contacting material | Controller: SS304 Seals: NBR or FKM | |
Maximum working pressure | 16 MPa | |
Standard interface diameter | DN15 to DN80 | |
Connecting type | Thread or flange | |
Models specification
Model | Maximum range (m³/h) | Minimum range (m³/h) | Maximum working pressure (MPa) | Connecting type |
SFW-15 | 0-6 | 0-1 | 16 | Thread G1/2 or flange |
SFW-20 | 0-8 | 0-1.5 | 16 | Thread G3/4 or flange |
SFW-25 | 0-10 | 0-2 | 16 | Thread G1 or flange |
SFW-32 | 0-15 | 0-3 | 16 | Thread G11/2 or flange |
SFW-40 | 0-20 | 0-4 | 10 | Thread G2 or flange |
SFW-50 | 0-40 | 0-8 | 10 | Flange |
SFW-60 | 0-70 | 0-16 | 6 | Flange |
SFW-80 | 0-100 | 0-20 | 6 | Flange |
Electrical connection
Product Description
Applications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Yichang Zhaofeng Automation Instrument Co., Ltd., founded in 1989, formerly known as "state-owned Yichang Automation Instrument Factory", is a professional manufacturer of automation instruments. In 2001, it was restructured into Yichang Zhaofeng Automation Instrument Co., LTD..Now is one of the domestic leading companies in automation instrument industry.
Product catalog:
* Display instrument: differential pressure gauge, pressure gauge ;
* Controllers: explosion-proof pressure controller, differential pressure controllers, display controllers;
* Electronic automation instrument: pressure transmitter, differential pressure transmitter, liquid level, flow transmitter,
temperature sensors/transmitter, digital display and control instruments, etc.
40+ series up to 1000 varieties of product, 2 series of which had been patented. With factory area of 12,300 ㎡, and production area: 4,500 ㎡, 100 sets of various production equipment and 50 sets of inspection equipment. Product application: machinery, petroleum, chemical industry, metallurgy, electric power and military industry, etc.
Product catalog:
* Display instrument: differential pressure gauge, pressure gauge ;
* Controllers: explosion-proof pressure controller, differential pressure controllers, display controllers;
* Electronic automation instrument: pressure transmitter, differential pressure transmitter, liquid level, flow transmitter,
temperature sensors/transmitter, digital display and control instruments, etc.
40+ series up to 1000 varieties of product, 2 series of which had been patented. With factory area of 12,300 ㎡, and production area: 4,500 ㎡, 100 sets of various production equipment and 50 sets of inspection equipment. Product application: machinery, petroleum, chemical industry, metallurgy, electric power and military industry, etc.
