PCB модуль реле 12V JQX-16F T93 5 шт./набор 30A 5Pin 5Way общего
- Категория: Relays >>>
- Поставщик: Yueqing,Tengyi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.37 $* |
| Aug-16-2025 | 0.66 $* | 0.82 $* |
| Jul-16-2025 | 0.93 $* | 0.89 $* |
| Jun-16-2025 | 0.34 $* | 0.57 $* |
| May-16-2025 | 0.32 $* | 0.30 $* |
| Apr-16-2025 | 0.6 $* | 0.47 $* |
| Mar-16-2025 | 0.2 $* | 0.64 $* |
| Feb-16-2025 | 0.38 $* | 0.2 $* |
| Jan-16-2025 | 0.89 $* | 0.15 $* |
Характеристики
PCB Relay Module 12V JQX-16F T93 5PC 30A 5Pin 5Way General Purpose Relays
| Specifications | |
| Type | JQX-16F(T93) |

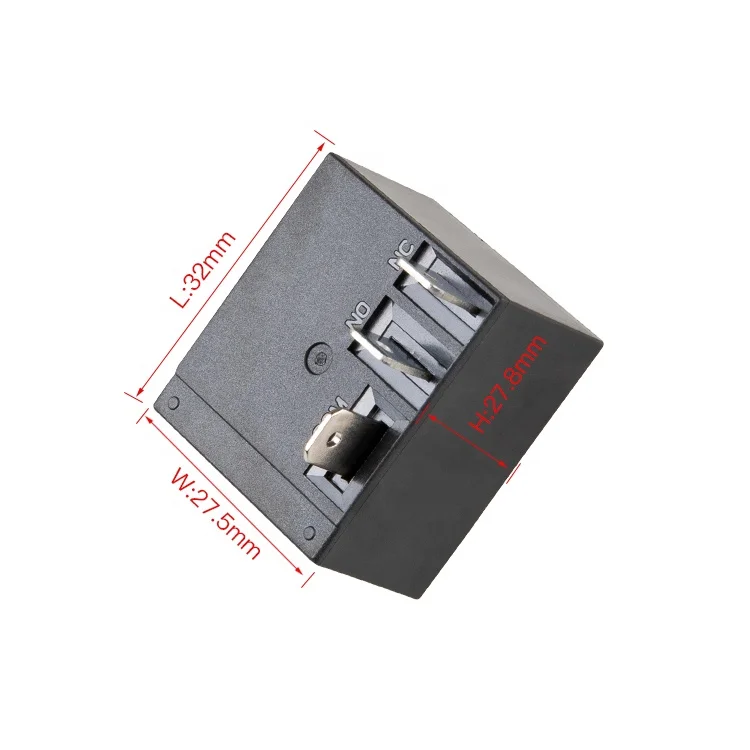

| Outine L×W×H(mm) | 32×27.5×27.8 |
| Contact Form | 1A,1C,1B |
| Max Switching Current | 30A 40A |
| Rated Load | 30A 250VAC/30VDC |
| 40A 250VAC/30VDC | |
| Max Switching Voltage | 250VAC/30VDC |
| Coil Voltage | 3~48VDC |
| Coil Power | 0.9W |
| Insulation Resistance | ≥1000MΩ(500VDC) |
| Dielectric Stength (Between Coil Contacts) | ≥2500VAC |
| Ambient Temperature | -40℃~ +80℃ |
| Operate Time | ≤15ms |
| Release Time | ≤10ms |
| Mechanical Life | 1×107 |
| Electrical Life | 1×105 |
| Dimensions(mm) |  |
| Installation Method | PCB |
