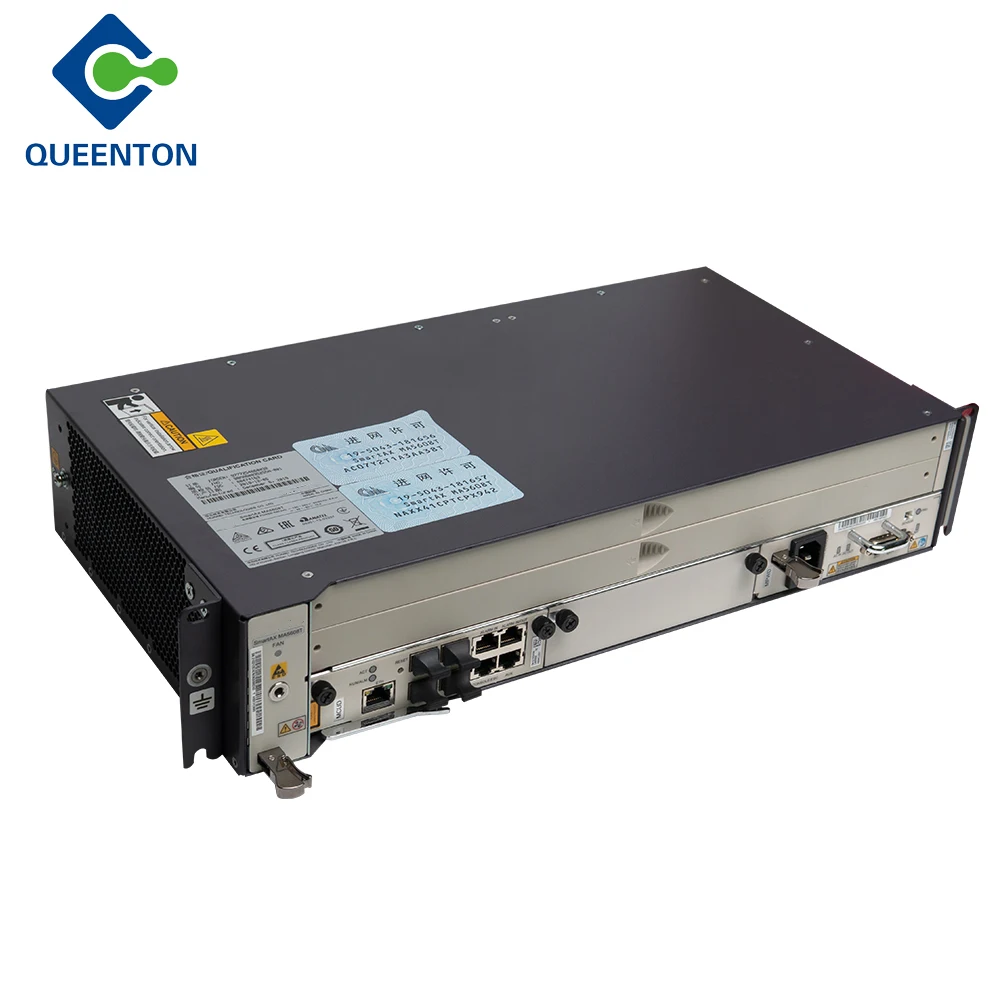

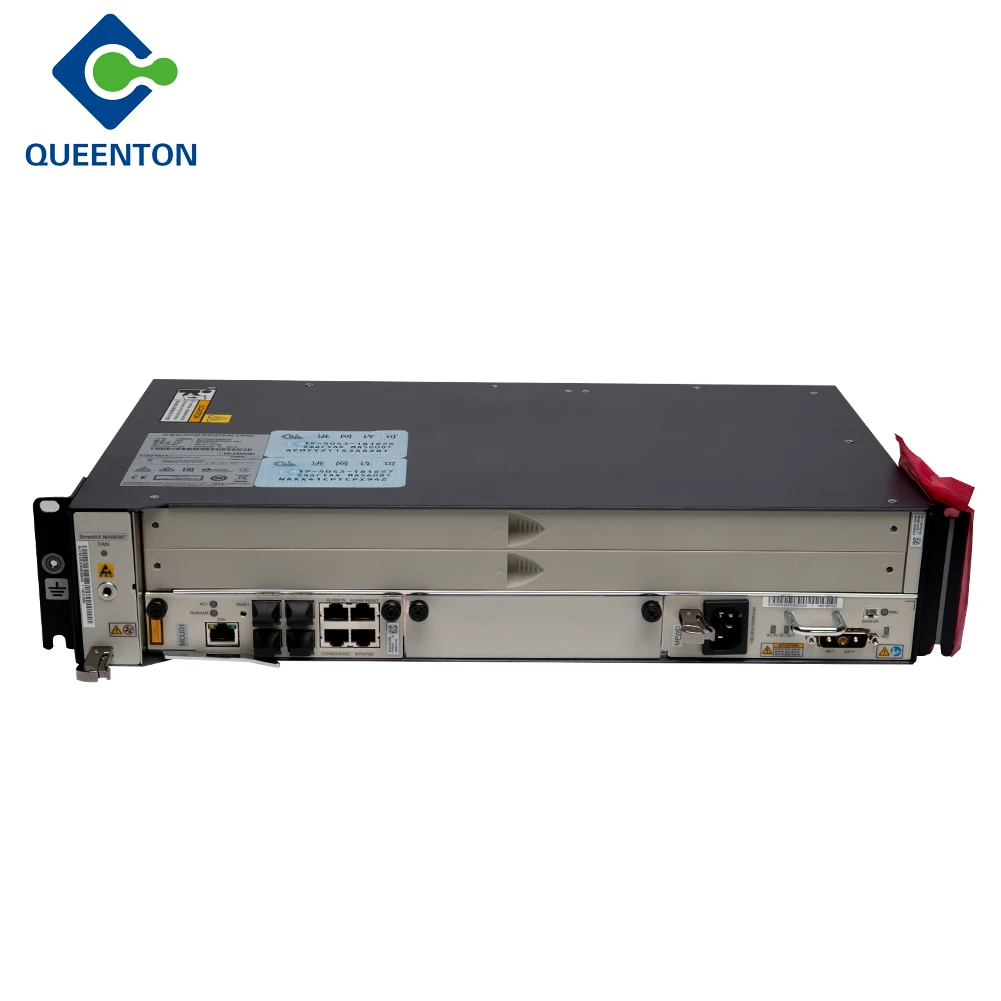

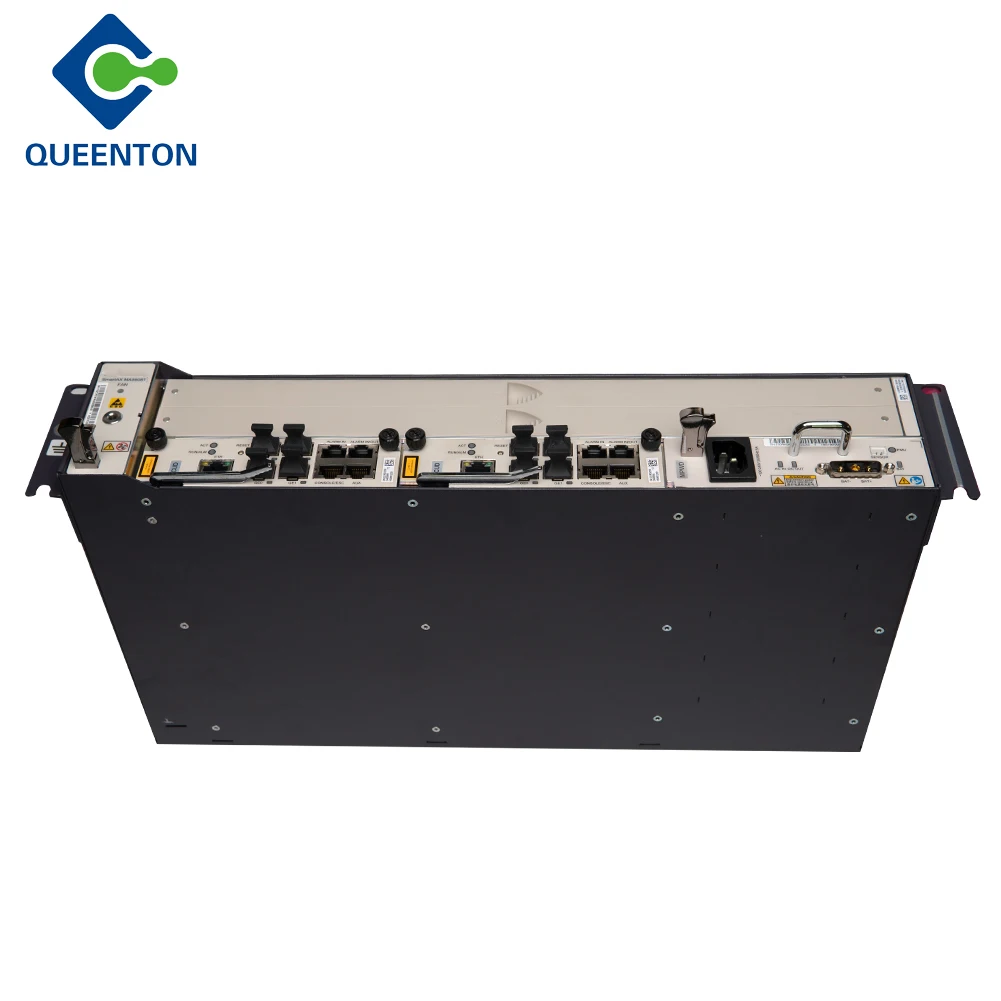

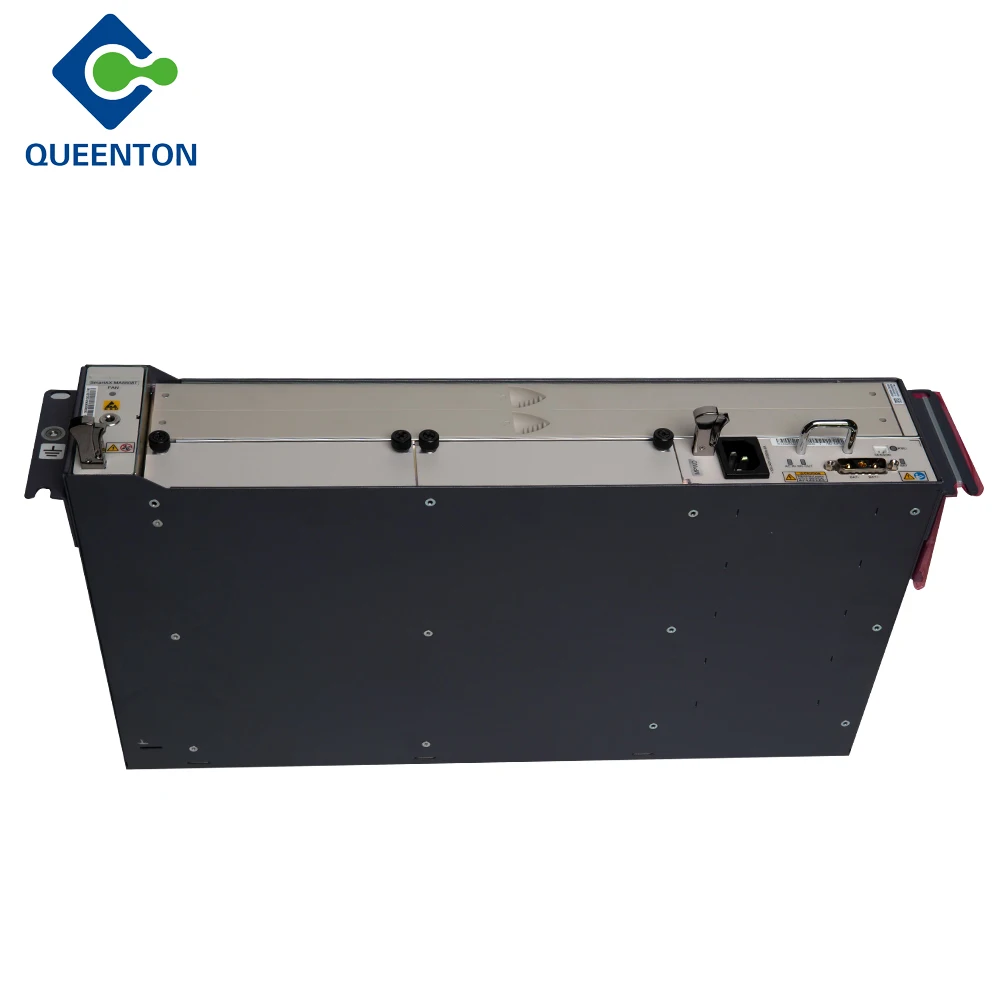

Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
Поделиться:
Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-16-2025 | 0.41 $* | 0.12 $* |
Aug-16-2025 | 0.90 $* | 0.19 $* |
Jul-16-2025 | 0.94 $* | 0.65 $* |
Jun-16-2025 | 0.3 $* | 0.55 $* |
May-16-2025 | 0.16 $* | 0.98 $* |
Apr-16-2025 | 0.49 $* | 0.1 $* |
Mar-16-2025 | 0.53 $* | 0.94 $* |
Feb-16-2025 | 0.73 $* | 0.67 $* |
Jan-16-2025 | 0.88 $* | 0.26 $* |
Product Description | ||||||||
SmartAX MA5600T, MA5603T, MA5608Ts are Gigabit Passive Optical Network (GPON) integrated optical access products. | ||||||||
This series features the industry’s first aggregation Optical Line Terminal (OLT), integrating ultra-high aggregation and switching capabilities, supporting 3.2T backplane capacity, 960G switching capacity, 512K MAC addresses, and a maximum of 44-channel 10 GE access or 768 GE ports. Lowers Operations and Maintenance (O&M) costs with software versions for all three models that are fully compatible with service boards, and reduces quantities of stock required for spare parts. |
Product Parameter | ||||||
Model No. | MA5680T | MA5683T | MA5608T | |||
Dimension | 490*275.8*447.2mm | 442*283.2*263mm | 442*233.5*88mm | |||
Operating Environment | Temperature:-25℃~55℃ Humidity:5%~95% (non-condensing) | Temperature:-40℃~65℃ Humidity:5%~95% (non-condensing) | Temperature:-40℃~65℃ Humidity:5%~95% (non-condensing) | |||
Power Supply Parameters | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input | |||
Backplane Exchange Capacity | 3.2Tbit/s | 1.5Tbit/s | 720Gbit/s | |||
Control Board Exchange Capacity | 1920 Gbit/s | 960Gbit/s | 512Gbit/s | |||
Access Capacity | 128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE | 48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE | 16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE | |||
Access Type | Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface | |||||
System Performance | Layer 2/ Layer 3 wire -speed forwarding Support static router /RIP/OSPE.MPLS BITS/E1/STM- 1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting ratio Maximum support 60KM logical distance |
Product Feature and Application | ||
Aggregate Access | Ultra high convergence switching capacity, 3.2T backplane capacity, 1920G switching capacity, 512G MAC address capacity | |
Ultra-high density cascade capability, maximum support for 44 channel 10GE or 768 GE access, no additional investment aggregation switch | ||
Highly reliable networking capabilities, support OLT dual hot backup, of-site capacity, upgrade business is not interrupted | ||
Complete QoS function, support traffic classification management, priority control, with paragraph control. H-QoS functions to meet SLA requirements for diverse business customers | ||
End-to end high reliability design, uplink support BFD/Smart Link/L ACP redundancy protection, support EPON Type B 1 Type D and GPON Type B 1 Type C line protection | ||
A variety of E1 line access, support Native TDM or CESoP 1 SATOP function | ||
Support E LAN function to achieve internal traffic flow based on VLAN to meet the enterprise and campus network applications | ||
Support IPTV users without convergence access, single -frame support 8000 multicast users and 4000 multicast channels | ||
EPON 1 GPON/ 10G PON 1 40G PON common platform to support smooth evolution, to meet the ultra wide band access | ||
Support IPv4 / IPv6 dual stack, support IPv6 multicast, to achieve the smooth evolution of IPv4 to IPV6 | ||
Unique chip technology, high-density 16 port GPON board power consumption does not exceed 73W | ||
Support free board automatic power, fan intelligent speed, effectively reduce the idle power consumption |
