Автоматический Электрический оператор раздвижных ворот на солнечной батарее 24 В постоянного


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.64 $* 0.7 $*
Aug-18-2025 0.79 $* 0.22 $*
Jul-18-2025 0.72 $* 0.5 $*
Jun-18-2025 0.81 $* 0.76 $*
May-18-2025 0.61 $* 0.3 $*
Apr-18-2025 0.26 $* 0.76 $*
Mar-18-2025 0.69 $* 0.4 $*
Feb-18-2025 0.26 $* 0.41 $*
Jan-18-2025 0.87 $* 0.81 $*

Характеристики

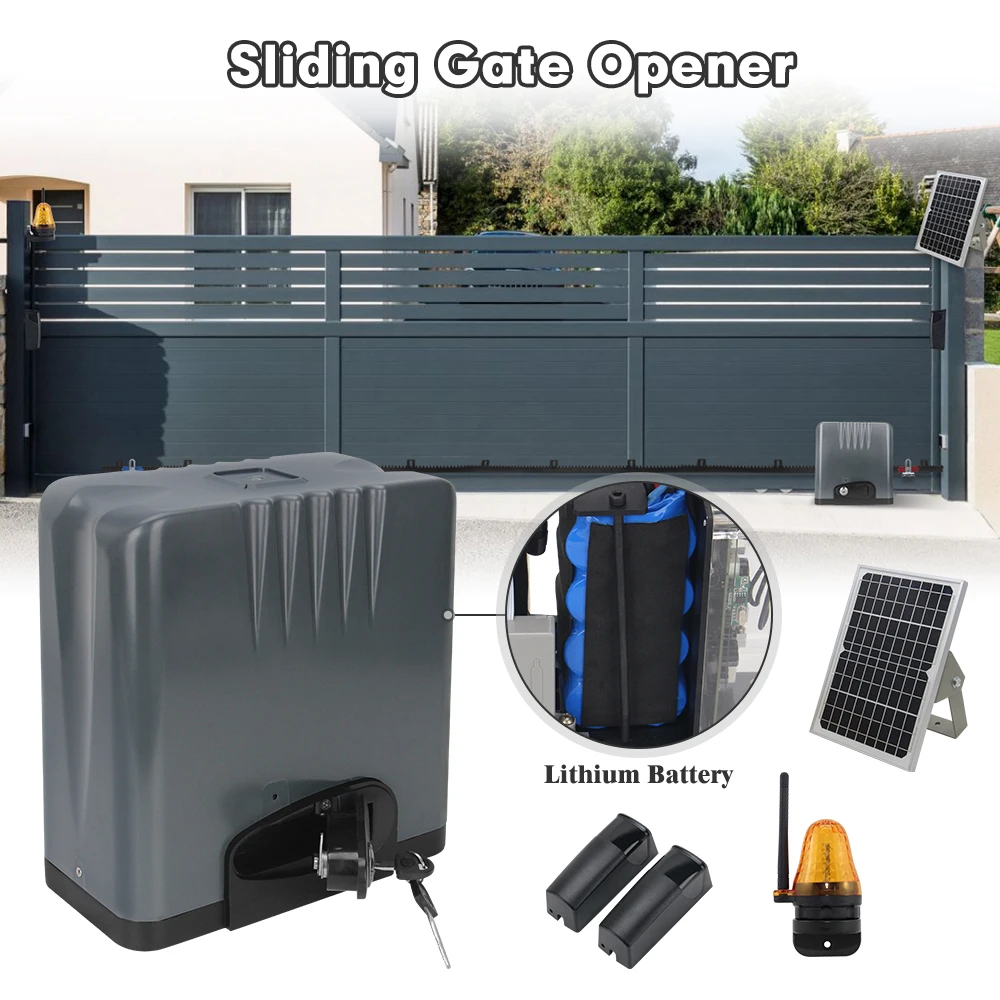

Solar Powered DC 24V Automatic Door Electric Sliding Gate Operator






Features





features of automatic sliding gate opener :


1. AC/DC motor with built in control panel


2. Built in manual override with 2 supplied unqique override keys in case of emergency or power failure.


3. All metal gears make it durable and long lasting.


4. Soft start and soft stop.


5. Resistance sensitivity and auto-closing delay time adjustable.


6. Stop/reverse in case if obstruction during gate opening/closing.


7. Reliable mechanical spring limit or magnetic limit optional.


8. Aluminium alloy base make it available for all kinds of bad weather.


9. Back up battery and solar system are available for DC sliding.


10. 12 months guarantee; lifelong post sales service.








Product Description




























































Model NoPYM-B024-ZLYTJ (including back up battery and transformer)
Rated voltage220VAC/110VAC
Electronic motor24VDC
Rated motor power380W
Gear modulusM=4
Max loading weight1000KG
Open/close speed16m/min
Driving modegear
Output speed50r/min
Output torque(N.m)14N.m
Limit switch typeMagnetic
Max pull force1100N
Working temperature-20°C~+55°C




B+-6B+-7B+-8B+-10B+3B+5 (4)














Control Panel


DC-EG-32-2DC-EG-32-1


Features overview





1. Power Supply: AC 12V/24V, available for connecting external 12V battery and battery charging, 16V
output for external power supply.
2. Application Range: applied for DC motor of sliding door.
3.Transmitter Encoder: Custom rolling code with maximum capacity of 30PCS transmitter.
4. Motor: 24V DC Motor
5. Features: the limit function; resistance function, resistance sensitivity adjustable, fast and slow 2 speed
running; fast running speed adjustable; motor automatically protected time 60s; auto-closing function can be
set on/off optionally; automatic closing time adjustable; control panel single button control; available for
connecting photocell, once the obstacle sensed by photocell while the door is closing, the door will stop and
bounce back to open state; opening the door by swiping card.








Company Information


We are leading manufacture and trading company in electronical industry for more than 15 years also have a professional R&D team.With years of export experience along with excellent quality, advanced services and competitive prices, GIANT has won numerous customers' trust and support.


333666555exhibition-6








Packaging & Shipping


Port of export: Xiamen or other port based on your requirement.
Guarantee time: 1 year.
The delivery deadline:1 days delivery after receive your payment for sample.
The package: One set in a one carton











FAQ





1. What should I know before ordering?


The length and weight of your gate door.





2. May I have samples for testing?


Yes, samples are available. The lead time will be 2-3 days for samples.





3. What's the MOQ ?


MOQ 1PCS.





4. How to pay for samples, and how you delivery it?


Samples can be paid by Western union, PayPal, Alibaba. Delivery by DHL, UPS or TNT, if you want to know the cost of delivery, please offer your detailed address with post code. Samples will be delivered within 3 working days, bulk orders within 25 working days.
