OEM XM 4CH 1080P Starlight наружная домашняя система видеонаблюдения XMEYE 2MP AHD проволочная цилиндрическая камера CCTV DVR
- Категория: Surveillance Systems >>>
- Поставщик: Shenzhen,Meinaan,Electronic,Techonology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 62.14 $* | 65.91 $* |
| Aug-16-2025 | 61.65 $* | 64.43 $* |
| Jul-16-2025 | 51.56 $* | 54.82 $* |
| Jun-16-2025 | 60.84 $* | 63.47 $* |
| May-16-2025 | 53.0 $* | 56.71 $* |
| Apr-16-2025 | 59.80 $* | 62.16 $* |
| Mar-16-2025 | 59.98 $* | 62.6 $* |
| Feb-16-2025 | 58.85 $* | 61.30 $* |
| Jan-16-2025 | 58.97 $* | 61.52 $* |
Характеристики
Specification
AHD Camera Specification | ||
system structure | Embedded RTOS design, dual-core 32-bit DSP (XM530AI), pure hard compression, watchdog | |
sensor | 2MP 1/2.7" CMOS sensor, color 0.1Lux@F1.2, black and white 0.01Lux@F1.2 | |
Video processing | H.264encoding, dual stream, AVI format; stream 0.1M~6Mpbs adjustable | |
Image output | Main stream: 1920*1080@12fps; 1920*720@12fps；auxiliary stream: 640*360@12fps | |
shutter | 1/50 (1/60) second to 1/10000 second | |
Lens | 3.6mm | |
Day and night conversion mode | Support IR-CUT, IR-CUT coil internal resistance 20 ohms, power-on time is less than 200ma, voltage 3.5V-6V | |
Noise reduction | Support 2D/3D noise reduction | |
Wide dynamic | Support wide dynamic | |
Auto iris | no | |
Audio processing | G.711A codec standard, support two-way voice intercom function, support audio and video synchronization(customizable) | |
Extension ports | no | |
Signal interface | 1 photoresistor interface, 1 IR-CUT drive interface, supporting the linkage of photoresistor input signal with IR-CUT and infrared lamp | |
PTZ interface | no | |
Motor interface | no | |
Alarm I/O | no | |
Reset button interface | no | |
SD card | no | |
reliability | Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65℃ high temperature test is stable and reliable | |
ONVIF | not support | |
power supply | Power supply: DC12V | |

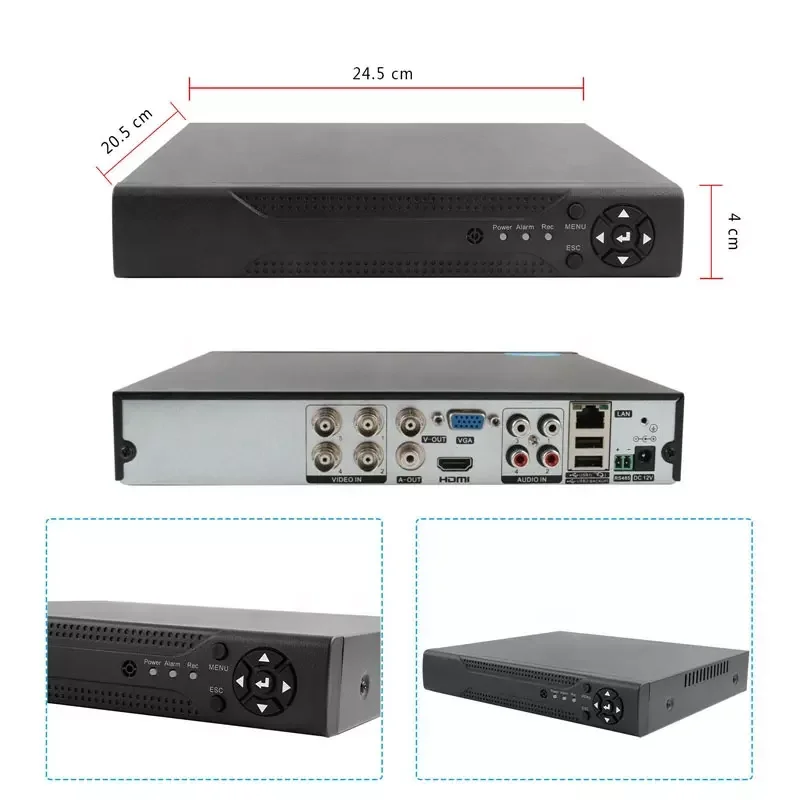

4CH DVR Specification | ||
Main processor | XM8536D | |
operating system | Embedded LINUX operating system | |
system resource | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation, USB backup | |
Operation interface | 16-bit true color graphical menu operation interface, support mouse operation | |
Screen display | 1/4/6/8 screen | |
Video access mode | 4/8CH 5M/3M/2M/1M | |
Image decoding | H.264 AHD/CVI/TVI/CVBS | |
Monitor quality | 2592*1944@12fps 2304*1296@12fps/1920*1080@12fps/1920*720@12fps | |
(Support 1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600) | ||
Playback quality | 5M/3M | |
Decoding ability | 4/8CH 5M/3M/2M/1M | |
VR | not support | |
Humanoid face detection | Support (rely on front-end camera) | |
Audio compression | G.711A | |
Language intercom | stand by | |
Video mode | Manual>Alarm>Motion Detection>Timing | |
Local playback | 5M/3M/2M/1M | |
Video query | Time point search, calendar search, event search, channel search, face search | |
Video save | Local hard disk, network | |
Backup method | Network backup, USB mobile hard disk, USB burning, SATA burning | |
Video output | 1 HDMI high-definition output, 1 VGA output | |
Audio I/O | 1/1 (3.5MM interface) | |
Alarm I/O | 0/0 | |
Network Interface | 1 RJ45 10M/100M adaptive Ethernet port, 4/8 channel wifi | |
USB interface | 2 USB2.0 ports (reserve 1 front port) | |
Hard disk interface | 1 SATA interface (each supports up to 14T) | |
ESATA | no | |
Serial interface | no | |
ONVIF | Optional support | |
power supply | 12V/2A | |
Power consumption | <10W (without hard disk) | |
working environment | Temperature: 0℃-＋55℃, humidity: 10%-90% RH, atmospheric pressure: 86kpa-106kpa | |
Product Description
Highlights
(1) 2MP AHD CCTV System

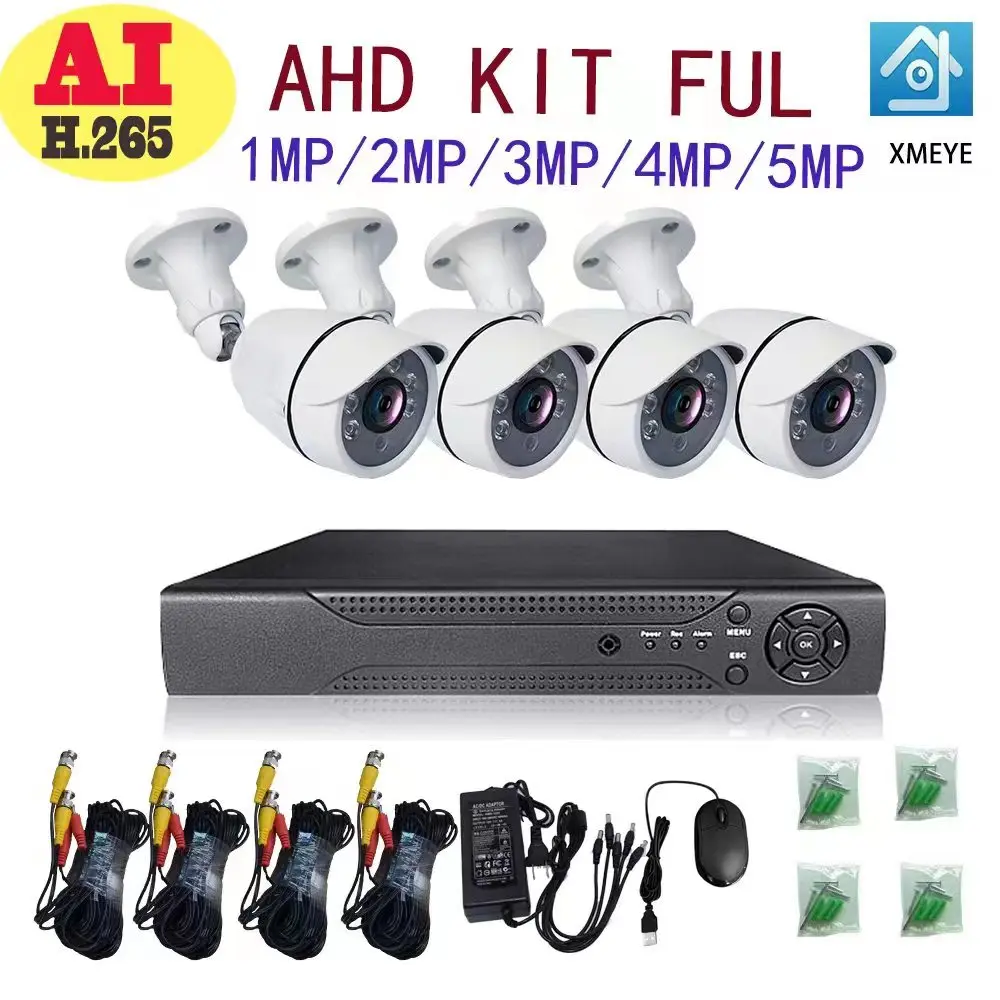

(2) 4 AHD Cameras + 4CH DVR
(3) Support OEM services like logo and customized package and manual for bulk order
(4) Optional 12V US/EU/UK/AU Power Supply
